Animating time series on a map using Solar Analytic data and R’s gganimate package!

Objectives

  • Find package that can easily create time series animations on a map
  • Animates up to a day’s worth of 5-minute data
  • Handles 1000 + sites
  • Shows chosen areas on a basic map — determined by input of longitude and latitude coordinates
  • Ability to control the speed of the animation
  • Saves animation as a gif

Sample Data

I created the following data frame in Python:

Input data can be accessed here: https://gist.github.com/claudiasolar/77d5bd6f59d18ea708a3ef31f3351f28
  • lon, lat: GPS coordinates of this site. NOTE: I have added noise to these fields for privacy purposes.
  • t_stamp: 5-minute time stamps for each site between 7am and 8pm on the 2/3/2018.
  • energy _norm: normalised values of energy produced in each time stamp on a scale of 0 to 1.
  • over_voltage: Whether or not the network voltage at the site was above the specification (voltage > 253 V) in that time stamp.

Required Packages

library(readr)library(dplyr)library(ggplot2)library(ggthemes)library(gganimate)

Main Aspects of Function

Arguments

  • df: data frame with all required information
  • location_id (column reference): indicates column to order df by, such that the animation recognises which points correspond to one another. E.g. df$site_id
  • time_stamp (column reference): indicates column of time to iterate frames over
  • colour_col (column reference): indicates column which point colour is based off, this is what we are trying to graph e.g. df$energy_norm or df$over_voltage
  • selected_title (string): title of animated map e.g. ‘Energy Generated’ or ‘Over Voltage’
  • point_colours (vector): gives colours of points on map or colours to define a colour scale e.g. c(‘#7a4eb7’, ‘#FF6100’) or c(‘#000000’, ‘#fec533’, ‘#fec533’, ‘#fec533’, ‘#f99f1e’, ‘#f99f1e’, ‘#f99f1e’, ‘#FF6100’, ‘#FF6100’, ‘#F90707’, ‘#F90707’)
  • num_frames (integer): The number of frames to render (default 100), e.g. 280
  • dur (integer): The length of the animation in seconds (unset by default) e.g. 50.
  • latitude_lim (vector of length = 2): governs longitude shown on map e.g. c(20, 40)

Order df

It is extremely important to correctly order your data frame. I have included the argument location_id in the function so that the df input is appropriately ordered:

df = df[order(location_id),]
location_id = df$energy_norm
location_id = df$site_id

Create Map

  • Choose general map location
  • dictate colour of map
  • Choose gps coordinates to determine area covered by map,
  • Add and edit titles and legend aesthetics
base_map <- ggplot() +
            borders("world", region = 'Australia',
                    colour = "gray85", fill = "gray80") +
            theme_map() +
            coord_fixed(xlim = longitude_lim, ylim = latitude_lim) +
            labs(title = selected_title,
                 subtitle = '{closest_state}') +
            theme(plot.title = element_text(hjust = 0, size = 14,
                                            lineheight = .5),
                  plot.subtitle = element_text(hjust = 0, size = 12,
                                               lineheight = 0),
                  legend.position = c(0,.1),
                  legend.title = element_blank(),
                  legend.text = element_text(size = 12))

Determine colouring of points on map

  • If colour_level is a column of characters than point_colours should contain as many distinct colours as there are distinct entries in this column so that it may map a colour to each unique entry.
  • the first and last colour in vector point_colours are used to create a colour scale if colour_level is a column of integers
colour_length = length(point_colours)if (typeof(colour_col) == 'character') {
  coloured <- scale_color_manual(values = point_colours)
}
else {
  coloured <- scale_color_gradientn(colours = point_colours)
}

Animate Map

  • combine base_map, coloured, geom_point from ggplot2 and transition_states from gganimate to create our animation
  • alpha argument in geom_point specifies transparency of points
  • transition_length argument in transition_states determines the relative length of the transition.
  • animate from gganimate controls animation speed and length
anim <- base_map +
        coloured +
        geom_point(aes(x = lon, y = lat, color = colour_col),
                   data = df, alpha = .5) +
        transition_states(state_col, transition_length = 0)anim <- animate(anim, nframes = num_fr, duration = dur

Examples

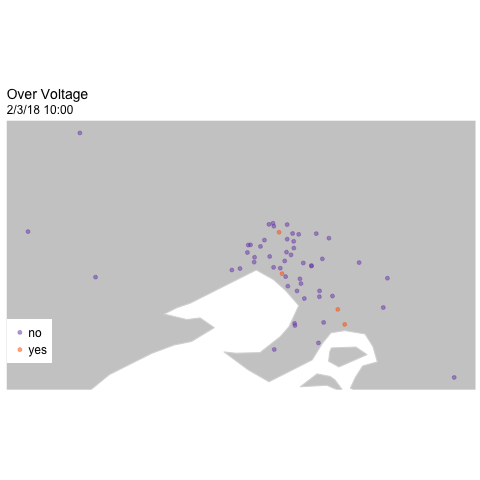

  • Melbourne Over Voltage
animated_map(df = be,
             order_col = be$site_id,
             state_col = be$t_stamp,
             colour_col = be$over_voltage,
             selected_title = 'Over Voltage',
             point_colours = c('#7a4eb7', '#FF6100'),
             num_fr = 280,
             dur = 50)

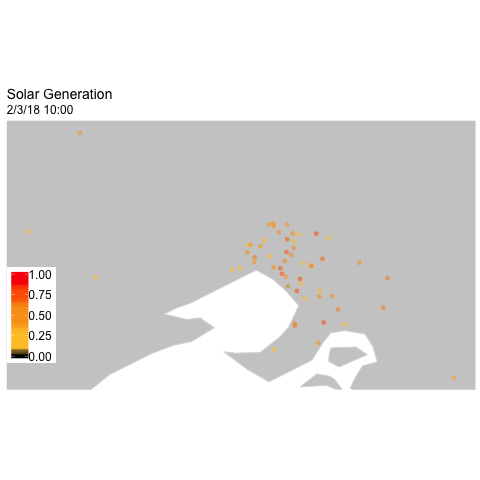

animated_map(df = be,
             order_col = be$site_id,
             state_col = be$t_stamp,
             colour_col = be$energy_norm,
             selected_title = 'Solar Generation',
             point_colours = c('#000000', '#fec533', '#fec533',
                               '#fec533', '#f99f1e', '#f99f1e',
                               '#f99f1e', '#FF6100', '#FF6100',
                               '#F90707', '#F90707'),
             num_fr = 280,
             dur = 50)

Saving Animation

Save the last animation created as a gif:

anim_save(‘/example.gif’)

Entire Function

animated_map = function(df,
                        order_col,
                        state_col,
                        colour_col,
                        selected_title,
                        point_colours,
                        num_fr,
                        dur,
                        longitude_lim,
                        latitude_lim) {  # ensure df is ordered correctly
  df = df[order(order_col),]  # Check for longitude and latitude limits
  # if missing automatically set them
  if (missing(longitude_lim)) {
    longitude_lim = sort(c(max(df$lon), min(df$lon)))
  }
  if (missing(latitude_lim)) {
    latitude_lim = sort(c(max(df$lat), min(df$lat)))
  }  # create basic map, dictate colour of map, area covered by map,
  # labels and label aesthetics
  base_map <- ggplot() +
              borders("world", region = 'Australia',
                      colour = "gray85", fill = "gray80") +
              theme_map() +
              coord_fixed(xlim = longitude_lim, ylim = latitude_lim)
              +
              labs(title = selected_title,
                   subtitle = '{closest_state}') +
              theme(plot.title = element_text(hjust = 0, size = 14,
                                              lineheight = .5),
                    plot.subtitle = element_text(hjust = 0,
                                                 size = 12,
                                                 lineheight = 0),
              legend.position = c(0,.1),
              legend.title = element_blank(),
              legend.text = element_text(size = 12))  # determine colouring of points on map
  colour_length = length(point_colours)
  if (typeof(colour_col) == 'character') {
    coloured <- scale_color_manual(values = point_colours)
  }
  else {
    coloured <- scale_color_gradientn(colours = point_colours)
    #low = point_colours[1], high = point_colours[colour_length])
  }  # combine previous map lists, add points to map and animate
  anim <- base_map +
          coloured +
          geom_point(aes(x = lon, y = lat, color = colour_col),
          data = df, alpha = .5) +
          transition_states(state_col, transition_length = 0)

  # animate map
  anim <- animate(anim, nframes = num_fr, duration = dur)  return(anim)
}
