Black Hole Entropy and the Laws of Thermodynamics

The Remarkable Similarities Between the Black Holes Mechanics and Laws of Thermodynamics

Marco Tavora Ph.D.
Apr 11 · 10 min read
Image for post
Image for post
Figure by acharyahargreaves/shutterstock.com

The Mexican-born Israeli-American theoretical physicist J. Bekenstein was the first one to suggest that black holes, a region of spacetime where gravity is so strong that not even light can escape from it, should have a well-defined entropy. According to Bekenstein, one can define black-hole entropy as follows:

Image for post
Image for post
Figure 1: The Bekenstein-Hawking entropy is the entropy ascribed to a black hole. Its value is proportional to A/4 where A is the area of the event horizon (source). The Israeli-American theoretical physicist Jacob Bekenstein was the first one to suggest that black holes should have a well-defined entropy (source).

Why Black Holes Have Entropy?

In an article by Bekenstein, he provided three possible ways to justify the existence of black hole entropy:

  • The matter and radiation that collapse to form a black hole are hidden to exterior observers. Hence, such observers cannot provide a thermodynamic description of the black hole’s collapse that is based on the entropy of the collapsed matter and radiation since those are not observable. A way to explain the thermodynamics would be to associate entropy to the black hole.
Image for post
Image for post
Figure 2: Gravitational collapse leading to the formation of a black hole (source).
  • Only three numbers are needed to parametrize a stationary (not to be confused with static) black hole: its mass M, charge Q, and angular momentum J (see the no-hair theorem). Since there are several possible formation scenarios for a black hole with a specific choice of these three parameters, there must be several possible internal states associated with it. We know that thermodynamic entropy quantifies the many microstates compatible with a given macrostate (characterized by quantities such as temperature T, pressure P, and volume V). In the case of the black hole, the macrostate is characterized by the tuple (M, Q, J). Quoting Bekenstein, “Thermodynamic entropy quantifies […] multiplicity. Thus by analogy, one needs to associate entropy with a black hole”.
Image for post
Image for post
Figure 3: A microstate is a particular microscopic configuration that a thermodynamic system may occupy (with a certain probability). A macrostate refers to its macroscopic properties, characterized by a few parameters such as its temperature, pressure, and volume.
  • The black hole hides information. All information black holes provide are (M, Q, J), and it blocks all signals that enter it. Since we know from basic statistical mechanics that entropy measures missing information, this suggests that black holes have entropy.
Image for post
Image for post
Figure 4: All three different shaped “stars” collapse without preserving its properties. After the collapse, the first hole has no magnetic field, the second hole is not a square and the third hole does not have a mountain on its surfaces (source).

The Black Hole Formula for the Entropy

It is reasonable to suppose that the entropy of a black hole should depend only on one or more of the three observable quantities, M, Q and J. According to the area theorem, the area of the event horizon of a black hole cannot decrease. This reminds us of the behavior of the ordinary thermodynamic entropy of closed systems. Therefore, it makes sense to suppose that the entropy of the black hole is a monotonic increasing function of the area of the event horizon.

Now, one can show (to be discussed later) that a black hole that obeys “a version” of the first law of thermodynamics possesses an entropy that is proportional to the area of the event horizon. More specifically, if the area of the event horizon is given by A, the black hole entropy is

Image for post
Image for post
Equation 1: The entropy of a black hole is proportional to the area A of its event horizon (in this expression, all physical constants were set to 1).

where we used natural units (physical constants set to 1).

Image for post
Image for post
Figure 5: The entropy of a black hole S is proportional to the area A of its event horizon(source).

Types of Black Hole

There are four main types of black holes:

In the following, I will briefly describe Schwarzschild black holes and Kerr-Newman black holes. The former is the simplest type of black hole and the latter is the most general. For a more detailed description see Carroll.

The Schwarzschild Black Hole

The Schwarzschild black hole is stationary and spherically symmetric with only one parameter, its mass M. The Schwarzschild line element in spherical coordinates reads:

Image for post
Image for post
Equation 2: The Schwarzschild line element in spherical coordinates.

Changing from spherical to a new set of coordinates called Eddington–Finkelstein coordinates, one finds that r = 2M is not a real spacetime singularity. The only singularity of the Schwarzschild black hole is at the center r=0. The radius of the event horizon is r = 2M and its surface area and corresponding entropy are given by:

Image for post
Image for post
Equation 3: The area of the event horizon and the corresponding entropy of the Schwarzschild black hole.
Image for post
Image for post
Figure 6: A Schwarzschild black hole. The figure on the right shows an accretion disk which is formed by diffuse material that orbits massive central bodies. The photon sphere (also known as last photon orbit) is a region of space where gravity forces photons to travel in orbits (source).

Kerr-Newman Black Hole

The Kerr-Newman black hole is the most general type of stationary asymptotically flat black hole. Note that stationary and static are different concepts. The Kerr-Newman black hole is spinning (hence it is not static) but it always spins in the same way, and is, therefore, stationary. The Kerr-Newman black hole has three parameters, namely, M, interpreted as the mass of the black hole (as seen by an observer at infinity), charge Q, and J, interpreted as its angular momentum (it is axisymmetric). It is a generalization of the Kerr black hole which has Q=0. In contrast to the Schwarzschild black hole, the horizon of the Kerr-Newman black hole is not spherical.

In the Boyer-Lindquist coordinates (t,r,θ,ϕ) the line element reads:

Image for post
Image for post
Equation 4: The Kerr–Newman line element expressed in Boyer–Lindquist coordinates.

where:

Image for post
Image for post
Equation 5: The parameters in the Kerr–Newman black hole metric.

where θ is the polar angle in spherical coordinates. We also need to know the electromagnetic field tensor for the solution of the Einstein field equations to be obtained. In the Boyer-Lindquist form, the electromagnetic field tensor reads:

Image for post
Image for post
Equation 6: The Maxwell tensor for the Kerr–Newman black hole.

The equations of motion of a test particle with charge per mass q orbiting around the Kerr–Newman black hole are given by:

Image for post
Image for post
Equation 7: The equations of motion of a test particle with charge q orbiting around the Kerr–Newman black hole.

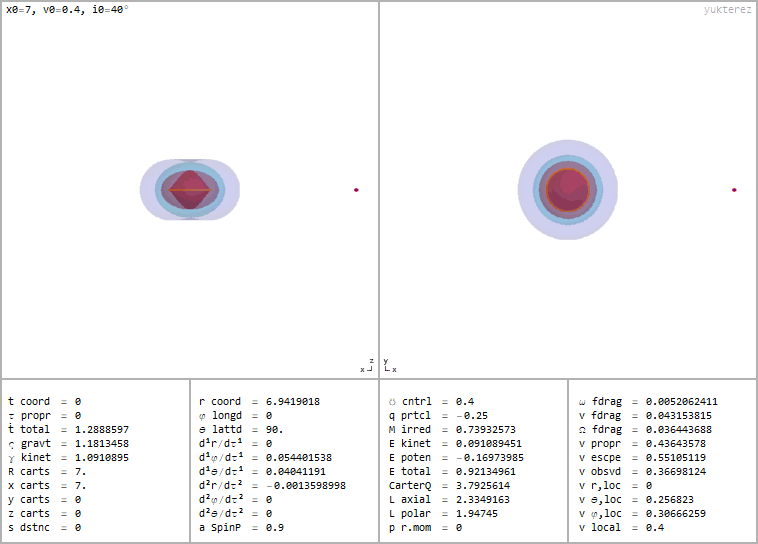

Note that the equation of motion depends on the Christoffel symbols Γ. The animation below illustrates the motion of the test particle.

Image for post
Image for post
Figure 7: A test particle orbiting a Kerr-Newman black hole (source).

The area of the event horizon of the Kerr-Newman black hole is given by:

Image for post
Image for post
Equation 8: The horizon area of the Kerr-Newman black hole.

We note here that though the horizon of the Kerr–Newman black hole is not spherical anymore, in the Boyer-Lindquist coordinates it still lies at a fixed radial coordinate allowing Eq. 8 to be calculated in a simple way (see Bekenstein).

Important Surfaces of the Kerr–Newman Black Hole
As shown in Fig.8, the Kerr–Newman metric has the following important surfaces:

  • The inner and outer event horizons:
Image for post
Image for post
Equation 9: The inner and outer event horizons.
Image for post
Image for post
Equation 10: The inner and outer ergosphere.

where θ is the polar angle in spherical coordinates.

Image for post
Image for post
Figure 8: The figure shows the horizons around a Kerr black hole (the uncharged version of the Kerr-Newman black hole). Event horizons (inner and outer) define null surfaces past which it is impossible to return to particular regions of space. The stationary limit surface (upper right of the figure) is timelike (except at the poles). Beyond it, an observer cannot stay stationary. The ergosphere is a region where it is possible to transit in and out (but not stay stationary).

The Laws of Black Hole Thermodynamics

I will first consider the first, second and third laws of black hole thermodynamics and then examine the zeroth law.

The First Law of Thermodynamics

When a thermodynamic system at temperature T is near its equilibrium and changes its state, the following relation holds between the corresponding increments of energy E and entropy S:

Image for post
Image for post
Equation 11: The first law of thermodynamics. Here dW is the work performed on the system.

If the system is under rotation with angular frequency Ω and it is charged up to an electric potential Φ, its angular momentum and charge will vary. The first law Eq. 9 will then become:

Image for post
Image for post
Equation 12: The first law of thermodynamics when the system is rotating with angular frequency Ω and it is charged up to an electric potential Φ.

Black holes admit a relation analogous to Eq. 12. To explain it I will consider only the Kerr-Newman black hole type since, as mentioned before, it is the most general (asymptotically flat) type of stationary black hole.

Now consider Eq. 8 for the area of the Kerr-Newman black hole horizon, calculate dA and multiply it by the parameter Θ below. We obtain the following relation between the dM, dJ and dQ:

Image for post
Image for post
Equation 13: Relation between increments in mechanical and geometrical properties of black holes.

where:

Image for post
Image for post
Equation 14: Values of the coefficients of dM, dJ, and dQ in Eq. 13.

The quantities above:

Image for post
Image for post
Equation 15: Angular rotation frequency and electric potential of the black hole.

are respectively:

  • The angular rotation frequency of the black hole (any test body dropped into the black hole close to the horizon, ends up circumnavigating it at this frequency).
  • The black hole’s electric potential (the line integral of the black hole’s electric field from ∞ to the horizon).

Since the first term of the right-hand side of Eq. 13 is the energy of the black hole, Eq. 13 is very similar to the first law of ordinary thermodynamics. For Eq. 13 to be the first law of black hole thermodynamics the entropy must be a univariate function of the area of the event horizon which would imply that:

Image for post
Image for post
Equation 16: Condition for Eq. 13 to be the first law of thermodynamics for black holes.

Now, if we choose the entropy of the black hole to be Eq. 1, we find the following expression for the temperature of the black hole:

Image for post
Image for post
Equation 17: Temperature of the black hole with the choice of entropy S given by Eq. 1.

For Q=J=0 this becomes:

Image for post
Image for post
Equation 18: Temperature of the Hawking radiation.

But in 1974, it was shown that a black hole spontaneously emits thermal radiation precisely with this temperature, the so-called Hawking temperature.

Image for post
Image for post
Figure 9: The English theoretical physicist Stephen Hawking, who published in 1974 a paper where he calculated the temperature of the (now-called) Hawking radiation emitted by a black hole (source).

Though in Hawking’s original paper, Eq. 18 was obtained, the temperature in the presence of charge Q and angular momentum J was later shown to be equal to Eq. 17.

The Generalized Second Law of Black Hole Thermodynamics

According to standard thermodynamics, the second law demands that the entropy of a closed system must never decrease:

Image for post
Image for post
Equation 19: The second law of thermodynamics.

Since conventional systems that fall into a black hole become unobservable, so does their entropy. A more useful law is then obtained if one generalizes the second law of thermodynamics as follows:

Image for post
Image for post
Equation 20: The generalized second law of thermodynamics.

Hence, according to the generalized second law (GSL), the variation of the standard entropy S₀ outside the black hole summed with the variation of the total entropy of the black hole must never be negative. When the entropy of matter enters the black hole, the GSL demands that the increase in the entropy of the black hole must more than compensate for the decrease of the entropy from sight.

While the black hole is emitting radiation, there is a decrease in the black hole’s area, which violates the area theorem we discussed previously. Such violation happens because the energy condition assumed by the theorem fails due to the presence of the quantum fluctuations which themselves produce the radiation. The generalized second law predicts that the entropy of the outgoing radiation shall more than compensate for the black hole entropy drop.

The Third Law of Black Hole Thermodynamics

The third law of standard of thermodynamics can be stated in two ways:

  • Unattainability statement: For a system to be taken to T=0 an infinite number of steps is needed.
  • The Nernst-Simon statement: At T=0 the entropy of a system can either go to zero or become independent of the intensive thermodynamic properties such as pressure, magnetic field or the electric potential.

From our previous equations for the Kerr-Newman black hole, we find that if the black hole temperature given by Eq. 17 vanishes, two things can happen:

  • The black hole Nernst-Simon third law statement. More specifically, at zero temperature the black hole entropy is not zero and, instead, depends on the ratio J/M, which is related to the black hole’s angular velocity, an intensive parameter.
  • Second, there exists some indication that black holes satisfy the unattainability statement. As found by Thorne (1973), in an astrophysical scenario, the spinning process of an uncharged black hole gets delayed at J/M≈0.998M, before the vanishing of the extremality condition is satisfied.

The Zeroth Law of Thermodynamics

According to the zeroth law of thermodynamics, if two systems are in thermal equilibrium with a third system, then they are in thermal equilibrium with each other. Systems in thermal equilibrium have a constant temperature.

Since it can be shown that the surface gravity κ (which equals the acceleration due to gravity close to the horizon times the redshift factor) is constant on the horizon of a stationary black hole it is reasonable to associate it with the temperature T for a normal system.

What Is the Origin of the Black Hole Entropy?

This question still has no definite answer. However, since ordinary entropy is a measure of the multiplicity of microstates corresponding to a single macrostate, such as in Boltzmann formula

Image for post
Image for post
Equation 21: The Boltzmann entropy where W is the number of equiprobable microstates corresponding to a single macrostate.

one is led to wonder what is the meaning of the black hole microstate. Here is a shortlist of some possible interpretations of black hole entropy (for more details see Bekenstein):

  • The black hole entropy counts how many internal states of matter and energy there are (see this article).
  • For a black hole formed by collapse, there is entanglement between the quantum field degrees of freedom external and internal to the horizon. For external observers, the degrees of freedom internal to the horizon are (naturally) not accessible. Hence, in a meaningful state, internal degrees of freedom are traced out.
  • The black hole entropy counts horizon gravitational states. The microstates we are looking for are therefore the states of the gravitational degrees of freedom that reside on the horizon of the black hole.

My Github and personal website www.marcotavora.me have some other interesting material both about physics and other topics such as physics, data science, and mathematics. Check them out!
