Exploratory Data Analysis on StackOverflow Developer Survey 2020

Stack Overflow’s annual Developer Survey has been one of the largest, if not the largest, surveys of coders and programmers worldwide for almost a decade now. In the year 2020, this survey focused on being more representative of the diversity of programmers worldwide and it was taken by approximately 65,000 people.

I will be performing a complete exploratory data analysis on this dataset. This time, I have used a helper library called ‘opendatasets’ to download the required dataset. This library contains a collection of curated datasets and provides a helper function for direct download.

#importing the required library and downloading the required dataset
import opendatasets as od
od.download('stackoverflow-developer-survey-2020')

#checking/verifying if the dataset was downloaded into the directory
import os
os.listdir('stackoverflow-developer-survey-2020')
Using downloaded and verified file: .\stackoverflow-developer-survey-2020\survey_results_public.csv
Using downloaded and verified file: .\stackoverflow-developer-survey-2020\survey_results_schema.csv
Using downloaded and verified file: .\stackoverflow-developer-survey-2020\README.txt





['README.txt', 'survey_results_public.csv', 'survey_results_schema.csv']
#Importing the required libraries
import numpy as np
import pandas as pd
import matplotlib
import matplotlib.pyplot as plt
import seaborn as sns
%matplotlib inline

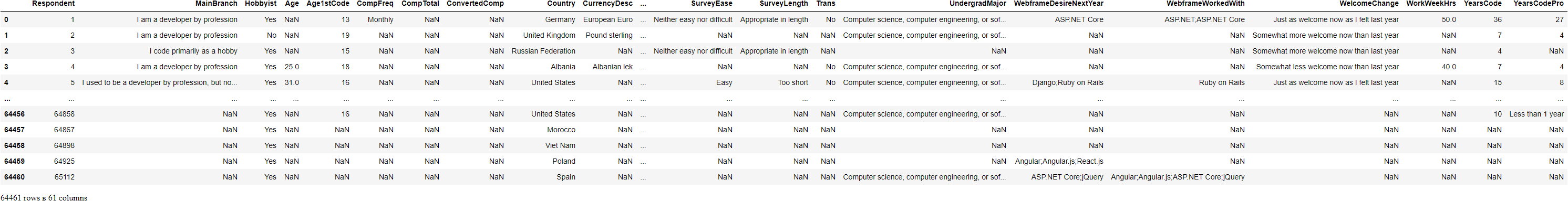

#loading the csv file into a dataframe
survey_rawdf = pd.read_csv('stackoverflow-developer-survey-2020/survey_results_public.csv')

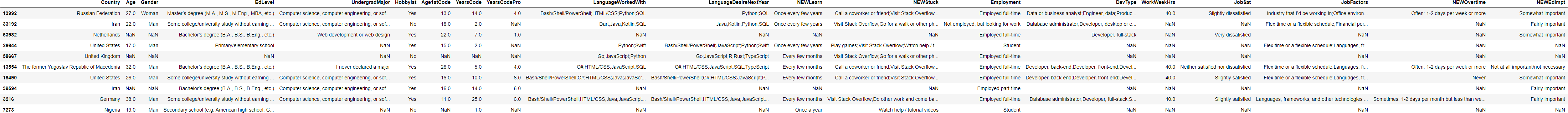

survey_rawdf
png

The dataset contains about 65,000 responses to 61 questions. It seems that the responses have been anonymized in order to remove personally identifiable information. Instead, each respondent has been assigned a randomized respondent ID.

And since shortcuts have been used for the column names, we can view the schema file to view the full text of each question. We can load it as a series, with ColumnName as the index and Question as the value.

schema_srs = pd.read_csv('stackoverflow-developer-survey-2020/survey_results_schema.csv', index_col = 'Column').QuestionText
schema_srs
Column
Respondent Randomized respondent ID number (not in order ...
MainBranch Which of the following options best describes ...
Hobbyist Do you code as a hobby?
Age What is your age (in years)? If you prefer not...
Age1stCode At what age did you write your first line of c...
...
WebframeWorkedWith Which web frameworks have you done extensive d...
WelcomeChange Compared to last year, how welcome do you feel...
WorkWeekHrs On average, how many hours per week do you wor...
YearsCode Including any education, how many years have y...
YearsCodePro NOT including education, how many years have y...
Name: QuestionText, Length: 61, dtype: object

Now I’m ready to move on to the next step, i.e. preprocessing and cleaning my data. Also, it’s obvious that the survey contains tons of information, however, in this analysis, I will focus on the following areas:

  • Demographics of the survey respondents and the global programming community.
  • Distribution of programming skills, experience, and preferences.
  • Employment-related information, preferences, and opinions.

Data Preparation and Cleaning:

This process involves handling missing and invalid data, grouping by certain columns, selecting required columns, and so on.

#selecting a subset of columns with relevant data

selected_columns = [
# Demographics
'Country',
'Age',
'Gender',
'EdLevel',
'UndergradMajor',
# Programming experience
'Hobbyist',
'Age1stCode',
'YearsCode',
'YearsCodePro',
'LanguageWorkedWith',
'LanguageDesireNextYear',
'NEWLearn',
'NEWStuck',
# Employment
'Employment',
'DevType',
'WorkWeekHrs',
'JobSat',
'JobFactors',
'NEWOvertime',
'NEWEdImpt'
]

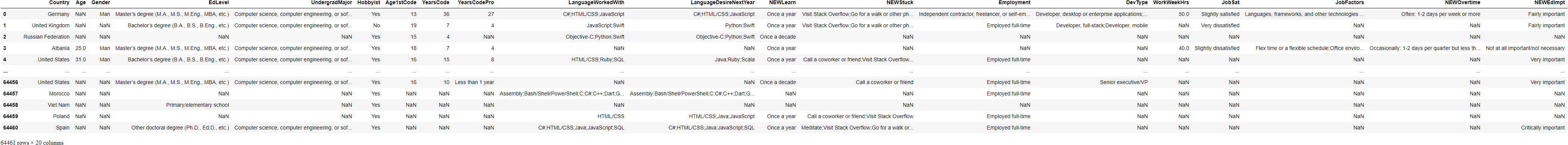

#creating/extracting a copy of the data from these columns into a new data frame so that we can continue to modify further without affecting the original data frame

survey_df = survey_rawdf[selected_columns].copy()
survey_df
png
schema = schema_srs[selected_columns]
schema
Column
Country Where do you live?
Age What is your age (in years)? If you prefer not...
Gender Which of the following describe you, if any? P...
EdLevel Which of the following best describes the high...
UndergradMajor What was your primary field of study?
Hobbyist Do you code as a hobby?
Age1stCode At what age did you write your first line of c...
YearsCode Including any education, how many years have y...
YearsCodePro NOT including education, how many years have y...
LanguageWorkedWith Which programming, scripting, and markup langu...
LanguageDesireNextYear Which programming, scripting, and markup langu...
NEWLearn How frequently do you learn a new language or ...
NEWStuck What do you do when you get stuck on a problem...
Employment Which of the following best describes your cur...
DevType Which of the following describe you? Please se...
WorkWeekHrs On average, how many hours per week do you wor...
JobSat How satisfied are you with your current job? (...
JobFactors Imagine that you are deciding between two job ...
NEWOvertime How often do you work overtime or beyond the f...
NEWEdImpt How important is a formal education, such as a...
Name: QuestionText, dtype: object

Some basic information about our dataframe:

survey_df.shape(64461, 20)

We have 64461 rows(respondents) and 20 columns(questions).

survey_df.info()<class 'pandas.core.frame.DataFrame'>
RangeIndex: 64461 entries, 0 to 64460
Data columns (total 20 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 Country 64072 non-null object
1 Age 45446 non-null float64
2 Gender 50557 non-null object
3 EdLevel 57431 non-null object
4 UndergradMajor 50995 non-null object
5 Hobbyist 64416 non-null object
6 Age1stCode 57900 non-null object
7 YearsCode 57684 non-null object
8 YearsCodePro 46349 non-null object
9 LanguageWorkedWith 57378 non-null object
10 LanguageDesireNextYear 54113 non-null object
11 NEWLearn 56156 non-null object
12 NEWStuck 54983 non-null object
13 Employment 63854 non-null object
14 DevType 49370 non-null object
15 WorkWeekHrs 41151 non-null float64
16 JobSat 45194 non-null object
17 JobFactors 49349 non-null object
18 NEWOvertime 43231 non-null object
19 NEWEdImpt 48465 non-null object
dtypes: float64(2), object(18)
memory usage: 5.4+ MB

Most columns have the data type object(they might contain values of different types or contain empty values (NaN).) Also, we can see that every column contains some empty values since the Non-Null count for every column is lower than the total number of rows(64461) in each case. So we have to deal with empty values and might need to adjust the data type for each column manually on a case-by-case basis.

Similarly, only two of the columns, i.e. Age and WorkWeekHrs were detected as numeric columns. But there certainly are a few other columns that have numeric values like Age1stCode, YearsCode, YearsCodePro. So I will convert these columns into numeric data types. I will ignore any non-numeric values and convert them to NaN.

survey_df['Age1stCode'] = pd.to_numeric(survey_df.Age1stCode, errors='coerce')
survey_df['YearsCode'] = pd.to_numeric(survey_df.YearsCode, errors='coerce')
survey_df['YearsCodePro'] = pd.to_numeric(survey_df.YearsCodePro, errors ='coerce')

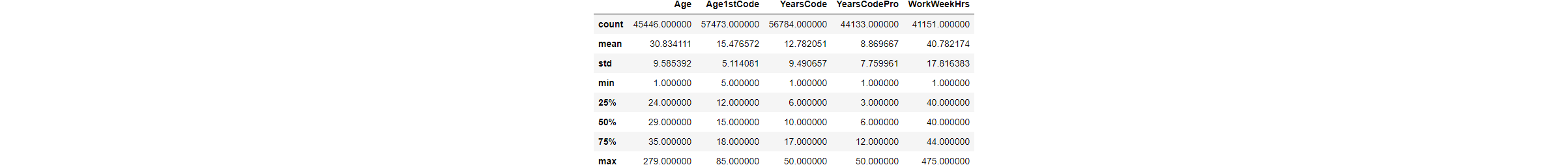

#some basic statistics about our numeric columns
survey_df.describe()
png

As we can see, the minimum value in the Age column is 1 and the maximum value is 279, which is quite unusual. This is a common issue with surveys: responses may contain invalid values due to accidental or intentional errors while responding. A simple fix would be to ignore the rows where the age is higher than 100 years or lower than 10 years as they are invalid survey responses. Similarly, in the case of WorkWeekHrs, let’s ignore the entries where the values for the column are higher than 140 hours(20 hours per day).

survey_df.drop(survey_df[survey_df.Age < 10].index, inplace = True)
survey_df.drop(survey_df[survey_df.Age > 100].index, inplace = True)

survey_df.drop(survey_df[survey_df.WorkWeekHrs > 140].index, inplace = True)
survey_df['Gender'].value_counts()Man 45895
Woman 3835
Non-binary, genderqueer, or gender non-conforming 385
Man;Non-binary, genderqueer, or gender non-conforming 121
Woman;Non-binary, genderqueer, or gender non-conforming 92
Woman;Man 73
Woman;Man;Non-binary, genderqueer, or gender non-conforming 25
Name: Gender, dtype: int64

In the Gender column, I’ll remove the values that contain more than one option to simplify our analysis.

survey_df.where(~(survey_df.Gender.str.contains(';', na= False)), np.nan, inplace=True)

survey_df['Gender'].value_counts()
Man 45895
Woman 3835
Non-binary, genderqueer, or gender non-conforming 385
Name: Gender, dtype: int64

A sample of my dataframe:

survey_df.sample(10)
png

Looks like our dataframe does not need any further cleaning, so moving on to the next step.

Exploratory Analysis and Visualization:

#Setting some styles first

sns.set_style('darkgrid')
matplotlib.rcParams['font.size'] = 13
matplotlib.rcParams['figure.figsize'] = (11, 7)
matplotlib.rcParams['figure.facecolor'] = '#0f0f0f80'

Before asking questions about the survey responses, it would be helpful to first understand the respondents’ demographics(country, age, gender, education level, employment level, etc.) Exploring these variables will help explain how representative the survey is of the global programming community.

Country:

Looking at the countries of the respondents and plotting the countries with the highest number of responses.

top_countries = survey_df.Country.value_counts().head(15)
top_countries
United States 12371
India 8364
United Kingdom 3881
Germany 3864
Canada 2175
France 1884
Brazil 1804
Netherlands 1332
Poland 1259
Australia 1199
Spain 1157
Italy 1115
Russian Federation 1085
Sweden 879
Pakistan 802
Name: Country, dtype: int64
#visualizing this using a barplot; where index of this series is the xaxis and its values is the yaxis

plt.figure(figsize=(13,5))
plt.xticks(rotation=75) #since the labels displayed horizontaly will be messed up
plt.title("15 Countries with the highest number of respondents")
sns.barplot(top_countries.index, top_countries)
c:\users\beeka\appdata\local\programs\python\python38-32\lib\site-packages\seaborn\_decorators.py:36: FutureWarning: Pass the following variables as keyword args: x, y. From version 0.12, the only valid positional argument will be `data`, and passing other arguments without an explicit keyword will result in an error or misinterpretation.
warnings.warn(





<AxesSubplot:title={'center':'15 Countries with the highest number of respondents'}, ylabel='Country'>
png

This shows that the highest number of respondents are from the USA and India. This could be because the survey is in English, and these countries have the highest English-speaking populations. So it seems that the survey is not representative of the global programming community — especially from non-English speaking countries. Programmers from non-English speaking countries are almost certainly underrepresented. Also, StackOverflow is a platform that is completely in English, so its user base is naturally from the countries where English is spoken or prioritized professionally.

So StackOverflow could try translating their surveys to different languages to encourage non-English speaking countries to participate and get a more representative result.

Now, let’s find the percentage of responses from English-speaking vs. non-English speaking countries:

od.download('countries-languages-spoken')

lang_df = pd.read_csv('countries-languages-spoken/countries-languages.csv')

lang_df['English'] = lang_df['Languages Spoken'].str.contains('English') #creating a boolean column for strings that contain English

lang_df['LanguagePreferred'] = lang_df['English'].map({True:'English', False: 'NonEnglish'}) #using that column to map a differetn column to separate English and NonEnglish countries

lang_df
Using downloaded and verified file: .\countries-languages-spoken\countries-languages.csv
png
merge_lang = survey_df.merge(lang_df, on='Country') #merging the two dataframes into a new one
lang_counts = merge_lang.LanguagePreferred.value_counts()
lang_counts = lang_counts/merge_lang.shape[0] *100 #converting it into percentage
lang_counts
English 62.853751
NonEnglish 37.146249
Name: LanguagePreferred, dtype: float64
#using a piechart to plot it

plt.figure(figsize=(12,6))
plt.title("English speaking vs Non-English speaking countries in the survey")
plt.pie(lang_counts, labels=lang_counts.index, autopct='%1.1f%%', startangle=180);
png

So, almost 63% of the countries that participated in the survey use English as a spoken language or prioritize it professionally.

Age:

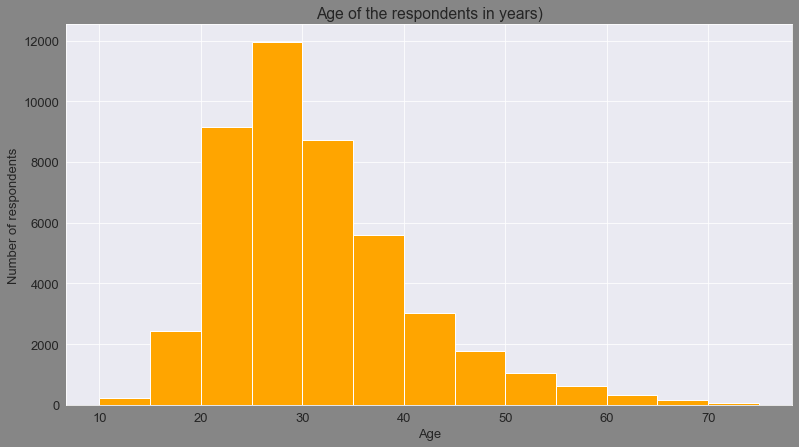

#using a histogram to visualize it

plt.figure(figsize=(13,7))
plt.title('Age of the respondents in years)')
plt.xlabel('Age')
plt.ylabel('Number of respondents')

plt.hist(survey_df.Age, bins= np.arange(10,80,5), color= "Orange")
(array([ 209., 2419., 9135., 11938., 8739., 5582., 3031., 1756.,
1038., 622., 333., 143., 75.]),
array([10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75]),
<BarContainer object of 13 artists>)
png

Most of the respondents fall between the age group 20–40, with 25–30 being the highest. So it seems that most of the youths are into programming.

Let’s filter out the responses by age group in order to analyze and compare the survey results for different age groups. For this, I will create a new column called AgeGroup that contains values: Less than 10 years, 10–18 years, 18–30 years, 30–45 years, 45–60 years, and older than 60 years.

survey_df['AgeGroup'] = pd.cut(x=survey_df['Age'], bins=[0,10,18,30,45,60,100], labels=['Younger than 10 years', '10-18 years', '18-30 years', '30-45 years', '45-60 years', 'Older than 60 years'])

Gender:

Let’s look at the distribution of responses on the basis of Gender.

gender_counts = survey_df.Gender.value_counts()
gender_counts
Man 45895
Woman 3835
Non-binary, genderqueer, or gender non-conforming 385
Name: Gender, dtype: int64
plt.figure(figsize=(13,7))
plt.title("Gender distribution in the survey")
plt.pie(gender_counts, labels=gender_counts.index, autopct='%1.1f%%', startangle=180);
png

There seems to be a huge difference between the number of men and the number of women & non-binary genders in the programming field. It’s a well-known fact that women and non-binary genders are underrepresented in the programming community, so it’s obvious to see a skewed distribution here.

Education Level:

Formal education in the computer science field is often considered significant to become a programmer. However, the present scenario of the technical field suggests otherwise. There are myriads of free resources & tutorials available online to learn to program. So let’s compare the education levels of respondents to gain some insights.

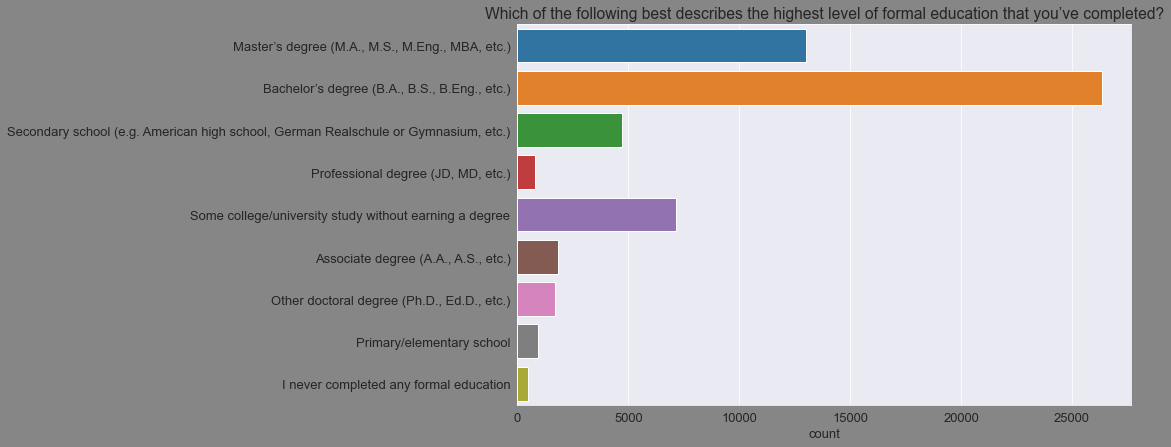

#using a horizontal barplot

sns.countplot(y=survey_df.EdLevel)
plt.title(schema['EdLevel'])
plt.ylabel(None);
png

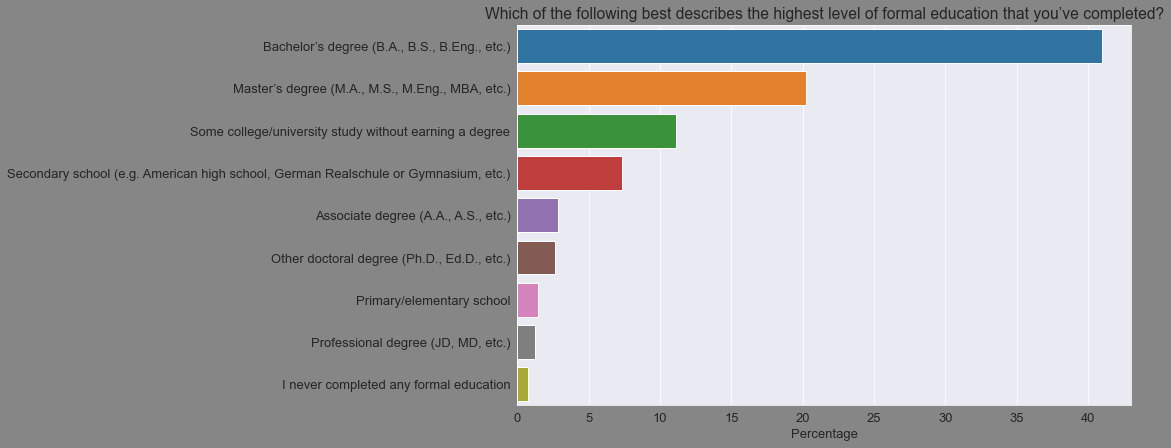

Converting it to display it on the basis of percentage:

ed_counts = (survey_df.EdLevel.value_counts() * 100 / survey_df.shape[0]).round(2)

sns.barplot(x=ed_counts, y=ed_counts.index)
plt.title(schema['EdLevel'])
plt.xlabel('Percentage');
png

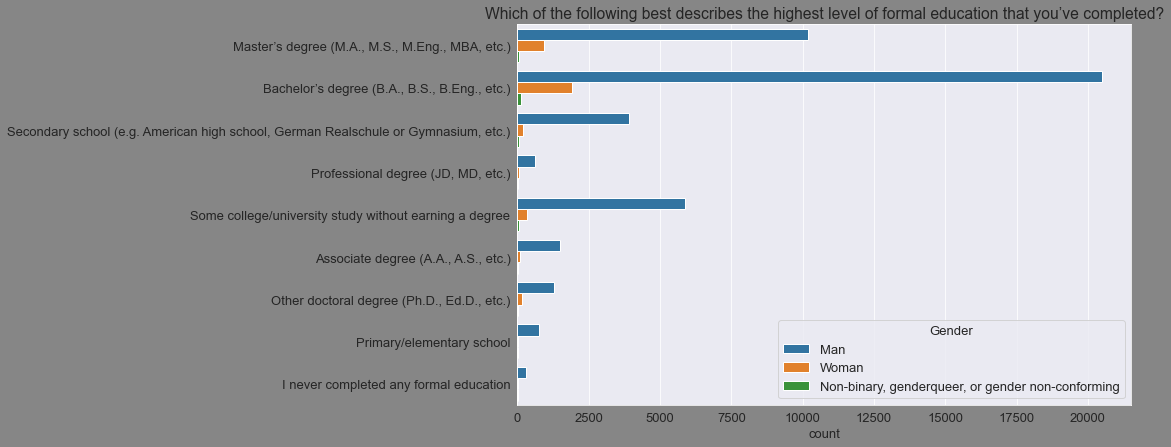

Comparing the percentages for each degree for men vs women:

sns.countplot(y=survey_df.EdLevel, hue = survey_df.Gender)
plt.title(schema['EdLevel'])
plt.ylabel(None);
png

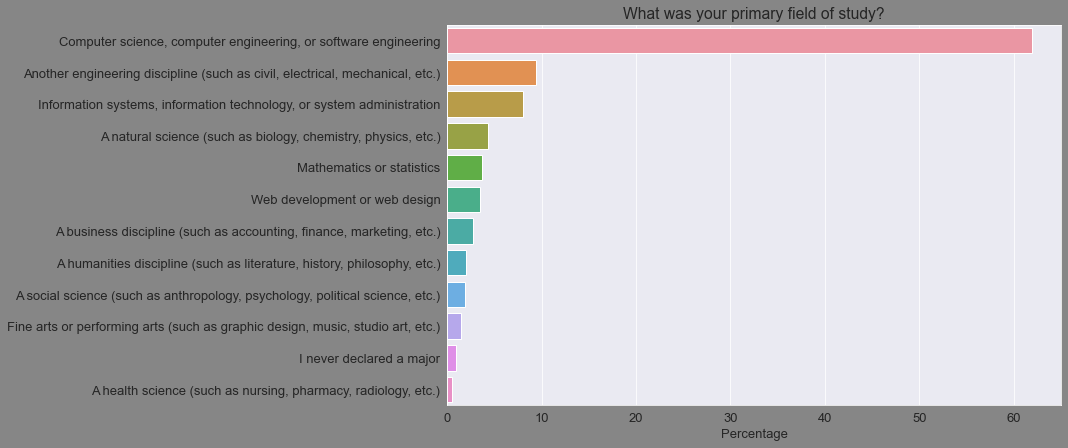

Plotting the undergraduate majors(on a percentages basis):

undergrad_counts = (survey_df.UndergradMajor.value_counts() * 100 / survey_df.UndergradMajor.count()).round(2)

sns.barplot(x= undergrad_counts, y= undergrad_counts.index)
plt.title(schema['UndergradMajor'])
plt.xlabel("Percentage");
png

So from the above visualizations, it is clear that about 50% of the respondents hold a bachelor’s or master’s degree, so most programmers seem to have some college education. And about 40% of those programmers holding a college degree have a field of study other than computer science. So, while a formal education is important in general, it is not mandatory for someone to pursue a degree in the field of computer science to become a programmer.

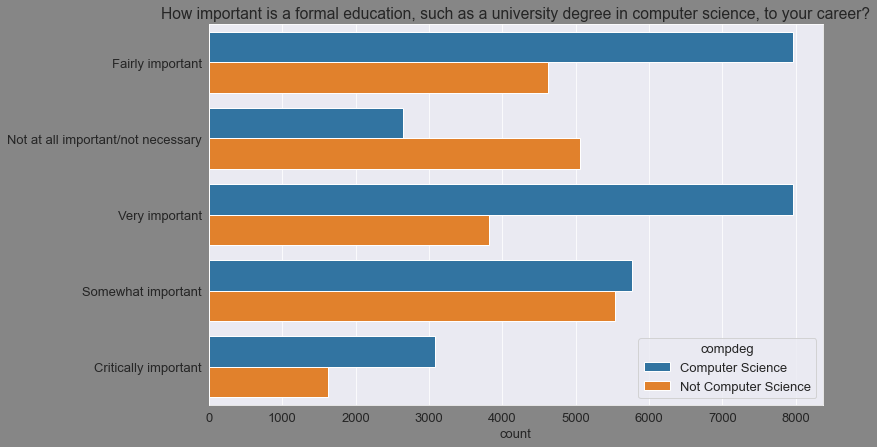

Let’s analyze the NEWEdImpt column for respondents who hold some Computer Science degree vs. those who don’t to see if there are any differences in opinion.

survey_df['degComp'] = (survey_df.UndergradMajor == 'Computer science, computer engineering, or software engineering')

survey_df['compdeg'] = survey_df['degComp'].map({True:'Computer Science', False: 'Not Computer Science'})

edimp_count= survey_df['NEWEdImpt'].value_counts()
edimp_count
Fairly important 12588
Very important 11783
Somewhat important 11298
Not at all important/not necessary 7707
Critically important 4716
Name: NEWEdImpt, dtype: int64
sns.countplot(y=survey_df.NEWEdImpt, hue = survey_df.compdeg)
plt.title(schema['NEWEdImpt'])
plt.ylabel(None);
png
sns.countplot(y=survey_df.NEWEdImpt, hue = survey_df.AgeGroup)
plt.title(schema['NEWEdImpt'])
plt.ylabel(None);
png

So, the above graphs suggest that those who hold a degree in computer science believe that formal education(such as a university degree in computer science) is pretty significant for a programming career, whereas the ones who don’t hold such a degree mostly seem to believe otherwise. Similarly, most of the people between the age groups 18–30 also suggest that a computer science degree is helpful.

Employment:

Let’s visualize the data from the Employment column.

survey_df.Employment.value_counts()Employed full-time                                      44958
Student 7734
Independent contractor, freelancer, or self-employed 5619
Not employed, but looking for work 2324
Employed part-time 2200
Not employed, and not looking for work 318
Retired 241
Name: Employment, dtype: int64
empcount = survey_df.Employment.value_counts(normalize = True, ascending = True) *100
empcount.plot(kind='barh', color='r')
plt.title('schema.Employment')
plt.xlabel('Percentage')
Text(0.5, 0, 'Percentage')
png

So, more than 70% of the respondents are employed full-time. Around 10% work as an independent contractor, freelancer, or are self-employed.

Now, let’s add a new column EmploymentType that contains the values Enthusiast (student or not employed but looking for work), Professional (employed full-time, part-time or freelancing), and Other (not employed or retired).

groups = {
'Enthusiast': ('Student', 'Not employed, but looking for work'),
'Professional': ('Employed full-time', 'Employed part-time', 'Independent contractor, freelancer, or self-employed')
}

empseries = pd.Series(survey_df.Employment) #creating a series for the Employment column

#creating a function to group the required members accordingly
from typing import Any

def membership_map(s: pd.Series, groups: dict,
fillvalue: Any=-1) -> pd.Series:
# Reverse & expand the dictionary key-value pairs
groups = {x: k for k, v in groups.items() for x in v}
return s.map(groups).fillna(fillvalue)

survey_df['EmploymentType'] = membership_map(empseries, groups, fillvalue='Other')

The DevType field contains information about the roles held by respondents. Since the question allows multiple answers, the column contains lists of values separated by a semi-colon(;), which makes it a bit harder to analyze directly. So, let’s define a helper function that turns a column containing lists of values (like survey_df.DevType) into a data frame with one column for each possible option.

def split_multicolumn(col_series):
result_df = col_series.to_frame()
options = []
# Iterate over the column
for idx, value in col_series[col_series.notnull()].iteritems():
# Break each value into list of options
for option in value.split(';'):
# Add the option as a column to result
if not option in result_df.columns:
options.append(option)
result_df[option] = False
# Mark the value in the option column as True
result_df.at[idx, option] = True
return result_df[options]

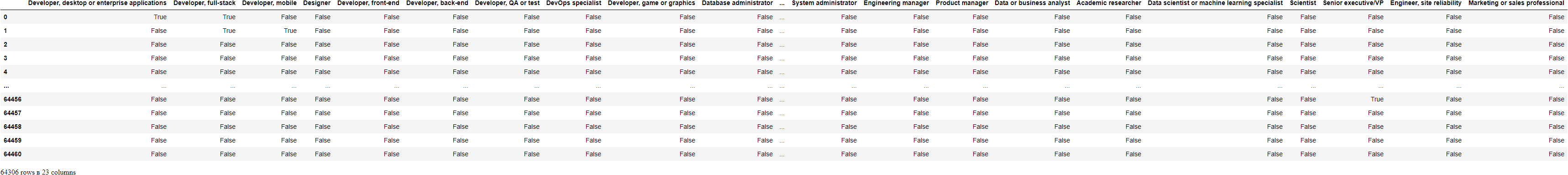

dev_type_df = split_multicolumn(survey_df.DevType)
dev_type_df
png

We can see that the dev_type_df has one column for each of the options that a respondent can select as a response. So, the corresponding column’s value is True if s/he has chosen an option. Else, it is False.

Let’s use the column-wise totals to identify the most common roles:

dev_type_totals = dev_type_df.sum().sort_values(ascending=False)
dev_type_totals
Developer, back-end 26996
Developer, full-stack 26915
Developer, front-end 18128
Developer, desktop or enterprise applications 11687
Developer, mobile 9406
DevOps specialist 5915
Database administrator 5658
Designer 5262
System administrator 5185
Developer, embedded applications or devices 4701
Data or business analyst 3970
Data scientist or machine learning specialist 3939
Developer, QA or test 3893
Engineer, data 3700
Academic researcher 3502
Educator 2895
Developer, game or graphics 2751
Engineering manager 2699
Product manager 2471
Scientist 2060
Engineer, site reliability 1921
Senior executive/VP 1292
Marketing or sales professional 625
dtype: int64

So, the most common roles include “Developer” in the name.

Let’s figure out which positions have the highest percentage of women:

#joinging the two dataframes
merged_dev_type = survey_df.join(dev_type_df)

merged_dev_woman = merged_dev_type.loc[merged_dev_type['Gender'] == 'Woman']

#creating a dataframe only for the dev types for women
new_merged_dev = merged_dev_woman.loc[:, 'Developer, desktop or enterprise applications':'Marketing or sales professional']

new_devtype_totals = new_merged_dev.sum().sort_values(ascending=False)
sns.barplot(x= ((new_devtype_totals* 100 / new_merged_dev.shape[0]).round(2)), y= new_devtype_totals.index)
plt.title('Which positions have the highest percentage of women?')
plt.xlabel("Percentage");
png

So, it seems that most of the women work as full-stack developers or backend developers.

Now it’s time to take our analysis to the next step. Let’s ask some questions about our data and answer them using visualizations and calculations.

1. What were the most popular programming languages in 2020?

For this, let’s use the column ‘LanguageWorkedWith’. Similar to DevType, respondents were allowed to choose multiple options here as well.

#spliting languageWorkedWith into a data frame containing a column of each listed languages

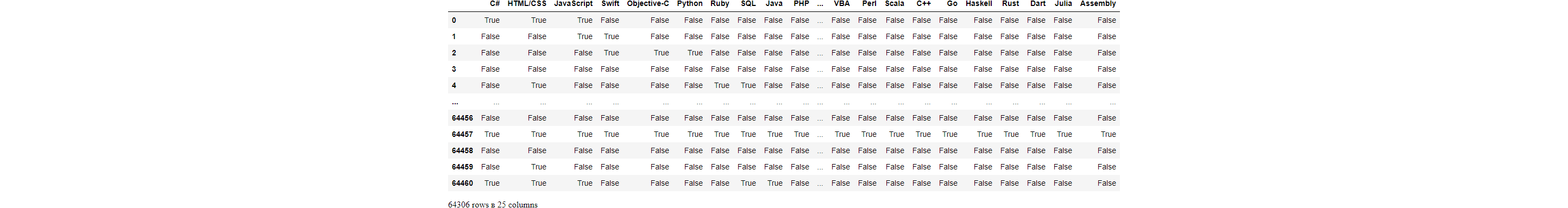

new_languagesWorked_df = split_multicolumn(survey_df.LanguageWorkedWith)
new_languagesWorked_df
png
languages_percentage = new_languagesWorked_df.mean().sort_values(ascending=False) * 100

#plotting this in a horizontal bar chart

plt.figure(figsize = (13,12))
sns.barplot(x=languages_percentage, y = languages_percentage.index)

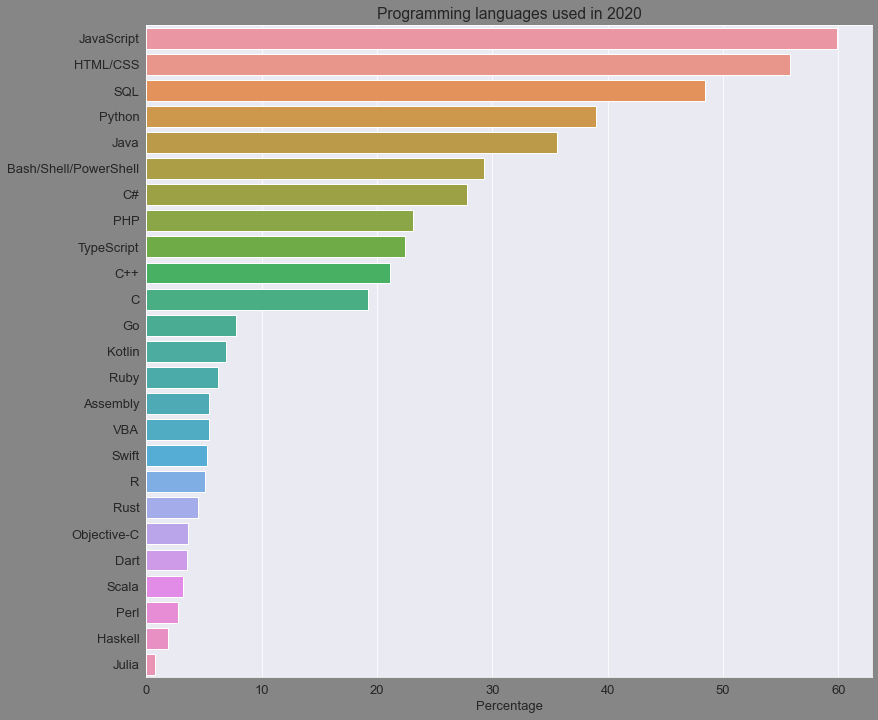

plt.title('Programming languages used in 2020')
plt.xlabel('Percentage')
Text(0.5, 0, 'Percentage')
png

Javascript & HTML/CSS were the most popular programming languages in 2020. This could be because web development is one of the most sought skills in today’s world. This is followed by SQL, which is essential for working with relational databases, so it’s mandatory for most programmers to work with it on a regular basis. Similarly, Python came out fourth on the list, which seems to be the popular choice for other forms of development, beating out Java, which was the industry standard for server & application development for over two decades.

2. What were the most common languages used by students? How does the list compare with the most common languages used by professional developers?

merged_languages = survey_df.join(new_languagesWorked_df)

students_merged_lang = merged_languages.loc[merged_languages['EmploymentType'] == 'Enthusiast']

prof_merged_lang = merged_languages.loc[merged_languages['EmploymentType'] == 'Professional']
new_students_merged_lang = students_merged_lang.loc[:,'C#':'Assembly']
new_students_merged_lang_percentage = new_students_merged_lang.mean().sort_values(ascending=False) * 100

plt.figure(figsize = (6,5))
sns.barplot(x=new_students_merged_lang_percentage, y = new_students_merged_lang_percentage.index)

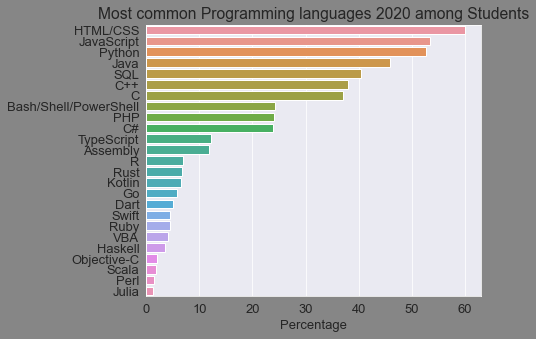

plt.title('Most common Programming languages 2020 among Students')
plt.xlabel('Percentage')
Text(0.5, 0, 'Percentage')
png

The most popular language among students was HTML/CSS.

new_prof_merged_lang = prof_merged_lang.loc[:,'C#':'Assembly']
new_prof_merged_lang_percentage = new_prof_merged_lang.mean().sort_values(ascending=False) * 100

plt.figure(figsize = (6,5))
sns.barplot(x=new_prof_merged_lang_percentage, y = new_prof_merged_lang_percentage.index)
plt.title('Most common Programming languages 2020 among Professionals')
plt.xlabel('Percentage')
Text(0.5, 0, 'Percentage')
png

Whereas, JavaScript was the most popular among Professionals.

3. What were the most common languages among respondents who did not describe themselves as “Developer, front-end”?

merged_df_lang_dev = merged_dev_type.join(new_languagesWorked_df)

merged_df_lang_dev_df = merged_df_lang_dev.loc[merged_df_lang_dev['Developer, front-end'] == False]

new_merged_df_lang_dev_df = merged_df_lang_dev_df.loc[:,'C#':'Assembly']
new_merged_df_lang_dev_df_percentage = new_merged_df_lang_dev_df.mean().sort_values(ascending=False) * 100

plt.figure(figsize = (6,5))
sns.barplot(x=new_merged_df_lang_dev_df_percentage.index, y = new_merged_df_lang_dev_df_percentage);

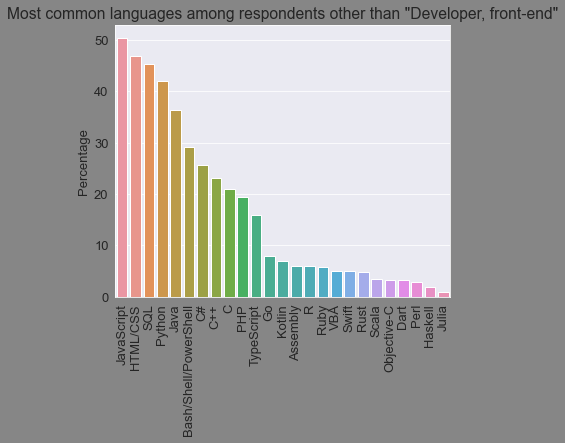

plt.title('Most common languages among respondents other than "Developer, front-end"')
plt.ylabel('Percentage')
plt.xticks(rotation=90);
png

Still, JavaScript was the most common language among respondents who did not describe themselves as “Developer, front-end”.

4. What were the most common languages among respondents who work in fields related to data science?

ds_merged_lang_df = merged_df_lang_dev.loc[merged_df_lang_dev['Data scientist or machine learning specialist'] == True]

new_ds_merged_lang_df = ds_merged_lang_df.loc[:,'C#':'Assembly']
new_ds_merged_lang_df_percentage = new_ds_merged_lang_df.mean().sort_values(ascending=False) * 100

plt.figure(figsize = (6,5))
sns.barplot(x=new_ds_merged_lang_df_percentage.index, y = new_ds_merged_lang_df_percentage);
plt.title('Most common languages among Data Scientists')
plt.ylabel('Percentage')
plt.xticks(rotation=90);
png

So, Python was the most used language among data scientists, followed by SQL.

5. What were the most common languages used by developers older than 35 years of age?

old_merged_df_lang_dev = merged_df_lang_dev.loc[merged_df_lang_dev['Age'] > 35]

new_old_merged_df_lang_dev = old_merged_df_lang_dev.loc[:,'C#':'Assembly']
new_old_merged_df_lang_dev_percentage = new_old_merged_df_lang_dev.mean().sort_values(ascending=False) * 100
new_old_merged_df_lang_dev_percentage
JavaScript 64.874070
SQL 59.191539
HTML/CSS 58.510352
Bash/Shell/PowerShell 40.198978
Python 37.716232
C# 35.170745
Java 32.356368
PHP 22.757014
TypeScript 22.559828
C++ 18.929820
C 17.325446
VBA 8.729945
Go 8.694093
Ruby 8.192166
Perl 6.417496
Swift 5.727346
Kotlin 5.548086
R 5.521197
Assembly 5.090974
Objective-C 4.678677
Rust 3.916824
Scala 3.531415
Dart 2.169042
Haskell 1.353410
Julia 0.842520
dtype: float64

Javascript was the most popular language among people older than 35 years.

6. What were the most common languages used by developers in Nepal?

country_merged_df_lang_dev = merged_df_lang_dev.loc[merged_df_lang_dev['Country'] == 'Nepal']

new_country_merged_df_lang_dev = country_merged_df_lang_dev.loc[:,'C#':'Assembly']
new_country_merged_df_lang_dev_percentage = new_country_merged_df_lang_dev.mean().sort_values(ascending=False) * 100

new_country_merged_df_lang_dev_percentage
JavaScript 61.666667
HTML/CSS 60.833333
SQL 42.916667
Java 39.583333
Python 36.666667
C 34.166667
PHP 31.250000
C++ 28.750000
C# 20.833333
TypeScript 20.416667
Bash/Shell/PowerShell 16.250000
Dart 7.500000
Kotlin 6.250000
Ruby 4.583333
Go 4.166667
Assembly 4.166667
Objective-C 3.333333
Swift 3.333333
R 2.916667
VBA 2.500000
Rust 2.083333
Haskell 0.416667
Julia 0.416667
Perl 0.000000
Scala 0.000000
dtype: float64

In my country, JavaScript is the most used programming language.

From the above visualizations, it can be concluded that JavaScript is the most preferred programming language among numerous programming groups.

7. Which languages were the most people interested to learn over the next year?

For this, I will use the LanguageDesireNextYear column.

ny_languages_interested_df = split_multicolumn(survey_df.LanguageDesireNextYear)
ny_languages_interested_percentages = ny_languages_interested_df.mean().sort_values(ascending=False) * 100

plt.figure(figsize = (6,5))
sns.barplot(x=ny_languages_interested_percentages, y = ny_languages_interested_percentages.index)
plt.title('Programming languages people were most interested to learn over the next year')
plt.xlabel('Percentage')
Text(0.5, 0, 'Percentage')
png

Thus, most of the respondents were interested in learning Python over the next year. Obviously, it is an easy-to-learn general-purpose programming language and is well suited for a variety of domains: application development, numerical computing, data analysis, machine learning, big data, cloud automation, web scraping, scripting, and so on. Moreover, I’m using Python for this exploratory analysis as well!

8. What were the most loved programming languages, i.e., a high percentage of people who have used the language and want to continue learning & using it over the next year as well?

For this, I will create a new data frame(languages_loved_df) that contains a True value for a language only if the corresponding values in new_languagesWorked_df and ny_languages_interested_df are both True. Then, I will take the column-wise sum of languages_loved_df and divide it by the column-wise sum of languages_worked_df to get the percentage of respondents who “love” the language. Finally, I will sort the results in decreasing order and plot a graph

languages_loved_df = new_languagesWorked_df & ny_languages_interested_df
languages_loved_percentages = (languages_loved_df.sum() * 100/ new_languagesWorked_df.sum()).sort_values(ascending=False)

plt.figure(figsize=(13, 11))
sns.barplot(x=languages_loved_percentages, y=languages_loved_percentages.index)

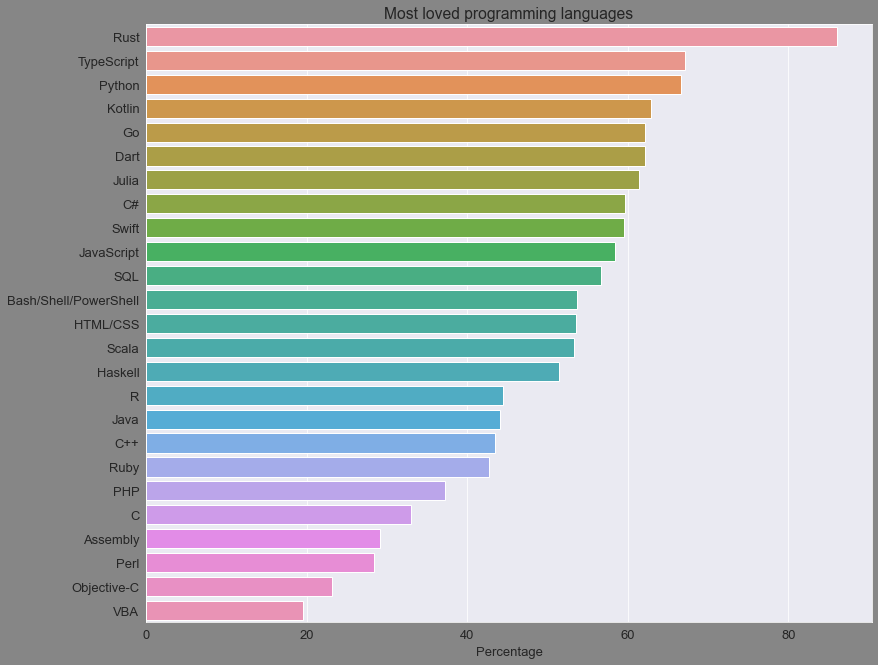

plt.title("Most loved programming languages");
plt.xlabel('Percentage');
png

Rust was the most loved programming language in 2020 and it has been StackOverflow’s most-loved language for four years in a row. The second most-loved language was TypeScript, which is a popular alternative to JavaScript for web development. Similarly, Python was at number 3.

9. What were the most dreaded languages, i.e., languages people used in the past year but do not want to learn/use over the next year?

dreaded_lang_df = new_languagesWorked_df & ~ny_languages_interested_df
languages_dreaded_percentages = (dreaded_lang_df.sum() * 100/ new_languagesWorked_df.sum()).sort_values(ascending=False)

plt.figure(figsize=(6, 5))
sns.barplot(x=languages_dreaded_percentages, y=languages_dreaded_percentages.index)
plt.title("Most Dreaded languages");
plt.xlabel('Percentage');
png

VBA was the most dreaded language in 2020, followed by Objective-C.

10. In which countries did developers work the highest number of hours per week? Consider countries with more than 250 responses only.

For this, I will use the groupby method to aggregate the rows for each country. Then, I’ll filter the results to only include the countries with more than 250 respondents.

countries_df = survey_df.groupby('Country')[['WorkWeekHrs']].mean().sort_values('WorkWeekHrs', ascending=False)

high_response_countries_df = countries_df.loc[survey_df.Country.value_counts() > 250].head(15)
high_response_countries_df
png

Among the countries with more than 250 responses, Iran, Israel, and China seem to have the highest working hours. This is followed by the United States. However, there isn’t much variation overall as the average working hours are around 41 hours per week for each country.

11. How did the average work hours compare across continents?

continent_data_df = pd.read_csv('./continent.csv')

continent_data_df = continent_data_df.rename(columns = {'location' :'Country'}, inplace = False) #renaming the column 'location' to 'Country'

coun_con_df = survey_df.merge(continent_data_df, on='Country')

new_continent_df = coun_con_df.groupby('continent')[['WorkWeekHrs']].mean().sort_values('WorkWeekHrs', ascending=False)
new_continent_df
png

So, North America was the continent with the highest working hours followed by Asia.

12. Which role had the highest average number of hours worked per week? Which one had the lowest?

#highest
highest_work_df = survey_df.groupby('DevType')[['WorkWeekHrs']].mean().sort_values('WorkWeekHrs', ascending=False).reset_index()
highest_work_df
png

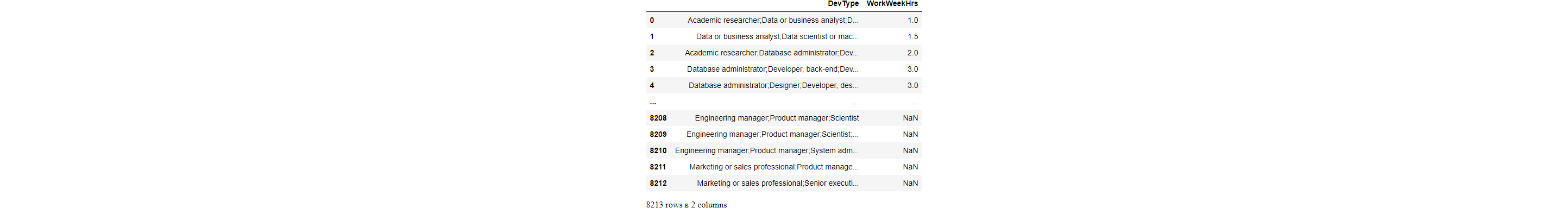

#lowest
lowest_work_df = survey_df.groupby('DevType')[['WorkWeekHrs']].mean().sort_values('WorkWeekHrs', ascending=True).reset_index()
lowest_work_df
png

13. How did the hours worked compare between freelancers and developers working full-time?

empl_type_df = split_multicolumn(survey_df.Employment)

new_empl_df = survey_df.join(empl_type_df)
#for full-time
full_time_df = new_empl_df.loc[new_empl_df['Employed full-time'] == True]
fulltime_work_df = full_time_df.groupby('Employed full-time')[['WorkWeekHrs']].mean().sort_values('WorkWeekHrs', ascending=False).reset_index()
fulltime_work_df
png
#for freelancers
freelance_df = new_empl_df.loc[new_empl_df['Independent contractor, freelancer, or self-employed'] == True]
freelance_work_df = freelance_df.groupby('Independent contractor, freelancer, or self-employed')[['WorkWeekHrs']].mean().sort_values('WorkWeekHrs', ascending=False).reset_index()
freelance_work_df
png

So it seems there isn’t much difference between developers employed full-time and freelancers. Both have an average working hour of around 40 hours per week.

14. How important is it to start young to build a career in programming?

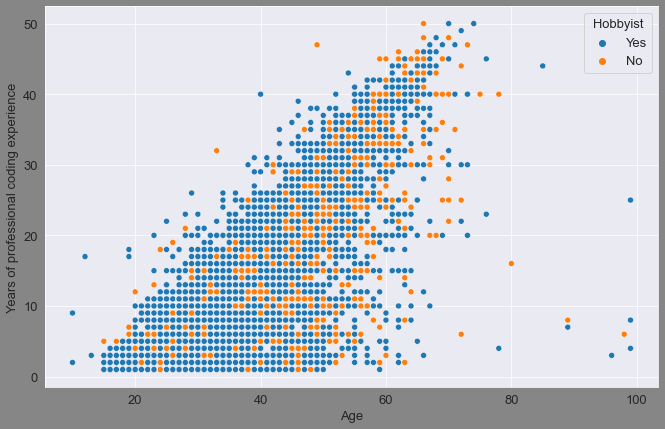

For this, I will create a scatter plot of Age vs. YearsCodePro(years of coding experience):

sns.scatterplot(x='Age', y='YearsCodePro', hue='Hobbyist', data=survey_df)
plt.xlabel("Age")
plt.ylabel("Years of professional coding experience");
png

There are points all over the graph, which indicate that one can start programming professionally at any age. Similarly, most of the people who have been coding for a long time professionally also seem to take it as a hobby.

Let’s view the distribution of the Age1stCode column to find out when the respondents tried programming for the first time:

plt.title(schema.Age1stCode)
sns.histplot(x=survey_df.Age1stCode, bins=30, kde=True);
png

So it seems that most of the respondents started programming before the age of 40. However, the graph also shows people of all age groups involved in coding, which is quite encouraging.

Inferences and Conclusion:

Through my exploratory data analysis on the Stack Overflow Developer Survey 2020 dataset, I came across the following conclusions:

  1. The highest number of respondents were from the USA and India. And almost 63% of the participants in the survey were from countries that use English as a spoken language or prioritize it professionally. So, based on the respondents’ demographics, we can infer that the survey is somewhat representative of the overall programming community, but it has comparatively fewer responses from programmers in non-English-speaking countries.
  2. Most of the respondents fall between the age group 20–40, with the majority between the ages 25–30. Thus, most of the youths are into programming.
  3. Only about 8% of survey respondents who have answered the question identify as women or non-binary and about 92% are men. So it can be concluded that there is a huge difference between the number of men and the number of women & non-binary genders in the programming field.
  4. About 50% of the respondents hold a bachelor’s or master’s degree, but about 40% of those programmers holding a college degree have a field of study other than computer science. So, while a formal education is important in general, it is not mandatory for someone to pursue a degree in the field of computer science to become a programmer or make a career out of it.
  5. More than 70% of the respondents are employed full-time. Around 10% work as an independent contractor, freelancer, or are self-employed.
  6. Most of the women work as full-stack developers or backend developers.
  7. Javascript & HTML/CSS were the most popular programming languages in 2020. This was followed by SQL and Python.
  8. The most popular language among students was HTML/CSS, whereas JavaScript was the most popular among Professionals. Moreover, JavaScript was the most preferred programming language among numerous groups.
  9. Python was the most used language among data scientists, followed by SQL.
  10. Rust and TypeScript were the most loved programming language in 2020, followed by Python, whereas VBA and Objective-C were the most dreaded ones, followed by Perl.
  11. Most of the respondents were interested in learning Python over the next year.
  12. The average working hours for programmers was around 41 hours per week. North America was the continent with the highest working hours followed by Asia.
  13. Most of the respondents started programming before the age of 40, although people of all age groups were involved in coding. We can conclude that a person can learn to code at any age.

Suggestions:

  • StackOverflow could try translating their surveys to different languages to encourage non-English speaking countries to participate and get a more representative result. Similarly, they should focus on making more efforts that encourage underrepresented communities to participate in the surveys.
  • Computer Science is indeed a challenging field, and making a career in any of its domains requires a lot of dedication and practice. However, if someone is passionate enough, and is ready to invest a reasonable amount of time and effort, then they can start their journey right away, regardless of their age, education level, gender, or any other factors. There are ample amount of resources online that can help them throughout their learning process- one just needs to start exploring.

--

--

--

Everything connected with Tech & Code. Follow to join our 900K+ monthly readers

Get the Medium app

A button that says 'Download on the App Store', and if clicked it will lead you to the iOS App store
A button that says 'Get it on, Google Play', and if clicked it will lead you to the Google Play store
AceYourGrace

AceYourGrace

Writer || Computer Engineer || Data Science Enthusiast

More from Medium

How to Know Whether you Will Get Good or Bad Score in the Exam Using Machine Learning?

7 Powerful Python Libraries — Guaranteed to Make Work Life Easier

Three overlooked but powerful Python functions to replace the ‘replace’ function for hacking…

Data Science Academy — NumPy Operations
