10 Levels of ggplot2: From Basic to Beautiful
Recently I discovered WIRED’s “Levels” series on YouTube. The concept is simple. An expert of some interesting skill (i.e., ice sculpture, origami, or knife making) explains the concept in many levels — from easy to complex.
This format is a wonderful way to explore many different skills.
One skill that is essential for anyone who works with data to learn is how to build a graph that tells a story. The ggplot2
package is one of the best tools to do that. In this article I’ll explore how to build a graph with ggplot2
from basic to beautiful.
Data To Explore
We’ll be using a dataset near and dear to my heart. Philadelphia Parking Tickets. You can get some more information about the dataset here.
Also, as we’re exploring the data, you can follow along with all of the code for it here:
Level 0: A Basic Plot
I can’t even count this as a real level. It’s a pre-level. Fundamentally, this is what a ggplot2
code block will always look like. A ggplot2
code block will always include:
- Data (which we see in the
tickets
object) - Mapping (which we see in the
aes(x = violation_desc)
parameter) - Geometry (which we see from
geom_bar
)
For more details about how this works, check out this article. Our code block ends up looking like:
tickets %>%
ggplot(aes(x = violation_desc)) +
geom_bar()

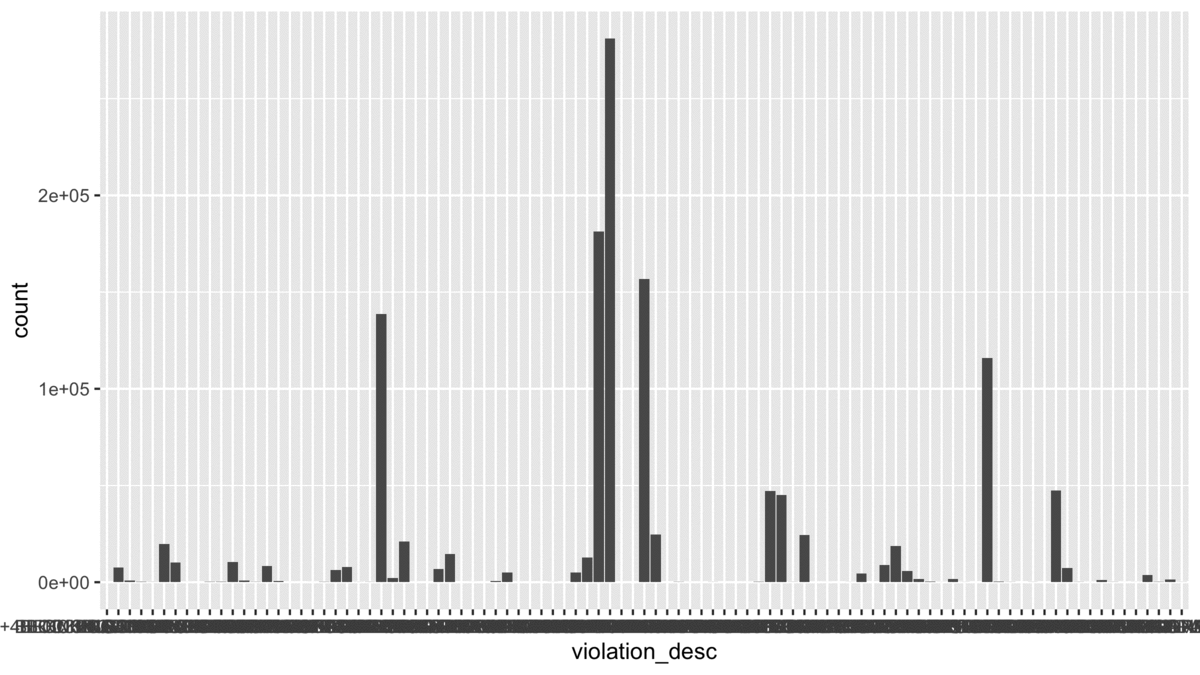

Here’s what we get from this: hot garbage. There’s good news, though. We can only get better from here!
Level 1: Data Cleaning
There are a lot of fundamental issues with our Level 0 graph. The biggest issue, though, comes before we ever even make the graph. Before we do anything else, we need to clean our data.
The Level 0 graph has 95 distinct values on the x-axis. This is far too many for a person to be able to interpret. Trimming the number of distinct values to 10 will dramatically improve the interpretability of the graph. We can start doing this by inspecting the distinct values. Here’s a sample of the values with their counts:
1 METER EXPIRED CC 281060
2 METER EXPIRED 181329
3 OVER TIME LIMIT 156859
4 EXPIRED INSPECTION 138575
5 STOP PROHIBITED CC 115898
6 STOPPING PROHIBITED 47395
7 PARKING PROHBITED 47232
8 PARKING PROHBITED CC 45082
9 OVER TIME LIMIT CC 24585
10 PASSENGR LOADNG ZONE 24359
Immediately we start to see how to improve the number of distinct values that we have. First, for our purposes, we can remove any of the CC
suffixes. We notice that there are some words that are misspelled like PROHBITED
. There are also words that are similar to each other like STOP
and STOPPING
. Using the stringr
package’s str_replace
function can help us make those changes.
Once we make all of these changes, we’re still left with 81 distinct values. A great method to fix this is to use the fct_lump
function from the forcats
package. The function is simple enough — it allows you to decide how many distinct values you’d like to keep based upon some other value. Everything else is then designated as “Other”. Check those steps out here.
After implementing these changes we’re almost able to read all of the words on the x-axis. There are a bunch of ways to take care of that. We’ll get to it at Level 4.
Level 2: Use Default Themes
The gray background of the default ggplot2
theme is borderline iconic (and never changing). There are plenty of other themes to choose from, though. I have always been a fan of the simplicity of theme_minimal
. You should explore some of the others here. When we add this code in, we’re left with:
Level 3: scale_y_continuous
+ scales::comma
The next level is to control how our axes look. It turns out that scientific notation (0e+00
, 1e+05
, etc.) is a less-than-ideal way of looking at an axis. We can use the scale_y_continuous
function coupled with the comma
function from the scales
package to adjust the y-axis. You can see that in code here. We end up with a much nicer y-axis.
Level 4: fct_reorder + coord_flip()
After some of that prep work, we can now take care of making it easier to read our x-axis. One great technique to use for this is to pair the fct_reorder
function with the coord_flip
function. Similar to fct_lump
, the fct_reorder
function is also from the forcats
package and does what it says: it reorders factors based upon another variable. We add this to our data prep process by using mutate
to change the order of violation descriptions. After doing this, the bars of our graph will be ordered from low to high.
The coord_flip
function can then be included as part of our ggplot2
code. This function also does what it says: it flips the axes so that our x-axis becomes our y-axis and vice versa. Our code ends up looking like this. After implementing it we end up with our first passable graph.
This would be a great graph to use internally or as part of a draft. I would want to make more changes if it were being shared externally.
Level 5: Window Dressing
There are a few simple tweaks that we can make in order to make the graph presentable:
- Change the titles of the axes
- Add a title for the graph
- Add some color
We can take care of the first two issues by adding the labs
function at the end of our ggplot2
code. Any of the titles on the plot (title
, subtitle
, x-axis
, y-axis
, caption
, legends
, etc.) can be altered in this way.
To add color, we need to go to our geom_col
function. We can pass an additional parameter to it called fill
. We’re able to designate the fill color in with this parameter in several ways — for example, as a name (“red”
) or a hex code (“#E83536”
). Now we have a graph that is very presentable. We’re well past “basic” and on our way to “beautiful”!
Level 6: Build Your Own Theme
Once we’ve applied some basic window dressing, we now have the opportunity to dive into the theme
function. There are many components that can be modified via theme
. Changes can be made at a high level to the entire graph and then further fine tuned. For example, in this case, we might decide to change the family
of all of the text
to Roboto
with a default size
of 10. From there, we are able to specifically change the format of the titles of the axes by specifying axis.text
. If we need to fine tune even further (change each individual axis on its own), we could have also changed axis.text.x
or axis.text.y
. After these implementations, our code becomes this and we end up with a highly customized looking graph.
At this point, we have something that looks like it could be our own theme. If we’re making multiple plots, it would be worthwhile to officially build our own theme. Here’s what that could look like:
theme_compassred <- function () {
theme_minimal(base_size = 10, base_family = "Roboto") %+replace%
theme(axis.title = element_text(face = "bold"),
axis.text = element_text(face = "italic"),
plot.title = element_text(face = "bold",
size = 12)
)
}
Even further, we can set this theme for every plot automatically:
theme_set(theme_compassred())
Level 7: Layer Multiple Geometries
One of the beautiful features of ggplot2
is the ease by which multiple geometries can be used in sync with each other. Currently, we have been using geom_col
on its own. However, we can make it easier to read the plot by adding a geom_label
as well.
When we have multiple geom_
functions as part of our code, it is possible for the geometries to either use the same aesthetic mapping or to have different aesthetic mappings. In this case, geom_label
can use the same mappings for its x
and y
coordinates, but requires an additional mapping called label
. There are also several parameters that we must pass to geom_label
in order to properly place the labels on the graph. Here’s the code and the graph:
Level 8: Highlight a Key Field
At this point with our graph, the end user still has to do quite a bit of work to interpret the results. The key goal of our last levels is to reduce the cognitive load of the end user and make it easier for them to immediately understand the goal of our graph.
One great way to accomplish this is by highlighting a key field. We can do so with four small changes:
- Transform the data by creating a new field called
highlight
- Move the
fill
to inside the aesthetic mapping and set it tohighlight
- Change colors with
scale_fill_manual
- Remove the legend with
guides
After those small code changes, we end up with:
Level 9: Annotate
In this level, our goal is still to remove the cognitive load on the end user. Highlighting the value that we care about helps a lot, but we can literally spell out our takeaway even further. There are many ways to do this, but we’ll do so by taking advantage of an additional geom_label
, a geom_curve
, and some reorganization of our code.
At a high level, here is how our code is reorganized:
# Build an aggregated data frame of all of the tickets
tickets_agg <-
mutate(...)# Create the note that we'd like to share
ticket_note <-
paste("Your text here")# Create a dataframe to position your arrow
arrow_position <-
data.frame(...)# Build your graph
ggplot() +
geom_col(data = tickets_agg,
mapping = aes(x = field,
y = count,
fill = highlight)) +
geom_label(data = tickets_agg,
mapping = aes(x = field,
y = count,
label = count)) +
geom_label(data = filter(tickets_agg,
highlight = T),
mapping = aes(x = field,
y = count,
label = ticket_note)) +
geom_curve(data = arrow_position,
mapping = aes(x = x_start,
y = y_start,
xend = x_end,
yend = y_end))
In Level 7 we mentioned that when there are multiple geom_
functions in our code that sometimes we need to give the different geom_
functions different data and mappings. We take full advantage of this here.
Level 10: Tidy It Up
The last level is to reduce the cognitive load on the end user by removing everything that isn’t necessary. This is actually a relatively straightforward exercise, but requires you to put yourself in the shoes of the end user. You must answer the question “what can be removed while still making the graph clear?” Here are all of the things that we remove here:
- We don’t need all of the grid lines. Having labels for all of the bars makes the grid lines redundant.
- Similarly, we don’t need the values of our x-axis. These are also redundant because of the labels.
- We don’t need either of our axis labels. The title makes it very clear what each axis represents. They end up just being noise.
Putting all of this together, we end up with our final, Level 10 graph.
Putting it All Together
Overall, a lot of simple steps (and a couple of more complicated ones) can take your graph from basic to beautiful. Here’s what that transformation looks like, one step at a time:
And here’s how our final block of code ends up looking:
