In this tutorial we will use Behavior Bricks in Unity to create 2 simple agents: an interactive Player (moved around using mouse clicks), and an Agent that wanders around, and pursues the player when it sees them. We’ll cover the following core concepts:

1 — Setting Up Behavior Bricks
2 — Creating A Behavior
3 — Editing Behavior Parameters
4 — Composing Behaviors
5 — Conditions & Perceptions

1 — Setting Up Behavior Bricks

Start a new project 3D

Get Behavior Bricks from the Unity Asset store.
Go to Window → Asset Store
Click Search and search for “Behavior Bricks”

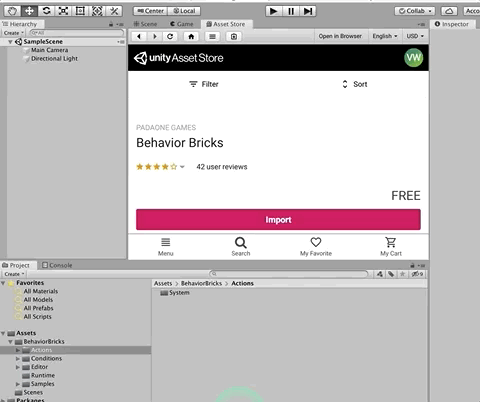

Select the pink Import this brings up a list of all of the assets in Behavior Bricks. Select Import → this will load Behavior Bricks into your current project

To get out of the Asset Store click the Scene tab. You’ll now see Behavior Bricks in your project under the Assets Folder.

Image for post
Image for post

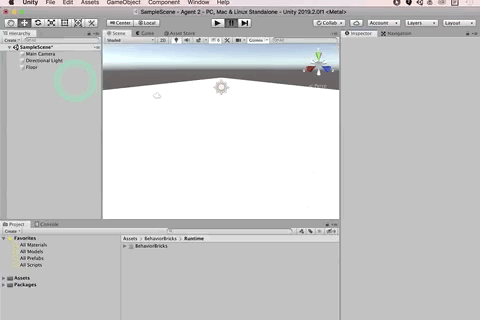

  • Create a plane GameObject →3D Plane. Right Click it and Rename it to Floor.
  • Set the position to (0, 0, 0), and the scale to (5, 1, 5) so it covers a bigger area. Check the Static checkbox near the Game Object name in the Inspector.
  • Move the main camera to (0, 20, -30), and set the rotation to (45, 0, 0) in order to fit the plane into the view.
Image for post
Image for post

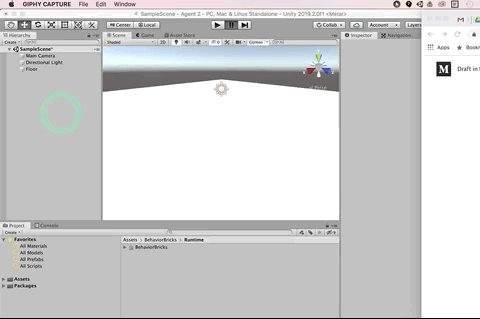

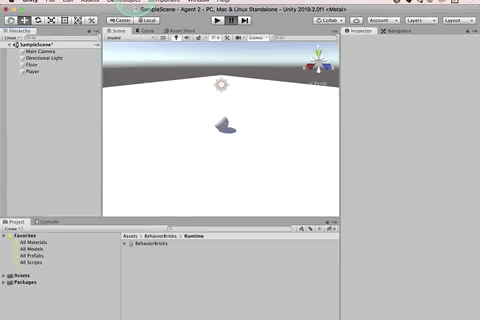

  • Create a sphere for the player. Rename it to Player, and place it in (0, 0.5, 0) so it will be over the floor.
  • Create a cube for the agent. Rename it to Agent, and place it in (20, 0.5, 20). It will be quite far away from the player, near the plane limits.

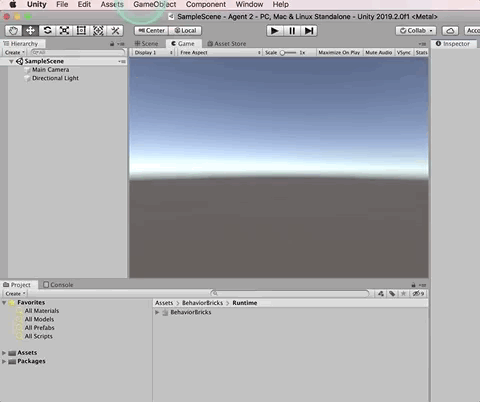

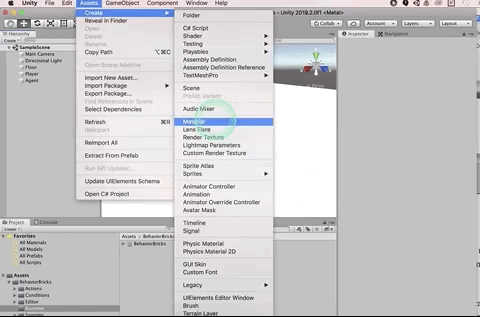

  • Create three new materials, Green, Blue and Red and use them for the floor, player and agent respectively. To create a new material go to Assets → Create Material. Right click to rename the material Green. Use the eyedropper to select a color. Then drag and drop the material to assign it to a game object. To quickly duplicate a material select it and use ctrl+d (Windows) cmd+d (Mac). This is a good time to save.
Image for post
Image for post

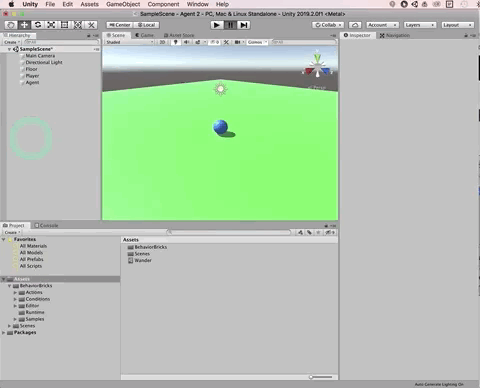

  • Create the navigation mesh that will be used by both the agent and the player for pathfinding. Select the floor, go to Window AI → Navigation, go to the Bake Tab and press the Bake button.
Image for post
Image for post

2 — Creating A Behavior

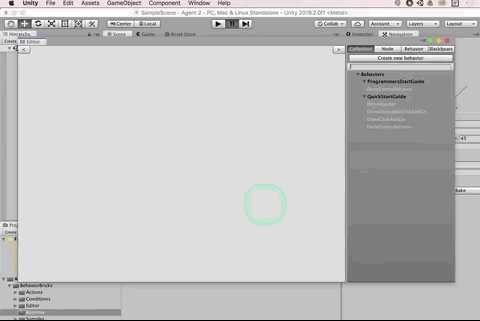

  • We’ll create a wander behavior for our Agent. Go to the Behavior Bricks menu Window →Behavior Bricks →Editor. That will open the Behavior Bricks Editor.
Image for post
Image for post

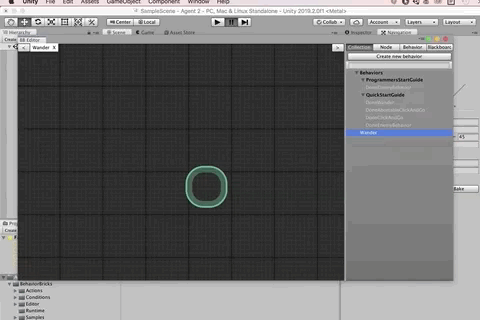

  • The first step is to create a new behavior tree by clicking the Create new behavior button in the upper part of the Collection tab and naming it “Wander”.
Image for post
Image for post
  • Once the new behavior asset has been saved it will appear in the Behaviors list and will be opened as a new tab in the behavior graphical editor, showing an initially empty canvas.

3 — Editing Behavior Parameters

Make the agent move to a position (-20, 0.5, 20)

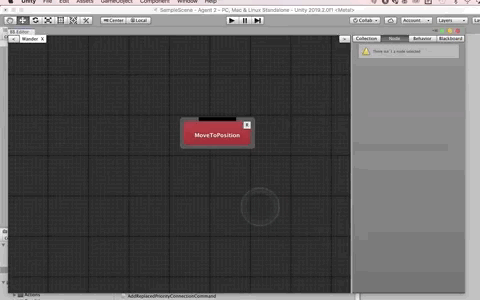

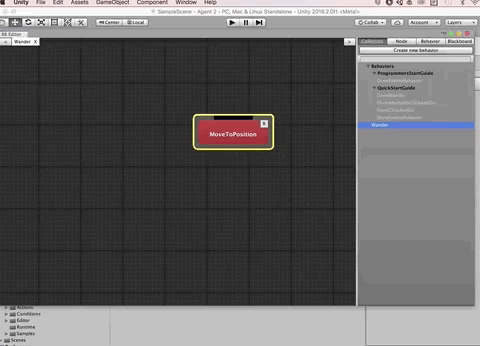

  • In the canvas for the Wander behavior right-click to add a new node and choose the action MoveToPosition from the drop-down menu. You can type move in the search box to quickly find the action.
Image for post
Image for post
  • Click the new MoveToPositionnode select the Nodetab in the Behavior Bricks inspector.
    This tab shows the properties of the selected node in the canvas. In this case you will find the input parameters, that constitute the information the action needs to know how to proceed.
  • Change the dropdown from CONSTANT to BLACKBOARD and change the target name to wanderTarget.
    All changes are automatically saved in your project so, once done, you can close the Behavior Bricks editor.
Image for post
Image for post

Connect the Behavior to the “Agent” Game Object

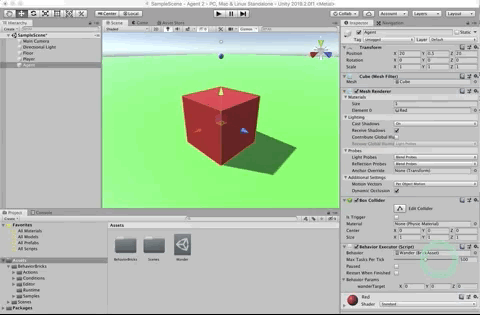

  • Select the Agent → click Add Component from the inspector tab select the Behavior Bricks - Behavior Executor.
  • From the asset folders, look for the Wander behavior, drag and drop it in the Behavior Executor Behavior variable where it says None (Internal Brick Asset).
    This links the wander behavior to the selected game object and executes the Behavior Bricks script during the runtime.
  • Under the Behavior Params change the values to (-20, .5, 20).
Image for post
Image for post

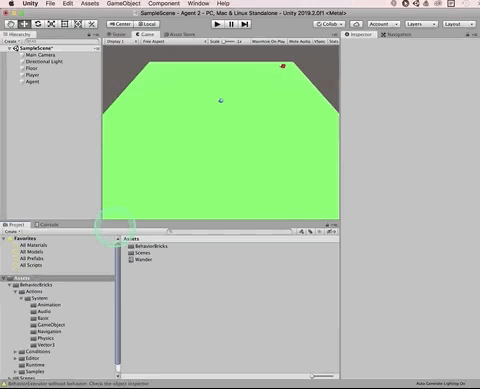

  • Launch your project and you will see the Agent moving to the left.
    Be aware of the Unity warning “The Enemy game object does not have a Nav Mesh Agent component to navigate. One with default values has been added”. This is due to a missing component in the Enemy. Specifically, MoveToPosition action uses the scene nav mesh, which requires a nav mesh agent component. Unity automatically adds it on runtime when missing, and warns about that. You can avoid the warning adding that component beforehand yourself.
Image for post
Image for post

4— Composing Behaviors

Lets make the behavior more interesting for our Agent by making the MoveToPosition go to a Random position.

  • Open Behavior Bricks Editor again (Window →Behavior Bricks →Editor) and make sure you’re in the Wander tab.

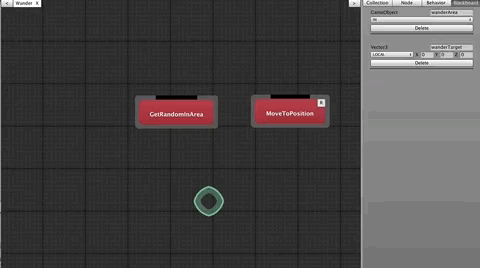

  • Right click to add a new node to the canvas for the GetRandomInArea action.
  • Create a new blackboard input parameter and call it wanderArea.
  • Select the previous wanderTarget as the blackboard parameter where the action will write the selected position.
Image for post
Image for post
Image for post
Image for post
  • In the Blackboard tab change the wanderTarget from IN to LOCAL.
Image for post
Image for post
  • The action marked with an R(MoveToPosition) is the root of the behavior tree and will be executed in the first place. In fact, GetRandomInArea will not be executed at all. In order to create a behavior with two actions, we need to compose them.
Image for post
Image for post

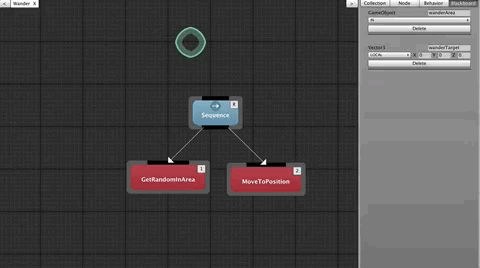

  • Right click on the canvas an add a composite Sequence Node.
    A Sequence is a composite node that executes its children in order.

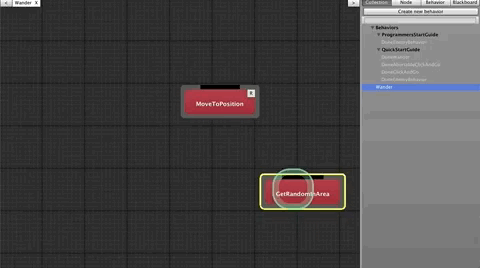

  • Click the handle from the bottom of the Sequence Node and connect it to MoveToPosition and GetRandomArea, clicking at the top of each node to make the connection.
    Our behavior is now a valid tree!
    The respective numbers 1 and 2 at the top of these nodes represent the order of execution. If you move the nodes around the numbers, and thus the execution order will change.
Image for post
Image for post

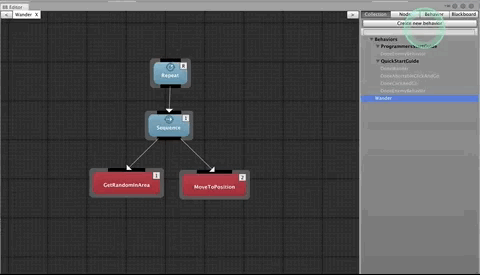

Making A Repeat Behavior

  • The sequence executes its children once. We want the Agent to continually wander around, so when it reaches the random position, another one should be selected and the Agent should go there.
  • Insert a Repeat Decorator node into the canvas. This internal node executes its child behavior again and again.
  • Create a connection from the Repeat node to the Sequence. Observe how the R mark readjusts itself.
Image for post
Image for post
  • Close the editor. Remember that behaviors are automatically saved.

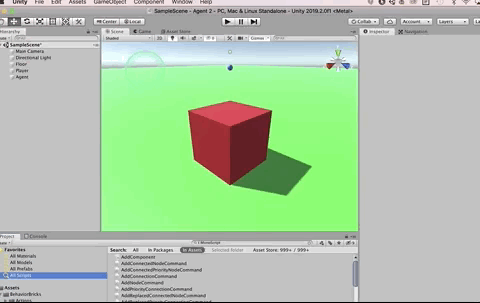

  • Select the Agent game object and observe the behavior executor parameters. You’ll notice wanderArea is still unestablished so the GetRandomInArea does not know the area where the position should be chosen from. Specifically, GetRandomInArea requires a game object with a box or sphere collider.
Image for post
Image for post

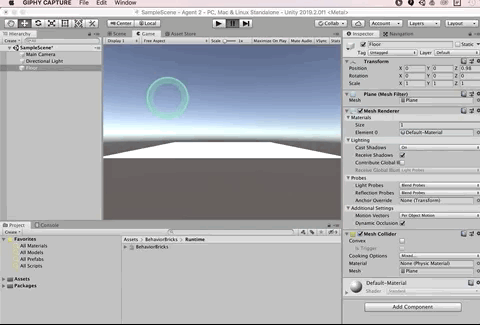

  • Select the Floor game object, and add it a Box collider. Set (10, 0, 10) as its size.
  • Select the Agent game object so you can see its elements in the inspector, and drag and drop the Floor into the wanderArea parameter.
Image for post
Image for post

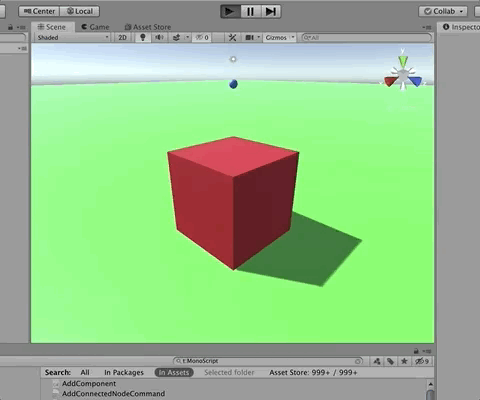

  • Play the scene. Observe the wander behavior of the enemy. It will continually move around to random positions.

The final version of this Wander behavior is available as Done Wander in the Behaviors Collection.

Image for post
Image for post

5 — Conditions & Perceptions

We want the player to move around using the mouse. This requires three steps:

  • Detect the mouse click. This provides us with a coordinate in screen space (2D).
  • Convert the click position into a 3D coordinate using a raycast to detect the object under the mouse.
  • Ask the player avatar to move to that position.

We’ll use the built-in CheckMouseButton condition that test if the user has just pressed one of the mouse buttons and ends with success in that case.

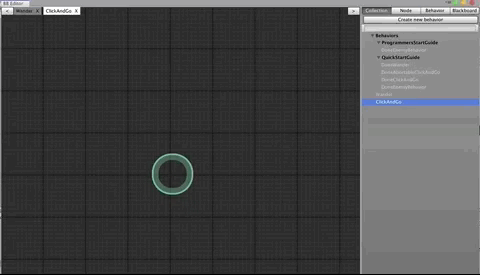

  • Open the editor window and create a behavior with the name ClickAndGo.
Image for post
Image for post

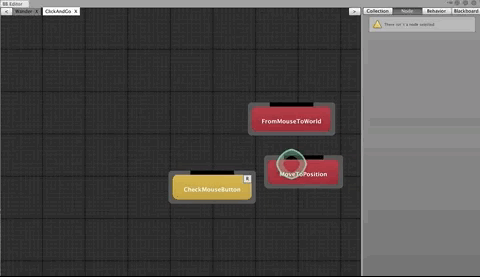

  • Add a CheckMouseButton node.
Image for post
Image for post

Add a FromMouseToWorld action. This action convert the current mouse position from screen coordinates to world coordinates. It has four parameters:

  • camera: camera used for the translation. Add a new blackboard field and keep the default name, camera.
  • mask: layer mask used for filtering the raycasting. Add a new blackboard field and keep the default name.
  • selectedGameObject: an output parameter where the action will write back the game object under the mouse, if any. We are not interested on it in this behavior, so we will keep it unassigned.
  • selectedPosition: output parameter with the 3D position of the mouse relative to the chosen camera. Add a new blackboard field and keep the default name.
Image for post
Image for post

Add a MoveToPosition. Change its target parameter to the selectedPositionfield in the blackboard.

Image for post
Image for post
  • In the Blackboard tab change the selectedPosition parameter type from INOUTto LOCAL because it is not relevant for the game object.
Image for post
Image for post
  • Add a Sequence and make those three nodes its children.
  • Add a Repeat node so the sequence loops again and again and the user can move around to different positions.
Image for post
Image for post

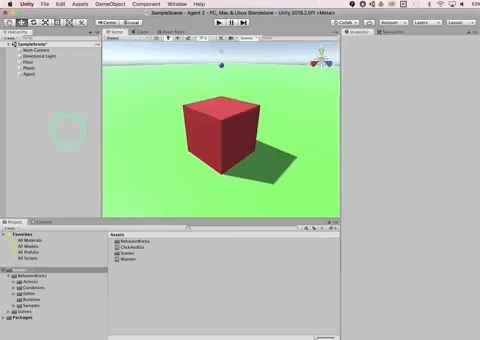

  • Close the editor and add a Behavior executor component in the Player game object. Attach to it the ClickAndGo behavior.
Image for post
Image for post
  • Configure the camera parameter with the Main Camera, and set the mask to Everything, so the screen-to-world transformation is done using the camera view, and the raycasting considers all objects in the scene.
