Building a CI pipeline with Blue Ocean

In this blog post, I will be walking through how to set up a Jenkins Blue Ocean job to build a Maven project (the Open source JPetstore project specifically). If you’d like the accompanying source code to set up the environments with softwares pre-installed, please feel free to download it here. If you’re interested in such hands-on sessions, please feel free to attend a playground near you (Singapore, Edinburgh, Pune & London) or look for the ECS Digital GitHub for past playgrounds.

The full pipeline

Overview

Cloudbees Jenkins is the most popular open source software orchestration tool on the market due to its wealth of plugins and easy set-up of infrastructure as code. Yet where does one begin using the Jenkinsfile for setting up new project and DevOps pipeline?

Let Blue Ocean take the hassle of setting up a Jenkinsfile from scratch by providing an intuitive, modern coat of paint on Jenkins user interface. With its modern design and intuitive features, Blue Ocean is here to facilitate a quick and easy setup of new Jenkins pipeline with minimal hassle.

In this playground, we will see how easy it is to set up a new Jenkins maven Job using the Blue Ocean plugin and the intuitive feedback it provides through its modern design.


Pre-check

Pre-requisites

  • Download the Playground repository that contains the Terraform scripts to set up environment
  • A GitHub account that can fork the JPetstore (Maven project to be built)
  • Hashicorp Terraform will need to be installed

Setting up the Playground Environment

Ensure you have the latest version of terraform installed.

Set the following environment variables:

export AWS_ACCESS_KEY_ID=<YOUR KEY ID>
export AWS_SECRET_ACCESS_KEY=<YOUR ACCESS KEY>

Navigate to the _setup directory and execute:

terraform init

Then execute:

terraform plan

Finally, apply the plan:

terraform apply

Check Jenkins is running

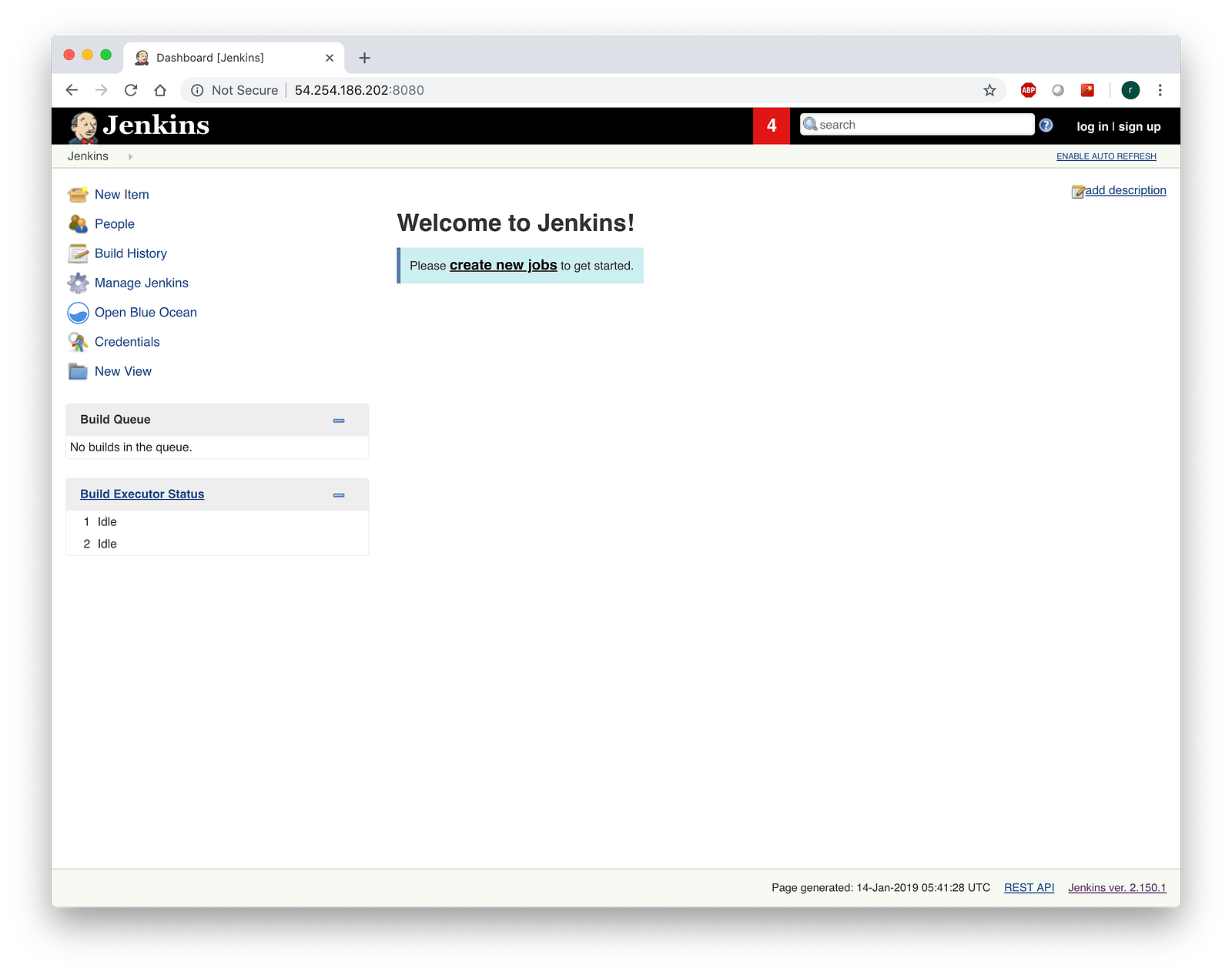

In a separate tab, navigate to http://<IP address>:8080 and confirm Jenkins is up.

Check Artifactory is running

In a separate tab, navigate to http://<IP address>:8081 and confirm Artifactory is up.

(If you wish to login, default username and password is admin/password)

Check SonarQube is running

In a separate tab, navigate to http://<IP>:8081 and confirm SonarQube is up.

(If you wish to login, default username and password is admin/password)


Setup

Fork the JPetstore Repository

  1. Log into GitHub
  2. Fork the JPetstore repository

Prepare the JPetstore pom file

Updates to the JPetstore pom file have been known to build errors. To pre-empt one such error, please remove -SNAPSHOT from the version field of the parent.

Prepare Artifactory

  1. Go to Artifactory and login as admin; admin/password
  2. Go to the admin section on the left of the interface and click local

3. Create 2 new maven repositories with the repository Key field as libs-snapshot-local and libs-release-local respectively. You may leave the rest of the fields as is.

Prepare Jenkins

  1. In the Jenkins tab, click Manage Jenkins

2. Click Configure Systems and scroll to the Artifactory subsection

3. Fill in the fields as follow:

4. Return back to Manage Jenkins page, click the Global Tool Configuration and scroll to the Maven subsection.

5. Fill in the fields as follow:

  • Name: maven (all lowercase)
  • MAVEN_HOME: /var/lib/apache-maven-3.6.0

Building the Pipeline

Connecting Jenkins to the GitHub Repository

  1. Click Open Blue ocean

2. Click login on the top right with the credentials admin/password

3. Click Create a new pipeline

4. Select GitHub and click ‘create an access token here’

  • You may need to log in to your GitHub account again

5. Fill in an appropriate description such as ‘Playground_token’. You may review the permissions this token permits. Click Generate token when done

6. Copy the newly created token to the clipboard and paste it into Jenkins

7. After clicking connect, select the organisation you forked the JPetstore repository into.

8. Select the JPetstore repository

9. Click Create Pipeline and wait for Jenkins to create the Jenkinsfile

Defining the Jenkinsfile

  1. Click the plus sign and name the stage ‘Build’
  2. Click Add steps to create the steps for the stages
  3. Select ‘shellscript’ and copy the following command: mvn clean install -Dlicense.skip=true
  • You may include Print message steps for ease of viewing and logging

4. Create a new stage called ‘Testing’ with the following ‘shellscript’ step command: mvn sonar:sonar -Dsonar.host.url=http://<IP address>:8081 -Dlicense.skip=true

5. To introduce parallel stages, click the plus sign beneath the testing stage

6. Before continuing, click the dot representing testing and rename it to ‘SonarQube Test’

7. Select the newly created parallel stage and name it ‘Print Tester Credentials’ with steps ‘Print message’ with The tester is ${TESTER} and 10s sleep.

8. Create another parallel stage called ‘Print build number’, with steps ‘Print message’ with This is build number ${BUILD_ID} and 20s sleep.

9. Bring up the pipeline editor by pressing ctrl+s for window users and command+s for MacOS users.

10. Replace the single quotes of the previous 2 print steps, seen as echo in the Jenkinsfile, with double quotes

  • Without this step, Jenkins will be unable to inject Environmental values into the Build.

11. Add the maven tool definition before the final curly brace in the Jenkinsfile; tools {maven 'maven'}

12. Click Update to close the editor

13. Create an environmental value using the interface on the right with the fields for ‘Name’ and ‘Value’ as ‘TESTER’ and ‘your name’ respectively

14. Create a new stage called JFrog push and search for the ‘Run arbitrary Pipeline script’ step and insert the following code:

def server = Artifactory.server "artifactory"
def buildInfo = Artifactory.newBuildInfo()
def rtMaven = Artifactory.newMavenBuild()
rtMaven.tool = 'maven'
rtMaven.deployer server: server, releaseRepo: 'libs-release-local', snapshotRepo: 'libs-snapshot-local'
buildInfo = rtMaven.run pom: 'pom.xml', goals: "clean install -Dlicense.skip=true"
buildInfo.env.capture = true
buildInfo.name = 'jpetstore-6'
server.publishBuildInfo buildInfo

16. Add a new stage called ‘Deploy prompt’, selecting the ‘Wait for interactive input’ as the step, with the message field filled as ‘Deploy to Production?’

17. For the final stage, name it Deployment and add placeholder ‘Print message’ steps.

18. To save and upload the Jenkinsfile to the GitHub repository, click Save on the top right, with an appropriate description for the change like ‘initial Jenkinsfile creation’.

19. Click save and run to upload the file and trigger the Jenkins Build.

20. When completed, you may go to the respective URLs for Artifactory and SonarQube to see the Artefacts and test results respectively.


Conclusion

In this playground we had an environment containing a build server (Jenkins) and a code review platform (SonarQube), along with another server containing a package repository (Artifactory). We built a CI pipeline using the Blue Ocean plugin and saved it as code; pipeline as code. We also saw how to inject custom and pre-determined Jenkins Environmental values into the script.

There are plenty of options available for building on top of the playground such as:

  • Preparing a proper Deployment stage to automate the deployment process of the Jenkins Project.
  • Setting up email notifications that automatically gets triggered and sent when a job succeeds or fails.
  • Implement other automated testing stages to run in parallel to the SonarQube test.
  • Run the build processes in other Operating systems and using other Java versions in parallel.

Jenkins Training

If you would like to further your knowledge with the Jenkins product suite. Consider booking a training course with one of ECS Digital certified Jenkins trainers.

For more information check out our website.

Appendix

Tearing down the Playground Environment

Navigate to the _setup directory and execute:

terraform destroy

Jenkinsfile code

pipeline {
agent any
stages {
stage('Build') {
steps {
echo 'Initiating maven build'
sh 'mvn clean install -Dlicense.skip=true'
echo 'Maven build complete'
}
}
stage('Testing') {
parallel {
stage('SonarQube Test') {
steps {
echo 'Initiating SonarQube test'
sh 'mvn sonar:sonar -Dsonar.host.url=http://<IP address>:8081 -Dlicense.skip=true'
echo 'SonarQube test Complete'
}
}
stage('Print Tester credentials') {
steps {
sleep 10
echo "The tester is ${TESTER}"
}
}
stage('Print Build Number') {
steps {
sleep 20
echo "This is build number ${BUILD_ID}"
}
}
}
}
stage('JFrog Push') {
steps {
echo 'Starting JFrog push'
script {
def server = Artifactory.server "artifactory"
def buildInfo = Artifactory.newBuildInfo()
def rtMaven = Artifactory.newMavenBuild()
rtMaven.tool = 'maven'
rtMaven.deployer server: server, releaseRepo: 'libs-release-local', snapshotRepo: 'libs-snapshot-local'
buildInfo = rtMaven.run pom: 'pom.xml', goals: "clean install -Dlicense.skip=true"
buildInfo.env.capture = true
buildInfo.name = 'jpetstore-6'
server.publishBuildInfo buildInfo
}
echo 'JFrog push complete'
}
}
stage('Deploy prompt') {
steps {
input 'Deploy to Production?'
}
}
stage('Deploy') {
steps {
echo 'Initiating Deployment'
echo 'Deployment Complete'
}
}
}
tools {
maven 'maven'
}
environment {
TESTER = 'placeholder'
}
}
