Navigating mining options for the Ethereum Classic SHA-3 fork

Image for post
Image for post
This article is a synopsis of the whitepaper, SHA-3: Impact on Ethereum Classic Mining Hardware & Network Security posted on ePIC Blockchain’s Github.

The Ethereum Classic (ETC) community has been embroiled in a proposed Proof of Work (PoW) change to increase network security. ETC was attacked twice in January of 2019. To bolster the security of the ETC network, the ECIP 1049 proposal, initiated by Alex Tsankov, advocates changing ETC’s PoW algorithm to SHA-3 (also interchangeably referred to as Keccak). Significant effort has been devoted to testing with SHA-3 on Astor.net, the testnet for Ethereum Classic.

ECIP 1049 will create new ways to interact with the blockchain while also improving its integrity and security. Becoming the largest blockchain on the SHA-3 algorithm greatly reduces the chance of bad actors attacking the ETC network while fostering a whole new generation of mining hardware development and innovation.

SHA-3 is hardware agnostic

Network hashrate and, moreover, network security relies heavily not only on miners but loyal and dedicated miners who truly support the network. Changing to ECIP 1049 will lead to an increased hashrate and more diverse mining hardware including dedicated hardware for ETC in the form of ASICs. This will make the ETC network significantly more resilient to GPU (Graphics Processing Units) attacks.

While the change significantly improves network security, there were concerns from the community that dedicated ASIC hardware would not be ready for the Block 11.5 million hard fork to the SHA-3 PoW. These concerns are unfounded since SHA-3 is hardware agnostic and will run on today’s GPUs and FPGAs (Field Programmable Gate Arrays) until SHA-3 ASICs come online.

The proposal would not only increase the hardware options for miners but allow ETC to be the dominant mining network on the SHA-3 algorithm, unlike ETC on Ethash today. Increasing the hashrate makes a network more difficult to attack. An attack requires many devices to be amassed. Renting hardware may be an option, but the high cost of rental makes this an unlikely option.

Other networks have successfully used a similar strategy, that is staying hardware agnostic, for their PoW algorithm. As an example, Grin coin, which uses the Cuckatoo 31 and 32 algorithms, is being mined with GPUs, while ASICs are being developed. However like Ethash, Cuckatoo is memory bound and therefore not conducive to FPGA mining.

Abundant FPGA support for SHA-3

Software infrastructure to support SHA-3 mining already exists today for GPUs and FPGAs from a variety of smaller Alternate Coins (Altcoins). These include SmartCash and 0xBitcoin. ETC can easily leverage these existing infrastructures to become the dominant SHA-3 network, thus reducing the risk of GPU miners shifting networks as profit changes, and potentially compromising network security. SHA-3 software infrastructure has been used since July of 2017. The ETC community can take comfort in the stability of the infrastructure and the availability of community support.

The fork to SHA-3 would attract significant interest from FPGA miners. With over $70 million of mining rewards, ETC would represent the largest network that is profitable to mine with FPGA devices.

Image for post
Image for post
Various FPGA miners available from FPGA.guide

Network security increases with FPGAs

ePIC Blockchain estimates that there are about 800,000 GPUs mining ETC today. While this seems like a large number, the number of GPUs that are mining Ethereum today is above 6 million. Converted to SHA-3 hash power, the current ETC GPU miner base would produce about 270 TH/second of hash power. The migration of only 15,000 FPGAs to ETC mining would double the projected hash rate to 540 TH/second.

While FPGA miners are nomadic in nature, constantly moving to the most profitable network, they are unlikely to amass enough hashrate to attack the ETC SHA-3 network. By my estimates, it would cost over $1 million per day to rent enough FPGAs from AWS F1 to mount a 51% attack on ETC network when it is being secured by 800,000 GPUs and 15,000 FPGAs. Alternatively, it would take 1.5 million GPUs to amass such an attack. (The numbers used in this post is based on a conservative ETC price of $7.85; ETC is currently trading around $12. Therefore, this allows for some interchange among the miner base between GPU and FPGA based on profitability.)

The ASICs are coming

The absence of ASICs at the start of the SHA-3 fork should not be a concern to the ETC community. Since bringing ASICs to market requires time and large investments, ASIC providers require certainty before committing resources.The rewards from mining along with the coin emission rate make bringing SHA-3 ASICs to market very attractive. Given ECIP 1049’s current timeline, there is adequate time and existing hashrate to support the network until the arrival of ASICs. Both GPUs and FPGAs will be used to mine at the inception of SHA-3 on Block 11.5M.

Image for post
Image for post
Relative characteristics of SHA-3 mining hardware. Source: ePIC SHA-3 whitepaper

As SHA-3 ASICs come online on the ETC network, the security of the network will be greatly enhanced. ASIC hash rates are expected to be 7 to 400 times the hashrate of current FPGAs and GPUs. The huge increase in hashrate essentially removes the threat of a 51% GPU attack. ASIC miners by their nature are dedicated machines devoted to a single algorithm like SHA-3 and therefore have no motivation to attack their primary network. An attack would jeopardize the future profitability of one’s ASIC mining hardware.

Detractors of ECIP 1049 are attempting to derail adoption of SHA-3 by asserting that SHA-3 ASICs are difficult to design and implement. The fact is, the design is simple. There are many SHA-3 ASIC design papers published and several open source designs are available as a starting point. By comparison, there are no open source Ethash ASICs or FPGA bitstreams. The naysayers are Ethash ASIC manufacturers who have a vested interest in preventing ETC’s hard fork, since their ASICs are unable to mine SHA-3.

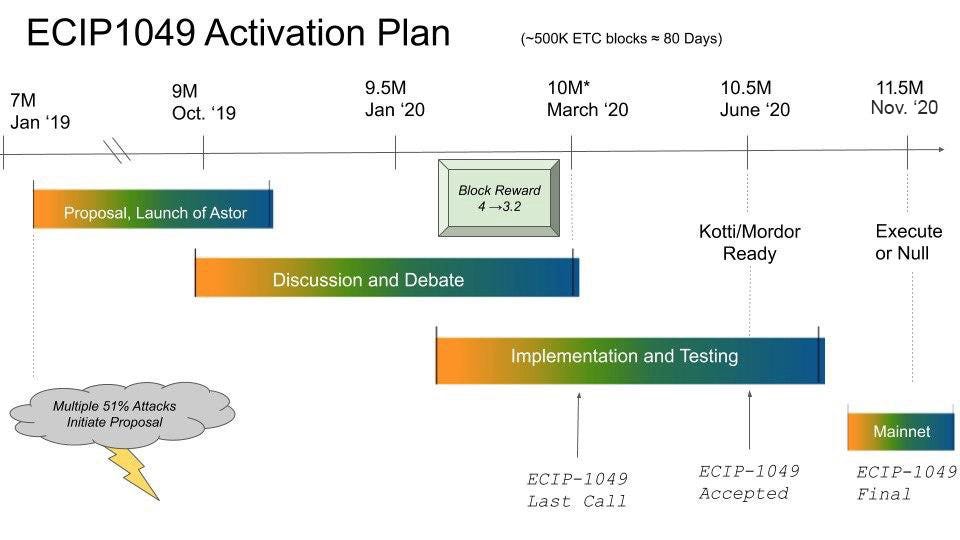

SHA-3 Activation Plan

In order to ensure a smooth transition at Block 11.5 million, the ETC community needs to ensure that there are several viable options for mining available from the start. With the ETC Astor Testnet already live today, the community can rally together to provide a working infrastructure. Reaching out to popular GPU software miners and FPGA developers as early as possible will greatly help the efforts of the proposed ECIP 1049 transition.

Image for post
Image for post

Summary & call to action

The ECIP 1049 proposal represents a great opportunity for the ETC network. Fundamentally, it is an initiative to secure the network by greatly increasing the hashrate and diversifying the pool of mining hardware. Hardware innovation and development will follow as ETC mining evolves towards FPGAs and ASICs. Adoption of this proposal will push the ETC network to the forefront of the SHA-3 mining ecosystem and out of the shadows of Ethash.

Further discussion on network security, network hashrates and SHA-3 hardware can be found in a whitepaper on ePIC’s Github, SHA-3 Transition Whitepaper: Impact on Ethereum Classic Mining Hardware & Network Security. The data and rationale used in this post is explained in more detail in the whitepaper.

Post your feedback below. Follow me for future mining and ASIC hardware insight.
