Flutter Design Patterns: 9 — Iterator

An overview of the Iterator design pattern and its implementation in Dart and Flutter

Image for post
Image for post

In the last article, I have analyzed one of the behavioral design patterns — Interpreter. This time I would like to represent the pattern which specific implementation(s) you have probably already used in your day-to-day programming without even noticing or considering it — the Iterator design pattern.

Table of Contents

  • What is the Iterator design pattern?
  • Analysis
  • Implementation
  • Other articles in this series
  • Your contribution

What is the Iterator design pattern?

Image for post
Image for post

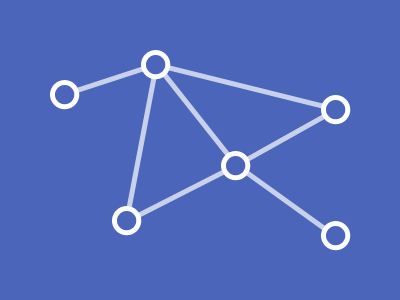

Iterating over the graph (source)

Iterator is a behavioural design pattern, also known as Cursor. The intention of this design pattern is described in the GoF book:

Provide a way to access the elements of an aggregate object sequentially without exposing its underlying representation.

The key idea in this pattern is to take the responsibility for access and traversal out of the list object (or any other collection) and put it into an iterator object. This class defines an interface to iterate over the specific collection, access its elements and is responsible to track the current position of the iterator in the collection. Also, the collection interface is defined to store the underlying data structure which will be iterated over and provides a method to create the specific iterator for that particular collection. These abstractions over the collection and its iteration logic allow the client to use different data structures and iterate over them just like they would be the same by using both — iterator and collection — interfaces.

As I have already mentioned, you have probably already used this design pattern (at least its implementation) without even noticing it, especially if you are familiar with the development using Java or C#/.NET. For instance, all Java collections provide some internal implementations of the Iterator interface which is used to iterate over collection elements. In C# context, there are some special container types capable of holding a collection of values e.g. List, and ArrayList, which come with the possibility to iterate over them.

Let’s move to the analysis and implementation parts to understand the details about this pattern and to learn how to implement our custom iterator!

Analysis

The general structure of the Iterator design pattern looks like this:

Image for post
Image for post
Structure of the Iterator design pattern (source)
  • IterableCollection — defines an interface for creating an Iterator object;
  • ConcreteCollection — implements the Iterator creation interface to return a new instance of a particular specific iterator class each time the client requests one. This class could also contain additional code/logic e.g. to store the data structure which should be iterated;
  • Iterator — defines an interface for accessing and traversing elements of the collection;
  • ConcreteIterator — implements the Iterator interface. Also, this class should track the traversal progress e.g. the current position in the traversal of the collection;
  • Client — references and uses both collections and iterators via their interfaces.

Applicability

The Iterator design pattern should be used when you want to abstract the iteration logic of the collection, access its elements without exposing the internal structure of the collection itself. This promotes the idea of Single Responsibility Principle as well as the DRY (Don’t Repeat Yourself) principle.

Furthermore, this pattern is useful when you want to traverse the same collection in several different ways, depending on what you want to accomplish. For instance, you want to have one iterator to iterate over the whole collection and another to iterate only over the specific collection items which match the filter criteria, or, let’s say, iterate over every second element in the collection. For this case, you do not need to bloat a single interface to implement different iteration algorithms, you just create different iterator classes implementing the same interface with their specific iteration logic.

Finally, the Iterator design pattern could help when you are not sure about the specific implementation of your data structures beforehand, but you want to implement the logic to traverse them and use it in your client. The pattern provides a couple of generic interfaces for both collections and iterators. Given that your code now uses these interfaces, it will still work if you pass it various kinds of collections and iterators that implement these interfaces.

Implementation

Image for post
Image for post

First of all, to understand the implementation part better, you should be familiar with the tree data structure. If you are not following the series, I have explained it when analysing the Composite design pattern, but if you have already read this article — 10 points for Gryffindor!

This time we will investigate one of the fundamental parts in graph theory — the graph traversal. The graph traversal is defined as:

In computer science, graph traversal (also known as graph search) refers to the process of visiting (checking and/or updating) each vertex in a graph. Such traversals are classified by the order in which the vertices are visited. Tree traversal is a special case of graph traversal.

This time, we will focus only on the tree traversal case. There are several graph/tree traversal algorithms available out there:

  • Depth-first search (DFS) — visits the child vertices before visiting the sibling vertices; that is, it traverses the depth of any particular path before exploring its breadth;
  • Breadth-first search (BFS) — visits the sibling vertices before visiting the child vertices.
Image for post
Image for post
BFS vs DFS (source)

Let’s say you want to experiment with the tree traversal using different algorithms. Furthermore, the visualization of these algorithms should be provided to the UI where you can switch between different algorithms easily, but use the same tree data structure for both of them. Also, you want to hide the implementation details of how the tree data structure should be iterated for each algorithm. To implement this, the Iterator design pattern is an obvious choice.

Class diagram

The class diagram below shows the implementation of the Iterator design pattern:

Image for post
Image for post
Class Diagram — Implementation of the Iterator design pattern

ITreeCollection defines a common interface for all the specific tree collections:

  • createIterator() — creates an iterator for the specific tree collection;
  • getTitle() — returns the title of the tree collection which is used in the UI.

DepthFirstTreeCollection and BreadthFirstTreeCollection are concrete implementations of the ITreeCollection interface. DepthFirstTreeCollection creates the DepthFirstIterator while BreadthFirstTreeCollection creates the BreadthFirstIterator. Also, both of these collections stores the Graph object to save the tree data structure itself.

ITreeIterator defines a common interface for all specific iterators of the tree collection:

  • hasNext() — returns true if the iterator did not reach the end of the collection yet, otherwise false;
  • getNext() — returns the next value of the collection;
  • reset() — resets the iterator and sets the current position of it to the beginning.

DepthFirstIterator and BreadthFirstIterator are concrete implementations of the ITreeIterator interface. DepthFirstIterator implements the depth-first algorithm to traverse the tree collection. Correspondingly, BreadthFirstIterator implements the breadth-first algorithm. The main difference between these two algorithms is the order in which all of the nodes are visited. Hence, the depth-first algorithm is implemented using the stack data structure while the breadth-first algorithm uses the queue data structure to store nodes (vertices) which should be visited next.

IteratorExample references both interfaces — ITreeCollection and ITreeIterator — to specify the required tree collection and create an appropriate iterator for it.

Graph

A class which stores the adjacency list of the graph. It is stored as a map data structure where the key represents the node’s (vertex) id and the value is a list of vertices (ids of other nodes) adjacent to the vertex of that id (key). Also, this class defines the addEdge() method to add an edge to the adjacency list.

Image for post
Image for post
graph.dart

ITreeCollection

An interface which defines methods to be implemented by all specific tree collection classes. Dart language does not support the interface as a class type, so we define an interface by creating an abstract class and providing a method header (name, return type, parameters) without the default implementation.

Image for post
Image for post
itree_collection.dart

Tree collections

DepthFirstTreeCollection — a tree collection class which stores the graph object and implements the createIterator() method to create an iterator which uses the depth-first algorithm to traverse the graph.

Image for post
Image for post
depth_first_tree_collection.dart

BreadthFirstTreeCollection — a tree collection class which stores the graph object and implements the createIterator() method to create an iterator which uses the breadth-first algorithm to traverse the graph.

Image for post
Image for post
breadth_first_tree_collection.dart

ITreeIterator

An interface which defines methods to be implemented by all specific iterators of the tree collection.

Image for post
Image for post
itree_iterator.dart

Tree iterators

DepthFirstIterator — a specific implementation of the tree iterator which traverses the tree collection by using the depth-first algorithm. This algorithm uses the stack data structure to store vertices (nodes) which should be visited next using the getNext() method.

Image for post
Image for post
depth_first_iterator.dart

BreadthFirstIterator — a specific implementation of the tree iterator which traverses the tree collection by using the breadth-first algorithm. This algorithm uses the queue data structure to store vertices (nodes) which should be visited next using the getNext() method.

Image for post
Image for post
breadth_first_iterator.dart

Example

First of all, a markdown file is prepared and provided as a pattern’s description:

Image for post
Image for post

IteratorExample widget is responsible for building the tree (graph) using the Graph class and contains a list of tree collection objects. After selecting the specific tree collection from the list and triggering the traverseTree() method, an appropriate iterator of that particular tree collection is created and used to traverse the tree data structure.

Image for post
Image for post
iterator_example.dart

As you can see in the traverseTree() method, all the implementation details of the tree collection’s traversal are hidden from the client, it only uses the hasNext() and getNext() methods defined by the ITreeIterator interface to iterate through all of the vertices (nodes) of the built Graph object (tree).

The final result of the Iterator design pattern’s implementation looks like this:

Image for post
Image for post

As you can see in the example, by selecting the specific tree collection and creating its iterator, the algorithm to traverse the tree also changes and it is visually noticeable in the demonstration.

All of the code changes for the Iterator design pattern and its example implementation could be found here.
