Flutter For Android Developers : How to design FrameLayout in Flutter.
This blog is meant for Android developers looking to apply their existing Android knowledge to build mobile apps with Flutter. In this blog, we are going to explore what is equivalent design widget for FrameLayout in Flutter.
- How to design Activity UI in Flutter ?
- How to design LinearLayout in Flutter ?
- How to design FrameLayout in Flutter ? (You are here)
This blog already assumes that you have setup the flutter in your machine and able to run a Hello World app. If you haven’t install flutter yet, gets started from here.
Dart is based on the object-oriented concept so as android java developer you will be able to catch up dart very easily.
Let’s get started

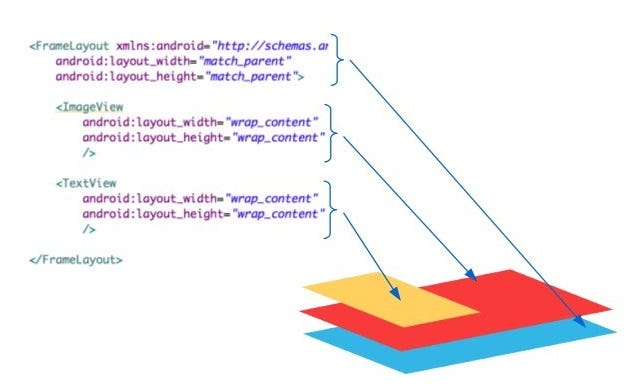

FrameLayout is one of the layouts which used very often while developing Android Designs. We define
FrameLayout adding single or multiple child views which are drawn in a stack, with the most recently added child on top. Below its show how we do it in Android.
FrameLayout is used for mostly two cases in Android.
- To draw a view on top of the other child view, i.e to overlaps views in a form of Stack with the most recently added child on top.
- It’s used as a container to draw
The second reason is true for Android, but in case of flutter because Everything is a widget that’s why the concept of
Fragment doesn’t apply in flutter instead we use widgets.
Now the first used case is very obvious for designing. So flutter provides an equivalent widget which behaves as
FrameLayout. Yes, I know its Stack widget because I made the word bold-italic in the first use case.
Stack positions its children relative to the edges of its box. This class is equivalent to
FrameLayout and its more useful when you want to overlap several children in a simple way, for example having some text and an image, overlaid with a gradient and a button attached to the bottom.
This is how we define Stack in the flutter.
Here is the output for the above code.
As we know in
FrameLayout the child views are drawn in form of the stack which is one on the top of the other depending upon the order they have defined. The first child will be at the bottom and the last define child will be on the top.
The same concept goes to the Stack widget. The child widget defined first in
children:<Widget> will be on the bottom and the last item in
children:<Widget> will be drawn on top.
This is defined in the parent layout since
FrameLayout does not have
android:gravity attribute, you need to assigned
layout_gravity to each child in order to achieve
But the Stack went one step ahead and provide
android:gravity behavior in-build which can be achieve using Stack.alignment property which takes
AlignmentDirectional object which has a predefined enum like
android:gravity is defined in parent layout we will define Stack.alignment in the parent as well which is our
Stack widget. This is how you define in the above example.
child: new Stack(
...//all your child widgets
By default it takes
AlignmentDirectional.topStart if you don’t assign any value to alignment property. You can refer
Screenshot-1 where we didn’t define any alignment value which by default aligned it to top start corner.
The beauty about flutter is there naming conventions you can make out what does it mean. From the alignment property enum name you can identify what it is going to do.
AlignmentDirectional.topStart is going to set the children widgets of the top corner of the Stack widget and so on. This is how it looks with other
- If we do not define any size for Stack than it will take its parent size i.e
match_parent.In above example, we have made
Containeras expanded using
BoxConstraints.expand()so that it can take all the available space i.e whole screen in our case which can be identified by
tealAccentcolor. Since we didn’t define any size to
Stackso it will be as big as its parent i.e whole screen, and Stack.alignment property will work according to the stack size which is our
- If we do not define any size to
Stackwill take the maximum size from its available children i.e
wrap_content.So that Stack.alignment property will align widgets according to the size of the stack. Below is the output when we remove
android:layout_gravity is the Outside gravity of the View. Specifies the direction in which the View should touch its parent’s border. This is what we use most of the time in
FrameLayout. In order to add this behavior in
Stack, you need to wrap the child in
Align widget which behaves as
layout_gravity in Android. This is how you define the
Align widget to each child.
As per above code, we have aligned the child in four corners using Align.alignment property. If we don’t define any size to
Align widget than by default
Stack will expand to available space i.e the whole screen in our case and then it will align the widget according to the available space that’s why we are able to see
tealAccent color without
Let’s play with Align.alignment property in Green box widget and see how it looks.
Now, this is bonus widget which we get in Stack. Currently, there is no Position behavior in
FrameLayout .The Positioned widget is nothing but a widget that controls where a child of a
Stack is positioned. To define a position of a child widget in
Stack we need to wrap the child inside the
Positioned widget and define the position using
right properties as per our need.
Here is the sample code to define positioned widget.
Screenshot-3 output, you can see the widgets are aligned with the given positions.You can also define width and height for
FrameLayout is most commonly used in Android. The overlapping widget is made easy with
Stack with additional features like
Positioned widget. Hope to cover more topics in the upcoming blogs. I have created a sample app to play around with stack attributes in reference to
FrameLayout. You can click on the toolbar icon to see the output for
If you have any suggestions for Android topic that you want to learn in Flutter than please let me know in comments.
Check out flutter for android example here.
This is sample app for my blog series "Flutter For Android Developer" for Android developers who are looking to apply…github.com
Thank you !!!
If you find this article helpful. Please like,share and clap so other people will see this here on Medium. If you have any quires or suggestions, feel free comment on the blog or hit me on Twitter, GitHub or Reddit.
To get latest updates for my upcoming blog you can follow me on Medium, Twitter, GitHub or Reddit.
