Reinforcement Learning is an aspect of Machine learning where an agent learns to behave in an environment, by performing certain actions and observing the rewards/results which it get from those actions.

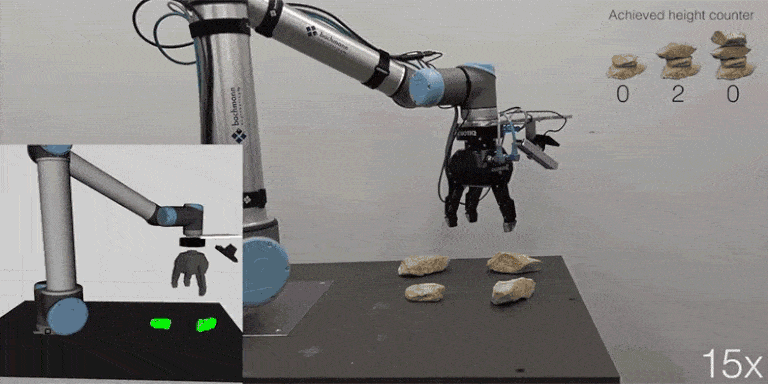

With the advancements in Robotics Arm Manipulation, Google Deep Mind beating a professional Alpha Go Player, and recently the OpenAI team beating a professional DOTA player, the field of reinforcement learning has really exploded in recent years.
In this article, we’ll discuss:
- What reinforcement learning is and its nitty-gritty like rewards, tasks, etc
- 3 categorizations of reinforcement learning
What is Reinforcement Learning?
Let’s start the explanation with an example — say there is a small baby who starts learning how to walk.
Let’s divide this example into two parts:
1. Baby starts walking and successfully reaches the couch
Since the couch is the end goal, the baby and the parents are happy.
So, the baby is happy and receives appreciation from her parents. It’s positive — the baby feels good (Positive Reward +n).
2. Baby starts walking and falls due to some obstacle in between and gets bruised.
Ouch! The baby gets hurt and is in pain. It’s negative — the baby cries (Negative Reward -n).
That’s how we humans learn — by trail and error. Reinforcement learning is conceptually the same, but is a computational approach to learn by actions.
Let’s suppose that our reinforcement learning agent is learning to play Mario as a example. The reinforcement learning process can be modeled as an iterative loop that works as below:
- The RL Agent receives state S⁰ from the environment i.e. Mario
- Based on that state S⁰, the RL agent takes an action A⁰, say — our RL agent moves right. Initially, this is random.
- Now, the environment is in a new state S¹ (new frame from Mario or the game engine)
- Environment gives some reward R¹ to the RL agent. It probably gives a +1 because the agent is not dead yet.
This RL loop continues until we are dead or we reach our destination, and it continuously outputs a sequence of state, action and reward.
The basic aim of our RL agent is to maximize the reward.
The RL agent basically works on a hypothesis of reward maximization. That’s why reinforcement learning should have best possible action in order to maximize the reward.
The cumulative rewards at each time step with the respective action is written as:
However, things don’t work in this way when summing up all the rewards.
Let us understand this, in detail:
Let us say our RL agent (Robotic mouse) is in a maze which contains cheese, electricity shocks, and cats. The goal is to eat the maximum amount of cheese before being eaten by the cat or getting an electricity shock.
It seems obvious to eat the cheese near us rather than the cheese close to the cat or the electricity shock, because the closer we are to the electricity shock or the cat, the danger of being dead increases. As a result, the reward near the cat or the electricity shock, even if it is bigger (more cheese), will be discounted. This is done because of the uncertainty factor.
It makes sense, right?
Discounting of rewards works like this:
We define a discount rate called gamma. It should be between 0 and 1. The larger the gamma, the smaller the discount and vice versa.
So, our cumulative expected (discounted) rewards is:
Tasks and their types in reinforcement learning
A task is a single instance of a reinforcement learning problem. We basically have two types of tasks: continuous and episodic.
These are the types of tasks that continue forever. For instance, a RL agent that does automated Forex/Stock trading.
In this case, the agent has to learn how to choose the best actions and simultaneously interacts with the environment. There is no starting point and end state.
The RL agent has to keep running until we decide to manually stop it.
In this case, we have a starting point and an ending point called the terminal state. This creates an episode: a list of States (S), Actions (A), Rewards (R).
For example, playing a game of counter strike, where we shoot our opponents or we get killed by them.We shoot all of them and complete the episode or we are killed. So, there are only two cases for completing the episodes.
Exploration and exploitation trade off
There is an important concept of the exploration and exploitation trade off in reinforcement learning. Exploration is all about finding more information about an environment, whereas exploitation is exploiting already known information to maximize the rewards.
Real Life Example: Say you go to the same restaurant every day. You are basically exploiting. But on the other hand, if you search for new restaurant every time before going to any one of them, then it’s exploration. Exploration is very important for the search of future rewards which might be higher than the near rewards.
In the above game, our robotic mouse can have a good amount of small cheese (+0.5 each). But at the top of the maze there is a big sum of cheese (+100). So, if we only focus on the nearest reward, our robotic mouse will never reach the big sum of cheese — it will just exploit.
But if the robotic mouse does a little bit of exploration, it can find the big reward i.e. the big cheese.
This is the basic concept of the exploration and exploitation trade-off.
Approaches to Reinforcement Learning
Let us now understand the approaches to solving reinforcement learning problems. Basically there are 3 approaches, but we will only take 2 major approaches in this article:
1. Policy-based approach
In policy-based reinforcement learning, we have a policy which we need to optimize. The policy basically defines how the agent behaves:
We learn a policy function which helps us in mapping each state to the best action.
Getting deep into policies, we further divide policies into two types:
- Deterministic: a policy at a given state(s) will always return the same action(a). It means, it is pre-mapped as S=(s) ➡ A=(a).
- Stochastic: It gives a distribution of probability over different actions. i.e Stochastic Policy ➡ p( A = a | S = s )
2. Value Based
In value-based RL, the goal of the agent is to optimize the value function V(s) which is defined as a function that tells us the maximum expected future reward the agent shall get at each state.
The value of each state is the total amount of the reward an RL agent can expect to collect over the future, from a particular state.
The agent will use the above value function to select which state to choose at each step. The agent will always take the state with the biggest value.
In the below example, we see that at each step, we will take the biggest value to achieve our goal: 1 ➡ 3 ➡ 4 ➡ 6 so on…

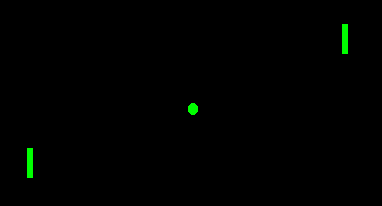

The game of Pong — An Intuitive case study
Let us take a real life example of playing pong. This case study will just introduce you to the Intuition of How reinforcement Learning Works. We will not get into details in this example, but in the next article we will certainly dig deeper.
Suppose we teach our RL agent to play the game of Pong.
Basically, we feed in the game frames (new states) to the RL algorithm and let the algorithm decide where to go up or down. This network is said to be a policy network, which we will discuss in our next article.
The method used to train this Algorithm is called the policy gradient. We feed random frames from the game engine, and the algorithm produces a random output which gives a reward and this is fed back to the algorithm/network. This is an iterative process.
We will discuss policy gradients in the next Article with greater details.
In the context of the game, the score board acts as a reward or feed back to the agent. Whenever the agent tends to score +1, it understands that the action taken by it was good enough at that state.
Now we will train the agent to play the pong game. To start, we will feed in a bunch of game frame (states) to the network/algorithm and let the algorithm decide the action.The Initial actions of the agent will obviously be bad, but our agent can sometimes be lucky enough to score a point and this might be a random event. But due to this lucky random event, it receives a reward and this helps the agent to understand that the series of actions were good enough to fetch a reward.
So, in the future, the agent is likely to take the actions which will fetch a reward over an action which will not. Intuitively, the RL agent is leaning to play the game.
During the training of the agent, when an agent loses an episode, then the algorithm will discard or lower the likelyhood of taking all the series of actions which existed in this episode.
But if the agent was performing well from the start of the episode, but just due to the last 2 actions the agent lost the game, it does not make sense to discard all the actions. Rather it makes sense if we just remove the last 2 actions which resulted in the loss.
This is called the Credit Assignment Problem. This problem arises because of a sparse reward setting. That is, instead of getting a reward at every step, we get the reward at the end of the episode. So, it’s on the agent to learn which actions were correct and which actual action led to losing the game.
So, due to this sparse reward setting in RL, the algorithm is very sample-inefficient. This means that huge training examples have to be fed in, in order to train the agent. But the fact is that sparse reward settings fail in many circumstance due to the complexity of the environment.
So, there is something called rewards shaping which is used to solve this. But again, rewards shaping also suffers from some limitation as we need to design a custom reward function for every game.
Today, reinforcement learning is an exciting field of study. Major developments has been made in the field, of which deep reinforcement learning is one.
We will cover deep reinforcement learning in our upcoming articles. This article covers a lot of concepts. Please take your own time to understand the basic concepts of reinforcement learning.
But, I would like to mention that reinforcement is not a secret black box. Whatever advancements we are seeing today in the field of reinforcement learning are a result of bright minds working day and night on specific applications.
Next time we’ll work on a Q-learning agent and also cover some more basic stuff in reinforcement learning.
Until, then enjoy AI 😉…
