Bubble animation with React Native

Lessons learned while building a React Native App using Animated and PanResponder

Narendra N Shetty
Aug 2, 2017 · 4 min read

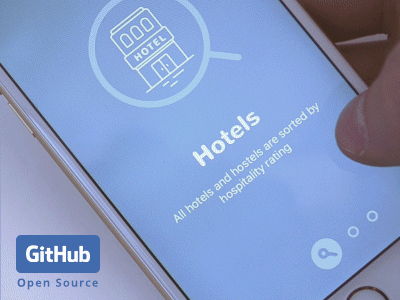

In this article, I’ll talk about how I implemented an app transition which I found on Dribbble by Ramotion.


This pagination controller can be used for onboarding flow or for a tutorial.

The complete version is published in Expo, and you can get it by opening the Expo app and scanning this QR code:


Let’s begin, shall we?

I had View holding the background color. This includes Animated.View for the bubble animation. Its position was absolute so that it stayed on top of the screen. I also added some basic styles.

Then, I animated the bubble by expanding from 0 to max using the CSS transform scale with Animated.timing.

The above animation needed to trigger based on user interaction. First I used TouchableWithoutFeedback. Then I changed it with gestures.

I positioned the bubble according to the gif, which animated from the bottom. I did this using top and left property.

Neat! Results are as expected except the color. We’ll get back to that later.

Now I restructured the code by moving the bubble logic into a separate component called CircleTransition. Then I triggered the animation from the parent component.

Then it was time when to tackle the color. To make the bubble animate with the new color, I passed the new color into the component. And after the transition, I hid the bubble.

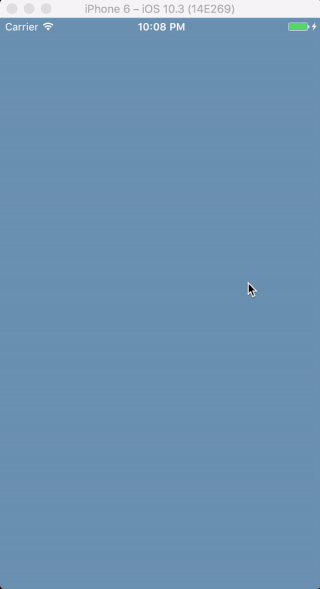

Can you see something weird in the above transition?

During the second bubble transition, the background color is fell back to the first color. I needed to update the background color to the new color with the bubble transitioned.

I passed a callback to the start method which executed when the transition completed.

Voila! It’s all set. Now I had the basic animation working.

Next I got into the gesture. The bubble transitions when the user swipes left or right according to the gif.

I created a new component called Swipe. It contains all the logic for the gesture and replacesTouchableWithoutFeedback.

I used PanResponderwhich reconciles several touches into a single gesture. It makes single-touch gestures resilient to extra touches. It can also recognize simple multi-touch gestures. For more on this you can go here and here.

Now for the logic of the gestures.

First I needed to figure out which direction the user is swiping. I only need to animate when the user swipes left or right. I also needed to setup some threshold to determine if it’s actually a swipe or not.

If it was a valid swipe, I triggered the appropriate action.

Yes! You guessed it right. I have gotten what I wanted to achieve with the gesture. Then I added an action for swipeRight. The gesture was completed with a bit of refactoring.

That’s it! This was the most complex part in the app.

I won’t show my complete work on this app. The information in this post should be enough help you build your own. Fork this and try to complete your app to match the above gif.

If you are stuck and need any help, final version is in result branch, have a peek. Also you can ping me on Twitter @narendra_shetty or comment below.

And when you complete, please share your Expo/GitHub link.

If this article was of any help to you, please clap for me. It will motivate me to write more :)
