3 Steps To Auto-Install K8S with Cloud-config

Part-1: Auto-Install, Configure K8S Cluster From scratch “For Beginner”

Me: “Son, can you plz install for me the K8S Cluster 😆 ??”

Son: ”On Prod Env ! 😲”

Me : “Yes Plz !! It’s easy than you think 😉”

We'll Do It

Installing a K8S Cluster from scratch was challenging work to do 😫, the k8s official documentation is too big and the pieces of information are dispatched in different sections 😅, so for someone who wants to learn this technology from scratch, it takes much time to search, understand, install and configure.

I started this story with an imaginary conversation with my 3-year-old son to prove that it is too easy than you think to install a K8S cluster in a similar production environment without a complex implementation of the security aspect 😝.

The goal at first is to familiarize beginners with this environment by simplifying the installation and configuration of a K8S Cluster in a Similar Production Environment

You can find the bonus examples here 👌 :

Let get started 😁

Context

For Learning Environments, you can use minikube, micro-k8s or kind, all these three installs and configure Kubernetes quickly, and no need for some advanced system configuration.

However, in a Production environment, we have 3 ways to do it :

  • kubeadm
  • kops
  • kubesray

I will simplify the steps to setting up our PAAS K8S with two Azure VM ( you can choose any other cloud provider VMs) with kubeadm by using the Cloud-config data on the custom-data (user-data for other cloud providers) of the VMs, and trust me it will help you save time 😇.

Prerequisites :

→ Azure Account (or Create One)

Step 1: Create a Network Security Group

Before creating VMs, let create the required Network Security Groups (NSG) that will be used for different machines :

  • Go to Network security groups and create these two NSG as mentioned in the image below:
Network Security Group
  • medium-k8s-master-nsg will be attached to the network interface of the control plane node (VM) → The inbound security rules must satisfy the k8s requirement, you should open these ports: 6443, 2379–2380, 10250- 10251
K8S Installation with Cloud-config
medium-k8s-master-nsg
  • medium-k8s-worker-nsg will be attached to the network interface of the worker’s node (VM) → The inbound security rules must satisfy the k8s requirement, you should open these ports: 10250, 30000–32767
K8S Installation with Cloud-config
medium-k8s-workers-nsg

For both don’t forget to open ssh 😉

Step 2: Create your VMs on Azure :

All VMs will run the latest version of Ubuntu and according to the doc they must have at less: RAM ≥2 GB & CPU2 CPUs

If you create a new account with Azure you will have 750 hours of Linux VM Free for 12 month and 200$ credit to use for 30 days to test Azure payed services like the VMs that we will used it in this tuto 😉

Go to virtual machines and click on “Create”, “Virtual machine”. try to follow the steps below by configuring each tab of the VM Creation 👌.

1. Basics Tab :

Basic Configuration — 1

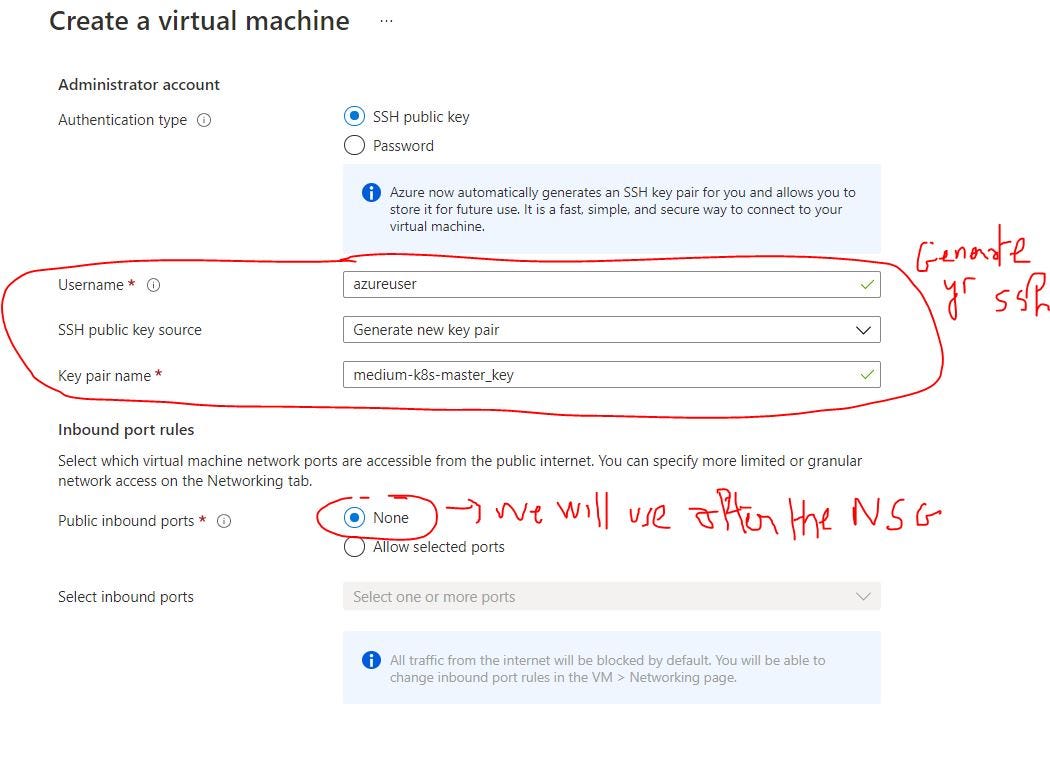

Basic Configuration — 2

2. Networking tab

Go to the Networking tabs and select the NSG created before:

Link NSG

Now is time to go to “Advanced Tab” and paste the “magic code” on the Custom data

3. Advanced Tab

This code will update & upgrade the system, install docker, kubeadm, kubelet, and kubectl, and Letting iptables see bridged traffic.

I commented on each step and command of this file for a better understunding 👌.

Advanced Tab
  • All is done, click on “Review + create” and “Create”
  • Download the private key and save it at ~/.ssh folder
  • Now repeat the same things to create the worker node machine by attaching the worker’s network security group for this time medium-k8s-workers-nsg
  • SSH your machine with your downloaded private key :
chmod 400 ~/.ssh/medium-k8s-master_key.pem
ssh -i ~/.ssh/medium-k8s-master_key.pem k8s-user@40.127.103.3 #the ip address of your machine

Step 3: Configure your K8S Cluster

Configure the Master Node:

You must deploy a Container Network Interface (CNI) based Pod network add-on so that your Pods can communicate with each other.

In our case, we will use Flannel as a CNIadd-on to implements the Kubernetes networking model. so we have to pass that into the kubeadm init command.

  • On the master node, init your cluster by specifying the Pod Network CIDR
sudo kubeadm init --pod-network-cidr=10.244.0.0/16
  • Copy and save the generated join command
sudo kubeadm join 10.1.0.4:6443 --token 4tyt9j.uve6tfdb3a7rvb63         --discovery-token-ca-cert-hash sha256:04c3d3f38b3229fe7b8f808b02bbd48ce95d8a973882b281db579ce6734555c5
  • Get the configuration in a publically available place for kubectl to use:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

Configure the slave node :

Paste the join command on the worker node by adding --node-name worker1.

Do the same if you have multiple workers 👌.

Example :

sudo kubeadm join 10.1.0.4:6443 --token 4tyt9j.uve6tfdb3a7rvb63         --discovery-token-ca-cert-hash sha256:04c3d3f38b3229fe7b8f808b02bbd48ce95d8a973882b281db579ce6734555c5 --node-name worker1

Check your cluster :

  • on the Master node run
# to see all resources on all namespace
kubectl get all --all-namespaces
# to verify the joined worker nodes
kubectl get nodes
NAME STATUS ROLES AGE VERSION
medium-k8s-master Ready control-plane,master 3d22h v1.21.3
worker2 Ready <none> 3d22h v1.21.3

All is done for the installation and basic configuration of a K8S Cluster, now is time to deploy the Bonus Examples

See you on the next article 🙋

Conclusion

Cloud-init is a great tool to initialize cloud instances(Azure VM), it allows us to automate the packages installations, files creation, and command execution 💪.
This automation limit manual interventions to the configuration of the cluster. So in few minutes, you’ll have your cluster ready and you can start deploying basics examples like k8s dashboard & hello world).

You can now do whatever you want with your cluster: installing a MetalLb to create services of kind LoadBalancer, working with Ingress Controller, mounting volumes, deploying Prometheus and Grafana dashboard

In the next story, you will have the bonus examples ✌️

--

--
