The Guide on Making a Suitable Video Footage for Video-analytic AI

Automated traffic data collection from camera footage is definitely a game-changer, cutting costs and providing fuel for majority of processes in traffic management space. At GoodVision we use to say: “just upload the video and you’re good to go”. But how to make sure that your videos have sufficient quality to be processed by video analytic software? Is there a way to maximize the quality of your results? This guideline aims to help you once and for all.

There are following four main quality aspects of camera footage which should be considered before providing it to a system like GoodVision Video Insights in order to achieve the highest possible accuracy. Following guidelines apply to outdoor camera footage.

  1. Camera view — position, zoom and tilt
  2. Lens quality — and light conditions
  3. Video resolution
  4. Video framerate
There is one general rule of thumb with video-analytics AI: “If your eyes don’t see it, don’t expect any computer system to see it”.

1. Camera view

It is always good if you can adjust the position, tilt or zoom of your camera in case the original view is not good. Below are four crucial aspects that affect the overall readability of the scene:

A) Distance from monitored objects

To achieve the maximum guaranteed accuracy, make sure the objects to be monitored are dimensionally at least 5% of the scene size. That meaning vehicle length should be around 60 pixels on 1280px x 720px scene. Smaller objects might be harder to detect in some cases (this is affected also by other factors — lens, blur, etc.). Also make sure the objects are not covering substantial portion (around 33%) of the scene or it will be considered as false. How to solve this? Zoom or move.

Below are the GOOD and the BAD examples with short explanation:

LEFT: Objects too distant to be detected accurately. RIGHT: Most objects are in the appropriate distance to be detected.

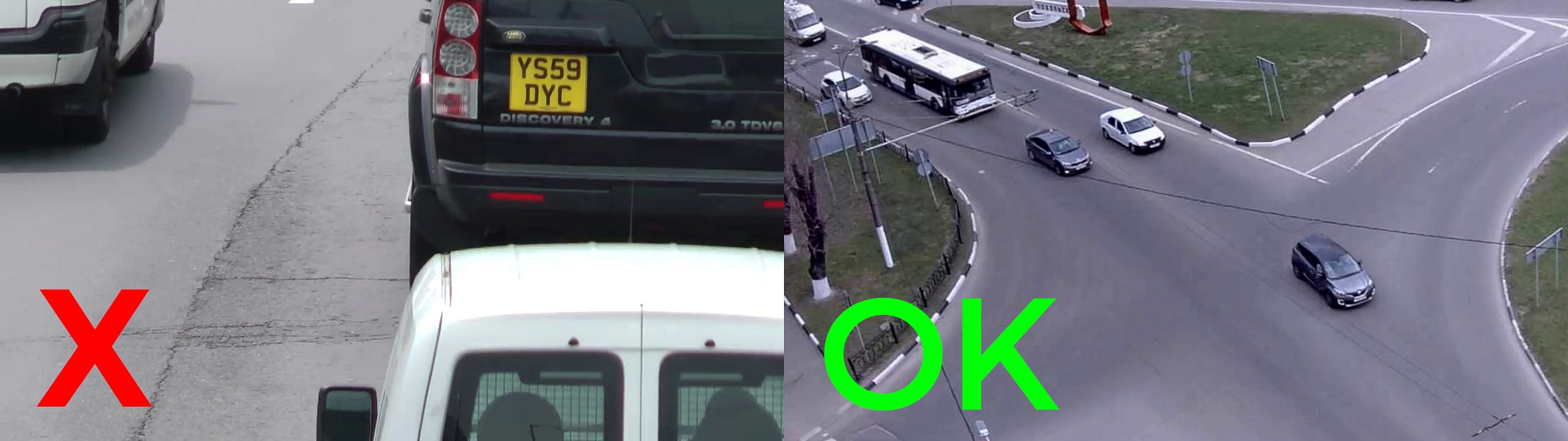

LEFT: Objects are too close and covering majority of the screen. RIGHT: Objects in the ideal distance allowing to detect both vehicles and pedestrians.

B) Camera height

Let’s assume your camea is in a perfect distance now. What about the height of camera installation? Honestly, camera height itself affects mainly your visual experience, not the system’s detection ability. Problem is when the camera is positioned too low causing objects in the front covering the objects in the back — which are not detected, not tracked → not collected.

It is really simple to fix this issue and achieve great results. If your camera has standard 2.8 lens equipped, place it between 5 and 25 meters above the ground (depending on how broad space you want to monitor). Below are the GOOD and the BAD examples with short explanation:

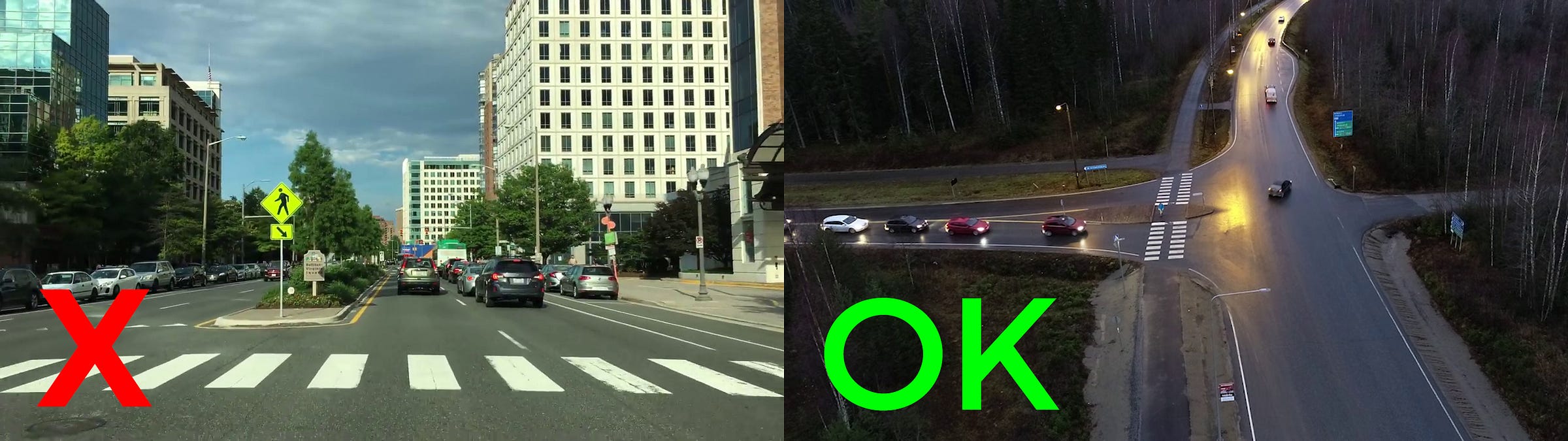

LEFT: Camera too low causes trucks covering all traffic behind them. RIGHT: Camera height 7 meters, all traffic objects are clearly visible.
LEFT: Camera too low, only the last cars in the line are visible. RIGHT: Drone camera height ~25 meters, all traffic objects are clearly visible.

C) Camera tilt

Long story short — if previous two conditions are fulfilled, camera tilt doesn’t affect the detection ability of system like GoodVision’s as it is trained and versatile for various conditions. You can tilt the camera from horizontal up to a straight-down birdview if needed.

Modern video analytics should be trained to perform with various camera tilts. GoodVIsion is well trained to support it.

D) Obstacles

Obstacles are tricky. Some of them seriously affect the detection ability (trees, other cars, buildings, bridges, big traffic signs, ..) while some of them might not (thin poles, standard traffic signs, wires, ..). System looses the object while it is covered by the obstacle and after it appears again, it is often considered as a new object — causing the trajectory of the object is split. Below are GOOD (not ideal but suitable) and the BAD examples with short explanation:

LEFT: Huge traffic conveyor covers vehicles making them hard to track properly. RIGHT: Standard traffic poles and lamps don’t affect object tracking that much.

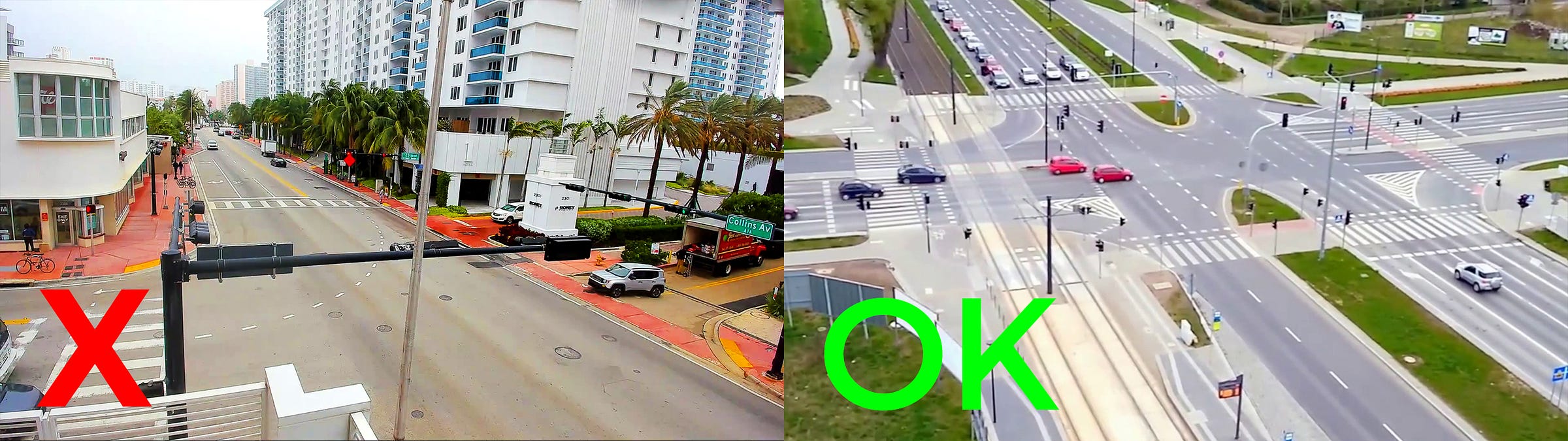

LEFT: Nice scene, but huge pole in the left makes impossible to track all northbound vehicles turning right. RIGHT: Standard traffic signs and lights are ok.

2. Lens quality and light conditions

Following lens defects rapidly reduce the workability of the scene:

  • Poor lens, dirty, with scratches or smudges — causes blurry image, removes object contours or deforms it
  • Raindrops on the lens — distorts the image or causes light reflections, acts like the physical obstacle
  • Barrel distortion — deforms the objects, bends them, causing them look nothing like the system is trained for

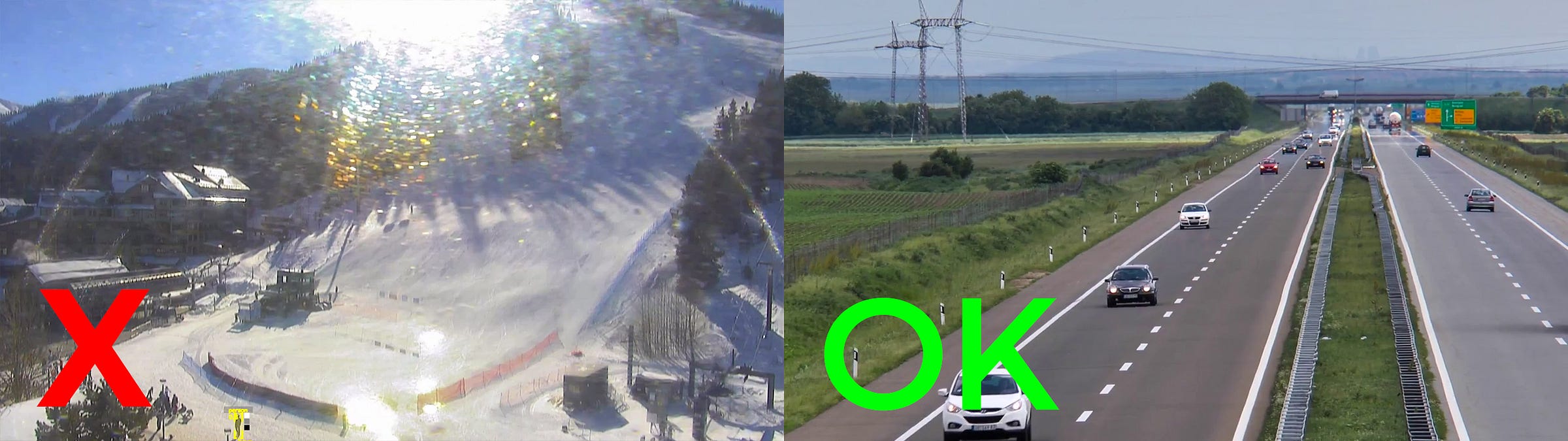

  • Frontal light causing flare or reflection — covers the image, decreases the object clarity

Scene lighting plays the important role in video analytics as well, however modern systems are trained to recognize even objects in the dark. The only condition is that the objects must be at least a little bit illuminated to be visible in the image with the naked eye.

3. Video resolution

The equation here is simple: “SHIT IN — > SHIT OUT” (sorry for the language). The more image data (pixels) you provide to the system, the better it recognizes the objects in it. GoodVision Video Insights is trained to deliver best performace with 1280px x 720px and 1920px x 1080px (FULL HD) resolutions. These are considered the ideal resolutions.

Resolutions 1280 x 720 or 1920 x 1080 provide the ideal combination of object size and clarity.

Generally GoodVision can handle lower resolutions all way down to VGA. However, lower resolutions go hand in hand with low-quality optics and low bitrate, causing the object contours are not crisp (are blurry) or do not resemble the object from the real world. Set the resolution which displays object’s contours clearly. These are the BAD examples of unsuitable low resolutions:

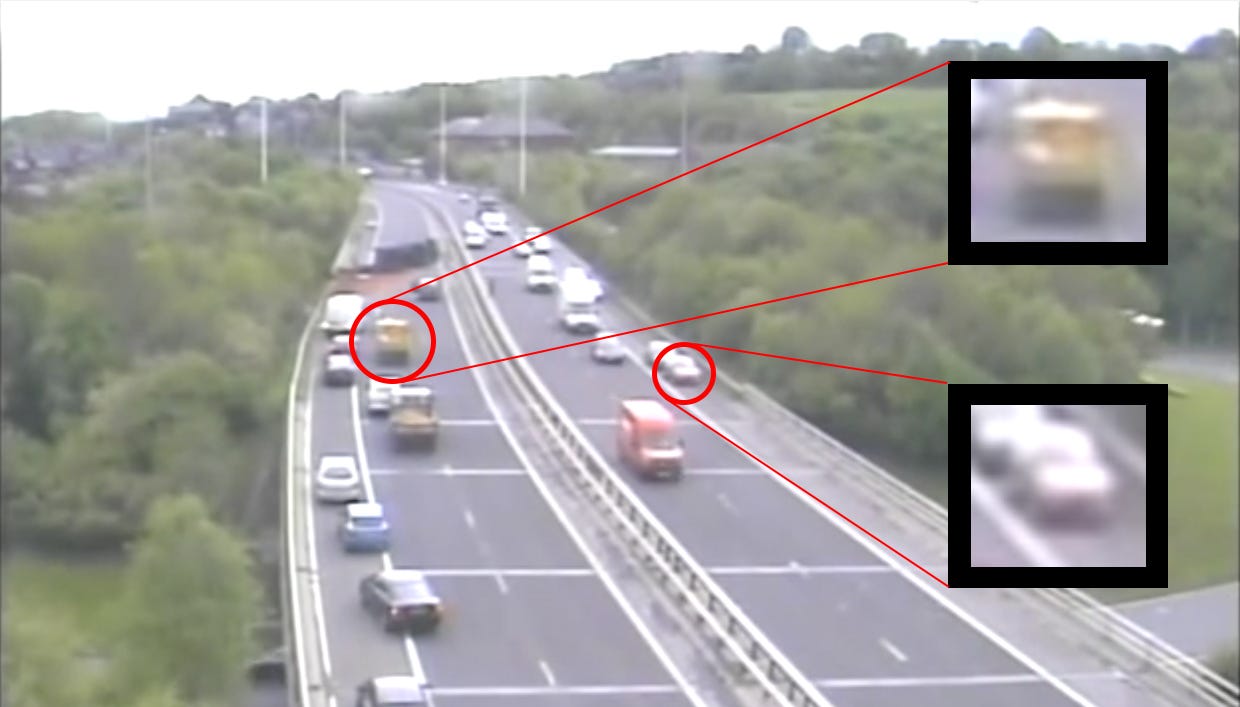

Resolution 640 x 480 with LQ optics causes cars look blurry. Honestly, would you recognize them?
Resolution 700 x 480, bigger than in the previous example, but obviously with extremely lower object clarity (analog camera)

4. Video framerate (FPS) and shutter speed

Framerate of the video defines the fluency of the object’s motion in it and greatly affects the tracking ability of the video analytic system. Tracking means preserving the identity of the object between frames on which it was detected. Tracking has the crucial impact on having the nice solid object trajectories i.e. for the origin-destination counting of traffic. Moreover, the bigger the speed of objects in the video, the worse impact has low FPS on their tracking.

Ideal FPS for video-analytics which works well with most of the scenarios is between 10 and 30 frames per second. The bigger the better, however FPS bigger than 30 per second does not have any visible impact to tracking quality. Lower FPS than 10 frames per second cause tracking problems, especially in crowded scenes and with fast moving objects, which are literally “jumping” from place to place over the scene.

Example of the ideal FPS range for video analytics processing. Between 10–30 FPS is ideal for most scenes.

Camera shutter speed affects the clarity of the moving object’s contours, especially in the low-light conditions and close to the camera. Some cameras switch to longer shutter speeds in order to keeep the same overall brightness of the scene during night. Try to avoid this and rather preserve the clarity of the objects. Modern video analytic systems are trained to recognize objects in the dark, but if the objects are smudgy and lack the contours, it is super-hard to detect them.

LEFT: Low shutter speed causes objects are smudgy and do not resemble real objects. RIGHT: Using a well-lighted scene or a hi-sensitivity camera allows night videoshooting with the same shutter speed as during the day, providing the constant image quality.

And if everything goes well …

As you can see, it’s actually easy to prepare a suitable video footage for modern video analytics. All of the described conditions are reasonable. To summarize it all I would say: “What is not visible, cannot be seen”. In example, if the conditions above are fulfilled you can expect close to 100% traffic data collection accuracy from GoodVision Video Insights. So it is also in your hands — modern technology is here for everyone, accessible as never before, use it to the last drop.

And if everything goes well, your system will reward you with amazing performance like this:

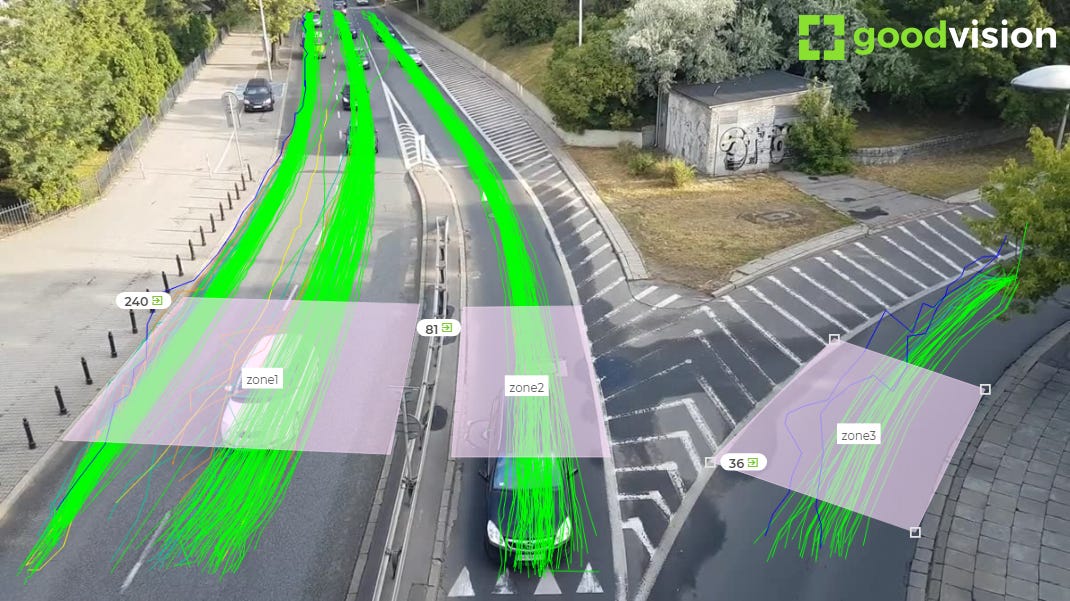

Traffic detection under the lid of GoodVision Video Insights
Visual Analytics in GoodVision Video Insights
