From product design to virtual reality

Personal experience and intro to VR.

Backstory

I am a product designer at Google, and I joined the company through Sparrow, a French startup that got acquired on July 20, 2012. Since then, I worked with the Gmail team to build from scratch a flagship product that became Inbox by Gmail. It shipped on October 22, 2014.

I designed productive applications for a few years, and I felt like I reached a tipping point. I wanted to expand my skill set, learn new things every day and get better at something I’ve never touched. I needed new challenges to reboot myself by leaving my comfort zone.

I got interested in virtual reality around the Oculus Kickstarter period because of the immersiveness and endless possibilities that came with it. There is nothing more exciting than building for a new medium and exploring an uncharted territory.

I joined the Google Cardboard and Virtual Reality team on April 17, 2015. Thanks to Clay Bavor and Jon Wiley for this great opportunity.

Another dimension

My first weeks in the team were as scary as it can get. People used words I had no idea of and asked me questions I didn’t know how to answer.

I am not going to lie, ramping up on the jargon was not easy but I was expecting that. Virtual reality is a deep field (pun intended) grouping together a variety of job titles each requiring a very specialized skill set. The first weeks were intense and day after day I had a better vision of the big picture. Slowly, the pieces came together. I found out which roles would be the best fit, what I wanted to do and what was required to get there. Regardless of the mission, I knew I would have to learn a lot, but I was prepared for this challenge. My feelings varied from one day to another. From super excited to create and learn something new, to super scared because of the colossal knowledge I still had to learn. Working with smart and knowledgeable people around me reinforced these mixed feelings.

Everything is going to be alright

I told myself and firmly believed that the dots would connect eventually. I am a passionate person, and I knew that I didn’t mind spending hours learning and experimenting.

During my product designer career, I got better at understanding, identifying and resolving user problems. Making things easy to use and delight users is not that different, no matter the medium.

The core of the mission is the same, but to get you from point A to B there are some interesting things to know.

  • Sketching, is, again, at the core of everything. During any brain dump or design phase, sketching is as fast as it can get. I’ve sketched more in the time I’ve joined this team than I have in my entire career.
  • Any design skills as diverse as they are will be a huge benefit.
  • Photography knowledge will help you because you will interact with concepts such as field of view, depth of field, caustics, exposure and so on. Being able to use light to your advantage has been much valuable to me already.
  • The more you know 3D and tools, the less you will have to learn. It’s pretty obvious but be aware that at some point, you might do architecture, character, props modeling, rigging, UV mapping, texturing, dynamics, particles and so on.
  • Motion design is important. As designers, we know how to work with devices with physical boundaries. VR has none, so it’s a different way of thinking. “How does this element appear and disappear?” will be a redundant question.
  • Python, C#, C++ or any previous coding skills will help you ramp up faster. Prototyping has a big place because of the fundamental need of iterating. This area is so new that you might be one of the first to design a unique kind of interaction. Any recent game engine such as Unity or Unreal engine largely integrates code. There is a large active community in game and VR development with a huge amount of training and resources already.
  • Be prepared to be scared and get ready to embrace the unknown. It’s a new world that evolves every day. Even the biggest industry-leading companies are still trying to figure things out. That’s how it is.

Roles

Design teams will evolve because this new medium opens a lot of possibilities for creation. Think about the video game or the film industry for instance.

I think there will be two big design buckets.

The first one will be about the core user experience, interface, and interaction design. This is very close to how product design team are structured today (Visual, UI, UX, motion designers, researchers, and prototypers).

Each role will have to adapt to the rules of this new medium and keep a tight relationship with engineers. The goal will always remain the same; create a fast iteration cycle to explore a wide range of interactive designs.

On the other hand, content teams will replicate indie and game design studio structure to create everything from unique experiences to AAA games. The entertainment industry as we know it in other mediums will likely be very similar in VR.

Ultimately, both will have a close relationship to create a premium end to end experience. Both industries have a great opportunity to learn from each other.


To wrap up on my personal experience, I think being a product designer in VR is not that different but requires a lot of dedication to understand and learn a vast field of knowledge.

First step and fundamentals of VR design

First step

In this second part of the article, I will try to cover the basics you need to know regarding this medium. It’s meant to be designer oriented and simplified as much as possible.

Let’s get (a little bit) technical

The new dimension and immersiveness is a game changer. There is a set of intrinsic rules you need to know to be able to respect physiologically and treat your users carefully. We regrouped some of these principles in an app so you can learn through this great immersive experience.

Download Cardboard Design Lab

You can watch Alex’s presentation at I/O this year which goes more in-depth. The following is a small summary.

If you have to remember just two rules:

  • Do not drop frames.
  • Maintain head tracking.

People instinctively react to external events you might not be aware of, and you should be designing accordingly.

Physiological comfort. It regroups notions like motion sickness. Be careful when using acceleration and deceleration. Maintain a stable horizon line to avoid the “sea sickness” effect.

Environment comfort. People can experience various discomforts in certain situation like heights, small spaces (claustrophobia), big spaces (agoraphobia) and so on. Be careful with the scale and colliding objects. For example, if someone throws an object at you, you will instinctively try to grab it, dodge or protect yourself. Use it to your advantage and not to user’s disadvantage.

You can also use user senses to help you create more immersive products and cues. You can find inspiration in the game industry. They use all sorts of tricks to guide users during their journey. Here’s a couple:

  • Audio for spatial positioning.
  • Light to show a path and help the player.

Do not hurt or over-fatigue your users. It’s a classic mistake when you start to design for this medium. As cool as it looks, Hollywood sci-fi movies fed us with interactions that goes against simple ergonomic rules and can create major discomfort over time. Minority Report gestures are not suitable for a long period of activity.

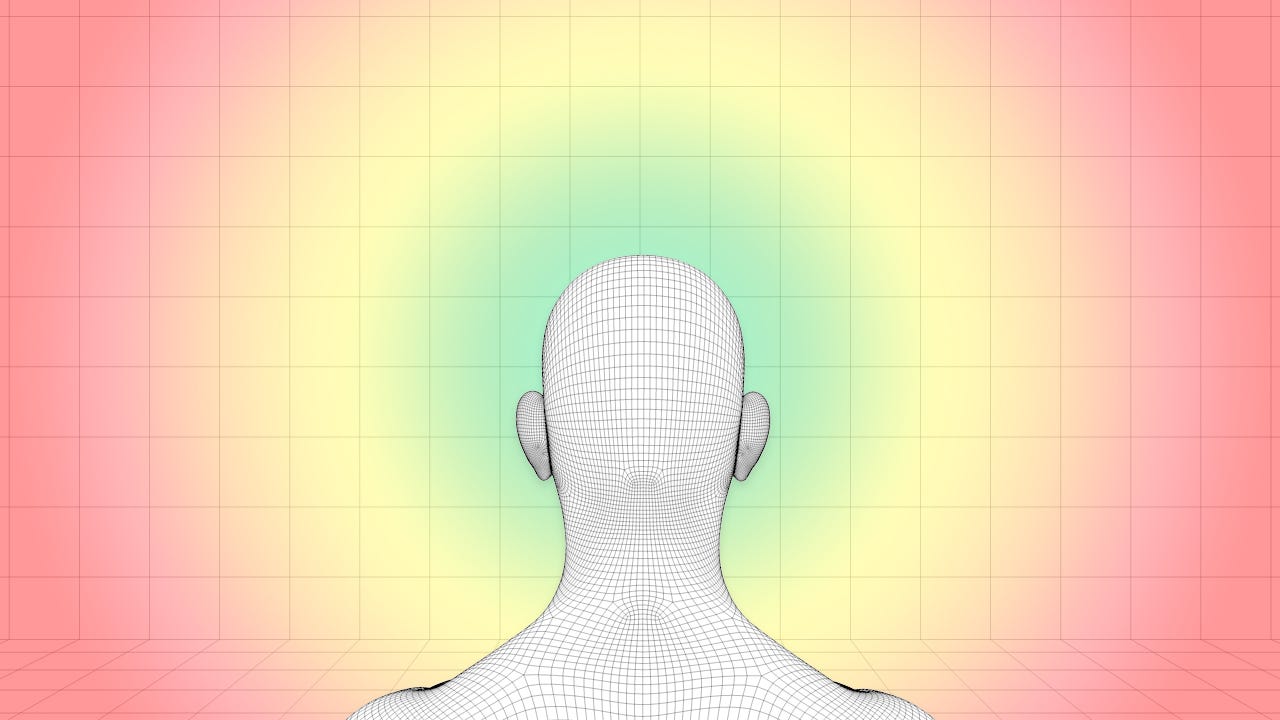

I made a very simplified illustration of XY head movement safe zones. Green is good, yellow is ok and avoid red. There are a some user studies made public (links at the bottom of the page) that will give you more in-depth information about that topic.

A simplified illustration of XY head movement safe zones.

Bad design can lead to more serious conditions.

As an example, have you heard about Text Neck? A study, published in Neuro and Spine Surgery measured varying pressures in our neck as our head moves to different positions. Moving from a neutral head position looking straight ahead to looking down increase the pressure by 440%. The muscles and ligaments get tired and sore; the nerves are stretched, and discs get compressed. All of this misbehavior can lead to serious long-term issues such as permanent nerves damages.

TLDR; Avoid extended look down interactions.

Degrees of freedom

The body has six different ways of moving in space. It can rotate and translate in XYZ.

3 Degrees of freedom (Orientation tracking)

Phone based head mounted device such as Cardboard, Gear VR are tracking the orientation via an embedded gyroscope (3DOF). Rotations on all three axes are tracked.

6 Degrees of freedom (Orientation + Position tracking)

To achieve six degrees of freedom, the sensor(s) will track positions in space (+X, -X, +Y, -Y, +Z, -Z). High-end devices like HTC Vive or Oculus Rift are 6DOF.

Tracking
Making 6DOF possible frequently involves optical tracking of infrared emitters by one or more sensors. In Oculus’s case, the tracking sensor is on a stationary camera, while in Vive’s case the tracking sensors are on the actual HMD.

Oculus and Vive lighthouses position tracking

Inputs

Depending on the system you are designing for, the input method will vary and affect your decisions. For example Google Cardboard has a single button, that’s why the interaction model is a simple gaze and tap. HTC Vive uses two, six degrees of freedom controllers and Oculus will ship with an Xbox One controller but will eventually use a 6DOF dual controller “Oculus Touch”. All of them allow you to use more advanced and immersive interaction patterns.

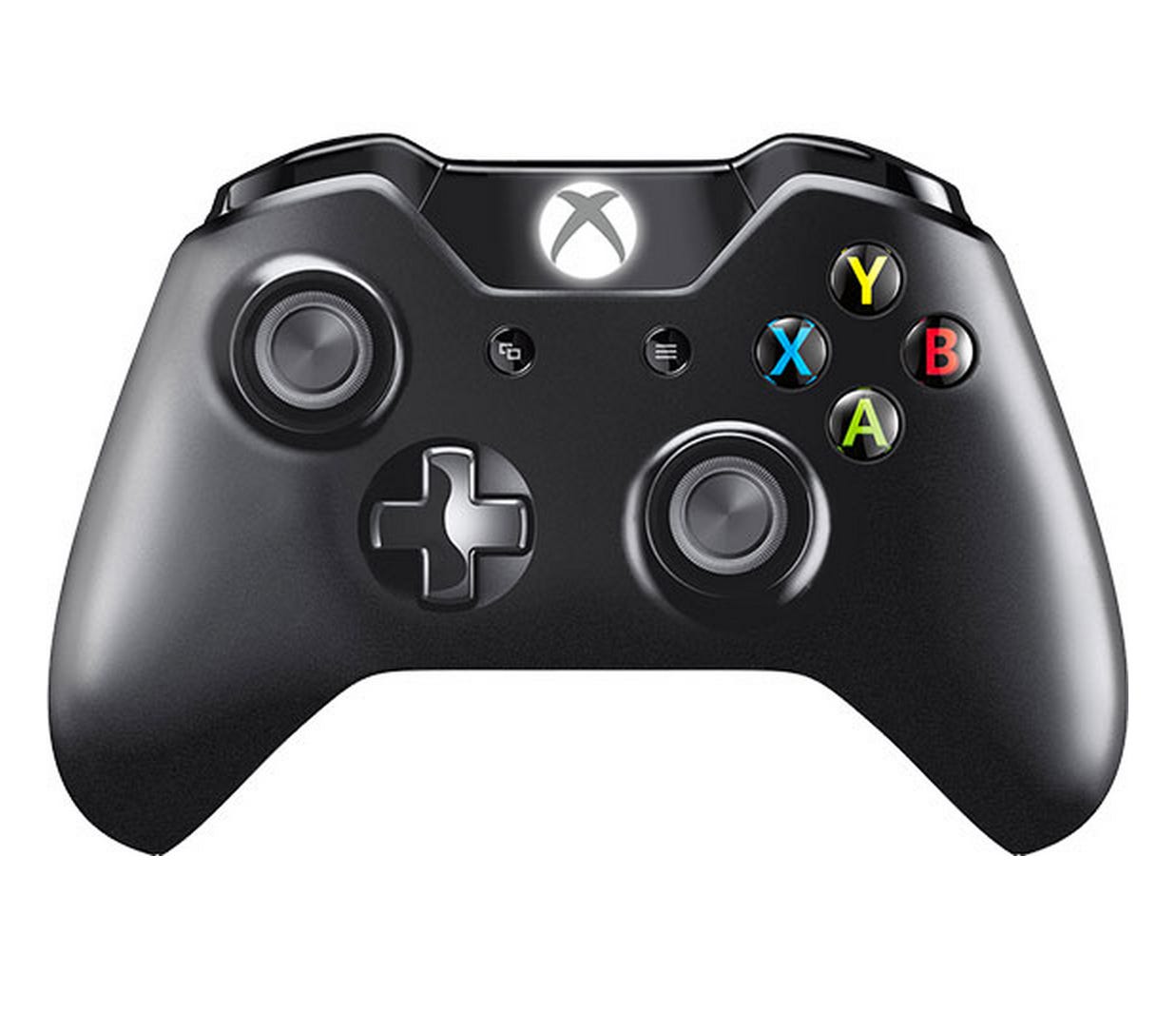

The good old Xbox One
Oculus Touch

There are also other kinds of inputs such as hand tracking. The most famous being Leap Motion. You can mount it to your Head Mounted Display (HMD).

Leap Motion on top of a DK2

This area constantly evolves as technology catches up but as of today, hand tracking is not reliable enough to be used as the main input. The principal issues are related to hands and fingers, collisions, and subtle movements tracking.

Even though it’s very familiar, using a game controller is a disappointing experience. It physically removes some of the freedom VR is creating. In FPS, strafing and moving might usually cause some discomfort because of the accelerations.

On the other hand, the HTC Vive controllers reinforce the VR experience thanks to the 6 degrees of freedom, and Tilt Brush is a really good example. As I am writing theses lines, I haven't tried the Oculus touch but every demo I have seen looks very promising. Check out Oculus Toybox demo.

While designing user interfaces and interactions, inputs are the keystone that will drive some decisions differently depending on which method you are using. You should be familiar with all of them and aware of their limitations.

Tools

This is a big piece and might require a more in-depth article. I will focus on the most popular tools used in this industry.

Pen and paper

You just can’t beat them. It’s the first tool we use because it’s always around and does not require too many skills. It’s a proven way to express your ideas and iterate at a fast and cheap pace. Theses factors are important because, in VR, the cost of moving from wireframes to hi-fi is higher than 2D.

Sketch

I still use it every day. Because of its ease of use, it’s the perfect tool that allows me to create a lot of explorations before moving to a VR prototype. It’s also handy for its export tools and plugins that are a huge time saver. If you are not familiar with that program, I wrote articles here and there.

Cinema 4D

I don’t see C4D as a competitor of Maya. Both are great tools, and each excels in its own way. When you don’t have a 3D background, the learning curve can be very steep. I like C4D because the interface, the parametric and non-destructive approach make sense for me. It helps me create more iterations quickly. I love the MoGraph modules, and a lot of great plugins are available. The community is very active, and you can find a lot of high-quality learning materials.

Cinema 4D motion explorations

Maya

Maya is colossal in a good and a bad way. It does anything and everything a 3D artist needs. Most of the games and movies are designed with it. It’s a robust piece of software which can handle massive simulations and very heavy scenes with ease. From rendering, modeling, animation, rigging, it’s simply the best tool out there. Maya is highly customizable, and that is one reason why it’s the industry standard. Studios need to create their own set of tools, and Maya is the perfect candidate to integrate any pipeline.

On the other hand, learning all the tools will require your full and unconditional dedication for quite some time. I mean weeks of explorations, months of learning and years of practice on a daily basis.

Unity

It’s most certainly THE prototyping tool where everything will happen. You can easily create and move things around with a direct VR preview of your project. It’s a powerful game engine with a great community and a ton of resources available in their store (the asset author determines the pricing). In the assets library, you can find simple 3D models, complete projects, audio, analytics tools, shaders, scripts, materials, textures and so on.

Their documentation and learning platform are stellar. They have a wide range of high-quality tutorials.

Unity3d uses mainly C# or JavaScript and comes with Microsoft Visual Studio but doesn't come with a built-in visual editor even though, you can find good ones in the assets store.

It support all major HMD and is the best to build for cross-platform: Windows PC, Mac OS X, Linux, Web Player, WebGL, VR(including Hololens), SteamOS, iOS, Android, Windows Phone 8, Tizen, Android TV and Samsung SMART TV, as well as Xbox One & 360, PS4, Playstation Vita, and Wii U

It supports all major 3D formats and has the best in 2D game creation. The in-app 3D editor is weak, but people have built great plugins to correct that. The software is licensed based, but you can also use the free version to a certain extent. You can check the details on their pricing page. It’s the most popular game engine out there with ~47% of market share.

Unreal Engine

The direct competitor of Unity3D. Unreal also has great documentation and videos tutorials. Their store is smaller because it’s much newer.

One of the big advantages over the competition are the graphic capabilities; Unreal is one step ahead in nearly every area: terrain, particles, post processing effects, shadows & lighting, and shaders. Everything looks amazing.

Unreal Engine 4 uses C++ and comes with Blueprint, a visual script editor.

I haven’t worked with it too much yet, so I can’t elaborate more.

Less cross-platform compatibility: Windows PC, Mac OS X, iOS, Android, VR, Linux, SteamOS, HTML5, Xbox One, and PS4.


Closing notes

Virtual reality is a very young medium. As pioneers, we still have a lot to learn and discover. That’s why I am very excited about it and why I joined this team. We have the opportunity to explore and we should, as much as we can. Understand, identify, build and iterate. Over and over.
And over again…



Thanks everyone who helped me with the rereading and improvements 💖
