How to Build a Smart Chatbot Assistant with ChatEngine and IBM Watson Assistant

Pubnub coupled with IBM Watson can enable developers and business owners to streamline their frontlines by creating smart assistants which answers the simple questions for you.

Syed Ahmed
Jun 12, 2018 · 9 min read
Image for post
Image for post

How It Works 👩‍💻

Image for post
Image for post

Getting Started with ChatEngine and Watson


Configuring ChatEngine 🚒

Watson + BLOCKS 🍫

Image for post
Image for post
Image for post
Image for post

Me, My Bot, and I 🤖

$ npx create-react-app Watson-Assistan
cd Watson-Assistant/
|-- Watson-Assistant
|-- .gitignore
|-- README.md
|-- package-lock.json
|-- package.json
|-- public
| |-- favicon.ico
| |-- index.html
| |-- manifest.json
|-- src
|-- App.css
|-- App.js
|-- App.test.js
|-- index.css
|-- index.js
|-- logo.svg
|-- registerServiceWorker.js
|-- Watson-Assistant
|-- .gitignore
|-- package-lock.json
|-- package.json
|-- public
| |-- favicon.ico
| |-- index.html
| |-- manifest.json
|-- src
|-- index.css
|-- index.js
$ npm i chat-engine
const ChatClient = ChatEngineCore.create({
publishKey: 'pub-c-e1295433-4475-476d-9e37-4bdb84dacba0', subscribeKey: 'sub-c-890a0b26-6451-11e8-90b6-8e3ee2a92f04'
},{
globalChannel: 'watson-assistant'
});
const now = new Date().getTime(); const username = ['user', now].join('-');
ChatClient.connect(username, { signedOnTime: now }); ChatBot.connect(`${now}bot`, { signedOnTime: now });
constructor() { super(); this.chat = new ChatClient.Chat(`${now}chat`);
this.bot = new ChatBot.Chat(`${now}chat`);
this.state = {
reply: 'Ask Me Something!',
chatInput: '',
animation: 'Congratulate' };
}
render() {
return (
<div style={container}>
<div style={{height:100, width:100}}>
<p> {this.state.reply} </p>
<Clippy
actor={ 'Clippy' }
animation={ this.state.animation } />
<input
id = "chat-input"
type = "text"
name = ""
value = { this.state.chatInput }
onChange = { this.setChatInput }
onKeyPress = { this.handleKeyPress } />
<input
type = "button"
onClick = { this.sendChat }
value = "Send Chat" />
</div>
</div> ); }
sendChat = () => {
if (this.state.chatInput) {
this.chat.emit('message', {
text: this.state.chatInput,
channel: `${now}chat`
});
this.setState({ chatInput: '' })
this.setState({ animation: 'Processing', reply: '' }); }
}
componentDidMount() {
this.bot.on('message', (payload) => { axios.get(`https://pubsub.pubnub.com/v1/blocks/sub-key/sub-c-890a0b26-6451-11e8-90b6-8e3ee2a92f04/chat? question=${payload.data.text}`) .then(response => { this.setState({ animation: 'Writing', reply: response.data }); });
});
}
Image for post
Image for post
ChatClient.on('$.ready', () => {
ChatBot.on('$.ready', () => {
ReactDOM.render( <Chat /> , document.getElementById('root') ); });
});

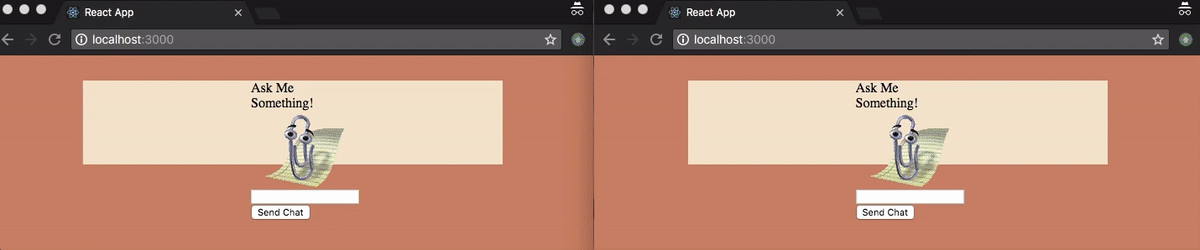

Our Chatbot is Up-and-Running! 🏃‍
