Flutter — Row/Column Cheat Sheet

Julien Louage
May 21, 2018 · 7 min read

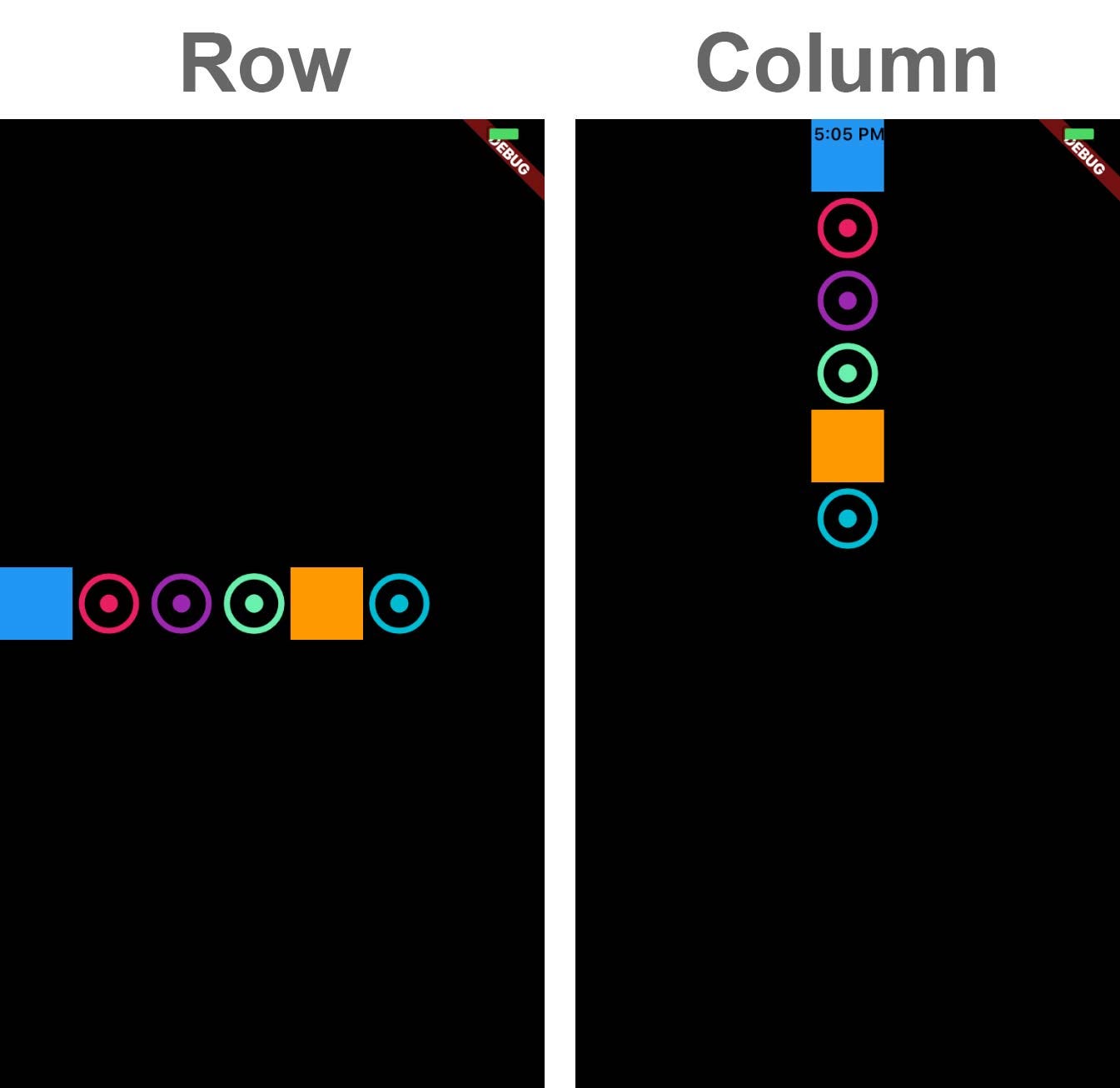

Row

A Row is a widget used to display child widgets in a horizontal manner. The Row widget does not scroll. If you have a line of widgets and want them to be able to scroll if there is insufficient room, consider using a ListView Class.

If we wished to display three text widgets within a row we can create a Row widget like below:

Row(
children: [
Container(
color: Colors.orange,
child: FlutterLogo(
size: 60.0,
),
),
Container(
color: Colors.blue,
child: FlutterLogo(
size: 60.0,
),
),
Container(
color: Colors.purple,
child: FlutterLogo(
size: 60.0,
),
),
],
)
Image for post
Image for post

Column

A Column is a widget used to display child widgets in a vertical manner. The Column widget does not scroll. If you have a line of widgets and want them to be able to scroll if there is insufficient room, consider using a ListView.

If we wished to display three text widgets within a column we can create a Column widget like below:

Column(
children: [
Container(
color: Colors.orange,
child: FlutterLogo(
size: 60.0,
),
),
Container(
color: Colors.blue,
child: FlutterLogo(
size: 60.0,
),
),
Container(
color: Colors.purple,
child: FlutterLogo(
size: 60.0,
),
),
],
)
Image for post
Image for post

Column and Row have the same properties. So in the examples below we are working in the same time with both widgets.

What is the CrossAxis in Row and Column?

Image for post
Image for post

CrossAxisAlignment Propery

We can use the crossAxisAlignment property to align our child widget in the desired direction, for example, crossAxisAlignment.start would place the children with their start edge aligned with the start side of the cross axis.

Row(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Container(
color: Colors.blue,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.pink),
Icon(Icons.adjust, size: 50.0, color: Colors.purple,),
Icon(Icons.adjust, size: 50.0, color: Colors.greenAccent,),
Container(
color: Colors.orange,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.cyan,),
],
);
Image for post
Image for post
Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Container(
color: Colors.blue,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.pink),
Icon(Icons.adjust, size: 50.0, color: Colors.purple,),
Icon(Icons.adjust, size: 50.0, color: Colors.greenAccent,),
Container(
color: Colors.orange,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.cyan,),
],
);
Image for post
Image for post

CrossAxisAlignment.center

Place the children so that their centers align with the middle of the cross axis.

Image for post
Image for post

CrossAxisAlignment.end

Place the children as close to the end of the cross axis as possible.

Image for post
Image for post

CrossAxisAlignment.stretch

Require the children to fill the cross axis.

Image for post
Image for post

CrossAxisAlignment.baseline

Place the children along the cross axis such that their baselines match.

You should use TextBaseline Class with the CrossAxisAlignment.baseline.

Row(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
'Flutter',
style: TextStyle(
color: Colors.yellow,
fontSize: 30.0
),
),
Text(
'Flutter',
style: TextStyle(
color: Colors.blue,
fontSize: 20.0
),
),
],
);
Image for post
Image for post
Without Baseline
Row(
crossAxisAlignment: CrossAxisAlignment.baseline,
textBaseline: TextBaseline.alphabetic,
children: [
Text(
'Flutter',
style: TextStyle(
color: Colors.yellow,
fontSize: 30.0
),
),
Text(
'Flutter',
style: TextStyle(
color: Colors.blue,
fontSize: 20.0
),
),
],
);
Image for post
Image for post
With Baseline

TextDirection Propery

Determines the order to lay children out horizontally and how to interpret start and end in the horizontal direction.

Row(
crossAxisAlignment: CrossAxisAlignment.center,
textDirection: TextDirection.rtl,
children: [
Text(
'Flutter',
style: TextStyle(
color: Colors.yellow,
fontSize: 30.0
),
),
Text(
'Flutter',
style: TextStyle(
color: Colors.blue,
fontSize: 20.0
),
),
],
);
Image for post
Image for post
Row(
crossAxisAlignment: CrossAxisAlignment.center,
textDirection: TextDirection.ltr,
children: [
Text(
'Flutter',
style: TextStyle(
color: Colors.yellow,
fontSize: 30.0
),
),
Text(
'Flutter',
style: TextStyle(
color: Colors.blue,
fontSize: 20.0
),
),
],
);
Image for post
Image for post
Column(
crossAxisAlignment: CrossAxisAlignment.start,
textDirection: TextDirection.ltr,
children: [
Text(
'Flutter',
style: TextStyle(
color: Colors.yellow,
fontSize: 30.0
),
),
Text(
'Flutter',
style: TextStyle(
color: Colors.blue,
fontSize: 20.0
),
),
],
);
Image for post
Image for post
Column(
crossAxisAlignment: CrossAxisAlignment.start,
textDirection: TextDirection.rtl,
children: [
Text(
'Flutter',
style: TextStyle(
color: Colors.yellow,
fontSize: 30.0
),
),
Text(
'Flutter',
style: TextStyle(
color: Colors.blue,
fontSize: 20.0
),
),
],
);
Image for post
Image for post

VerticalDirection Propery

Determines the order to lay children out vertically and how to interpret start and end in the vertical direction.

Defaults to VerticalDirection.down.

Row(
crossAxisAlignment: CrossAxisAlignment.start,
verticalDirection: VerticalDirection.down,
children: [
Text(
'Flutter',
style: TextStyle(
color: Colors.yellow,
fontSize: 30.0
),
),
Text(
'Flutter',
style: TextStyle(
color: Colors.blue,
fontSize: 20.0
),
),
],
);
Image for post
Image for post
Row(
crossAxisAlignment: CrossAxisAlignment.start,
verticalDirection: VerticalDirection.up,
children: [
Text(
'Flutter',
style: TextStyle(
color: Colors.yellow,
fontSize: 30.0
),
),
Text(
'Flutter',
style: TextStyle(
color: Colors.blue,
fontSize: 20.0
),
),
],
);
Image for post
Image for post

What is the MainAxis in Row and Column?

Image for post
Image for post

MainAxisAlignment Propery

The positioning of the child widgets on the main axis.

MainAxisAlignment.start

Place the children as close to the start of the main axis as possible.

Image for post
Image for post

MainAxisAlignment.center

Place the children as close to the middle of the main axis as possible.

Image for post
Image for post

MainAxisAlignment.end

Place the children as close to the end of the main axis as possible.

Image for post
Image for post

MainAxisAlignment.spaceAround

Place the free space evenly between the children as well as half of that space before and after the first and last child.

Image for post
Image for post

MainAxisAlignment.spaceBetween

Place the free space evenly between the children.

Image for post
Image for post

MainAxisAlignment.spaceEvenly

Place the free space evenly between the children as well as before and after the first and last child.

Image for post
Image for post

MainAxisSize Propery

The size that should be allocated to the widget on the main axis.

MainAxisSize.max

Maximize the amount of free space along the main axis, subject to the incoming layout constraints.

Center(
child: Container(
color: Colors.yellow,
child: Row(
mainAxisSize: MainAxisSize.max,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(
color: Colors.blue,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.pink),
Icon(Icons.adjust, size: 50.0, color: Colors.purple,),
Icon(Icons.adjust, size: 50.0, color: Colors.greenAccent,),
Container(
color: Colors.orange,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.cyan,),
],
),
),
);
Image for post
Image for post
Center(
child: Container(
color: Colors.yellow,
child: Column(
mainAxisSize: MainAxisSize.max,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(
color: Colors.blue,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.pink),
Icon(Icons.adjust, size: 50.0, color: Colors.purple,),
Icon(Icons.adjust, size: 50.0, color: Colors.greenAccent,),
Container(
color: Colors.orange,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.cyan,),
],
),
),
);
Image for post
Image for post

MainAxisSize.min

Minimize the amount of free space along the main axis, subject to the incoming layout constraints.

Center(
child: Container(
color: Colors.yellow,
child: Row(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(
color: Colors.blue,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.pink),
Icon(Icons.adjust, size: 50.0, color: Colors.purple,),
Icon(Icons.adjust, size: 50.0, color: Colors.greenAccent,),
Container(
color: Colors.orange,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.cyan,),
],
),
),
);
Image for post
Image for post
Center(
child: Container(
color: Colors.yellow,
child: Column(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(
color: Colors.blue,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.pink),
Icon(Icons.adjust, size: 50.0, color: Colors.purple,),
Icon(Icons.adjust, size: 50.0, color: Colors.greenAccent,),
Container(
color: Colors.orange,
height: 50.0,
width: 50.0,
),
Icon(Icons.adjust, size: 50.0, color: Colors.cyan,),
],
),
),
);
Image for post
Image for post
