Flashing The Official ESPRESSIF Firmware in ESP8266 !!!

Easy ESP8266 Flashing!!! — #arduSerie 17

Hello hobbyists!

I spent a great suffocate time as soon as I bought the esp8266!
I made some mistakes and wanted to return the stock firmware, or better, to upgrade it, and did not know how!

Now I transcribe the solution so that you do not pass the anger that I passed.

eSP8266 PINOUT

Here it goes! It’s simple:

Step 1: Download the software that flashes the chip.

(At this moment i used: flash_download_tools_v3.4.1_win)

https://github.com/boseji/ESP8266-Store/tree/master/tools

Step 2: Download the latest firmware.

(at this moment i used: esp8266_nonos_sdk_v2.0.0_16_08_10)

We are in September 2016, here is the link to the future!

https://espressif.com/en/products/hardware/esp8266ex/resources

Step 3: Prepare the hardware.

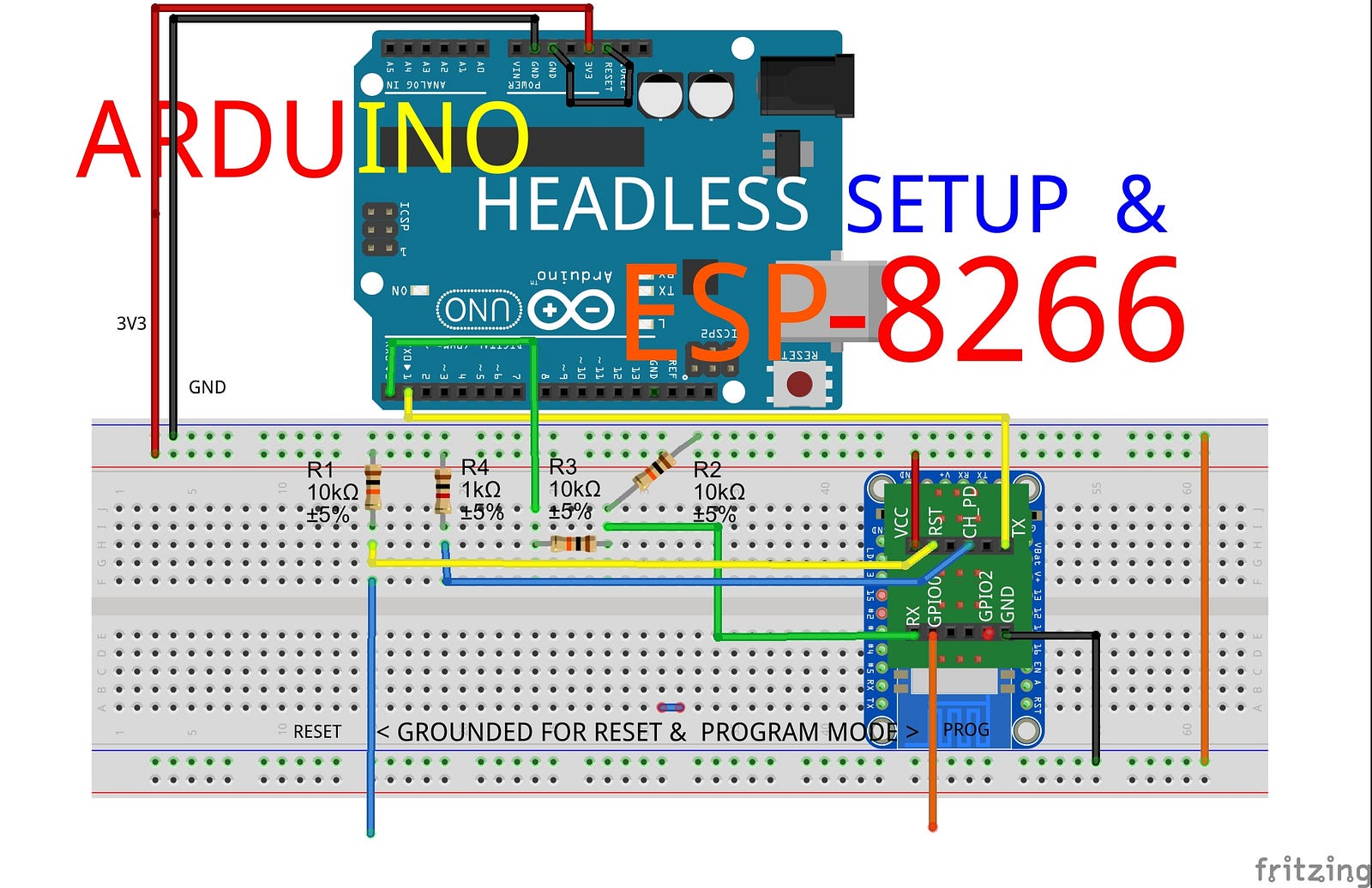

Here’s breadboard scheme:

Breadboard scheme for flashing mode of ESP8266 — ESP-01

Real circuit!

Note that the Arduino makes a pass by of the Atmega chip (black wire in GND+RST). that way we can reach the ESP8266.

This is the best and the simplest way to disable the arduino. So we will use it as the housing. The ESP8266 is the harborer as Orchids are in a branch of tree!!!

epiphyte : Arduino(branch) ESP8266(orchids)

Note too that one side of the breadboard I do not connected to the positive track for safety reasons ….

The secret is how to put the chip in flashing mode. I tried several times and this form here was that worked: GND in GPIO0 and pulse GND on RST pin. Watch the video you should be all right !! try there too !!!

Locate the port with speed to 115200 and point out the binaries in the way that I show in the video (or below).

ESP8266Download-Tools v.3.4.1 setup.

From GUI ESP8266 Tools v3.4.1 Guide

It should work there also!!!

Thanks for watching the video. If you liked it favorite please…;) till the next task with this fabulous chip: ESP8266!

All Project archieves google drive download

Based on: https://goo.gl/uA14Vn (Thanks to Andrew Cross for his awesome website!!!)

Based on: https://goo.gl/kznzHi (Thanks to Zhivko Gospodino for his hard work!!!)

I’ll be back soon!

visit too: https://goo.gl/MmZwU
