Are We There Yet? Hydrogen Trains and the End of the Carbon Era

Brendon Harre
Jan 3, 2019 · 15 min read

Steam trains signalled the start of the carbon era. Will hydrogen trains signal its end?

Image for post
Image for post
The world’s first hydrogen train is now in service — Engadget

New Zealand’s goal of being zero carbon by 2050 is like ‘crossing a river by feeling the stones’. The goal is clear but each step is uncertain requiring exploration.

New Zealand can and will follow countries like Norway with its increased use of electric battery technology in the transport industry.

Hydrogen FCEV could specialise in the heavy and longer range end of the transport market

There is a very good case being made by Toyota that electric battery vehicles will specialise in the short range light vehicle end of the transport market while hydrogen fuel cell electric vehicles will specialise in the longer range heavier end.

The world’s first hydrogen-powered trains have entered service in northern Germany. Two Coradia iLint trains, made by Alstom, have begun working the line between Cuxhaven and Buxtehude just west of Hamburg. Until now, the nearly 100km-long line has been serviced by diesel trains.

Toyota, Kenworth, and Shell are experimenting with the Port of Los Angeles and the California Air Resources Board (CARB) to provide a large-scale “shore to store” plan using hydrogen fuel-cell-electric technology for freight trucking operations. CARB is providing $41million of the estimated $85million cost with a goal of advancing this technology to full commercial use.

As part of this plan, Toyota has produced its second generation hydrogen truck with a longer range (more than 500 km per fill) and more space in the form of a sleeper cabin.

Concept image of the Tesla Semi truck that is promised to be produced in 2019. There are doubts if Tesla can meet this production time frame. So far there is no information on the weight of the truck, which is one of the most important commercial factors. As a truck’s weight determines its haulage capacity (payload weight).

Tesla claims that electric battery technology can be developed for use in commercial trucking. Industry commentators, peer reviewed academic research and competing truck builders dispute this claim, mainly on the grounds that heavy batteries will limit freight payload. In the near future, maybe as early as 2019 and 2020, there should be enough technological maturity to determine which technology is most suited to what market.

South Korea’s Hyundai Motor Group, the world’s fifth-biggest automaker, is betting on hydrogen fuel cell electric vehicles. It has recently announced it will invest US$6.7 billion along with local partners with the aim of producing 500,000 hydrogen-powered vehicles annually by 2030.

The Korean government have announced a hydrogen road map to gain what they hope will be a first mover advantage in the maturing hydrogen economy.

New Zealand has signed a hydrogen agreement with Japan.

New Zealand and Japan are working together to transition away from a reliance on fossil fuels says Energy and Resources Minister Megan Woods.

This memorandum helps signal New Zealand’s interest in working in partnership with Japan to develop hydrogen technology as we move towards a low carbon economy.

New Zealand and Japan are both intent on transforming their respective energy and transport sectors as we make the transition to a low-emissions economy and this partnership will allow the exchange of information to enhance hydrogen development.

New Zealand has an abundance of renewable energy that could be used to produce hydrogen as a next generation fuel in a sustainable way.

There is already cooperation between New Zealand and Japan in this space, with the planned construction of a pilot hydrogen production plant between Japan’s Obayashi Corporation and Tuaropaki Trust in Taupō using geothermal energy.

Advances in hydrogen electric fuel cell technology and renewable hydrogen production would give New Zealand another opportunity to step towards its zero carbon goal.

This opportunity is particularly relevant to rail in the South Island of New Zealand due to the longer distance journeys being made in that part of the country. But a similar analysis would also apply in the non-electrified parts of the North Island rail network. The line between Auckland and Northland and the line between Hamilton and Tauranga for instance.

The South Island has four rail options;

  1. Electrify the 1150 km South Island rail network and run electrical multi-unit (EMU) trains -this has the highest capital costs due to the multi $billion cost to electrify the railway lines. The advantage is it has the lowest ongoing operating costs wrt energy use. Auckland and Wellington commuter rail services have used this option. Large parts of the North Island main trunk line are electrified but it is a struggle to justify maintaining and expanding this electrified line. For the South Island, which has no electrification, the capital costs -likely to be more than $3 billion for full electrification, means the electrification option is not viable. Potentially the 50 km of Greater Christchurch track between Rolleston and Rangiora could be electrified -this limited electrification option would cost about $150m based on the cost to extend electrification in Auckland.
  2. Experiment with electric battery trains -like Japan and the UK. This option has lower capital costs due to not needing to electrify the railway lines and the next lowest operating costs wrt energy use. Electric battery passenger trains have a range of about 150 km so are potentially viable for suburban passenger services. Unfortunately, electric battery trains do not have the range to replace the longer distance South Island Coastal Pacific or TranzAlpine passenger train services or the energy density (per weight) for freighting operations. Electric battery trains also have long charging times, so expensive trains with high capital costs would have reduced operating times, which is not an efficient use of scarce capital. Electric battery trains can though be simply charged by hooking them up to the power grid -no new energy distribution infrastructure is required. Possibly battery ‘plug-in-play’ shipping containers could be switched every 150 km or so to make longer distance train operations viable.
  3. Experiment with hydrogen trains -like Germany. Hydrogen trains have lower capital costs but at the expense of higher operating costs wrt energy use. Hydrogen trains have a range of about 800 km so can provide both suburban and regional South Island services. Refueling times are short (15min), which is similar to diesel trains. Hydrogen has similar energy density (per weight not per volume) to diesel which is why it has similar performance characteristics. Hydrogen trains will require its own hydrogen production, distribution and storage facilities. On fixed rail routes this is not a too onerous constraint -the South Island rail network would only need 4 or 5 onsite production and dispensing facilities at strategic locations to provide full network coverage.
  4. Continue with diesel trains. This option has the lowest capital and the highest operating costs. Diesel trains are slow, noisy and polluting. From a tourist perspective they do not contribute to the countries clean green image. Diesel has an established fuel supply infrastructure network. All the political parties in the coalition government campaigned on introducing suburban diesel commuter rail services to Christchurch. Following the Kaikoura earthquakes the diesel train Coastal Pacific service was reinstated with an upgraded service.
KiwiRail has received $40 million of Crown funding to increase patronage on the Coastal Pacific passenger service. The funds will be used to operate the Picton to Christchurch service year-round, add an additional 63-seat carriage for peak seasonal traffic, and add a new premium luxury carriage.

The assessment of which is the best option essentially hinges on which choice has the lowest net present value for its capital and ongoing maintenance costs.Taking into account the following points;

  1. Installing the overhead wiring for 1150 km of track tracks for full electrification having an initial cost in excess of $3bn.
  2. Hydrogen trains with only 40% round trip efficiency would incur the capital costs of installing something like 2.5 times the electricity generator capacity compared to the full electrification option.
  3. More energy efficient electric battery trains would only need something like 1.1 times the generator capacity. Battery trains though would need to solve its short range problem and its limited freight haulage capacity due to the low energy density/high weight of electric batteries.
  4. Diesel trains high ongoing operating costs and it’s lack of progress towards New Zealand’s 2050 carbon zero goal.

Hypothetically a hydrogen train company could replace the South Island diesel train fleet with hydrogen trains, hydrogen production facilities and wind turbines to generate the power to make the hydrogen. Given enough generating capacity, which New Zealand has in the form of many consented but not built wind farms, hydrogen trains could be completely energy self-sufficient. This system would need backup storage capacity for when the wind is not blowing. This could either be hydrogen storage itself or something like a local pumped hydro-electric scheme. It is likely this whole system could be achieved for the South Island at a lower cost than the $3bn-plus cost to electrify the tracks option.

Given the year-on-year reliability of wind power in New Zealand. Using wind power to produce hydrogen directly may avoid the below discussed electricity grid ‘dry year’ problem. The math might show only a small amount of hydrogen storage is needed for the short time periods when calm wind conditions prevail. Perhaps Alstrom the hydrogen train builder and NEL the hydrogen infrastructure provider should talk to KiwiRail and one of New Zealand’s power companies with consented but not built wind power to do that maths?

Note: 5c/kWh is the equivalent to $50/MWh

Generating renewable hydrogen by electrolysis of water is becoming competitive with the natural gas steam methane reforming production method and is the direction where the industry is headed.

According to the Wide Spread Adaption of Competitive Hydrogen Solution -Nel Hydrogen document if electricity prices can be sourced for US$60 (NZ$90) per MWh for onsite production plus dispensing facilities then renewable hydrogen can achieve fossil fuel parity.

Image for post
Image for post
Electricity spot prices in New Zealand

For a hydrogen train company or another company wanting to generate renewable hydrogen using the electricity grid as the primary energy source, electricity price hedging or back-up storage capacity is likely to be the biggest cost issue. This is due to high and volatile electricity spot prices in New Zealand’s electricity market. Price volatility has corresponded to low South Island lake storage. Hydrogen can be stored but I doubt it is possible to store a whole season’s worth of hydrogen in New Zealand. Also hydrogen even if capable of storing large quantities of energy is not very efficient as a battery. The round trip efficiency of hydrogen is as low as 30 to 40%. This could increase up to 50% if more efficient technologies are developed, but this is much less efficient than pumped hydro which has a round trip efficiency of over 80%.

Image for post
Image for post

New Zealand Inc could overcome the high ‘dry year’ electricity spot price issue by investing nationally in the most efficient pumped hydro scheme(s) that provide seasonal storage capacity for the entire electricity grid. Fortunately New Zealand has a large potential store of energy in pumped hydro, that would be much more energy efficient than using hydrogen for long term energy storage. Consideration should be given to the benefits of ‘dry year’ security of electricity supply from Associate Prof Earl Bardsley’s Onslow pumped hydro proposal. Which alongside other benefits would assist New Zealand to grow its renewable energy economy.

Note 1000 GWh equals 1 TWh and 1000 MWh equals 1 GWh. The scheme would more than tripled the total New Zealand energy storage capacity to 14,400 GWh from the current low value of around 4,200 GWh (based on 2005 figures when the paper was first published)

Dr Bardsley describes how legislation could ensure Contact and Meridian power companies build the proposed pumped hydro scheme (at a cost of about $1billion) by mandating lake level limits for their South Island hydro lakes. This legislation would in effect stop the power companies generating when lake level storage is low and prices are high. The power companies would respond by building extra storage capacity so they could sell during periods of high demand and low supply. This would be a ‘stick’ -if it wasn’t the power companies would already have built the pumped hydro scheme, as the Onslow pumped hydro proposal was first mooted in 2005. ‘Carrots’ could be assistance with debt funding costs (the government could pay some or all of the interest costs) and assistance getting resource consents. This approach would unlock a lot of investment from relatively little government expenditure. Not just directly in building the pumped hydro scheme but indirectly through security of electricity supply leading to more investment in renewable energy production and zero carbon transport modes.

Image for post
Image for post

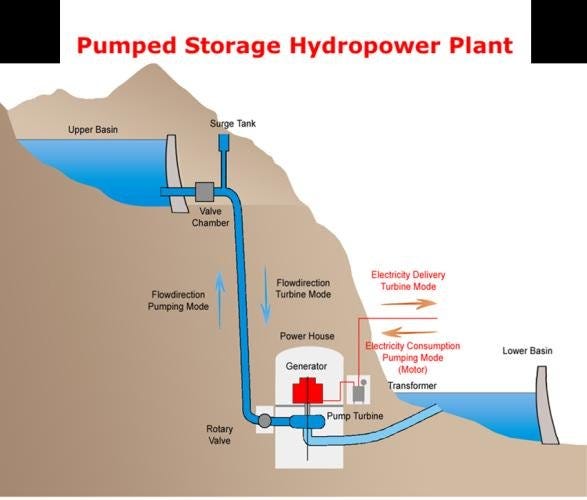

Pumped Hydro has over 80% ‘round trip’ efficiency when used as a store of energy. For the Lake Onslow pumped hydro proposal the drop down to the turbine would be between 640 and 720m depending on the water level of the upper basin. This large drop is why the scheme would store so much energy from a modest sized storage lake

Alternatively the government could create a special purpose vehicle entity, as used in the housing sector, to partner with Transpower and the Electricity Authority, to ensure security of electricity supply. This entity could invest in grid scale batteries. Ideally this entity would be 100% government owned and non-profit, as it would have the public good function of security of supply. The private sector though could provide the capital in the form of bond funding, and provide construction expertise. It would receive a commercial return for that funding and expertise.

Note South Island pumped hydro is not ideal as a grid scale battery, if it leads to North Island fossil fuel power plants being replaced by North Island renewable power, such as wind generators, because of the transmission costs from the South to North Island. North Island pumped hydro or another local grid scale battery would better manage the daily/weekly variance in North Island wind generation.

Pumped hydro would have an electricity buying price where it purchases power to pump water up to a high storage basin. Given pumped hydro is 80% round trip efficient, it would need a selling/generating price of at least 25% higher than its buying price to cover energy losses. Pumped hydro would also need to cover its civil works cost. So it would set its selling price at something like 50% above its buying price to give an adequate return on capital expenditure.

In New Zealand if pumped hydro bought power at $60MWh and sold at $90MWh then renewable transport modes like hydrogen vehicles may become economic because a ceiling price of $90MHh in New Zealand’s electricity market would effectively be created. A full engineering civil works costing of the pump hydro scheme(s) and a market analysis of electricity spot prices would be needed to determine what sort of buying and selling prices are achievable.

Australian National University researchers who have helped to scope out Australia’s pumped hydro opportunities have been awarded a leading science award — the Eureka Prize.

Prof Sadoway is looking at commercialising a process whereby liquid metal batteries have a capital cost of under $500/kWh.

There is research and innovation in the ‘grid scale battery’ field. Prof Sadoway for instance has undertaken research on liquid metal batteries. My take on his research (that he is turning into commercial enterprises) is it is about producing a new type of battery for electricity grid level storage that is price competitive with pumped hydro storage but doesn’t have the geographic limitations of pumped hydro.

Prof Sadoway indicates there needs to be a price competitive ‘scalable’ solution for grid level battery storage. That way the electricity industry can build for ‘average’ not ‘peak’ prices. And that way expensive generators are not sitting idle for months at a time between electricity demand peaks.

Image for post
Image for post
Energy Vault has launched a new grid-level energy storage system that uses concrete blocks, stacked in a tower(Credit: Energy Vault). Each tower will have a capacity of up to 35 MWh

Swiss company Energy Vault has just launched an innovative new system that stores potential energy in a huge tower of concrete blocks, which can be “dropped” by a crane to harvest the kinetic energy. While the crane might seem big and cumbersome, it can generate power in as little as 2.9 seconds, and has a round trip energy efficiency of about 90 percent. The first 35-MWh Energy Vault system is due to be deployed in India for the Tata Power Company in 2019.

Liquid metal batteries and Energy Vault are potential future entrants into the grid level battery storage market. New Zealand though is fortunate enough to have good geographic resources in pumped hydro that can be developed immediately.

New Zealand’s 2035 goal of 100% zero carbon electricity generation is possible by building more renewable electricity generation and using pumped hydro instead of coal or natural gas as the seasonal energy back-up.

The even bigger prize though is replacing CO2 emitting transport modes with CO2 neutral modes according to University of Canterbury researcher -Tom McKinlay.

If a hydrogen train company or other hydrogen or electric battery transport mode companies had certainty about electricity prices then they are more likely to invest in renewable energy and carbon neutral transport schemes.

Unfortunately a clear headed assessment of these opportunities for New Zealand Inc is being messed up by party politics. National Party Taranaki MP -Jonathan Young, in particular, playing fast and loose with the facts in media statements about making hydrogen from Taranaki’s natural gas. Claiming a proposed scheme “is built around the world’s highest-efficiency hydrogen production process coupled with a cutting-edge natural gas power generation system that includes inherent 100 per cent carbon capture”, when carbon capture and storage technology has yet to be proven effective internationally. In the meantime any hydrogen produced from natural gas will be CO2 emitting like other fossil fuels. The standard steam methane reforming production method emits 9 to 12 tones of CO2 for every ton of hydrogen produced. Even if carbon capture and storage is successful, the infrastructure required to store and distribute large quantities of hydrogen coming from Taranaki’s distant and isolated natural gas fields is another untested technological factor.

Climate change is going to be one of the biggest political issues of 2019 according to many political pundits. Experienced pundit -Linda Clark saying.

Climate change -the recent COP24 conference in Poland underscored that it’s no longer enough to keep talking about reducing emissions. We need to change how we act. That’s a challenge for any government. National will make it very hard for the government to move (note how quickly they spooked the PM over prospective fuel taxes). Finding the politically saleable way forward is going to be a real test of the coalition’s skill and persuasion. This issue needs a bipartisan approach -but there won’t be one.

I am an optimistic fan of social democracy. Climate change will be a test of whether democratic countries can, as former Chinese Premier Deng Xiaoping said, ‘cross the river by feeling the stones’. I will be profoundly disappointed if western democratic countries like New Zealand cannot negotiate the uncertainty and exploration challenges of climate change.

New Zealand businesses want to be part of the zero carbon technological era. The New Zealand Hydrogen Association was formed in September 2018 by private sector companies with seed funding from the Ministry of Business, Innovation and Employment. The founding members include Fulton Hogan, HW Richardson Group, Hyundai, Siemens (NZ), Green Cabs, Real Journeys, and Contact Energy. Toyota joined in November.

Richard Lauder, CE of Real Journeys, one of the founders of the Association, says his company is looking forward to exploring the possibility of reducing carbon emissions by using renewable hydrogen for some of New Zealand’s most iconic tourism offerings.

“Our specially designed fleet of bullet coaches travel 1.3 million kilometres each year between Queenstown and Milford Sound and the prospect of low emission hydrogen fuel cell coaches running this route would put Real Journeys at the forefront of tourism globally,” says Richard Lauder.


  1. For the government to fund a trial of hydrogen trains on the Coastal Pacific route to get a better idea of whether hydrogen vehicles can be cost competitive in the heavy vehicle segment of the market.
  2. For the Low-Emission Vehicles Contestable Fund, that has been supporting the increase in electric battery vehicles in New Zealand, to be expanded to include hydrogen vehicles and different transport modes -rail, maritime or aviation as well as roads. The fund provides up to $7 million per year to co-fund up to 50% of project costs with private and public sector partners in areas where commercial returns aren’t yet strong enough to justify full private investment (correction the latest 2019 Low-Emission Vehicles Contestable Fund announcement included for the first time a hydrogen project -Ports of Auckland demonstration project).
  3. For the government to undertake a full investigation of the benefits of grid scale batteries for New Zealand. Including an engineering and hydrology examination of the geographic opportunity and costs of specific pumped hydro schemes. A full market study investigating the potential purchase and selling prices that various grid scale batteries could deploy. An analysis of the implications for the various market players (including consumers) from moving to ‘average’ pricing from ‘peak’ pricing .

An early version of this article (below) was published on the 5th January 2019. The comments and feedback led to the above more complete report on hydrogen trains and grid scale batteries.
