Android Material TabLayout using Fragments | Badges in TabLayout | Android Studio | Java

Golap Gunjan Barman
Mar 8 · 3 min read

Android Material TabLayout using Fragments | Badges in TabLayout | Android Studio | Java

In this tutorial, we’re going to create a material tab layout using fragments. Here we’re going to see how to add badges to the tab layout.

You can also visit the previous tutorial on how to create a simple tab layout in android. CLICK HERE.

Now let’s see what you’re going to see in this tutorial:

Let’s create it

Step 1: Add the dependency

implementation 'com.google.android.material:material:1.3.0'

Step 2: Design the Main Layout

<?xml version="1.0" encoding="utf-8"?>
<androidx.coordinatorlayout.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".RippleTabLayout">
<com.google.android.material.appbar.AppBarLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginTop="28dp">
<androidx.appcompat.widget.Toolbar
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@color/white"
android:minHeight="?attr/actionBarSize"/>
<com.google.android.material.tabs.TabLayout
android:id="@+id/tab_layout"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
</com.google.android.material.appbar.AppBarLayout>
<androidx.viewpager.widget.ViewPager
android:id="@+id/view_pager"
android:layout_width="match_parent"
android:layout_height="wrap_content"
app:layout_behavior="com.google.android.material.appbar.AppBarLayout$ScrollingViewBehavior" />
</androidx.coordinatorlayout.widget.CoordinatorLayout>

Step 3: Add the Fragments

First Fragment: Android

Second Fragment: Google Play

Third Fragment: Favourite

Step 4: Add the Functionality

package com.codewithgolap.tablayout;import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;
import androidx.appcompat.widget.Toolbar;
import androidx.fragment.app.Fragment;
import androidx.fragment.app.FragmentManager;
import androidx.fragment.app.FragmentPagerAdapter;
import androidx.viewpager.widget.ViewPager;
import android.os.Bundle;import com.codewithgolap.tablayout.Fragments.ChatsFragment;
import com.codewithgolap.tablayout.Fragments.HomeFragment;
import com.codewithgolap.tablayout.Fragments.SettingsFragment;
import com.google.android.material.badge.BadgeDrawable;
import com.google.android.material.tabs.TabLayout;
import java.util.ArrayList;
import java.util.List;
public class RippleTabLayout extends AppCompatActivity { private Toolbar toolbar;
private ViewPager viewPager;
private TabLayout tabLayout;
private HomeFragment homeFragment;
private SettingsFragment settingsFragment;
private ChatsFragment chatsFragment;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_ripple_tab_layout);
toolbar = findViewById(R.id.toolbar);
setSupportActionBar(toolbar);
viewPager = findViewById(R.id.view_pager);
tabLayout = findViewById(R.id.tab_layout);
homeFragment = new HomeFragment();
settingsFragment = new SettingsFragment();
chatsFragment = new ChatsFragment();
tabLayout.setupWithViewPager(viewPager);
//create viewpager adapter
//here we will create inner class for adapter
ViewPagerAdapter viewPagerAdapter = new ViewPagerAdapter(getSupportFragmentManager(), 0);
//add fragments and set the adapter
viewPagerAdapter.addFragment(homeFragment,"");
viewPagerAdapter.addFragment(settingsFragment,"");
viewPagerAdapter.addFragment(chatsFragment,"");
viewPager.setAdapter(viewPagerAdapter);
//set the icons
tabLayout.getTabAt(0).setIcon(R.drawable.android);
tabLayout.getTabAt(1).setIcon(R.drawable.google_play);
tabLayout.getTabAt(2).setIcon(R.drawable.heart);
//set the badge
BadgeDrawable badgeDrawable = tabLayout.getTabAt(0).getOrCreateBadge();
badgeDrawable.setVisible(true);
badgeDrawable.setNumber(5);
}
private class ViewPagerAdapter extends FragmentPagerAdapter { private List<Fragment> fragments = new ArrayList<>();
private List<String> fragmentTitles = new ArrayList<>();
public ViewPagerAdapter(@NonNull FragmentManager fm, int behavior) {
super(fm, behavior);
}
//add fragment to the viewpager
public void addFragment(Fragment fragment, String title){
fragments.add(fragment);
fragmentTitles.add(title);
}
@NonNull
@Override
public Fragment getItem(int position) {
return fragments.get(position);
}
@Override
public int getCount() {
return fragments.size();
}
//to setup title of the tab layout
@Nullable
@Override
public CharSequence getPageTitle(int position) {
return fragmentTitles.get(position);
}
}
}

Here, we are not creating an extra adapter java class, here we create an inner class for the adapter.

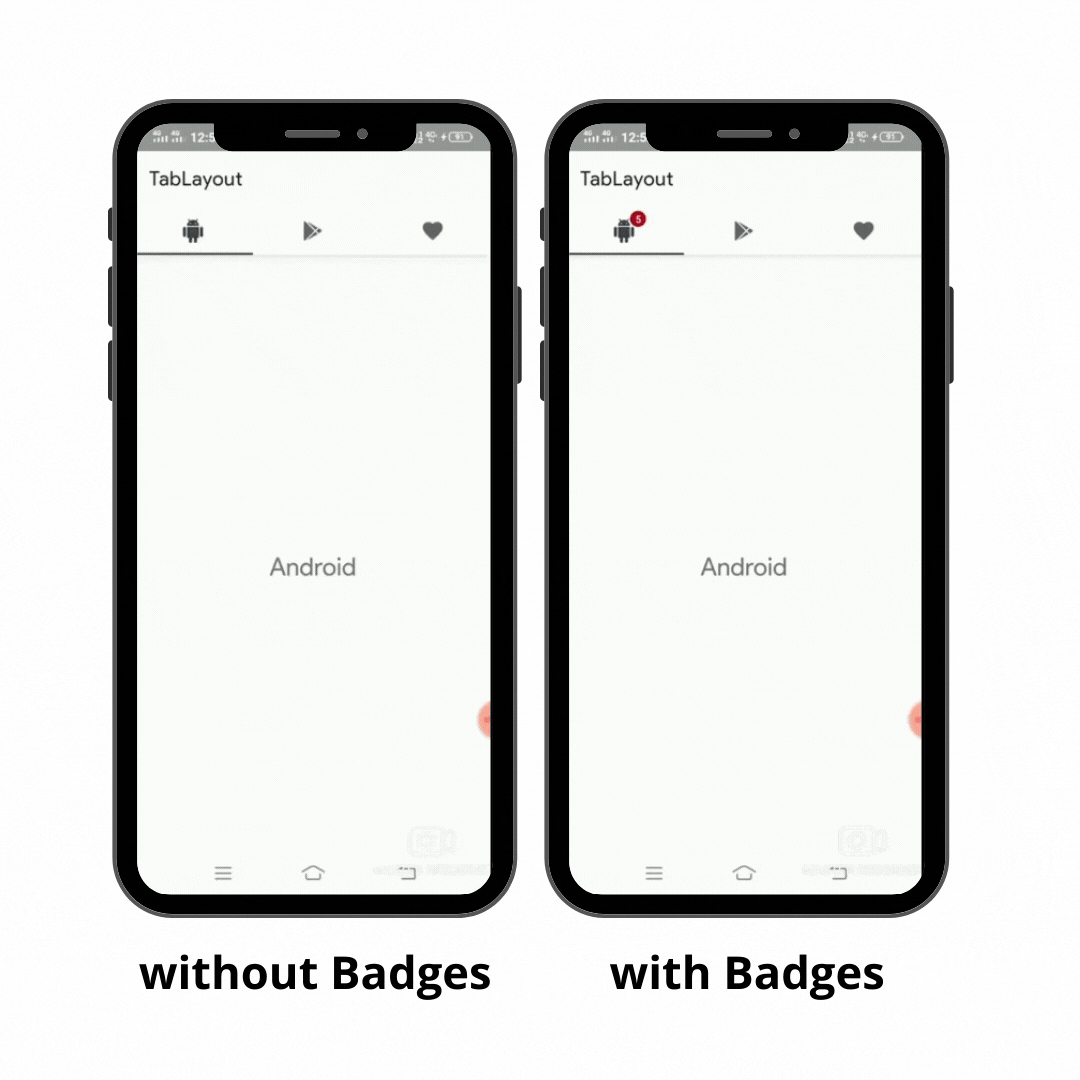

Output:
