5 Issues that Could Derail Your Camera Tracking

Matchmoving is becoming more and more of an automated process of tracking and solving. But there are still cases where the keen eye of the matchmove artist can save time by spotting potential issues that could derail your (auto) tracks and solves. This post will list what to look out for to identify which clips may need your attention.

1 — Lens distortion

Lens distortion is an optical aberration which causes straight lines to appear curved in photos or films and it is easy to see how this can cause the matchmove artist issues.

Trackers along a straight line in the real world are no longer on a straight line in the resulting distorted image and the resulting effect on a camera track can at best produce false positives or worst case, cause the 2D tracking to fail altogether.

Lens distortion can be recognised by looking out for straight objects at the edges of the frame, such as the beam in the image below.

On the left is the original frame with lens distortion; the beam is slightly curved. The same frame on the right has been undistorted in PFTrack.

Due to the 3D representation of trackers that should be in a straight line now being on an arc and not truly reflecting the real world scene, the camera solve will fail entirely when it becomes impossible to line the virtual camera up with the distorted tracking points.

Fix?

Film and television audiences are used to a certain amount of lens distortion in their viewing experience, and any CG must be distorted in the same way as the background plate to blend in perfectly. The trick is to undistort the image plate BEFORE carrying out any tracking/matchmove operations, then use the calculated distortion models further into the VFX pipeline.

All good matchmoving software has distortion pipeline tools built in which will allow the un distortion of the background plate prior to tracking, and the the ability to pass the distortion metrics (more commonly supported through ST Maps) further into the VFX pipeline, usually the composting software.

2 — Rolling shutter

Like lens distortion, rolling shutter is a result of limitations of the image capture technology employed to shoot the footage. The effect of rolling shutter occurs when different lines of the image sensor are recorded at different times, which commonly happens with CMOS sensors.

The effects of shutter roll are most noticeable with whip-pans or rapid translations. If the camera sensor records the image line by line during such fast movements, different parts of a frame are recorded at different times, and indeed from different camera locations.

The effects of shutter roll: Vertical lines are skewed as a result of the horizontal whip-pan.

Unfortunately, bad rolling shutter can render your footage almost unusable for motion effects such as tracking and titling, not just because the distorted image will cause tracking to fail, but also because it is almost impossible to match any form of CG to the unpredictable distortion.

Fix

The best fix is to sidestep any capture technology that produces this particular effect and opt for a better quality device. However, the fix it in post mentality of the production staff often means the VFX department get what they are given and there are fixes out there.

To make a usable image, you will have to reverse-engineer a unique camera position for a single frame, when no such position exists. Shutter roll must be treated prior to tracking, so matchmoving applications can rely on all scanlines of a single frame to represent the same time and location.

Shutter roll became such a big issue there are numerous plugins from 3rd party vendors available to provide fixes, with varying results. PFTrack itself has a tool built in to undistort the background which can be passed down the tracking tree, and other matchmove apps can deal with footage in as similar way.

After un distorting the rolling shutter, and carrying out tracking, you will need to provide the resulting undistorted background plate further into the VFX pipeline for any compositing etc. to be carried out. Unlike lens distortion, it is not usual to re-introduce the distortion characteristics.

PFTrack’s Shutter Fix node can be used to reduce the effects of rolling shutter.

additional rolling shutter ref — https://en.wikipedia.org/wiki/Rolling_shutter

3 — Lack of features

Matchmoving applications rely on tracking static object features within the image. From the way these features move through an image sequence, the matchmoving application reverse engineers how the camera was moved to film it, and even some properties of the camera itself such as focal length. Ideally, the features to be tracked will be well distributed over the entire 2D image, as well as the 3D space of the scene.

So the key to a successful auto track and camera solve, is to have plenty of well spread, trackable features in your clip. A trackable feature can be virtually anything that stands out in the image, for example the corner of a window.

There is no shortage of trackable features in this clip. These have been picked by PFTrack’s Auto Track node.

No background detail

Uniform background, such as a green screen used in many VFX shots, however, don’t have such a wealth of features as in the example above. In the worst cases, such as this clip below, there is nothing at all to track. This clip will require some manual work to get a working camera solve.

Green screen without tracking markers. Clip by Hollywood Camera Work

On the other hand, even green screens do have tracking markers in many cases, but due to the nature of green screens, these markers will not always sufficiently stand out.

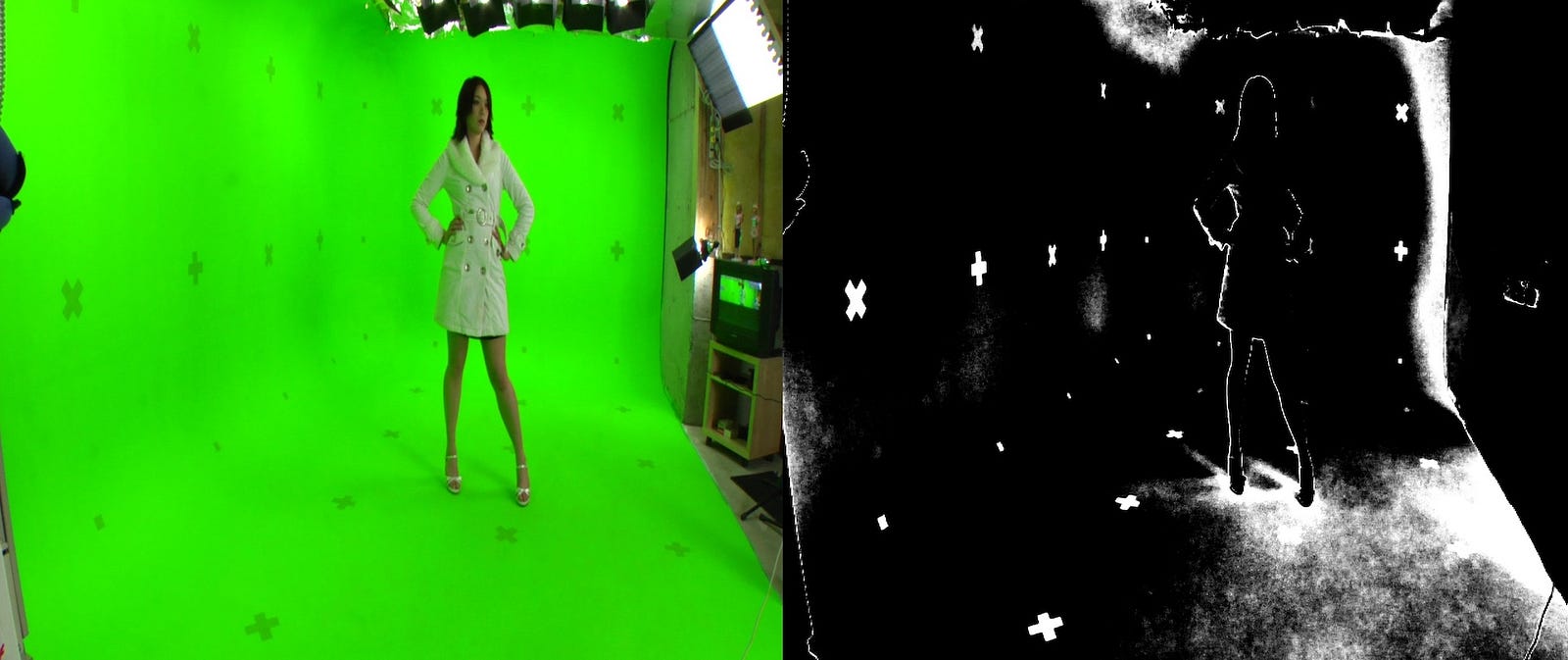

Green screen markers (left), and after using Marker Enhancement in PFTrack. Clip by Hollywood Camera Work

Fix

In many cases, the image can be altered to make them more visible, as in the example above.

Motion blur

Another common case that can result in a lack of trackable feature is motion blur, caused by a fast moving camera. As such, motion blur not only makes it harder for an algorithm to locate trackable features. Any features that may be found are also harder to track due to the fast camera motion.

A motion blurred frame.

Fix

You may be able to recover enough detail for a track through image processing, but in many cases clips with heavy motion blur will require manual trackers to get the best result.

4 — Incorrect features

In some cases, there may be what seems like plenty of features to track, and yet, these features would not feed the correct information to the matchmoving applications. To be of any use to solve for a camera, trackers must represent the same real world 3D position throughout the clip. Below are some examples of where this is not the case.

Too much movement

One obvious example where trackers do not stick at what represents the same real world position is when there is movement inside the shot, such as moving cars or people. In an exterior scene, these could also be branches of trees, subtly swaying in the wind. Even though they may appear to not move very much, they can pose a problem if too many trackers are on them.

The clip below shows an example with a moving person. While these trackers cannot be used to solve a camera, they would still be useful to solve the object’s motion in a later step.

The trackers on the box move in the real world and cannot be used for a camera solve.

Fix

If there is too much motion in a shot, the moving objects may have to be masked out prior to tracking, or any trackers on such objects removed before feeding them into the camera solver. In many cases, however, the consistency parameter in PFTrack’s Auto Track node can eliminate independently moving trackers automatically.

False corners

Another example where trackers do not provide any useful information, neither for camera, nor object tracks, are false corners. False corners occur when two objects which are at different distances from the camera overlap. Tracking algorithms could interpret the intersection of these two objects as a trackable feature. Solving algorithms, however, expect features to represent the same 3D real world position, which is not the case for false corners.

The tracking point at this false corner does not represent the same real world position in both frames.

Fix

This issue requires an observant operator to spot suspicious trackers. Turning on tracker motion prediction in PFTrack’s Auto Track or Auto Match node may help avoid tracking false corners, as can the Auto Track node’s consistency setting.

5 — No Parallax

Matchmoving relies heavily on parallax, the familiar effect that objects which are further away seem to move more slowly than object closer to us. For camera tracking, the applications use this knowledge to estimate the relative distance of trackers from the camera, and determine how the camera moves. But there are types of shots, that do not exhibit any parallax.

Locked off shots

Without any camera motion, background features will not move at all, which means features further away cannot move slower than features closer to the camera.

Zoom shots

It may look like motion on first glance, but zooming a locked off camera does not exhibit parallax. Zooming only magnifies a part of the image, and all objects inside that part keep their relative positions. The following example shows the different results you get from a zoom shot compared to a dolly shot, where the camera actually moves forwards. Note how in the dolly shot, the objects move relative to each other, and, as a result, more of the circled object is revealed at the end of the shot.

Zoom shot versus dolly shot. The circle shows an example where more of the background is revealed as the camera moves forward, whereas the object stays hidden behind the gravestone in the zoom shot.

Nodal pan

A third example of common shots that don’t contain parallax is nodal pans. The easiest way to imagine a nodal pan is a camera that is mounted on a tripod with no horizontal movement. This rotational motion of the camera does not create any parallax as is illustrated in the clip below.

The background and foreground, such as the two circled gravestones at different distances from the camera, move at the same speed in nodal pans

While most tripod shots are not in fact true nodal pans -for that they would have to rotate the camera around its optical centre-, they often still not contain enough parallax to solve for very accurate 3D tracker positions.

Fix

Introducing additional views of the scene, such as still images shot from a different position, will let you extract 3D data from nodal pans.

Conclusion

Spotting these issues early can help you distinguish easy to track shots from the ones that need extra care in matchmoving. The Pixel Farm’s matchmoving application PFTrack provides tools that can help you mitigate these issues (as outlined in the fix suggestions) and get a solution for many difficult situations.
