Aug 13, 2018 · 4 min read

🌟 Before we introduce this seriously cool visualization, we’d like to announce that plotly.py has surpassed 5 million downloads! Thank you for helping us reach this milestone! 🙌

Once Upon a Time 🕰️

It was the year 2008. If you wanted to create 3-D plots in Python for interactive scientific data visualization, the Mayavi Python library was your go-to.

See for yourself:

Mayavi Streamtube Example, circa 2008

Plotly Streamtube Example, 2018

So What’s a Streamtube?

  • A streamtube is a tubular region surrounded by streamlines that form a closed loop.
  • It’s a continuous version of a cone plot (3-D quiver plot) and can provide insight into flow data from natural systems.
  • A streamtube is impermeable since the walls of the tube are made up of streamlines, and there can be no flow normal to a streamline.
  • Since streamlines don’t intersect, the same streamlines pass through a streamtube at all points along its length.

Streamtubes in Plotly ⤵️

https://plot.ly/python/streamtube-plot/

  • In streamtube plots, attributes include x, y, and z, which set the coordinates of the vector field, and u, v, and w, which sets the x, y, and z components of the vector field.
  • You can use starts to determine the streamtube's starting position.
  • The maximum number of segments displayed can be determined by calling maxdisplayed in your chart code.

1. Basic Streamtube

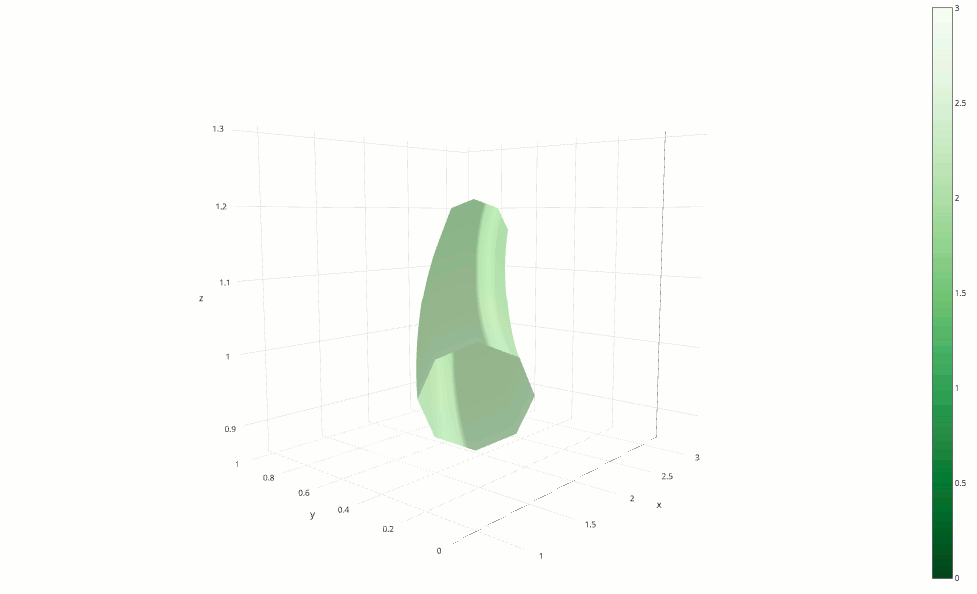

Our first example is a simple one. It satisfies the definition of a streamtube wholly: a tubular region surrounded by streamlines that form a closed loop.

This particular tubular region is made up of 27 streamlines.

Python code | R code | Link to plot | Link to data

2. Starting Position and Segments

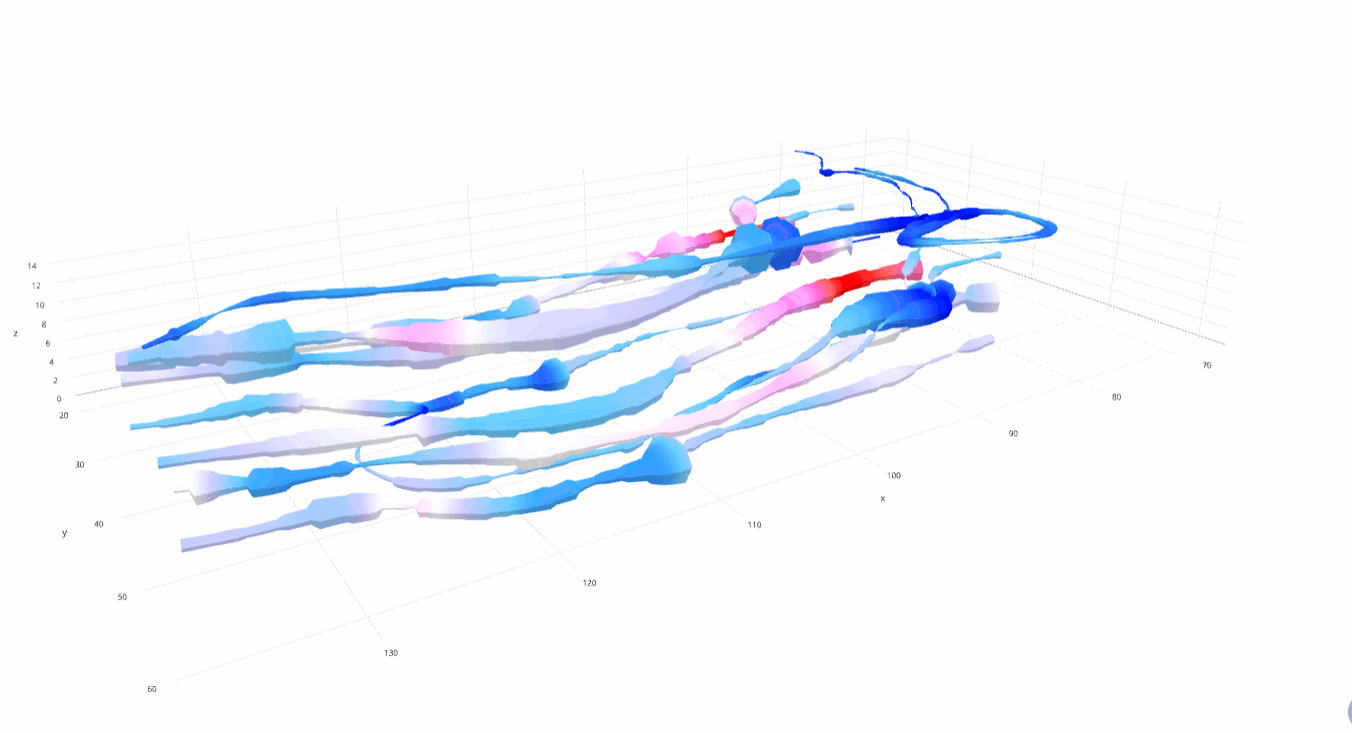

This plot shows how you can display wind speed and direction as a streamtube. It uses two functions that are unique to this particular chart type: starts and maxdisplayed, which are described above.

When dealing with wind data, be sure to use a colorscale that highlights the peak values!

Python code | R code | Link to plot | Link to data

On to more complicated examples of streamtubes in Plotly…

3. Streamtubes Displaying the Arnold-Beltrami-Childress (ABC) Flow

The ABC-flow is an example of dynamic chaos. Since chaotic behavior exists in many natural systems, like weather and climate, road traffic, and biology, we can gain better insights by charting it.

  • The ABC-flow is a three-parameter incompressible velocity field that provides an exact solution of Euler’s equation for inviscid Newtonian fluids in three dimensions.
  • Euler’s equation is a special case of the Navier-Stokes equation, which expresses Newton’s 2nd law of motion for fluid flow. Newton’s 2nd law of motion states that the sum of the forces acting on the volume of fluid V is equal to the rate of change of its momentum.
  • Inviscid flow is the flow of an inviscid fluid, in which the viscosity, or thickness, of the fluid is equal to zero.
  • It is the prototype for the study of turbulence, providing a simple example of dynamic chaos.
  • In Cartesian coordinates, it is represented as:

x = A sin z + C cos y

y = B sin x + A cos z

z = C sin y + B cos x

The cone plot representation of the ABC-vector field defined on a volumetric region:

Python code | Link to plot

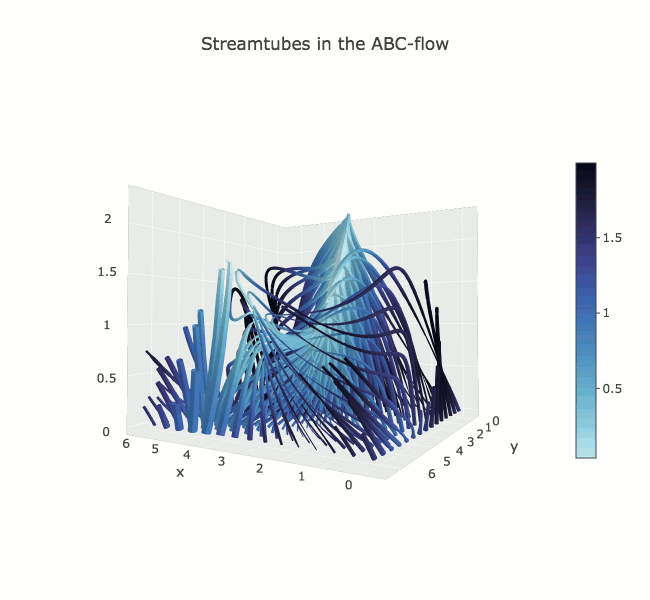

The second example below shows streamtubes displaying the ABC-flow starting from a z-plane. The ABC-vectors have a fast change of the direction and magnitude in each slice perpendicular to one of the axes. In this case, we gain better insights into the flow structure, plotting the streamtubes that start from different volume slices.

We think it looks like a cool haircut 💇

Python code | Link to plot

Streamtubes of the ABC-Flow: Flowing from X-Plane

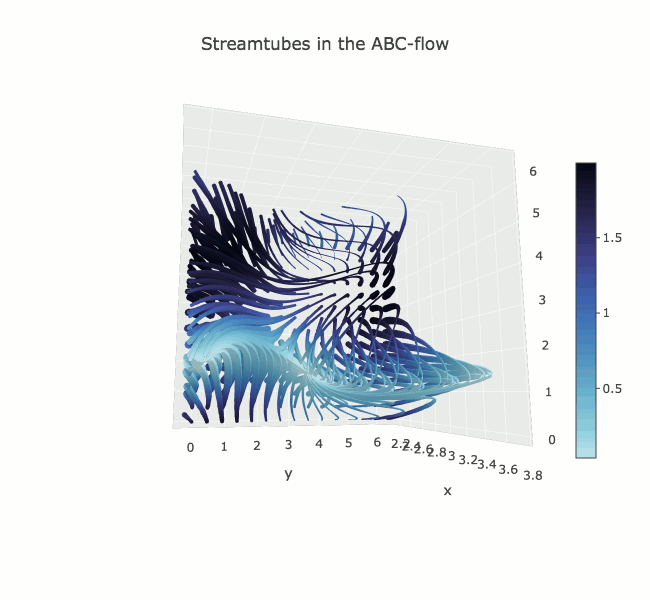

Here we illustrate streamtubes of the ABC-flow that start from a plane perpendicular to the x-axis.

The previous example showed streamtubes that are flowing from a plane perpendicular to the z-axis.

Python code | Link to plot

Streamtubes of the ABC-Flow: Flowing from Y-Plane

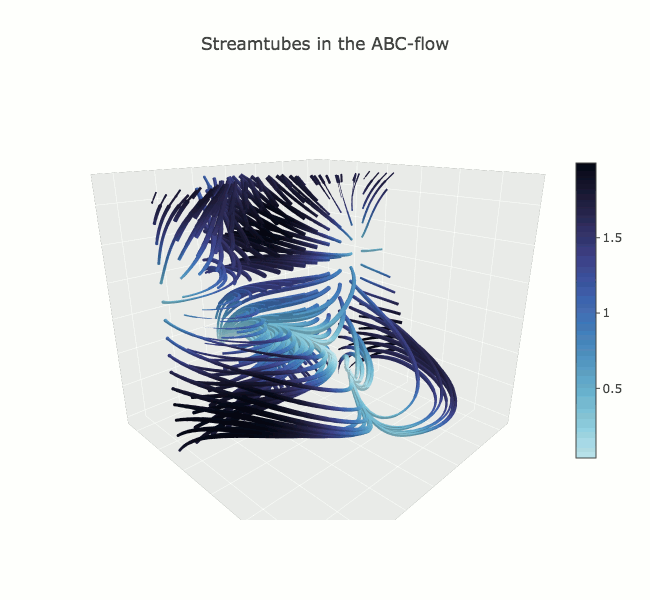

This plot shows streamtubes of the ABC-flow that start from a plane perpendicular to the y-axis.

The previous example showed streamtubes that are flowing from a plane perpendicular to the x-axis.

Python code | Link to plot

Although streamtubes represent a plot type that borders on the esoteric, some intriguing applications can be made with a bit of thought and creativity. For inspiration, check out the Plotly feed.

Special thanks to Emilia Petrisor (Emilia P) for her ABC-flow plot contributions.
