Building a Puzzle Game Using Flutter

Hello there! Today I want to show you how to build a puzzle game using Flutter. This will work on both iOS and Android devices. We already build a puzzle game in Android in the past, you can check it here.

If you don’t already have Flutter installed, please start by doing this. You can find how to install it from the Flutter website.

Project Setup

Once you have everything ready, start by creating a new Flutter project, in Android Studio:

From the next screen, choose to create a Flutter Application, then name the new project flutter_puzzle and use your own company or personal domain for package name generation. I will use dragosholban.com, so the package name will end up being com.dragosholban.flutterpuzzle. It does not matter if we choose to include Kotlin or Swift support, as we will not need to write any native Android or iOS code for this application.

After the new project is generated, run it in a simulator or on a real device, to be sure everything works fine.

To finish our setup, open the lib/main.dart file and replace the content with the following one. We will remove the sample functionality that Flutter generated and replace it with the starting point of our app:

import 'package:flutter/material.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Puzzle',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: MyHomePage(title: 'Flutter Puzzle'),
);
}
}

class MyHomePage extends StatefulWidget {
final String title;

MyHomePage({Key key, this.title}) : super(key: key);

@override
_MyHomePageState createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {

@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text(widget.title),
),
body: SafeArea(
child: new Center(
child: new Text('No image selected.'),
),
),
floatingActionButton: FloatingActionButton(
onPressed: () => null,
tooltip: 'New Image',
child: Icon(Icons.add),
),
);
}
}

As you can see, this is just an empty screen, with a “No image selected” text in the middle, and a floating button we’ll use later:

Get Image from Camera or Gallery

Now that we have everything in place, let’s start by making our app to be able to load images from the phone’s internal storage or directly capture them using the camera. To do this, we will use a Flutter plugin named image_picker.

Installing new plugins in Flutter is as simple as adding them to the pubspec.yaml file, then running flutter get from the console or directly from Android Studio.

...
dependencies:
flutter:
sdk: flutter

# The following adds the Cupertino Icons font to your application.
# Use with the CupertinoIcons class for iOS style icons.
cupertino_icons: ^0.1.2

image_picker: ^0.4.10
...

As we already added a floating button for the users to select a new image, let’s just make the necessary changes so it does just this. First, we’ll present the user with the option of choosing the image source: Camera or Gallery. Make the following change to the main.dart file:

// ...

class _MyHomePageState extends State<MyHomePage> {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text(widget.title),
),
body: SafeArea(
child: new Center(
child: new Text('No image selected.'),
),
),
floatingActionButton: FloatingActionButton(
onPressed: () {
showModalBottomSheet(context: context,
builder: (BuildContext context) {
return SafeArea(
child: new Column(
mainAxisSize: MainAxisSize.min,
children: [
new ListTile(
leading: new Icon(Icons.camera),
title: new Text('Camera'),
onTap: () => null,
),
new ListTile(
leading: new Icon(Icons.image),
title: new Text('Gallery'),
onTap: () => null,
),
],
),
);
}
);
},

tooltip: 'New Image',
child: Icon(Icons.add),
),
);
}
}

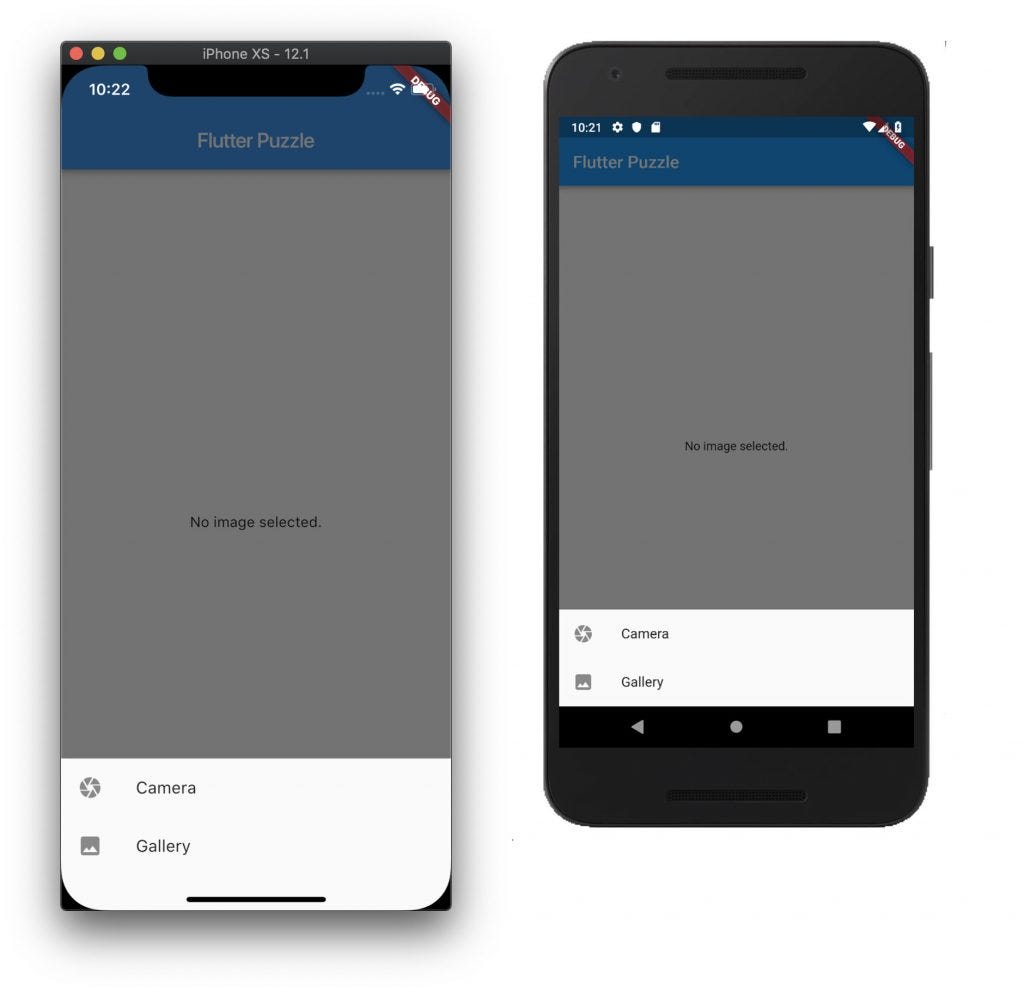

Now, when you tap on the floating button, a bottom menu will show up asking for the desired source of image. Make sure everything runs smoothly:

To actually get the images, we will create a new method to be called when the user selects either Camera or Gallery from the above. We’ll show the image to the user when it’s loaded by changing the state of our app. Also, please note that we had to import some dart libraries and the image_picker Flutter plugin we installed earlier:

import 'dart:async';
import 'dart:io';


import 'package:flutter/material.dart';
import 'package:image_picker/image_picker.dart';

void main() => runApp(MyApp());

// ...

class _MyHomePageState extends State<MyHomePage> {
File _image;

Future getImage(ImageSource source) async {
var image = await ImagePicker.pickImage(source: source);

if (image != null) {
setState(() {
_image = image;
});
}
}

@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text(widget.title),
),
body: SafeArea(
child: new Center(
child: _image == null
? new Text('No image selected.')
: Image.file(_image)

),
),
floatingActionButton: FloatingActionButton(
onPressed: () {
showModalBottomSheet<void>(context: context,
builder: (BuildContext context) {
return SafeArea(
child: new Column(
mainAxisSize: MainAxisSize.min,
children: <Widget>[
new ListTile(
leading: new Icon(Icons.camera),
title: new Text('Camera'),
onTap: () {
getImage(ImageSource.camera);
// this is how you dismiss the modal bottom sheet after making a choice
Navigator.pop(context);

},
),
new ListTile(
leading: new Icon(Icons.image),
title: new Text('Gallery'),
onTap: () {
getImage(ImageSource.gallery);
// dismiss the modal sheet
Navigator.pop(context);

},
),
],
),
);
}
);
},
tooltip: 'New Image',
child: Icon(Icons.add),
),
);
}
}

The last thing we need to do for this to work, is to add some iOS specific permissions details. Open the ios/Runner/Info.plist file and add two more lines in it like shown below:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>CFBundleDevelopmentRegion</key>
<string>en</string>
...
<key>NSPhotoLibraryUsageDescription</key>
<string>The app needs to access the Photo Library in order to be able to load images from it.</string>
<key>NSCameraUsageDescription</key>
<string>The app needs to access the Camera in order to be able to get images from it.</string>

</dict>
</plist>

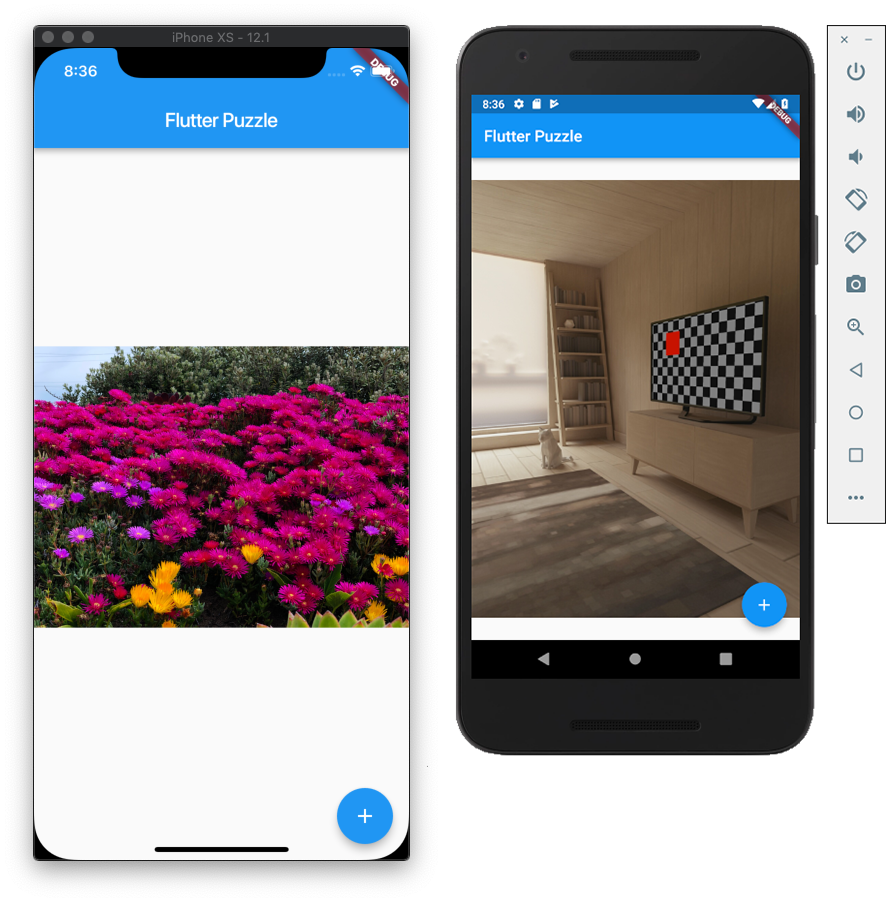

You can now test the app, you should be able to load images or capture new ones on both platforms. When you’re done checking, go to the next section.

Split Image into Puzzle Pieces

For the pieces of our puzzle, we will create a new flutter widget, the PuzzlePiece. Create a new PuzzlePiece.dart file in the lib folder.

This widget will take an image and clip it to a path that defines our puzzle piece. It also needs to know the row and the column for the piece it is drawing and the maximum number of rows/columns for the entire puzzle (maxRow and maxCol).

import 'dart:math';

import 'package:flutter/material.dart';

class PuzzlePiece extends StatefulWidget {
final Image image;
final Size imageSize;
final int row;
final int col;
final int maxRow;
final int maxCol;

PuzzlePiece(
{Key key,
@required this.image,
@required this.imageSize,
@required this.row,
@required this.col,
@required this.maxRow,
@required this.maxCol})
: super(key: key);

@override
PuzzlePieceState createState() {
return new PuzzlePieceState();
}
}

class PuzzlePieceState extends State<PuzzlePiece> {
double top;
double left;

@override
Widget build(BuildContext context) {
final imageWidth = MediaQuery.of(context).size.width;
final imageHeight = MediaQuery.of(context).size.height * MediaQuery.of(context).size.width / widget.imageSize.width;
final pieceWidth = imageWidth / widget.maxCol;
final pieceHeight = imageHeight / widget.maxRow;

if (top == null) {
top = Random().nextInt((imageHeight - pieceHeight).ceil()).toDouble();
top -= widget.row * pieceHeight;
}
if (left == null) {
left = Random().nextInt((imageWidth - pieceWidth).ceil()).toDouble();
left -= widget.col * pieceWidth;
}

return Positioned(
top: top,
left: left,
width: imageWidth,
child: ClipPath(
child: CustomPaint(
foregroundPainter: PuzzlePiecePainter(widget.row, widget.col, widget.maxRow, widget.maxCol),
child: widget.image
),
clipper: PuzzlePieceClipper(widget.row, widget.col, widget.maxRow, widget.maxCol),
),
);
}
}

// this class is used to clip the image to the puzzle piece path
class PuzzlePieceClipper extends CustomClipper<Path> {
final int row;
final int col;
final int maxRow;
final int maxCol;

PuzzlePieceClipper(this.row, this.col, this.maxRow, this.maxCol);

@override
Path getClip(Size size) {
return getPiecePath(size, row, col, maxRow, maxCol);
}

@override
bool shouldReclip(CustomClipper<Path> oldClipper) => false;
}

// this class is used to draw a border around the clipped image
class PuzzlePiecePainter extends CustomPainter {
final int row;
final int col;
final int maxRow;
final int maxCol;

PuzzlePiecePainter(this.row, this.col, this.maxRow, this.maxCol);

@override
void paint(Canvas canvas, Size size) {
final Paint paint = Paint()
..color = Color(0x80FFFFFF)
..style = PaintingStyle.stroke
..strokeWidth = 1.0;

canvas.drawPath(getPiecePath(size, row, col, maxRow, maxCol), paint);
}

@override
bool shouldRepaint(CustomPainter oldDelegate) {
return false;
}
}

// this is the path used to clip the image and, then, to draw a border around it; here we actually draw the puzzle piece
Path getPiecePath(Size size, int row, int col, int maxRow, int maxCol) {
final width = size.width / maxCol;
final height = size.height / maxRow;
final offsetX = col * width;
final offsetY = row * height;
final bumpSize = height / 4;

var path = Path();
path.moveTo(offsetX, offsetY);

if (row == 0) {
// top side piece
path.lineTo(offsetX + width, offsetY);
} else {
// top bump
path.lineTo(offsetX + width / 3, offsetY);
path.cubicTo(offsetX + width / 6, offsetY - bumpSize, offsetX + width / 6 * 5, offsetY - bumpSize, offsetX + width / 3 * 2, offsetY);
path.lineTo(offsetX + width, offsetY);
}

if (col == maxCol - 1) {
// right side piece
path.lineTo(offsetX + width, offsetY + height);
} else {
// right bump
path.lineTo(offsetX + width, offsetY + height / 3);
path.cubicTo(offsetX + width - bumpSize, offsetY + height / 6, offsetX + width - bumpSize, offsetY + height / 6 * 5, offsetX + width, offsetY + height / 3 * 2);
path.lineTo(offsetX + width, offsetY + height);
}

if (row == maxRow - 1) {
// bottom side piece
path.lineTo(offsetX, offsetY + height);
} else {
// bottom bump
path.lineTo(offsetX + width / 3 * 2, offsetY + height);
path.cubicTo(offsetX + width / 6 * 5, offsetY + height - bumpSize, offsetX + width / 6, offsetY + height - bumpSize, offsetX + width / 3, offsetY + height);
path.lineTo(offsetX, offsetY + height);
}

if (col == 0) {
// left side piece
path.close();
} else {
// left bump
path.lineTo(offsetX, offsetY + height / 3 * 2);
path.cubicTo(offsetX - bumpSize, offsetY + height / 6 * 5, offsetX - bumpSize, offsetY + height / 6, offsetX, offsetY + height / 3);
path.close();
}

return path;
}

Back in the main.dart file, add the following to start using this new widget:

import 'dart:async';
import 'dart:io';

import 'package:flutter/material.dart';
import 'package:image_picker/image_picker.dart';

import 'package:flutter_puzzle/PuzzlePiece.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Puzzle',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: MyHomePage(title: 'Flutter Puzzle'),
);
}
}

class MyHomePage extends StatefulWidget {
final String title;
final int rows = 3;
final int cols = 3;


MyHomePage({Key key, this.title}) : super(key: key);

@override
_MyHomePageState createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
File _image;
List<Widget> pieces = [];

Future getImage(ImageSource source) async {
var image = await ImagePicker.pickImage(source: source);

if (image != null) {
setState(() {
_image = image;
pieces.clear();
});

splitImage(Image.file(image));
}
}

// we need to find out the image size, to be used in the PuzzlePiece widget
Future<Size> getImageSize(Image image) async {
final Completer<Size> completer = Completer<Size>();

image.image.resolve(const ImageConfiguration()).addListener(
(ImageInfo info, bool _) {
completer.complete(Size(
info.image.width.toDouble(),
info.image.height.toDouble(),
));
},
);

final Size imageSize = await completer.future;

return imageSize;
}


// here we will split the image into small pieces using the rows and columns defined above; each piece will be added to a stack
void splitImage(Image image) async {
Size imageSize = await getImageSize(image);

for (int x = 0; x < widget.rows; x++) {
for (int y = 0; y < widget.cols; y++) {
setState(() {
pieces.add(PuzzlePiece(key: GlobalKey(),
image: image,
imageSize: imageSize,
row: x,
col: y,
maxRow: widget.rows,
maxCol: widget.cols));
});
}
}
}


@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text(widget.title),
),
body: SafeArea(
child: new Center(
child: _image == null
? new Text('No image selected.')
: Stack(children: pieces)
),
),
floatingActionButton: FloatingActionButton(
onPressed: () {
showModalBottomSheet<void>(context: context,
builder: (BuildContext context) {
return SafeArea(
child: new Column(
mainAxisSize: MainAxisSize.min,
children: <Widget>[
new ListTile(
leading: new Icon(Icons.camera),
title: new Text('Camera'),
onTap: () {
getImage(ImageSource.camera);
Navigator.pop(context);
},
),
new ListTile(
leading: new Icon(Icons.image),
title: new Text('Gallery'),
onTap: () {
getImage(ImageSource.gallery);
Navigator.pop(context);
},
),
],
),
);
}
);
},
tooltip: 'New Image',
child: Icon(Icons.add),
),
);
}
}

If you run the app now and load an image, you will see it transformed into multiple puzzle pieces, random positioned on the screen.

Move the Puzzle Pieces Around and Snap into Place

Next, we will add a Flutter GestureDetector to allow the user to move (to pan) the pieces around the screen. When a piece is close to its final position, we will snap it into place and disable the movement. Add the highlighted code to the PuzzlePiece widget to do this:

class PuzzlePiece extends StatefulWidget {
final Image image;
final Size imageSize;
final int row;
final int col;
final int maxRow;
final int maxCol;
final Function bringToTop;
final Function sendToBack;


PuzzlePiece(
{Key key,
@required this.image,
@required this.imageSize,
@required this.row,
@required this.col,
@required this.maxRow,
@required this.maxCol,
@required this.bringToTop,
@required this.sendToBack
})
: super(key: key);

@override
PuzzlePieceState createState() {
return new PuzzlePieceState();
}
}

class PuzzlePieceState extends State<PuzzlePiece> {
double top;
double left;
bool isMovable = true;

@override
Widget build(BuildContext context) {
final imageWidth = MediaQuery.of(context).size.width;
final imageHeight = MediaQuery.of(context).size.height * MediaQuery.of(context).size.width / widget.imageSize.width;
final pieceWidth = imageWidth / widget.maxCol;
final pieceHeight = imageHeight / widget.maxRow;

if (top == null) {
top = Random().nextInt((imageHeight - pieceHeight).ceil()).toDouble();
top -= widget.row * pieceHeight;
}
if (left == null) {
left = Random().nextInt((imageWidth - pieceWidth).ceil()).toDouble();
left -= widget.col * pieceWidth;
}

return Positioned(
top: top,
left: left,
width: imageWidth,
child: GestureDetector(
onTap: () {
if (isMovable) {
widget.bringToTop(widget);
}
},
onPanStart: (_) {
if (isMovable) {
widget.bringToTop(widget);
}
},
onPanUpdate: (dragUpdateDetails) {
if (isMovable) {
setState(() {
top += dragUpdateDetails.delta.dy;
left += dragUpdateDetails.delta.dx;

if(-10 < top && top < 10 && -10 < left && left < 10) {
top = 0;
left = 0;
isMovable = false;
widget.sendToBack(widget);
}
});
}
},
child:
ClipPath(
child: widget.image,
clipper: PuzzlePieceClipper(widget.row, widget.col, widget.maxRow, widget.maxCol),
),
),
);
}
}

Finally, add the following to the main.dart file:

void splitImage(Image image) async {
Size imageSize = await getImageSize(image);

for (int x = 0; x < widget.rows; x++) {
for (int y = 0; y < widget.cols; y++) {
setState(() {
pieces.add(PuzzlePiece(key: GlobalKey(),
image: image,
imageSize: imageSize,
row: x,
col: y,
maxRow: widget.rows,
maxCol: widget.cols,
bringToTop: this.bringToTop,
sendToBack: this.sendToBack
));
});
}
}
}

// when the pan of a piece starts, we need to bring it to the front of the stack
void bringToTop(Widget widget) {
setState(() {
pieces.remove(widget);
pieces.add(widget);
});
}


// when a piece reaches its final position, it will be sent to the back of the stack to not get in the way of other, still movable, pieces
void sendToBack(Widget widget) {
setState(() {
pieces.remove(widget);
pieces.insert(0, widget);
});
}

Run the app again, select an image and try to complete the puzzle! Everything should work fine and you can congratulate yourself for making such an awesome app…

But there is more you can do on your own to improve this game! One obvious thing, is to check when all the pieces are in place and restart the game. Other, is to restrict the app in portrait mode. But I’ll let you discover by yourself how to do this. (Tip: you’ll have to configure each native app, iOS and Android, separately, for the latter).

I hope you enjoyed this tutorial about building a puzzle game in Flutter. Please let me know in the comments how it worked out for you and, if you have, any issues or suggestions I could use to improve it. You can get the final code from GitHub and use it as you please. Thanks!


Originally published at dragosholban.com on February 16, 2019.
