Sometimes, More is More

Long before computer aid was a thing, automakers would solve weight problems using… even more weight

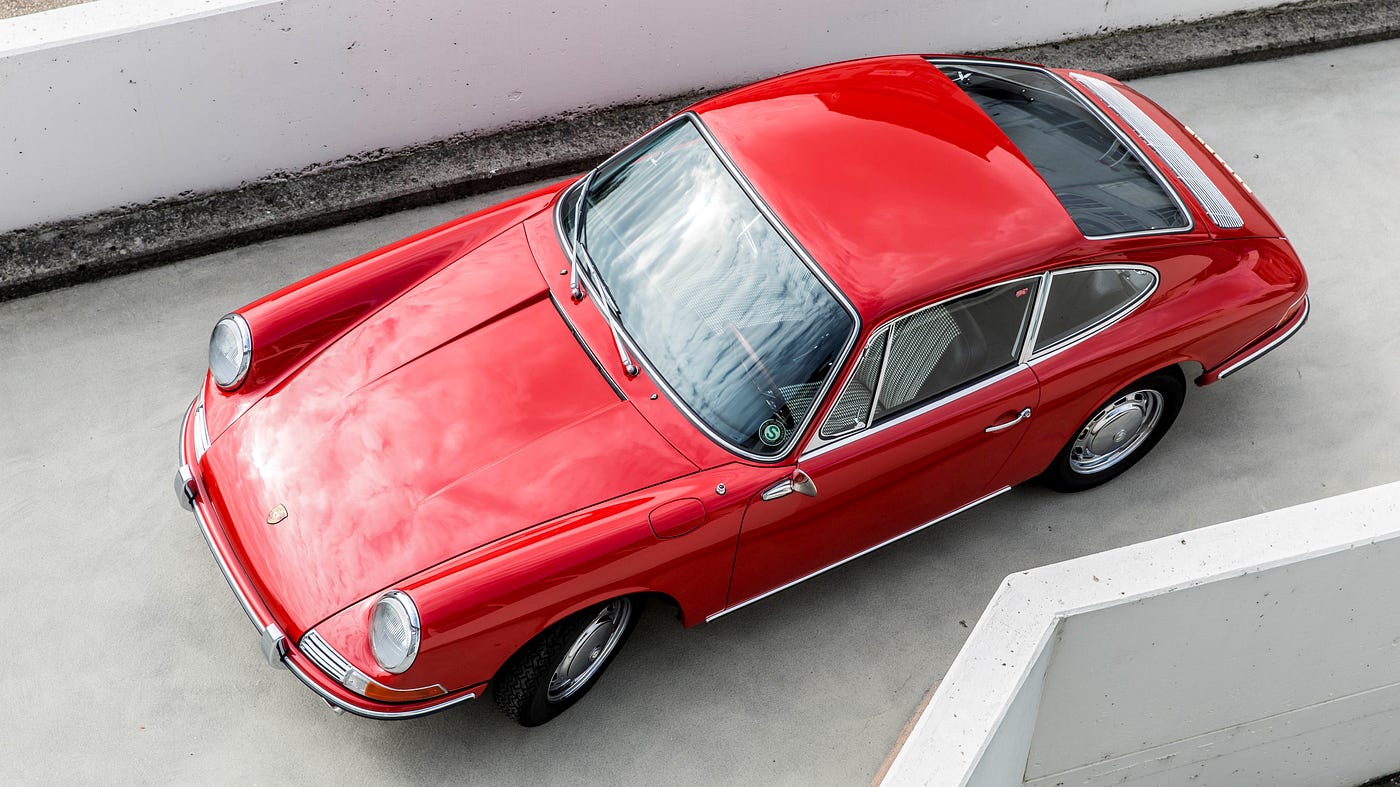

1964 Porsche 911 Coupé (credits: Markus Leser; source: WheelsAge)

Every time a new performance car appears, media outlets publish countless articles detailing its many advancements. Some regard complex electronic assistance systems, others focus on the application of new materials that have optimal properties, but there is always one common point: mechanics. Simple and pure mechanics.

Cars are basically self-powered boxes that move. We can apply the technology we want to make them better — and the global industry has done a wonderful job at that — but, in the end, it all comes down to its physical interactions with the environment. We can say that this article focuses on the interactions of the very first Porsche 911.

While the latest generations are a part of the global references in performance driving, the ‘1964 one had critical issues that almost drove it to an early grave. Solving them was quite difficult at that time because the available technology was little, but that is the reason why the solution used by Porsche is intriguing to analyze nowadays.

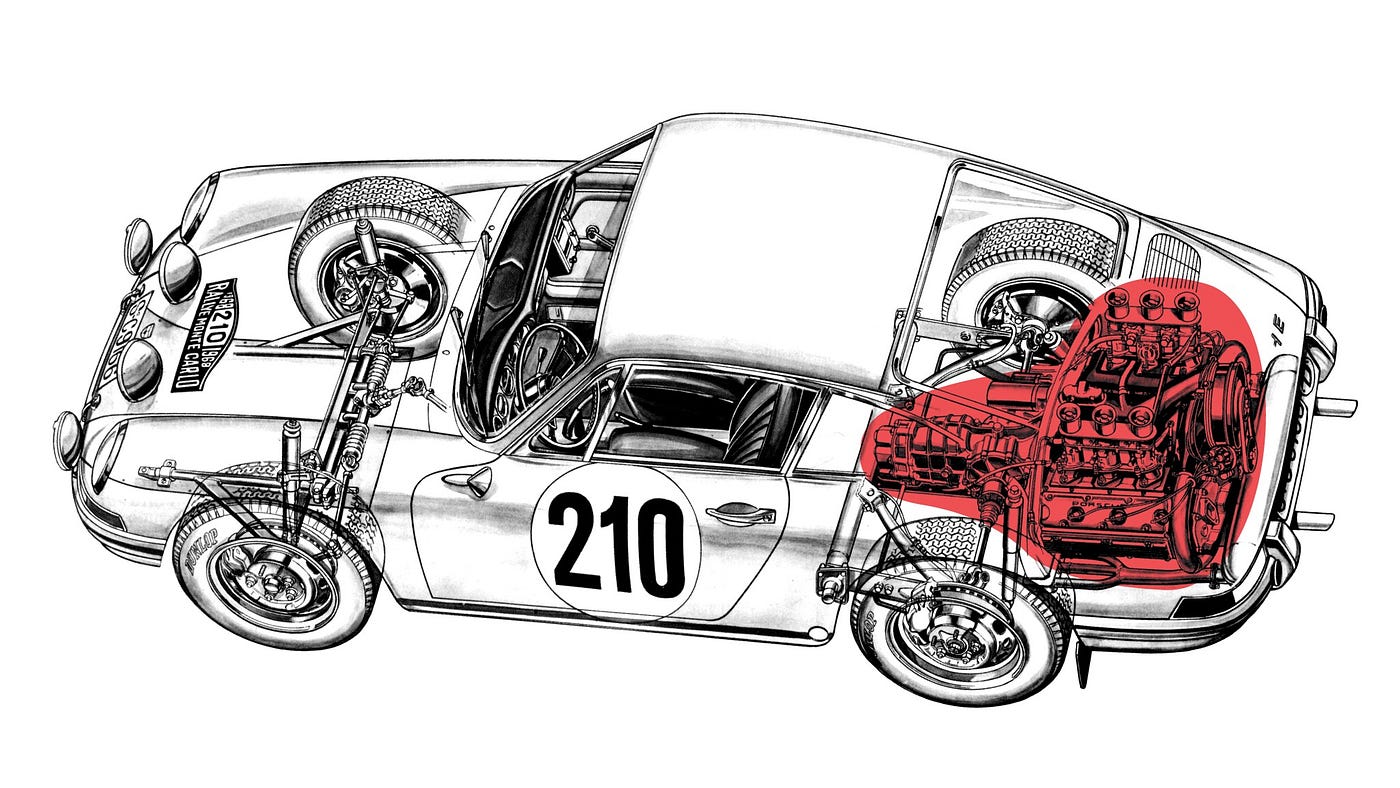

A simplified cutaway of the 911 Rallye shows that the engine’s weight is located behind the rear axle (source: WheelsAge)

Tricky handling at first

As Road & Track beautifully reports, the early units of the 911 were extremely unstable; they had a tendency to understeer, and some cars even had different responses to turning left and right. The most common problem, however, was lift-off oversteer.

One of the main reasons for that was an unrealistic design. The front suspension had no camber or caster adjustments because Porsche’s technical director of that time believed that strict tolerances were sufficient to give it the intended geometry. In practice, it was impossible to consistently comply with them in volume production.

The other reason was weight distribution. One of the 911’s signature features is the six-cylinder engine placed behind the rear axle, but it comes at the cost of moving the center of mass too far to the back. It unbalances the moment of inertia in a way that any attempt of fast cornering becomes like dealing with a pendulum in motion.

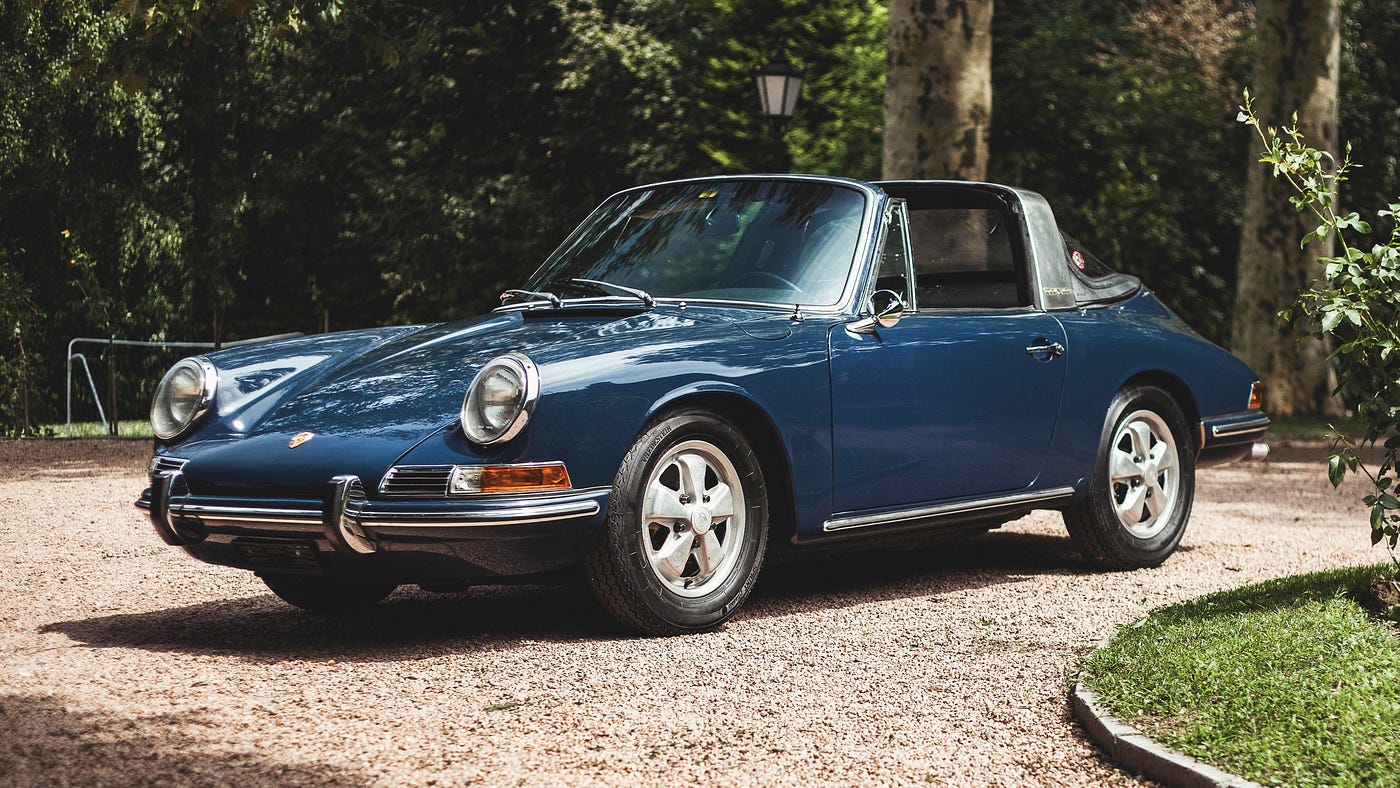

1967 Porsche 911 Targa (source: WheelsAge)

Function over form

The director was eventually replaced but the issue persisted. There are several ways to work on weight distribution, but most require redesigning parts of the car. Owners were not only complaining about the 911 but also questioning the company’s decision to replace the widely praised 356 with such a problematic car. Time was of the essence.

Porsche initially resorted to the simplest solution: add weight to the front. We see automakers continuously researching new ways to make their cars lighter, indeed, but the goal here was to improve its distribution. Making the front heavier can move the center of mass towards the center of the car and make it stable. Now, how can that be done?

The company’s solution was to apply two cast-iron plates: they weighed around 24 lb each and were discreetly installed behind the front bumper.

Traveling like Thora Hornung would certainly balance the total weight, but who does that often in a sports car? (source: WheelsAge)

How does that work?

The iron plates helped solve the 911’s worst problem, which was oversteering. That is the effect of the rear wheels losing grip on a curve. They tend to slip along the tangent while the front ones still have grip and try to follow the curve. If not controlled, the car will spin.

Porsche would later engineer better solutions for permanent use later, like redesigning the steering system and lengthening the car’s wheelbase, but those counterweights were a great temporary fix.

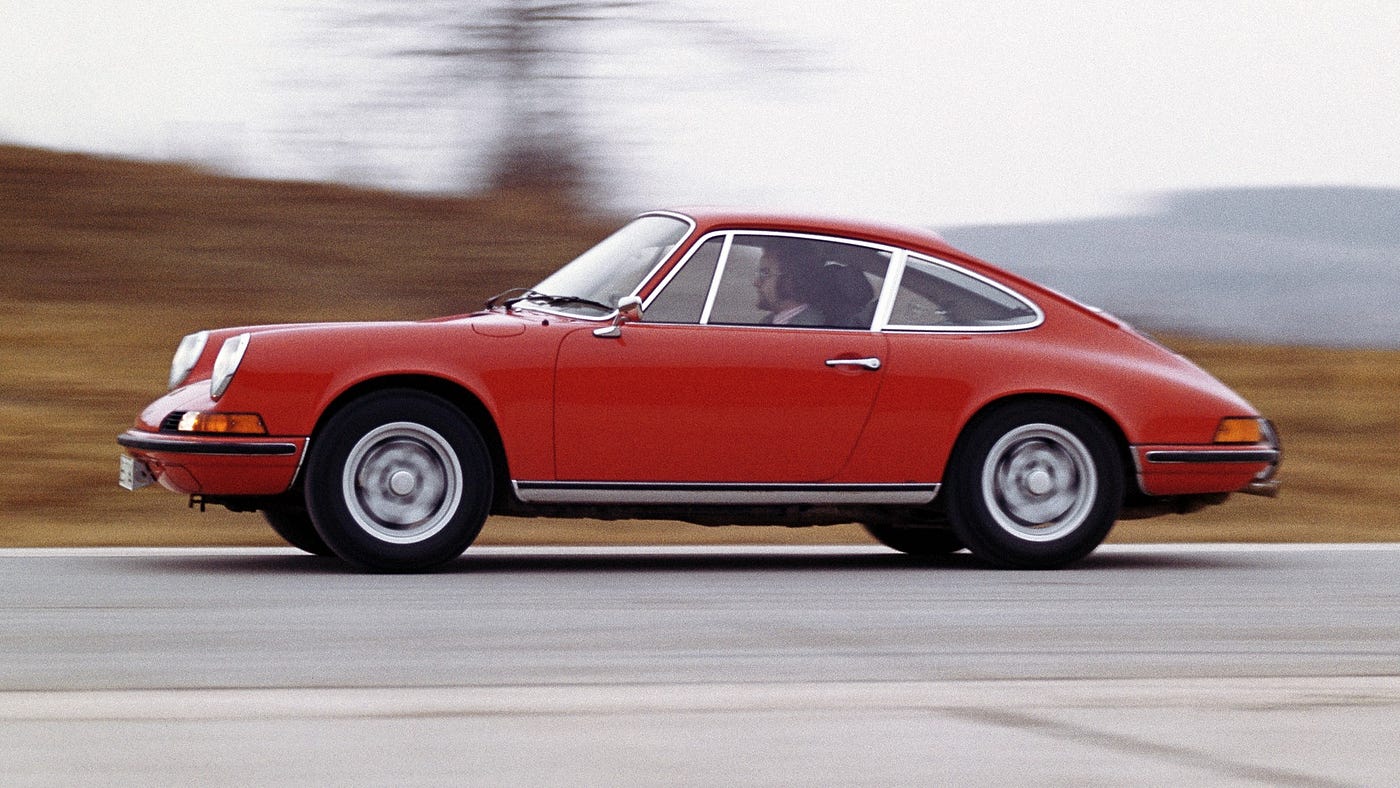

Forward acceleration shifts part of the weight towards the rear axle (source: WheelsAge)

Back to basics

Literal weight additions may seem primitive, but the truth is that any effective solution has advantages of its own. Compared to the other ideas Porsche used later, iron plates are cheap, easy to apply, and only do what they are supposed to; there were no side effects such as higher production cost, accelerated wear, or more difficult repairs.

Those advantages were also attractive to Willys some years earlier: some of its models used even heavier “counterweights”, as they were called, to help them with utilitarian duties. The FC-150 truck, for example, placed both cabin and engine above the front axle, so it uses an iron plate on the rear axle to prevent from literally tipping over.

Nowadays, automakers use complex technology to design the car as a whole, so they address weight distribution along with several other variables at once. Iron plates are only applied in a few cases to damp excessive vibrations, like on the RAM 1500: it triggers the plates to vibrate in the opposite phase to cancel the unwanted vibration.

The Willys-Jeep FC-150 had the opposite case: excessive weight on the front and an iron plate on the rear (source: WheelsAge)

Adding weight to a vehicle may seem counterproductive at first, but the truth is that there are problems to which it is the best solution; automakers are only using other resources these days because their problems are different as well. Do you know any other interesting applications of that idea? Feel free to share using the comment button!

--

--

--
