Brain State Technologies Hardware (Shipped)

Enable caregivers to easily, accurately, and more affordably gather patient data.

Final production hardware in use

Problem

Caregivers went through an onsite, 6 week training course to learn how to set up the many different pieces of hardware, use the software to gather data, and interpret that data to better care for their patients. The existing hardware was expensive, came from multiple third parties, and wasn’t as accurate as users were expecting. We designed and created our own hardware which allowed caregivers to learn the system in less time with consistent, higher quality hardware for less money (and with higher profit margins for Brain State), as well as provide a better experience to the patients.

Solution

Custom higher quality hardware that notifies the user when their electrodes are placed correctly as well as gathers and processes the data more accurately than the current hardware.

Logistics

Team

  • 1 designer
  • 1 hardware engineer
  • 2 software engineers
  • 1 material scientist

Time Frame

  • 6 weeks

My Role

  • UX and material research
  • Visual design and original 3d models
  • Team building
  • User Testing and analysis
  • Manufacturer sourcing
  • Web site and online store design and development

Process

Research

  • Competitive analysis
  • User observations
  • Task analysis
  • Interviews
  • Material and manufacturing research

Design

  • Sketches
  • CAD drawings (Solidworks)
  • Hi-fidelity production ready art (Adobe Illustrator & Photoshop)

Prototype

  • Cardboard prototypes with existing hardware pieces
  • 3D prints and a custom board

Evaluate

  • User tests

Production

  • Factory sourcing for molds, materials, electronics, assembly and packaging

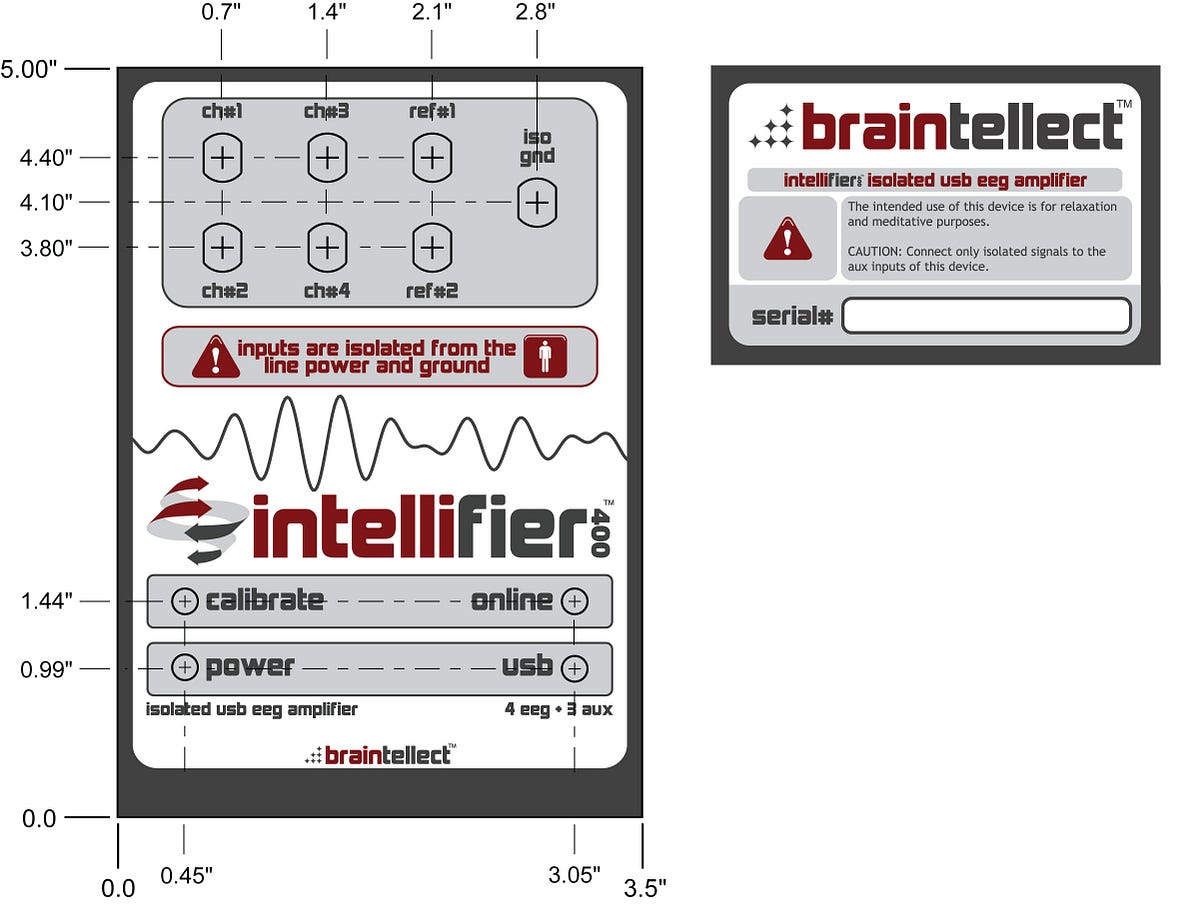

Sketch, CAD drawing and vector artwork
Final pieces of hardware

Conclusion

By designing custom hardware that provided electrode placement feedback and recorded data more accurately, we were able to cut caregiver training time, decrease the total cost to users, increase profits, and provide a better experience to the patients.
