Expandable Button in SwiftUI

Create an animated expandable button using SwiftUI

Ale Patrón
Aug 7 · 3 min read
Image for post
Image for post

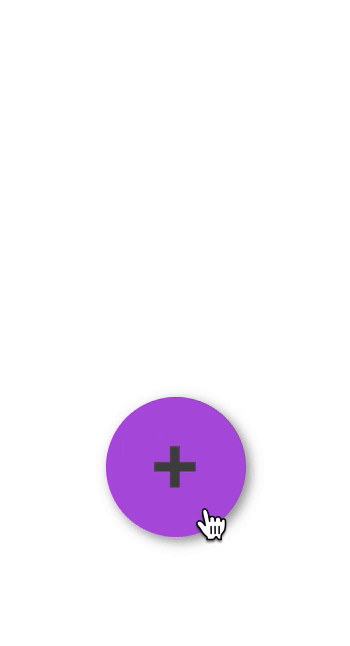

The expandable button we will be building.

Note: This tutorial is also available in video form on YouTube.

In a previous article, I showed you how to build an expandable button with Swift and UIKit. With SwiftUI gaining traction, I decided to share an updated article showing how we can implement this same functionality using SwiftUI.

Implementing custom views with SwiftUI is extremely simple, and we will leverage its power to build an expandable button that will look like the one below:

Image for post
Image for post
Animated expandable button.

Our buttons will simply need to be embedded in a VStack. Whenever the primary button is tapped, we will either show or hide the secondary buttons, signaled in the diagram below, depending on their current state.

ExpandableButtonPanel view hierarchy.

Let’s start by creating a custom struct called ExpandableButtonItem, which will be used to represent the content for each of the buttons in our button panel. The ExpandableButtonItem will include a label to show on the button (an emoji String in our case) and an optional action that is executed whenever the button is tapped. We also have an id in order to conform to the Identifiable protocol.

Then we’ll create another custom struct called ExpandableButtonPanel with two instance properties, primaryItem and secondaryItems. The primaryItem corresponds to the button that is always visible. The secondaryItems is a list correspond to each of the buttons that will be shown or hidden when the primary button is tapped.

We will first embed the buttons for each of the secondaryItems in a VStack, and the button for the primaryItem last.

To show and hide the secondary buttons, we will add a State boolean––isExpanded––to keep track of the current expanded state. The isExpanded boolean will be toggled whenever the primary button is tapped, causing the frame of each secondary button to change to handle showing/hiding.

To animate the panel, all we need to do is embed the call to toggle isExpanded inside a withAnimation block. This will automatically cause our secondary buttons to animate, since their frames depend on the isExpanded State. In the end, our ExpandableButtonPanel struct will look similar to this:

You may notice I also added some styling to our panel by changing its background color, its corner radius (for rounded corners), its font size, and its shadow. Feel free to modify this as you like.

To use an ExpandableButtonPanel, we can now do something like this:

ExpandableButtonPanel(
primaryItem: ExpandableButtonItem(label: "➕"), // No action
secondaryItems: [
ExpandableButtonItem(label: "🌞") {
// Can add action, if necessary
},
ExpandableButtonItem(label: "🥑") {
// Can add action, if necessary
}
]
)

We can also use our expandable button as a Floating Action Button (FAB). To achieve this, we can embed our main view’s content on a ZStack, making sure that the ExpandableButtonPanel is the top-most subview. We can embed the ExpandableButtonPanel in a VStack and/or HStack and use a Spacer to achieve any positioning we want. For example, if we want the FAB to be on the bottom right corner of our screen, we can do something like so:

If we run our app, we should see the following result:

Image for post
Image for post

Thanks for reading! I hope you found this article useful. You can find a finished demo on GitHub.
