Learn & Master ⚔️ SwiftUI basic components in 10 minutes

Christian Elies
Jul 2 · 11 min read

How to implement basic UI components in SwiftUI

SwiftUI icon (Copyright © 2019 Apple Inc.)

Updated on 07/06/2019: Xcode 11 beta 3

Updated on 07/07/2019: TextField and SecureField initializer changes

Updated on 07/17/2019: List, ForEach, ActionSheet, Modal, DatePicker and Alert changes (Xcode 11 beta 4)


In the following I will take a look at the SwiftUI pendants of some UIKit components you already know. Many components can be implemented in just a few lines of code. The result of each implementation is shown in an (animated) image.

Navigation

In this section you will meet the basic navigation components of SwiftUI.

UINavigationController pendant

To implement the UINavigationController pendant in SwiftUI you use the NavigationView and add navigationBar modifiers to a subview.

struct ContentView : View {
var body: some View {
NavigationView {
Text("Hello world!")
.navigationBarTitle(Text("Navigation bar title"))
}
}
}
Result on iPhone XR

NavigationBarItems

If you want to add navigation bar items use the navigationBarItems modifiers on a subview.

struct ContentView : View {
private var uuids: [String] = {
let ids: [String] = Array(0...5).map { _ in
return UUID().uuidString
}
return ids
}()

var body: some View {
NavigationView {
List(uuids, id: \.self) { uuid in
NavigationLink(destination: Text(uuid).padding(.horizontal)) {
Text(uuid)
}
}.navigationBarTitle(Text("List of UUIDs"))
.navigationBarItems(trailing: EditButton())
}
}
}
Result on iPhone XR

UITabBarController pendant

To implement a tab bar view use the TabbedView with a binding for the tab selection. The type of the binding can be any type conforming to the Hashable protocol. That’s amazing because you can use a simple enum (which is Hashable by default)!!

SwiftUI needs to know which view to load initially. This works via the selection binding. Additionally you have to define the selection value of each subview. Due to the lack of documentation it was hard to find out how to do that ;)

Thanks to a StackOverflow post I found the solution: You need to add a tag modifier to each subview and pass the selection value to it.

To define a label for each tab use the tabItem modifiers on the subviews.

enum TabIdentifier {
case list
case another
}
struct ContentView : View {
private var uuids: [String] = {
let ids: [String] = Array(0...5).map { _ in
return UUID().uuidString
}
return ids
}()

@State private var selectedTab: TabIdentifier = .list

var body: some View {
TabbedView(selection: $selectedTab) {
NavigationView {
List(uuids, id: \.self) { uuid in
Text(uuid)
}.navigationBarTitle(Text("List of UUIDs"))
}.tabItem {
Text("List")
}
.tag(TabIdentifier.list)

Text("Hello world!")
.tabItem {
Text("Another view")
}
.tag(TabIdentifier.another)
}
}
}

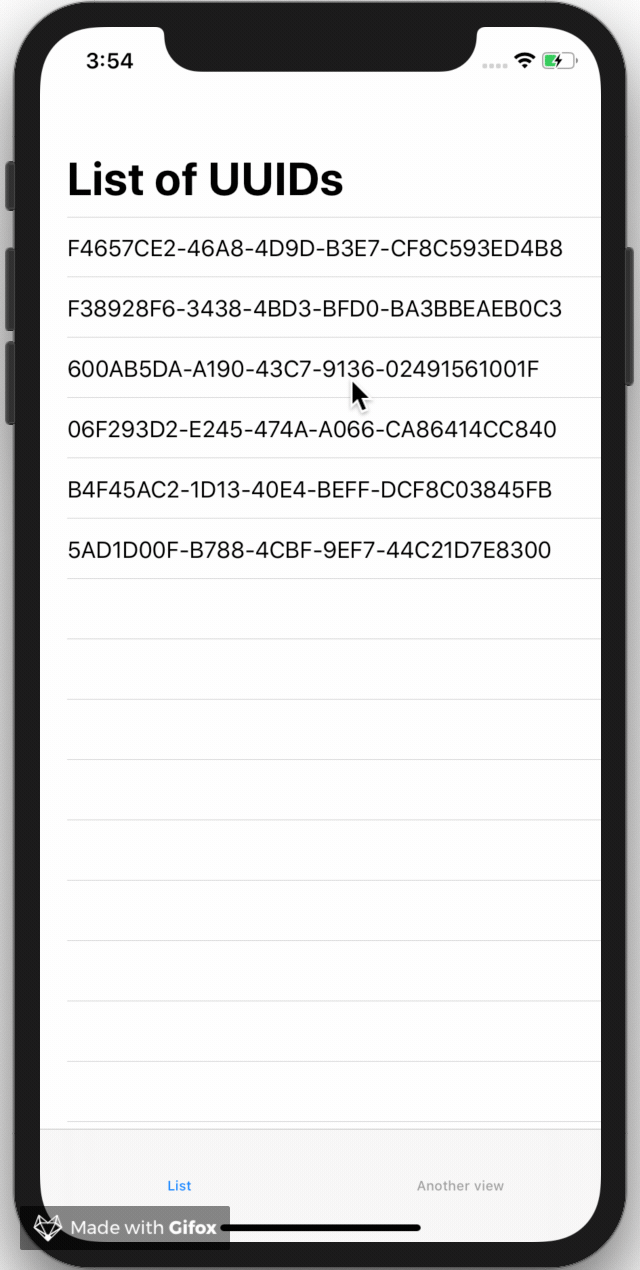

Result on iPhone XR

Master-Detail

Create a NavigationView with a NavigationLink as a subview. Finally declare the destination of the NavigationLink.

struct ContentView : View {
private var uuids: [String] = {
let ids: [String] = Array(0...5).map { _ in
return UUID().uuidString
}
return ids
}()

var body: some View {
NavigationView {
List(uuids, id: \.self) { uuid in
NavigationLink(destination: Text(uuid).padding(.horizontal)) {
Text(uuid)
}
}.navigationBarTitle(Text("List of UUIDs"))
}
}
}
Result on iPhone XR

Layout

This section will take a look at some of the layout components of SwiftUI.

List of Items

To show a list of items use the List view. Pass an array of objects conforming to the Identifiable protocol to the initializer. Finally add a subview in the content block.

struct ContentView : View {
private var uuids: [String] = {
let ids: [String] = Array(0...5).map { _ in
return UUID().uuidString
}
return ids
}()

var body: some View {
NavigationView {
List(uuids, id: \.self) { uuid in
Text(uuid)
}
.navigationBarTitle(Text("List of UUIDs"))
}
}
}
Result on iPhone XR

Form

To render multiple input components as a simple but nice form use the Form view. Separate input components with the Section view (the form will look like a static table view :-) ).

struct ContentView : View {
@State private var firstName: String = ""
@State private var lastName: String = ""
@State private var street: String = ""
@State private var houseNumber: String = ""
@State private var zip: String = ""
@State private var city: String = ""
@State private var termsAccepted: Bool = false
@State private var privacyAccepted: Bool = false

var body: some View {
Form {
Section {
Text("First name")
.font(.headline)
TextField("First name", text: $firstName)
Text("Last name")
.font(.headline)
TextField("Last name", text: $lastName)
}

Section {
Text("Street")
.font(.headline)
TextField("Street", text: $street)
Text("House number")
.font(.headline)
TextField("House number", text: $houseNumber)
Text("Zip")
.font(.headline)
TextField("Zip", text: $zip)
Text("City")
.font(.headline)
TextField("City", text: $city)
}

Section {
Toggle(isOn: $termsAccepted) {
Text("Terms")
.font(.headline)
}
Toggle(isOn: $privacyAccepted) {
Text("Privacy")
.font(.headline)
}
}
}
}
}
Result on iPhone 8 Plus

Presentation

In the following you will learn how to implement UI components which are presented on top of other views.

Alert

To implement a simple alert you use a presentation modifier in combination with the Alert container. You need to pass a boolean variable defining the visibility of the alert and a block returning the Alert to the presentation modifier.

struct ShowAlertButton : View {
@State private var isAlertVisible: Bool = false

var body: some View {
Button(action: {
self.isAlertVisible.toggle()
}) {
Text("Show alert")
}.alert(isPresented: $isAlertVisible) {
Alert(title: Text("Hey"),
message: Text("I'm a simple alert"),
dismissButton: .default(Text("Dismiss"), onTrigger: {
self.isAlertVisible.toggle()
})
)
}
}
}
struct ContentView : View {
private var uuids: [String] = {
let ids: [String] = Array(0...5).map { _ in
return UUID().uuidString
}
return ids
}()

var body: some View {
NavigationView {
List(uuids, id: \.self) { uuid in
NavigationLink(destination: Text(uuid).padding(.horizontal)) {
Text(uuid)
}
}.navigationBarTitle(Text("List of UUIDs"))
.navigationBarItems(trailing: ShowAlertButton())
}
}
}
Result on iPhone XR

Modal

Implement a modal view using a PresentationLink. Dismiss the modal by dragging it down. To manually dismiss the Modal in code you can use the isPresented environment.

Hint: In my example it’s not possible to open the same modal again after it was dismissed. On Reddit someone wrote: ‘I faced the same issue. Showed it at the labs and the Apple engineers noted that as a bug. So hopefully being fixed soon.’

struct ExampleModal : View {
@Binding var isPresented: Bool
let uuid: String

var body: some View {
VStack {
Text(uuid)
Divider()
Button(action: {
self.isPresented = false
}) {
Text("Dismiss modal")
}
}.padding(.horizontal)
}
}
struct ListItem : View {
@State private var isPresented = false
let uuid: String

var body: some View {
Button(action: {
self.isPresented = true
}) {
Text(uuid)
}.sheet(isPresented: $isPresented, onDismiss: {
self.isPresented = false
}) {
ExampleModal(isPresented: self.$isPresented,
uuid: self.uuid)
}

}
}
struct ContentView : View {
private var uuids: [String] = {
let ids: [String] = Array(0...5).map { _ in
return UUID().uuidString
}
return ids
}()

var body: some View {
NavigationView {
List(uuids, id: \.self) { uuid in
ListItem(uuid: uuid)
}.navigationBarTitle(Text("List of UUIDs"))
}
}
}
Result on iPhone XR

ActionSheet

Implementing an ActionSheet is done via a presentation modifier added to another view, like a Button. Normally you want to hide the ActionSheet initially. To achieve this you have to pass nil to the presentation modifier. A simple solution would be to use a computed property for the ActionSheet which returns nil if a related State variable is false.

struct ContentView : View {
@State private var isActionSheetVisible = false
private var actionSheet: ActionSheet {
let button1 = ActionSheet.Button.default(Text("Facebook")) {
self.isActionSheetVisible = false
}
let button2 = ActionSheet.Button.default(Text("Instagram")) {
self.isActionSheetVisible = false
}
let button3 = ActionSheet.Button.default(Text("Twitter")) {
self.isActionSheetVisible = false
}
let dismissButton = ActionSheet.Button.cancel {
self.isActionSheetVisible = false
}
let buttons = [button1, button2, button3, dismissButton]
return ActionSheet(title: Text("Share"),
buttons: buttons)

}

private var uuids: [String] = {
let ids: [String] = Array(0...5).map { _ in
return UUID().uuidString
}
return ids
}()

var body: some View {
NavigationView {
List(uuids, id: \.self) { uuid in
Button(action: {
self.isActionSheetVisible = true
}) {
Text(uuid)
}.actionSheet(isPresented: self.$isActionSheetVisible) {
self.actionSheet
}

}.navigationBarTitle(Text("List of UUIDs"))
}
}
}
Result on iPhone XR

Popover

To attach a popover to a view you use the popover modifier. You have to pass a boolean Binding to the modifier to control the visibility of the Popover. In addition specify a content block returning the content view for the Popover.

Keep in mind that a popover will be presented as a modal on smaller screen sizes (like the iPhone). Only on the iPad you get the expected popover style.

struct PopoverContentView : View {
let uuid: String

var body: some View {
Text(uuid)
.frame(width: 200,
height: 50,
alignment: .center)
.padding(.horizontal)
.background(Color.white, cornerRadius: 8)
}
}
struct ListItem : View {
@State private var isPopoverVisible = false

let uuid: String

var body: some View {
Button(action: {
self.isPopoverVisible = true
}) {
Text(uuid)
}.popover(isPresented: $isPopoverVisible) {
PopoverContentView(uuid: self.uuid)
}
}

init(uuid: String) {
self.uuid = uuid
}
}
struct ContentView : View {
private var uuids: [String] = {
let ids: [String] = Array(0...5).map { _ in
return UUID().uuidString
}
return ids
}()

var body: some View {
NavigationView {
List(uuids, id: \.self) { uuid in
ListItem(uuid: uuid)
}.navigationBarTitle(Text("List of UUIDs"))
}
}
}
Popover on iPhone XR

On an iPhone you can dismiss the modal by dragging down.

Popover on iPad Pro 9.7"

On an iPad you tap outside the popover to dismiss it.

Hint: In my implementation you cannot show the same popover again after dismissing it. It might be the same bug as with the Modal.


Views

This section covers some basic views you know from UIKit.


To show an image use the Image view.

struct ContentView : View {
var body: some View {
Image("swiftui")
}
}
Result on iPhone XR

ScrollView

Implement it via the ScrollView view.

I did something special here: I made use of the GeometryReader to get the size of the root view (in this case the screen size). That way I was able to implement a scroll view containing rectangles having a full screen width.

struct ContentView : View {
private var colors: [Color] = {
let colorArray: [Color] = Array(0...5).map { _ in
let red = Double.random(in: 0.0 ..< 1.0)
let green = Double.random(in: 0.0 ..< 1.0)
let blue = Double.random(in: 0.0 ..< 1.0)
return Color(red: red,
green: green,
blue: blue)
}
return colorArray
}()

var body: some View {
GeometryReader { geometry in
ScrollView(.horizontal) {
HStack(spacing: 0) {
ForEach(self.colors, id: \.self) { color in
Rectangle()
.frame(width: geometry.size.width,
height: 300)
.foregroundColor(color)
}
}.frame(height: geometry.size.height)
}
}
}
}
Result on iPhone XR

User input controls

This section takes a look at the user input controls of SwiftUI.

Picker

Pickers in SwiftUI are really powerful. Besides the data binding feature you can get a detail view for the selection for free if you put the picker inside a form which itself lives in a navigation view.

Take a closer look at the ForEach in the content block:

To define the selection value of each subview add a tag modifier with the value to it.

enum Country: String, CaseIterable {
case albania
case belgium
case chile
case germany
case hungary
case iceland
case mazedonia
case portugal
case switzerland
}
struct ContentView : View {
@State private var selectedCountry: Country = .germany

var body: some View {
NavigationView {
Form {
Picker(selection: $selectedCountry,
label: Text("Country"),
content: {
ForEach(Country.allCases, id: \.self) { country in
Text(country.rawValue)
.tag(country)
}
})
.navigationBarTitle(Text("Where are you from?"))
}
}
}
}
Result on iPhone Xs Max

To get the familiar inline picker style add the modifier .pickerStyle(.wheel) to the picker.

DatePicker

With the DatePicker its the same. Just put it into a form and SwiftUI does the magic.

struct ContentView : View {
@State private var date: Date = Date()

var body: some View {
Form {
Text("\(date)")
DatePicker(selection: $date, displayedComponents: [.date]) {
Text("Birthday")
.font(.headline)
}

}
}
}
Result on iPhone XR

Toggle / Switch

To get a simple but beautiful toggle use the Toggle view with a data binding.

struct ContentView : View {
@State private var toggleValue: Bool = false

var body: some View {
Form {
Toggle(isOn: $toggleValue) {
Text("Terms")
}

}
}
}
Result on iPhone XR

Slider

To implement a slider use the Slider view and specify a range including a stride (i like that!). It’s really declarative!!

struct ContentView : View {
private let sliderRange: ClosedRange<Double> = 0...10
private let distance: Double = 1

@State private var sliderValue: Double = 5

var body: some View {
Form {
HStack {
Text("\(Int(sliderRange.lowerBound))")
VStack {
Slider(value: $sliderValue,
from: sliderRange.lowerBound,
through: sliderRange.upperBound,
by: distance)

Text("\(Int(sliderValue))")
}
Text("\(Int(sliderRange.upperBound))")
}
}
}
}
Result on iPhone XR

Stepper

A Stepper can be implemented similar to a Slider. Instead of specifying from and through just specify a range. 🚀

struct ContentView : View {
private let roomsRange: CountableClosedRange<Int> = 0...10
@State private var roomsValue: Int = 0

var body: some View {
Form {
HStack {
Stepper(value: $roomsValue, in: roomsRange) {
Text("Rooms")
}

Text("\(roomsValue)")
}
}
}
}
Result on iPhone XR

TextField

To get a simple TextField use the TextField view. Pass a string specifying the placeholder and a binding for the input to the initializer. You can put the TextField into a HStack alongside a Text and add it to a Form to get the following inline style.

struct ContentView : View {
@State private var name: String = ""

var body: some View {
Form {
HStack {
Text("Name:")
TextField("Name", text: $name)
}
}
}
}
Result on iPhone 8 Plus

SecureField

A SecureField is a variation of TextField which should be used for secure inputs, like passwords or credit card cvc. Pass a title and a binding to the initializer.

Hint: I think the SecureField has a bug because the title / placeholder is not visible. I expect the same behaviour as with a TextField view.

struct ContentView : View {
@State private var password: String = ""

var body: some View {
Form {
HStack {
Text("Password:")
.font(.headline)
SecureField("Password", text: $password)
}
}
}
}
Result on iPhone XR

SegmentedControl

Last but not least implementing a segmented control is easy with the SegmentedControl view.

enum Architecture: String, CaseIterable {
case mvc
case mvvm
case viper
}
struct ContentView : View {
@State private var selectedArchitecture: Architecture = .viper

var body: some View {
Form {
HStack {
Text("Architecture:")
.font(.headline)
SegmentedControl(selection: $selectedArchitecture) {
ForEach(Architecture.allCases, id: \.self) { architecture in
Text(architecture.rawValue)
}
}

}
}
}
}
Result on iPhone XR

You did it 🏆🎉.

I hope you got an overview of all the basic UI components of SwiftUI and learned how to use them. I really enjoyed playing around with all these components and I’m really excited to see what we all do with these in the future.

Stay tuned 📺.

The Startup

Medium's largest active publication, followed by +481K people. Follow to join our community.

Christian Elies

Written by

Software Engineer iOS @immowelt

The Startup

Medium's largest active publication, followed by +481K people. Follow to join our community.
