Your first iOS Application Using Xcode

How to Hello, World!

Steven Curtis
Dec 9, 2019 · 6 min read

You’ll need to have Xcode installed, but this tutorial takes it from there to producing your first App. If you are looking for a simple Swift tutorial, there is a guide HERE.

Difficulty: Beginner | Easy | Normal | Challenging

Prerequisites:

  • Be able to produce a “Hello, World!” Swift application

Terminology

Constraints: A constraint on the layout of a view

IDE: An application that provides a set of features that are used by software developers to create computer software

Project Navigator: Part of the Xcode interface that allows you to perform file operations

Storyboard: A visual representation of the User Interface of an App

Swift: An open source programming language for macOS, iOS, watchOS and tvOS and others

UILabel: A view used by UIKit that displays on or more lines of text

UIView: An object that manages the content for a rectangular area on the screen

Xcode: An IDE for creating Apps for macOS, iOS, watchOS and tvOS

Why Hello World!?

Simple tutorials usually begin with a “Hello world” tutorial. Those outside the programming community can feel that this is an unusual thing to choose, as it seems to have been picked simply because it is a simple word String (or just String) to print to the screen.

But why would anyone choose that particular String?

We can start at the beginning. There is a book about C programming which used a “Hello, World!” example — although this was actually lifted from a Programming in C: A Tutorial (1974) book.

The actual “Hello, World!” application that tutorials ask you to produce vary in sophistication and implementation, but the basic idea is that you print “Hello, World!” in some form.

We are going to display “Hello,World!” on a label displayed on the phone screen.

Creating a new Project in Xcode

You need to have Xcode installed on your Mac. This can be downloaded from HERE. If you don’t already have this installed, do so now.

Once you have done that, you can click on the Xcode icon

Image for post
Image for post
The Xcode icon

This opens up the IDE, and the first thing we are going to do is create a new project.

Image for post
Image for post

Select Single View App

Image for post
Image for post

then name your project appropriately:

Image for post
Image for post

You’ll be asked where to place your project, and I’ll leave you to choose somewhere in your Documents folder or similar.

The process goes a little something like this:

Image for post
Image for post

Placing the label

A new Project

You’ll be met with a blank project screen like the following:

Image for post
Image for post

and first we want to display the storyboard. We can do this by pressing the “Main Storyboard” on the project navigator

Image for post
Image for post

Which allows the Storyboard to open in the main window. It’s all blank at the moment, but we are going to quickly change this by adding a label.

Add a Label

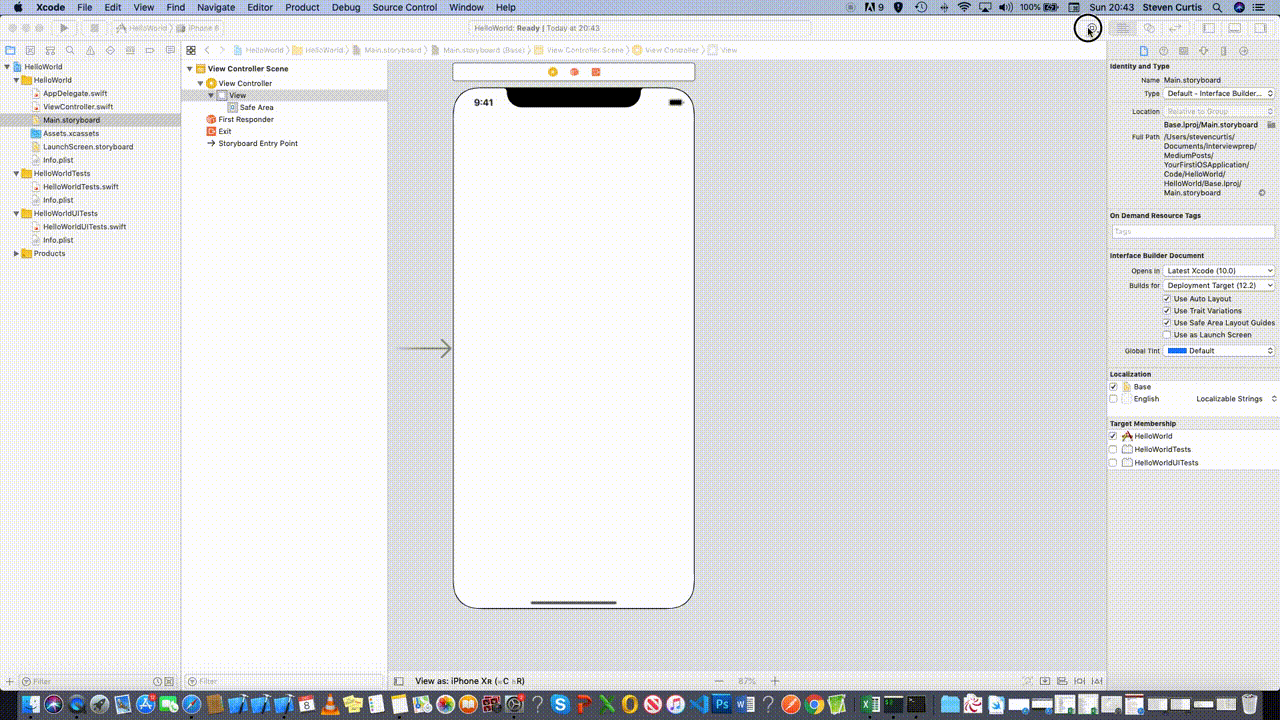

We can then open the object library

Image for post
Image for post

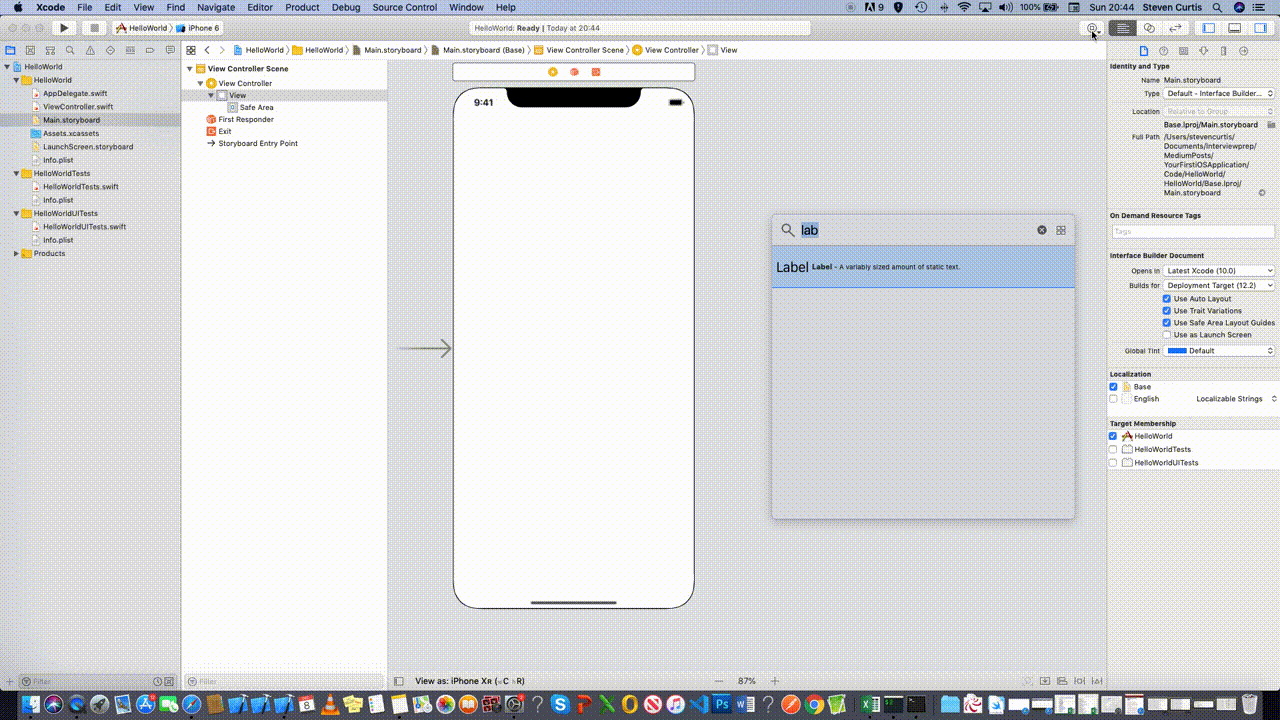

which then opens a window to allow us to add objects; we can then search for label in the search box.

Image for post
Image for post

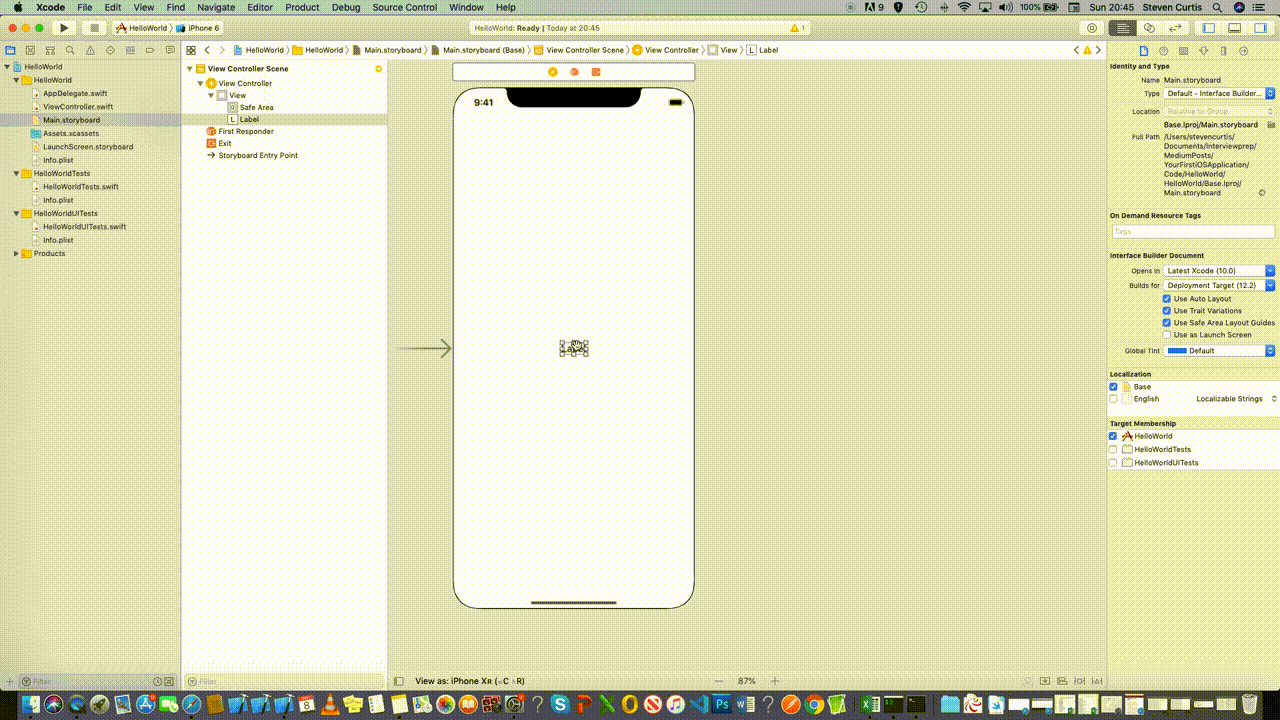

We can then drag and drop the label onto the screen.

Image for post
Image for post

Add Constraints onto the Label

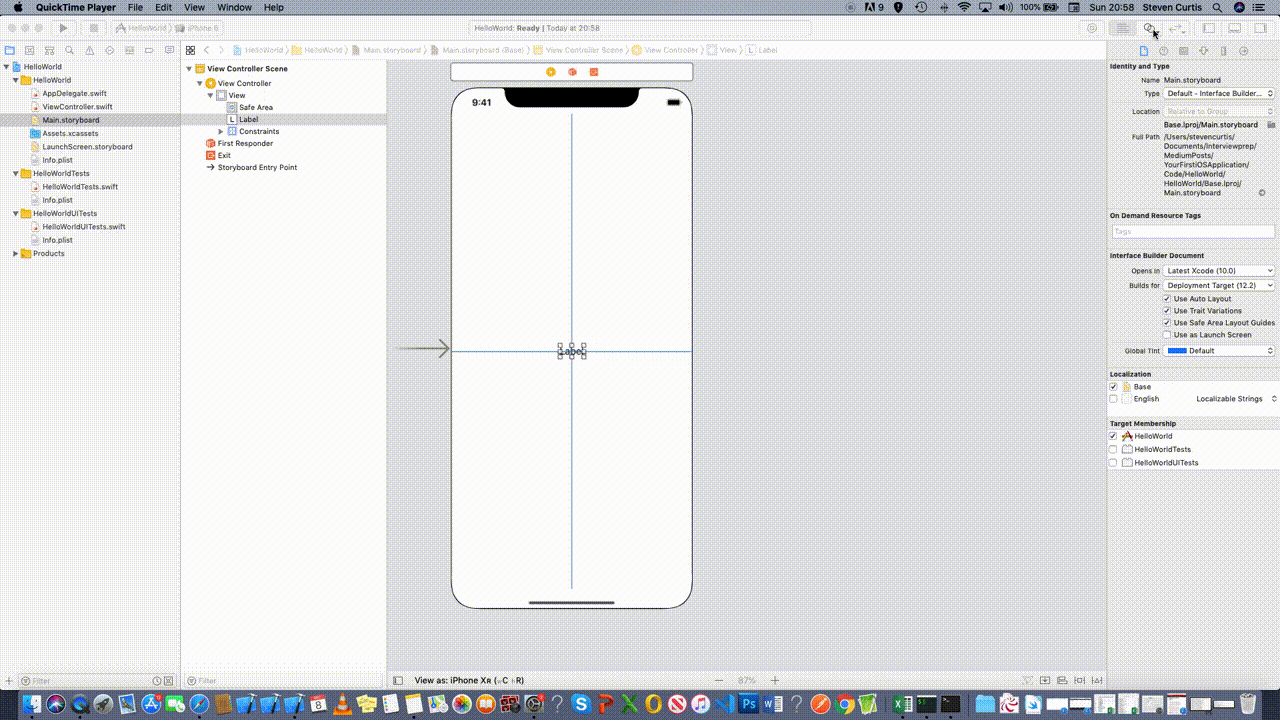

Click on the label itself, and our UILabel will still have the text Label on it. Now we carefully use the Control button and drag to the background. This then gives a menu that allows you to create constraints. Great!

We then need to choose (in turn) Center Horizontally in Safe Area and Center Vertically in Safe area. This will ensure that your label is attached to the exact centre of the phone’s screen.

Image for post
Image for post

Awesome! Here are the steps put together:

Image for post
Image for post

Writing Hello, World! on the UILabel

We need to add the text to the label. There are actually two ways of doing this, I’ll first show you the important way (the programatic way), and then the fast way (that in the future you will use much less).

We’ll select the assistant editor

Image for post
Image for post

Which brings up a new screen, with code. We’re getting there!

Image for post
Image for post

We need to join the label to the screen.

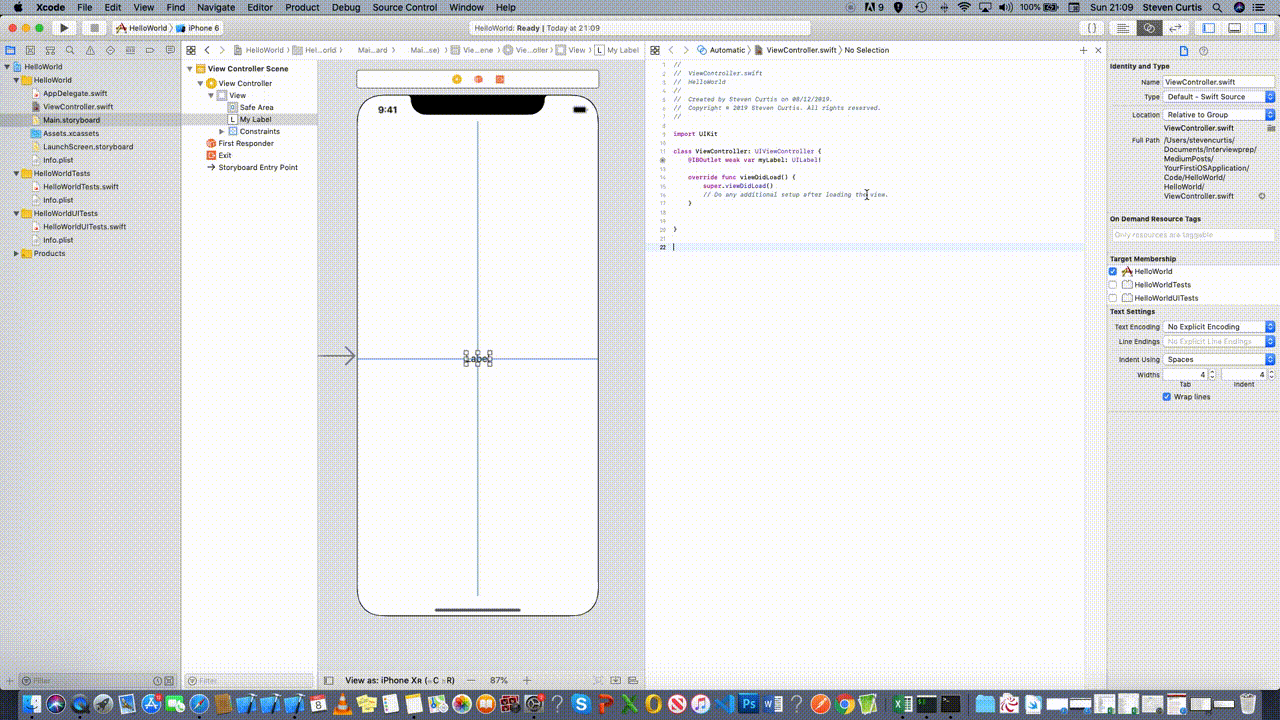

We once again click on the label and press Control which draws a line from the label. We then drag it over to the code and the IDE displays Insert Outlet or Outlet Group at any point where the label code can be accepted (ideally choose just above viewDidLoad function.

We will call this label myLabel

Image for post
Image for post

Here is the snippet:

Image for post
Image for post

Now we write the code, which allows us display the text.

Since we called the label myLabel we need to make sure we use that name.

Now right in the function that has already been automatically written on the screen, we write the code

myLabel.text = "Hello, World!"

Image for post
Image for post

We are almost done!

Now to…

Run the project

We can run the project with a friendly-looking run button in Xcode, from the top-left of your screen. An alternative is to press Command-r which does the same thing

Image for post
Image for post

Now it may take a few seconds for your simulator to start. But when it does you’ll be presented with the following:

Image for post
Image for post

The other way to change the label

You can just double-click on the label when you’re on the storyboard. But you don’t usually want to do this, because making the changes programmatically as above is much the better and more flexible way of doing this.

Conclusion…

Writing Hello, World! like this on a label is a big step as a first real iOS program. If you’ve followed through this tutorial from scratch you’ve done a great job! If you’d like to have this content as a video, you’re in luck. It’s right here:

The Twitter contact:

If you’ve got questions I’d love for you to get in touch with me. https://twitter.com/stevenpcurtis is a great channel for communication. Say HI!
