In the collections of the Royal Observatory of Greenwich, amongst the myriad time-keeping and navigational devices of the past, there sits a curious artifact built to last into a future none of us will witness. Standing half-a-foot tall, it looks more like a sculpture than an instrument of time, with slender curves that lend it the appearance of a human torso.
It is a prototype of the Equation of Time Cam, a mechanism that will be in The Long Now Foundation’s 10,000 Year Clock. The Equation of Time Cam solves one of the crucial design and engineering problems in building a clock meant to last ten thousand years: keeping accurate time while accounting for the slow but significant changes in the Earth’s rotation over the millennia.
Even the most accurate mechanical clocks in the world eventually drift off of the correct time. In order to remain accurate over thousands of years, the 10,000 Year Clock needed a feedback mechanism that could check what time it is, and correct itself. The clock’s builders chose the sun to serve as that feedback mechanism. As Danny Hillis, the inventor of the Clock of the Long Now, puts it (02011):
Human societies have always organized their activities around the rising and setting of the Sun. Civilization required agriculture. Agriculture required sunlight. Much of human culture is organized around a diurnal or annual cadence. […] The Sun matters to humans, even to their devices in the depths of space and on the surfaces of other planets. It has done so throughout history and the Clock makes the statement that it will continue to matter thousands of years into the future.
The Clock keeps time with a pendulum, which generates absolute time.¹ The sun is used to correct any drift. On the sunny days around the solstices at solar noon, a shaft of light will shine into the mountain where the Clock resides, synchronizing it to the sun and providing the input of solar time.
But there’s a discrepancy between solar time and absolute time. That’s because the position of the sun at solar noon throughout the course of a year is not regular. It varies due to the Earth’s elliptical trajectory around the sun (called the eccentricity of Earth’s orbit) and the Earth’s axial tilt (called the obliquity of the ecliptic). This variability is represented by a diagram called an analemma (Figure 2).
If you were to visit an accurate sundial at exactly noon on a sunny day in mid-February and looked at the time on your watch or phone, this discrepancy would become especially apparent: your watch or phone would read 12:00, but the shadow cast by the sun on the sundial would correspond to 11:46. If you were to do the same on a sunny day in early November, the opposite would be true: 12:00 on your timekeeping device would correspond to 12:14 on the sundial.
The equation of time reconciles the difference between these two kinds of time. It converts solar time to clock time, and vice versa, such that over the course of a year the differences resolve to zero.
In the early eighteenth century, astronomical regulator clocks were invented that used equation of time cam mechanisms that automatically converted clock time to solar time. The two-dimensional cam, shaped in such a way to embody the equation of time, would rotate once a year, with a follower that traveled around the curves.
These traditional equation of time cams would not be sufficient for purposes of reconciling time in the 10,000 Year Clock. That’s because they’re designed to correct for the same analemma year after year. They do not take into account slow, long-term changes in the Earth’s rotation. These variations would scarcely be perceptible over the lifetime of a normal clock, but on a long enough time scale, such as 10,000 years, these changes would be profound, and would result in errors for purposes of timekeeping.
The first variation in the Earth’s motion that must be accounted for is its cyclic wobble, called the precession of the equinoxes. Like a spinning top, the Earth gradually shifts the orientation of its axis, and completes a cycle after roughly 26,000 years. Today, our axis points to the North Star, Polaris. In 8,000 years, we will have a new North Star: Deneb. In 12,000 years, our North Star will be Vega.
The second variation is the fact that the Earth is slowing down by 1.8 milliseconds per day, or roughly one second per century. This is due to a number of factors, including the tidal effects of the moon, shifts in the Earth’s crusts, and changes in sea levels. If you were to synchronize two clocks 2,500 years ago, with one keeping perfect time and the other based on solar time, these clocks would be out of sync by four hours today.
The Equation of Time Cam was built to enable the Clock to convert from local solar time to absolute time while accounting for these predicted long-term variations over the next 10,000 years.²
But the Clock’s builders wanted to do more than simply turn a mathematical equation into its physical representation. They wanted to create an object that would be aesthetically compelling to visitors of the Clock for millennia.
“Most engineering solutions, usually the first one that someone comes up with that fulfills the engineering goal is the solution,” says Alexander Rose, who works with Danny Hillis on the Clock Project at The Long Now Foundation. “In our case, the goal of this project is not only to make the cam work but to make it a compelling object. We didn’t stop at the first one that worked, we didn’t stop at the second one that worked, we got to a third one that worked and tuned that until it was very aesthetic and interesting to hold and to look at.”
Danny Hillis enlisted engineer Stewart Dickson to create a three-dimensional model based on his derivations of the equation of time. The Cam for the first prototype of the Clock was built using a 3D printer, and then cast into bronze. This work was carried out at The Crucible under the direction of fabricator Chris Rand. After the first one that was made for the Clock, Levenger made an edition of 365 Equation of Time Cams, most of which were given as a thank you for Long Now members at the “Equation of Time Cam” level of membership.

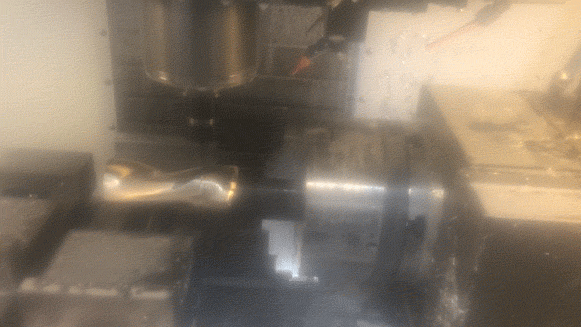

In 02018, a new numbered edition of the Equation of Time Cam was created. These cams are made of bronze and entirely machined similar to the one now being made for the monument scale Clock. This next edition is available via donation on Long Now’s “Artifacts” page.
02018 also saw the construction of the full-size stainless steel Equation of Time Cam for the monument scale clock. Compared to the prototype Equation of Time Cam, which stands at six inches tall, the full-size cam will be 10.2 inches — one inch per thousand years with a little extra room on either end. This extra room provides future engineers with a window of roughly 100 years to create a new Cam.
In examining the question of what time was, Saint Augustine once said: “If no one asks me, I know what it is. If I wish to explain it to him who asks, I do not know.” The Equation of Time Cam ensures that the Clock of the Long Now will — for the next ten thousand years, at least — always know.
 Absolute time, as used here, basically just means “man made clock time.” But the broader way to think about this refers to the solar system barycentric coordinate time of general relativity. As Hillis et al put it (02011): “This timescale is the independent variable in the equations of planetary motion that emerge from Einstein’s space-time field equations and metric tensor. It is therefore a direct expression of our current understanding of the space-time relationship. A defined relationship between coordinate time in the solar system barycentric frame and International Atomic Time (TAI) at a site on Earth (or Earth satellite) can be used to properly relate these timescales.”
 While the Equation of Time Cam is precomputed to correct for celestial variations over time, there’s one variable that potentially places a limit on the Clock’s accuracy: climate change. As noted above, rising sea levels are one factor that slows the Earth’s rotation over time. The Earth’s predicted slowdown is accounted for in the Equation of Time Cam, but calamitous climate change events could slow it down even further. In 02010, Danny Hillis requested a paper from astrophysicist Michael Busch to assess the impact of the most dramatic predictions of climate change on the Clock’s accuracy. Busch found that if the ice sheets of Antarctica or Greenland were to melt completely — which could take centuries, i.e., less than the total timespan of the Clock — it could affect when solar noon is by 37 days over the course of 10,000 years.
