Native Extensions for Node.js
A step by step guide to understand the core concepts and build a first extension
If you are a Spanish reader you can read this post in Spanish here: Extensiones Nativas: ¿dónde empezar?
In this article we will talk about the most important concepts to develop native extensions for Node.js. Later, I will show how to build our first native extension with a practical example. And finally, I will leave some links to read more about it.
THE BASICS TO GET STARTED WITH NATIVE EXTENSIONS
I like to explain it this way:
- Libuv: it’s a C library that provides us with asynchronous execution.
Once we have learned this, we can start taking our first steps in native extensions. Let’s talk about the tools we need.
BASIC TOOLING TO BUILD A NATIVE EXTENSION
This file allows us to specify how we need to compile our native extension. One of the main thing that we need to define are the files that will be compiled and how we will call the final binary. It has a JSON like structure, and the keys to get this configured are sources and target.
It’s the tool that allows us to compile our native extension. It’s implemented in Node.js and it’s bundled with npm so we can just run npm install and that will compile our native extension. When we run npm install, it will detect our binding.gyp file included in our root folder and then it will start compiling.
Also, it allows us to make release(default) or debug builds. As a result, a binary file with .node extension will be created inside a release or debug folder, depending on how it was configured.
It’s a Node.js package which allows us to export our native extension. It’s in charge of searching in a build or release folder for us.
It’s C API that allows us to interact with our engine in a completely abstract way. For me, it’s the result of an evolution that tries to port node to different architectures.
N-API provides stability and compatibility between different node versions. That is, if my native extension is compiled to node 8.1, I don’t need to compile it again for node 8.6 or 9.3. Thus making the life of the maintainers and contributors easier.
At this moment, N-API has been moved to stable since Node.js v10. Soon, it will be stable in 8, and experimental in 6.
This Node.js module provides us with a C++ implementation of N-API and allows us to use the language advantages.
FIRST STEPS IN THE NATIVE EXTENSION WORLD
Note: For this example, I used Node.js 9.3.
To get initiated on the native extension world we will use the classic hello world example. The idea is to not overload the code with extra logic so we can focus on the minimum necessary code.
We start initializing npm so that we can then install our dependencies:
Now, as we said, we install our dependencies:
npm i node-addon-api bindings
At this point we need to create our C file with our logic:
This file has three important parts that will be explained from bottom to top:
- NODE_API_MODULE (Line 14): The first argument is the native extension name and the second one is the name of the function that initializes our extension.
Later, we need to create our binding.gyp file that will contain our native extension configuration:

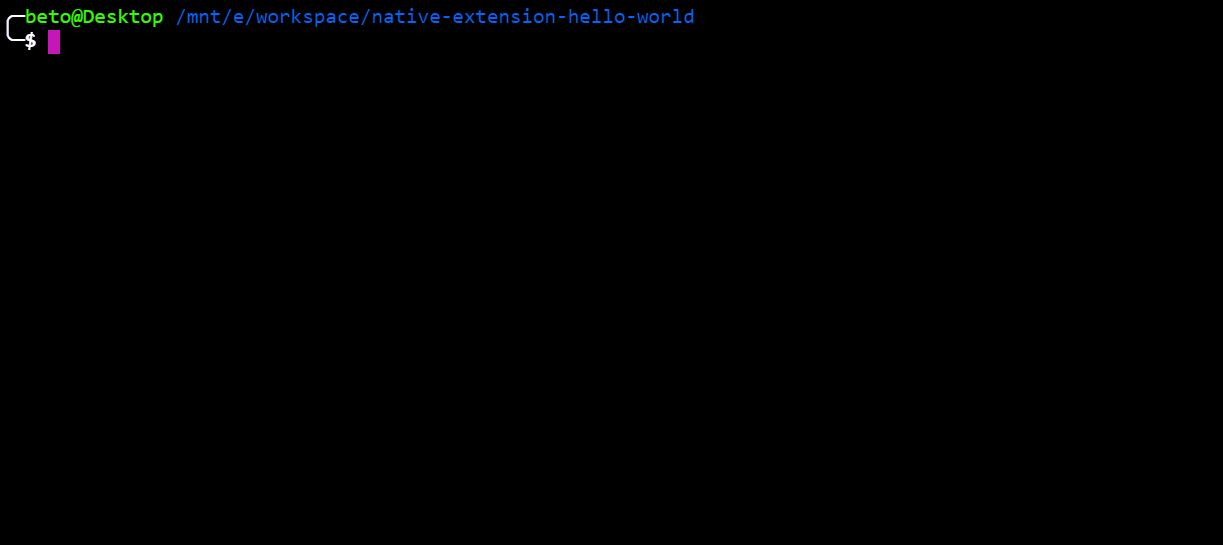

And that’s it. We just run our native extension.
WHAT WE HAD BEFORE N-API?
I find it important to know the context and history of native extensions since it gives access to a lot of documentation and examples. The idea is for N-API to eventually replace NAN. For that reason we should look back to NAN for a moment.
NAN? Yes, Native Abstraction for Node.js. NAN is a C++ library that provides us with V8 abstraction, but it doesn’t allow us to abstract ourselves from the V8.
In new NodeJS releases, there could be V8 changes that could break our native extension. Using N-API is a way to avoid this problem.
FURTHER STEPS TO DEVELOP YOUR NATIVE EXTENSIONS
As I said, knowing about NAN allows us to learn from its examples and documentation. It’s a good complement to our native extension learning process.
- NAPI examples can be found in here.
- Node-addon-api examples can be found in here.
- Nan examples can be found in here.
- Another good source are tests here.
- To learn more about native extensions here.
Learning about native extensions helped me to understand how NodeJS works and how it’s composed. There are more than one scenario where we can use them, such as performance boosts, C/C++ library integrations, or integration with legacy code.
In summary, it’s an excellent way to learn about NodeJS internals.
If you have any doubt, please post a comment and I will help you. You can also follow me on twitter @btomoretti
