50+ Object Detection Datasets from different industry domains

A list of object detection and image segmentation datasets (With colab notebooks for training and inference) to explore and experiment with different algorithms on!

Abhishek Annamraju
Oct 11 · 14 min read
Image for post
Image for post
Free to use Image. Credits

Computer Vision is such a fast-paced field that everyday loads of new techniques and algorithms are presented in different conferences and journals. When it comes to object detection, theoretically you learn about multitudes of algorithms like Faster-rcnn, Mask-rcnn, Yolo, SSD, Retinenet, Cascaded-rcnn, Peleenet, EfficientDet, CornerNet…. This list is never-ending!

It is always beneficial to consolidate your learning experience by applying it on different datasets!!!!

This way you tend to understand the algorithms better, plus you get an intuition over which algorithms work on what kind of datasets.

Our opensource team at Monk Computer Vision Org compiled a list of object detection, image segmentation and action recognition datasets and created short tutorials over each of them for you to utilize these datasets and try out different object detection algorithms

Mentioned below is a shortlist of object detection datasets, brief details on the same, and steps to utilize them. The datasets are from the following domains

★ Agriculture
★ Advance Driver Assistance and Self Driving Car Systems
★ Fashion, Retail, and Marketing
★ Wildlife
★ Sports
★ Satellite Imaging
★ Medical Imaging
★ Security and Surveillance
★ Underwater Imaging

….. and much more!!!!!

The complete list at one place is available with associated usage instructions and training codes on github

Agriculture-related datasets

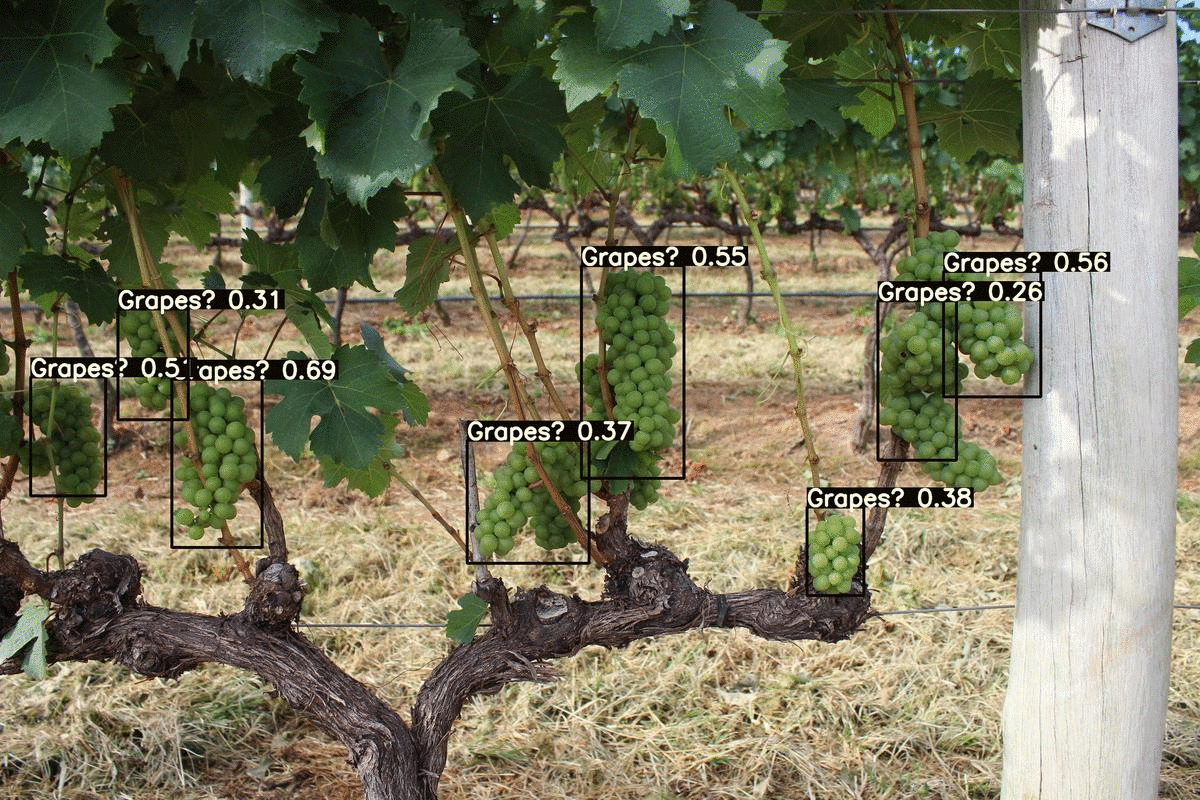

A) Winegrape Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect grape clusters in vineyards
* Application — To monitor growth and analyze yield
* Details — 300 images with 4400 bounding boxes over 5 classes of grapes
* How to utilize the dataset and build a custom detector using YoloV3 pipeline

B) Global Wheat Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect wheat crop from in fields
* Application — To monitor growth and analyze yield
* Details —3430 images with 100K+ annotations
* How to utilize the dataset and build a custom detector using EfficientDet-D4 pipeline

Advance Driver Assistance and Self Driving Car Systems related Datasets

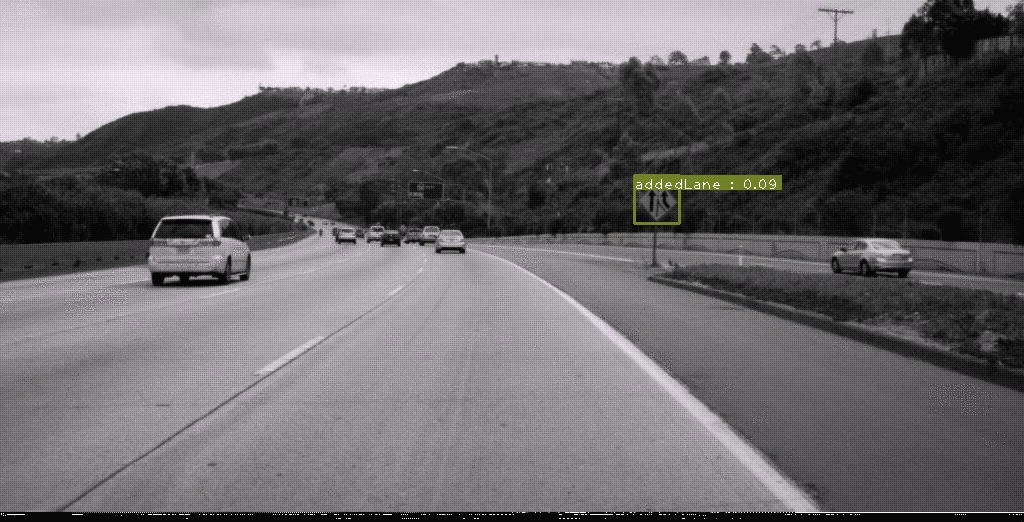

A) LISA Traffic Sign Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect and classify traffic signs in dash cam images
* Application — Traffic sign recognition acts as a rule setter for autonomous driving
* Details — 7855 annotations on 6610 frames over 47 US sign types
* How to utilize the dataset and build a custom detector using EfficientDet-D3 pipeline

* This repository has one more dataset
LISA Vehicle Detection Data

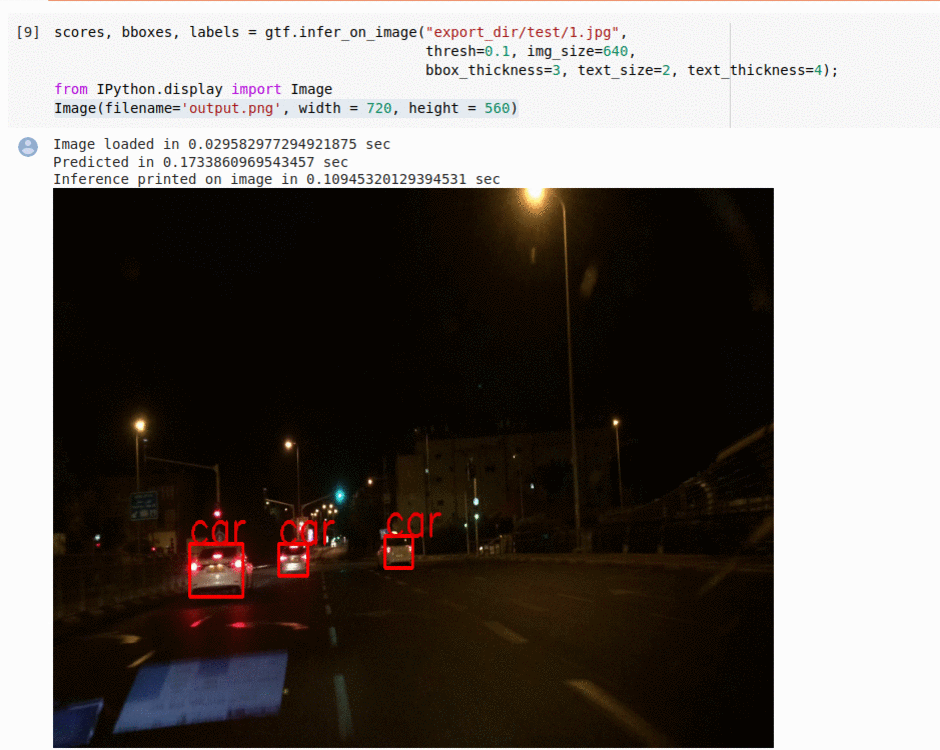

B) Object Detection in Low Lighting Conditions

Image for post
Image for post
Demo

* Goal — To detect on-road objects in low-lighting conditions — fog, dark, haze, rains, etc
* Application — This is a crucial component in self-driving vehicles as it pertains to a safer vehicle if it’s capable of detecting objects in adverse conditions
* Details —15K+ annotations on 7500 frames over 12 different object types
* How to utilize the dataset and build a custom detector using EfficientDet-D3 pipeline

C) LARA Traffic Lights Detection Dataset

Image for post
Image for post

* Goal — To detect traffic lights and classify them as red, green, and yellow
* Application — This does rule-setting for adas and self-driving car systems at road network junctions
* Details — 11K frames with 20K+ annotations over three classes of traffic lights
* How to utilize the dataset and build a custom detector using Mmdet-Faster-Rcnn-fpn50 pipeline

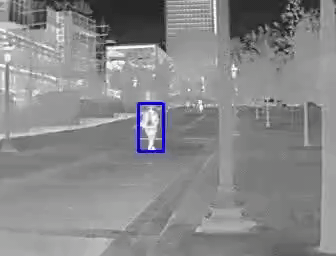

D) Person Detection using Infrared Images

Image for post
Image for post
Demo

* Goal — To detect people in infrared imagery
* Application — Autonomous vehicles are equipped with infrared cams to detect objects in adverse conditions
* Details — 30 video sequences with 1K+ annotations
* How to utilize the dataset and build a custom detector using Mx-Rcnn pipeline

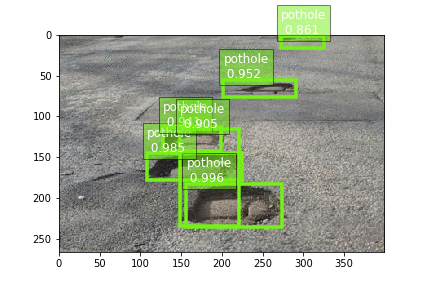

E) Pothole Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect potholes from on-road imagery
* Application — Detecting road terrain and potholes results in smooth driving.
* Details — 700 images with 3K+ annotations on potholes
* How to utilize the dataset and build a custom detector using M-Rcnn pipeline

F) Nexet Vehicle Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect vehicles on-road imagery
* Application — Detecting vehicles is a prime component in autonomous driving
* Details — 7000 images with 15K+ annotations on 6 types of vehicles
* How to utilize the dataset and build a custom detector using Tensorflow Object Detection API

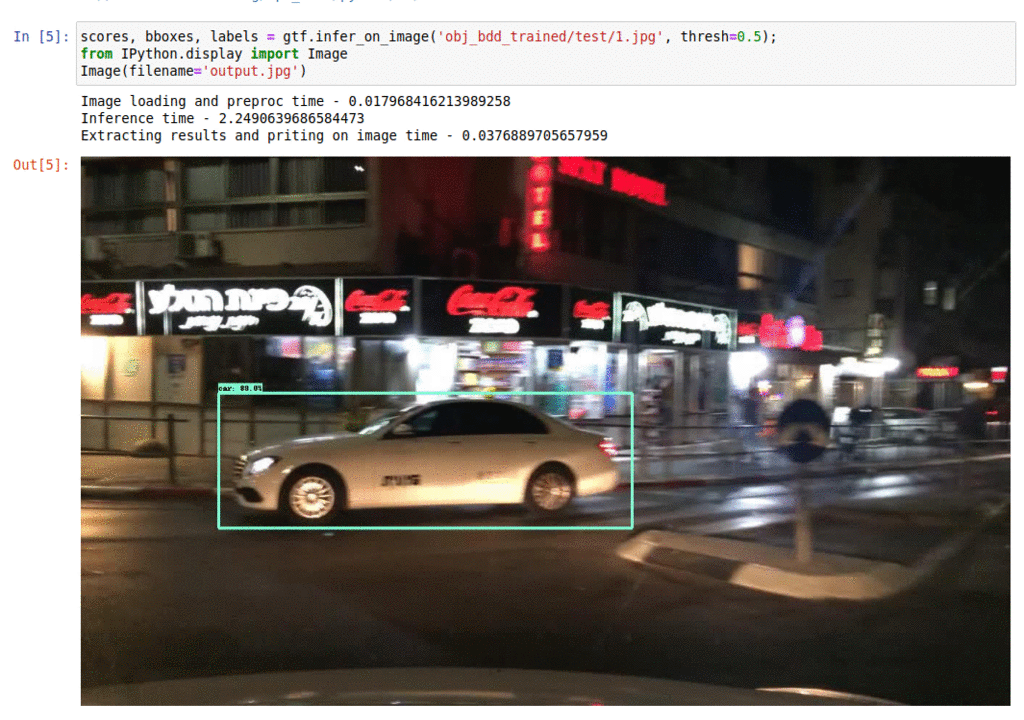

G) BDD100K Adas Dataset

Image for post
Image for post
Demo

* Goal — To detect on-road objects
* Application — Detecting vehicles, traffic signs, and people is a prime component in autonomous driving
* Details —100K images with 250K+ annotations on 10 types of objects
* How to utilize the dataset and build a custom detector using Tensorflow Object Detection API

H) Linkopings Traffic Signs Dataset

Image for post
Image for post
Demo

* Goal — To detect traffic signs in images
* Application — Detecting traffic signs is the first step towards understanding traffic rules
* Details —3K images with 5K+ annotations on 40+ types of traffic signs
* How to utilize the dataset and build a custom detector using Mmdet — Cascade Mask Rcnn

Fashion, Retail, and Marketing related Dataset

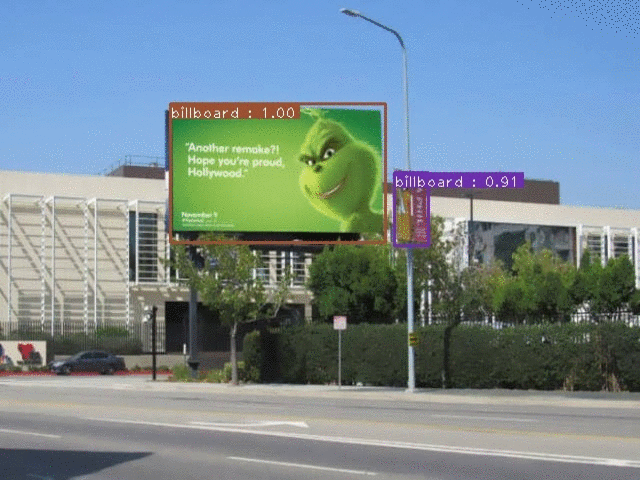

A) Billboard Detection (Subsampling OpenImages Dataset) Dataset

Image for post
Image for post
Demo

* Goal — To detect billboards in images
* Application — Detecting billboards forms a crucial part in auto-analyzing marketing campaigns across the city
* Details — 2K images with 5K+ annotations on billboards
* How to utilize the dataset and build a custom detector using Retinanet

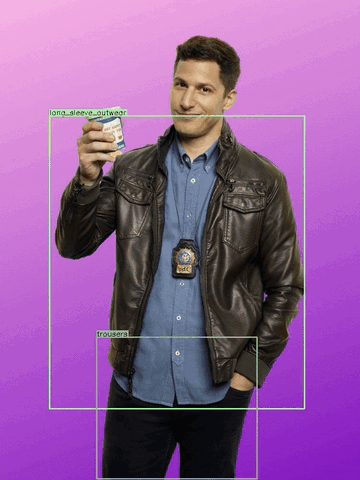

B) DeepFashion2 Fashion element Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect fashion products, clothing, and accessories in images
* Application — Fashion detection has huge applications from data sorting to recommendation engines
* Details — 490K images with around 100s of annotation objects classes
* How to utilize the dataset and build a custom detector using CornetNet-Lite Pipeline

* Another Fashion related dataset is Taobao Commodity Dataset

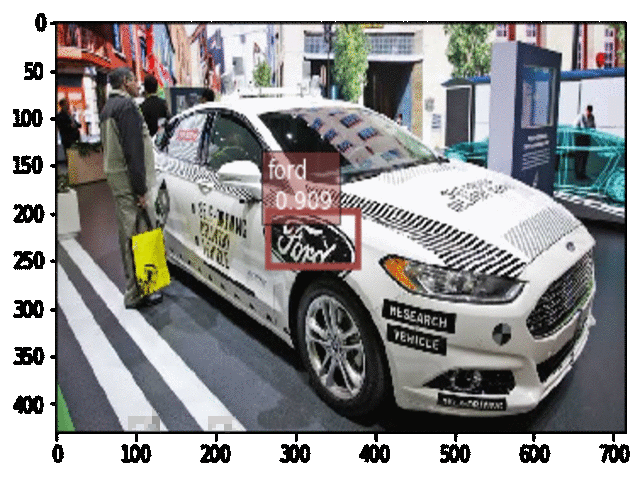

C) Qmul-OpenLogo Logo Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect different logos in natural images
* Application — Analyzing frequency of logo appearance in videos and natural scenes is crucial in marketing
* Details — 16K training images with logos from all kinds of brands — food, vehicles, restaurant-chains, delivery services, airlines, etc
* How to utilize the dataset and build a custom detector using mx-rcnn pipeline

Sports-Related Datasets

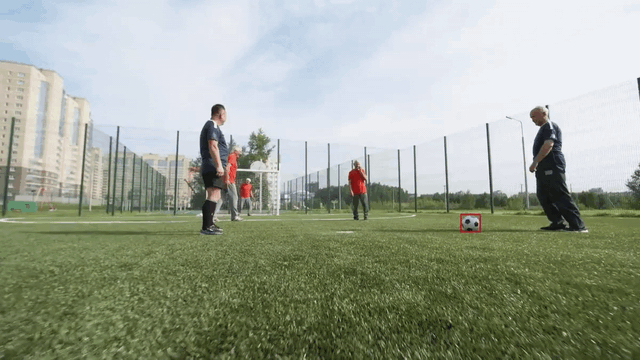

A) Football Detection Dataset (Subsampling from OpenImages Dataset)

Image for post
Image for post
Demo

* Goal — To detect football across frames in videos
* Application — Detecting football positions is crucial in auto-analysing situations such as offsides, etc
* Details — Around 3K training images.
* How to utilize the dataset and build a custom detector using yolo-v3 pipeline

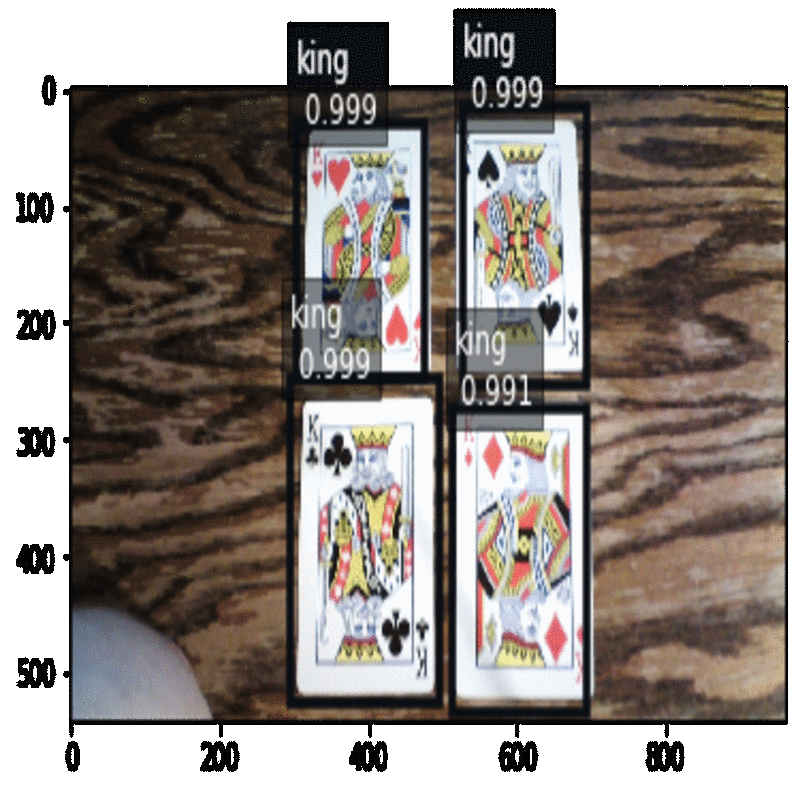

B) Playing Card Type Detection

Image for post
Image for post
Demo

* Goal — To detect playing card in natural images and classify the card type
* Application — Possible application is in analyzing winning odds in different card games
* Details — 500+ images over 52 card class types
* How to utilize the dataset and build a custom detector using mx-rcnn pipeline

C) Soccer Player Detection in Thermal Imagery

Image for post
Image for post
Demo

* Goal — To localize and track players using thermal imagery
* Application — Tracking players in the game is a crucial part in generating analytics
* Details —3K+ images over 5K+ annotations.
* How to utilize the dataset and build a custom detector using mmdet faster-rcnn pipeline

Security and Surveillance Related Datasets

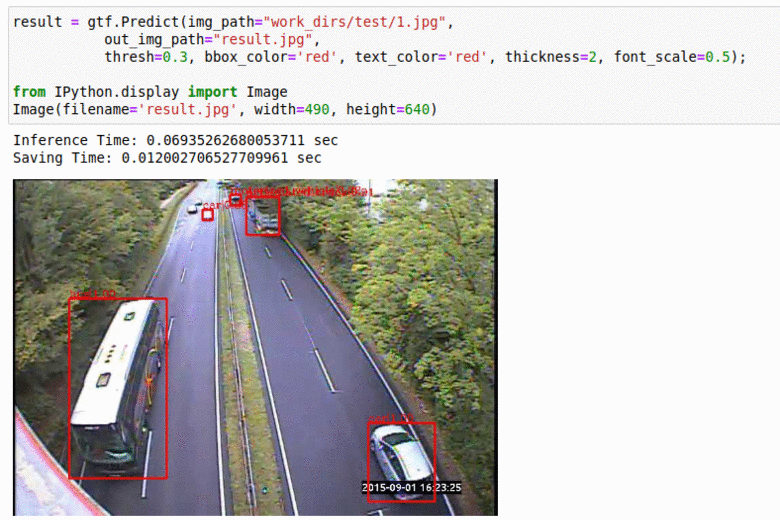

A) MIO-TCD Vehicle Detection in CCTV Traffic Cams

Image for post
Image for post
Demo

* Goal — To detect vehicles in cctv traffic cameras
* Application — Detecting vehicles in cctv traffic cams forms a crucial part in security surveillance applications
* Details — 113K images with 200K+ annotations on 5+ types of vehicles
* How to utilize the dataset and build a custom detector using Mmdet — Retinanet pipeline

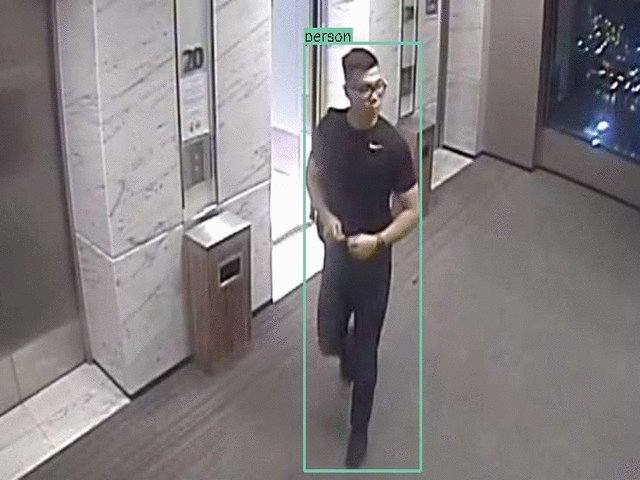

B) WIDER Person Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect people in cctv and natural scene images and videos
* Application — CCTV based people detection forms the core of security and surveillance applications
* Details — 10K+ images with 20K+ annotations on detecting pedestrians
* How to utilize the dataset and build a custom detector using Cornernet-Lite pipeline

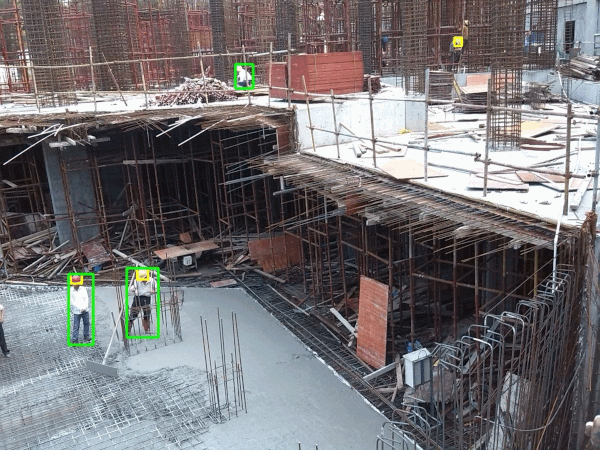

C) Protective Gear — Helmet and Vest Detection

Image for post
Image for post
Demo

* Goal — To detect helmet and vests on people
* Application — This forms an integral part in security compliance monitoring
* Details — 1.5K+ images with 2K+ annotations on detecting people, helmets, and vests
* How to utilize the dataset and build a custom detector using Mmdet — Cascade RPN

D) Anomaly Detection in Videos

Image for post
Image for post
Sample Visualization

* Goal — To classify videos as per actions being carried out in videos
* Application — Detecting anomalies in real time helps in stopping crime
* Details — 1K+ videos corresponding to 10 anomaly classes.
* How to utilize the dataset and build a custom classifier using mmaction-tsn50 pipeline

Medical Imaging Datasets

A) Ultrasound Brachial Plexus (BP) Nerve Segmentation Dataset

Image for post
Image for post
Demo

* Goal — To segment certain nerve types in ultrasound images
* Application — This helps in improving pain management through the use of indwelling catheters that block or mitigate pain at the source.
* Details — 11K+ images with associated instance masks for detecting nerves
* How to utilize the dataset and build a custom detector

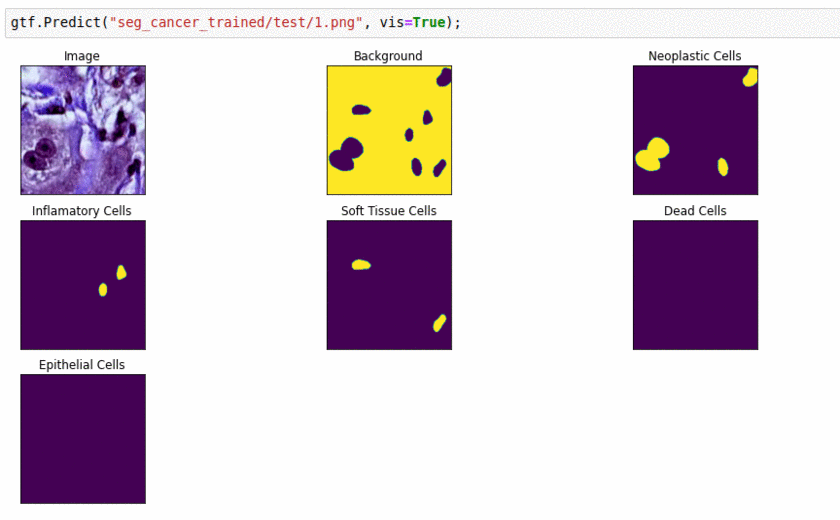

B) PanNuke Cancer Instance Segmentation in Cells

Image for post
Image for post
Demo

* Goal — To segment different cell types in the slide image
* Application — Auto-analyzing presence of cancerous and dead cells in terabytes of data
* Details — 3K+ images with associated instance masks for detecting different cell types
* How to utilize the dataset and build a custom detector

Satellite Imaging Datasets

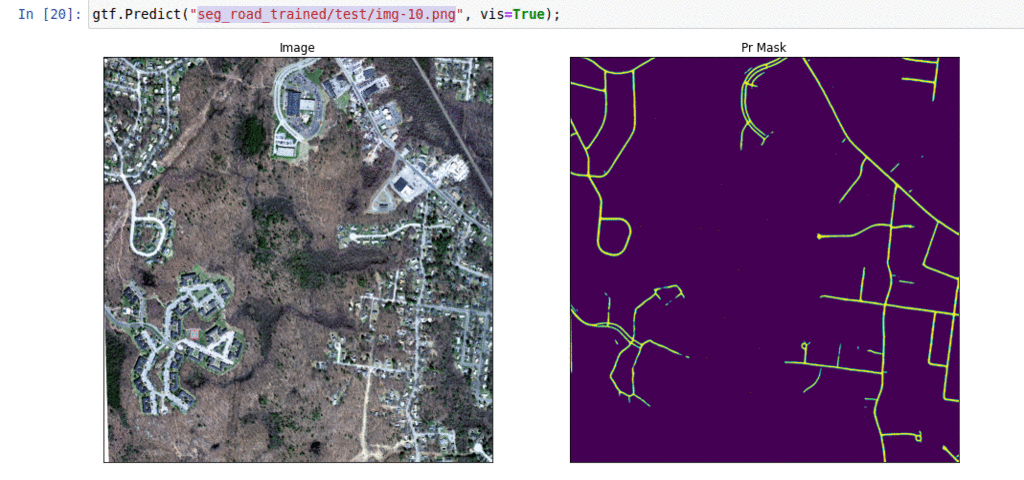

A) Road Segmentation in Satellite Imagery

Image for post
Image for post
Demo

* Goal — To segment road lines in satellite imagery
* Application — Helps in urban planning and monitoring roadways
* Details — 1K+ images with associated instance masks for detecting different road regions
* How to utilize the dataset and build a custom detector

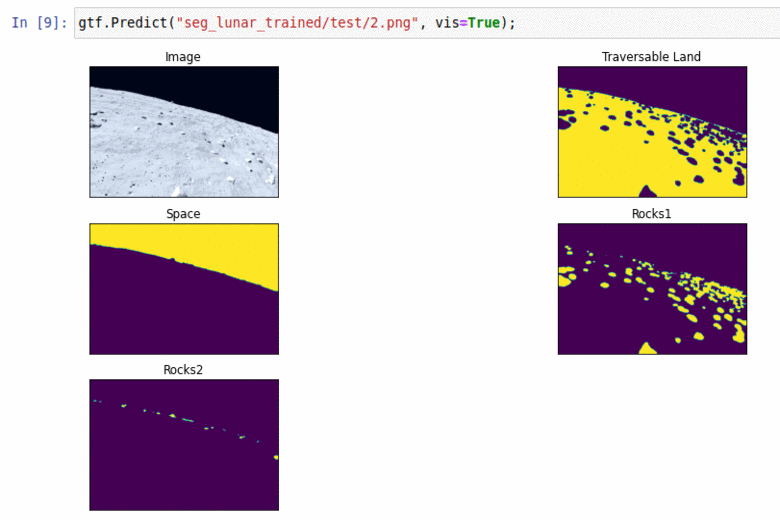

B) Traversable region segmentation in Synthetically generated lunar imagery

Image for post
Image for post
Demo

* Goal — To segment out rocks and find traversable region in lunar imagery
* Application — Essential element in autonomous rovers’ path planning
* Details — 10K+ images with associated instance masks for detecting different rocks and flat ground
* How to utilize the dataset and build a custom detector

C) Cars and Swimming Pools Detection in Satellite Imagery

Image for post
Image for post
Demo

* Goal — To detect vehicles and pools in satellite imagery
* Application — This forms a crucial part in property tax estimation
* Details — 3.5K+ images with 5K+ annotations labels on cars and pools
* How to utilize the dataset and build a custom detector using cornernet-lite pipeline

D) Roads and Residential area segmentation in Aerial Imagery

Image for post
Image for post
Demo

* Goal — To segment road and residential areas in satellite imagery
* Application — This forms a crucial part in property tax estimation
* Details — 100 very high resolution images with segmentation masks
* How to utilize the dataset and build a custom detector

* Another similar road segmentation dataset and associated training code

E) Water Body Segmentation in satellite imagery

Image for post
Image for post
Demo

* Goal — To segment water bodies in satellite imagery
* Application — Very important to understand how water bodies change and evolve over time
* Details — 100 very high resolution images with segmentation masks
* How to utilize the dataset and build a custom detector

* Another such dataset is DeepGlobe Land Cover Classification and it’s associated usage guidelines

Wildlife Related Datasets

A) Tiger Detection Dataset (Subsampled from OpenImages)

Image for post
Image for post
Demo

* Goal — To detect tigers in natural and drone images
* Application — To monitor endangered species
* Details — 2K+ images with 4k+ annotations.
* How to utilize the dataset and build a custom detector using cornernet-lite pipeline

* One more such dataset could be Monkey detection dataset and it’s associated tutorial

B) Zebras and Giraffes Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect zebra and giraffe species in natural and drone images
* Application — To monitor endangered species
* Details — 5K+ images with 5k+ annotations.
* How to utilize the dataset and build a custom detector using efficientdet-d3 pipeline

C) Caltech Cameratrap Dataset

Image for post
Image for post
Image Credits

* Goal — To detect animals in trap camera types images
* Application — To monitor endangered species
* Details — 10K+ images with 8k+ annotations.
* How to utilize the dataset and build a custom detector using retinanet pipeline

* One more such cameratrap dataset and associated training code

D) Elephant Detection Dataset (Subsampled from COCO dataset)

Image for post
Image for post
Demo

* Goal — To detect elephant species in natural and drone images
* Application — To monitor endangered species
* Details — 5K+ images with 5k+ annotations.
* How to utilize the dataset and build a custom detector using mmdet-maskrcnn

Underwater Datasets

A) Detecting Sea Turtles in the wild

Image for post
Image for post
Demo

* Goal — To detect sea turtles in underwater images
* Application — To monitor endangered species
* Details — 5K+ images with 5k+ annotations.
* How to utilize the dataset and build a custom detector using efficientdet

* A similar dataset to monitor fish species underwater and associated utilization code

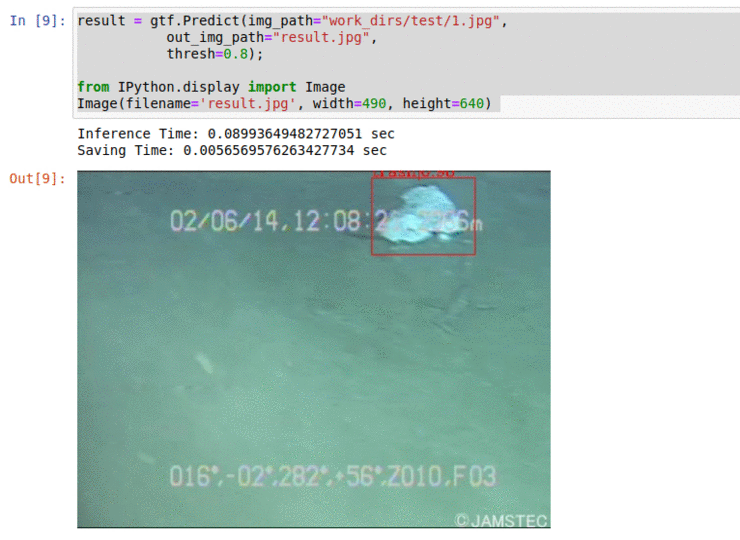

B) Underwater trash detection Dataset

Image for post
Image for post
Demo

* Goal — To detect marine trash
* Application — To monitor and control marine waste issue
* Details — 2K+ images with 5k+ annotations.
* How to utilize the dataset and build a custom detector using efficientdet

* A more complex pixel based trash segmentation dataset and associated codes

C) SUIM underwater object detection dataset

Image for post
Image for post
Image Credits

* Goal — To segment underwater objects
* Application — Path planning for autonomous underwater vehicles, track divers and monitor marine species
* Details — 1.5K+ images with 1.5k+ annotation masks.
* How to utilize the dataset and build a custom detector

D) Brackish underwater fish recognition dataset

Image for post
Image for post
Demo

* Goal — To detect marine species in underwater imagery.
* Application — To monitor marine species
* Details — 89 videos to detect fish, crab, shrimp, jellyfish, starfish
* How to utilize the dataset and build a custom detector using mmdet — faster rcnn pipeline

Text Analysis related datasets

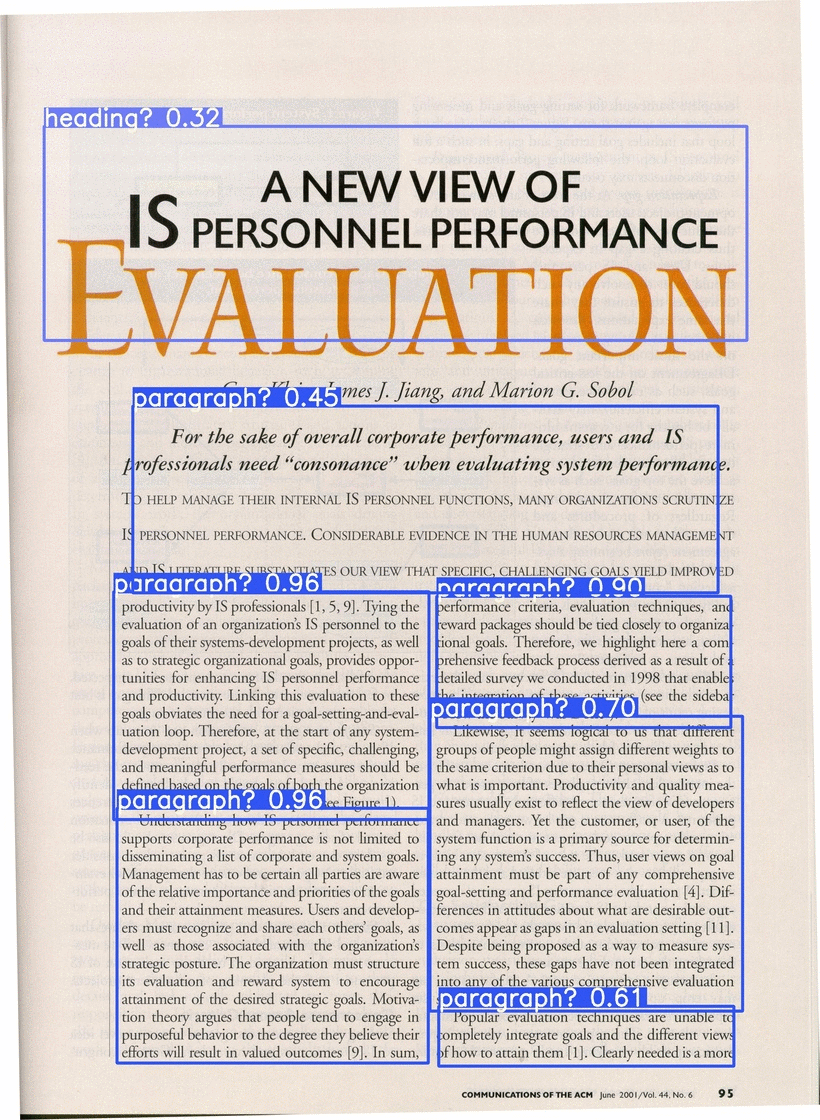

A) Document Layout Detection Dataset

Image for post
Image for post
Demo

* Goal — To detect document layout for further analysis
* Application — Essential to segment images into different parts so that certain rule based nlp and text recognition can further be applied.
* Details — 5K+ images with 10k+ annotations with labels such as paragraphs, images, headers.
* How to utilize the dataset and build a custom detector using mx-rcnn

* A very similar dataset exists for graphical components detection in documents named IIIT-AR-13K, here’s how to utilize the dataset and train a model on it

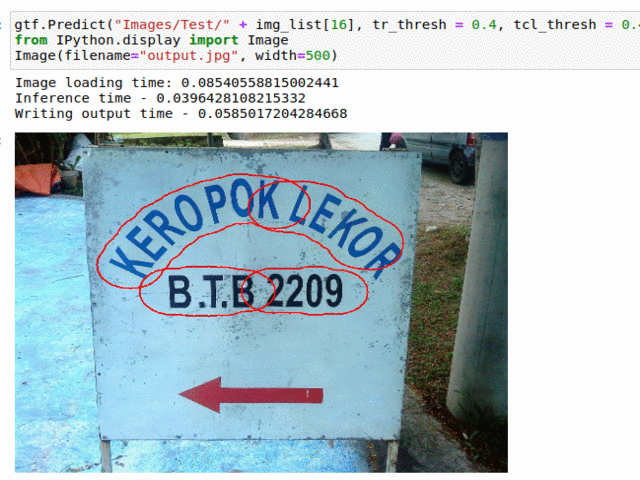

B) Total-Text Dataset

Image for post
Image for post
Demo

* Goal — To localize text in natural scenes
* Application — Essential base component to recognize using OCR
* Details — 1.5K+ images with 5K+ polygonal annotations
* How to utilize the dataset and build a custom detector using Text-Snake pipeline

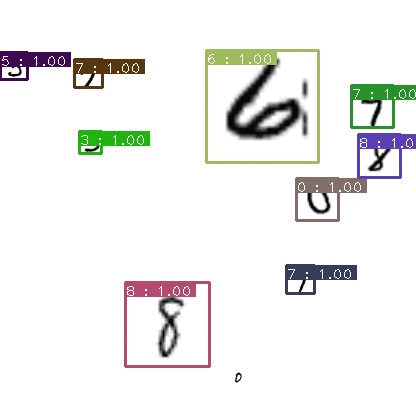

C) YY-Mnist Simple OCR Dataset

Image for post
Image for post
Demo

* Goal — To localize number and classify them in white backgroud images
* Application — Essential base component to recognize using OCR
* Details — 1K images with 2K+ annotations over 10 classes
* How to utilize the dataset and build a custom detector using Retinanet pipeline

Other Datasets

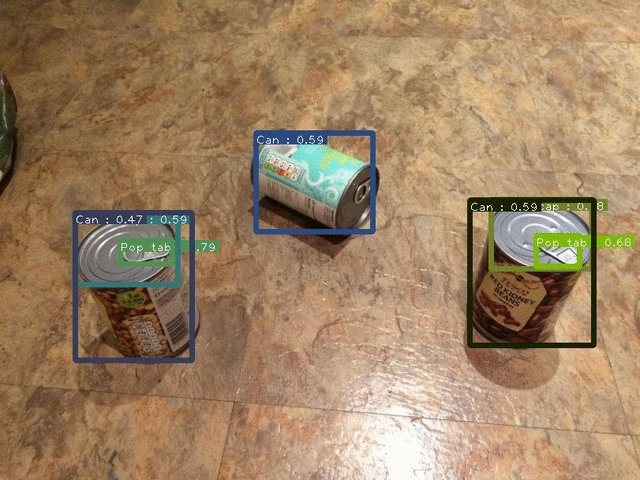

A) TACO Trash Detection Dataset

Image for post
Image for post
Demo

* Goal — To localize and segment all kinds of garbage in images
* Application — Critical component in autonomous bots trying to tackle trash problem in public places
* Details — 10K images with 15K+ annotations over 20+ different classes trash objects
* How to utilize the dataset and build a custom detector using Retinanet pipeline

B) Indoor Scene General Object Detection Dataset

Image for post
Image for post
Demo

* Goal — To localize and detect indoor objects in images
* Application — Autotag images in real-estate and rental websites with amenities
* Details — 3K+ images with 5K+ annotations over 10+ different classes indoor objects such as electronic-appliances, bed, curtains, chairs, etc
* How to utilize the dataset and build a custom detector using Retinanet pipeline

C) EgoHands Hand Segmentation Dataset

Image for post
Image for post
Demo (Image Credits)

* Goal — To segment hands in natural scenes
* Application — First step towards understanding gestures, with applications in human computer interaction, sign language recognition
* Details — 4.8K+ images with corresponding hand masks.
* How to utilize the dataset and build a custom detector using Retinanet pipeline

D) UCF Action recognition dataset

Image for post
Image for post
Demo

* Goal — To classify videos as per actions being carried out in videos
* Application — Tagging videos is important in storing and retrieving large number of videos
* Details — 1K+ videos corresponding to 101 action type classes.
* How to utilize the dataset and build a custom classifier using mmaction-tsn50 pipeline

E) Oil Tanks Datasets

Image for post
Image for post
Demo

* Goal — To detect tanks in satellite imagery
* Application — To keep track of oil tanks
* Details — 10K+ images with 10K+ annotations.
* How to utilize the dataset and build a custom classifier using retinanet pipeline

Other action recognition datasets

A) STAIR Action Recognition dataset and how to train a model on it

B) A2D Action Recognition dataset and how to train a model on it

C) KTH Action Recognition dataset and how to train a model on it

APPENDIX

For more details on the tutorials visit our Github page

Tutorial Credits to all the opensource contributors at the Monk Object Detection Library

Towards AI

The Best of Tech, Science, and Engineering.

Sign up for Towards AI Newsletter

By Towards AI

Towards AI publishes the best of tech, science, and engineering. Subscribe with us to receive our newsletter right on your inbox. For sponsorship opportunities, please email us at pub@towardsai.net Take a look

By signing up, you will create a Medium account if you don’t already have one. Review our Privacy Policy for more information about our privacy practices.

Check your inbox
Medium sent you an email at to complete your subscription.

Abhishek Annamraju

Written by

Computer Vision | Deep Learning | http://github.com/abhi-kumar | http://linkedin.com/in/abhishek-ku…

Towards AI

Towards AI is a world’s leading multidisciplinary science publication. Towards AI publishes the best of tech, science, and engineering. Read by thought-leaders and decision-makers around the world.

Abhishek Annamraju

Written by

Computer Vision | Deep Learning | http://github.com/abhi-kumar | http://linkedin.com/in/abhishek-ku…

Towards AI

Towards AI is a world’s leading multidisciplinary science publication. Towards AI publishes the best of tech, science, and engineering. Read by thought-leaders and decision-makers around the world.

Medium is an open platform where 170 million readers come to find insightful and dynamic thinking. Here, expert and undiscovered voices alike dive into the heart of any topic and bring new ideas to the surface. Learn more

Follow the writers, publications, and topics that matter to you, and you’ll see them on your homepage and in your inbox. Explore

If you have a story to tell, knowledge to share, or a perspective to offer — welcome home. It’s easy and free to post your thinking on any topic. Write on Medium

Get the Medium app

A button that says 'Download on the App Store', and if clicked it will lead you to the iOS App store
A button that says 'Get it on, Google Play', and if clicked it will lead you to the Google Play store
