Quantum Computing, Programming

Introduction to Quantum Computing with Python and Qiskit

First steps into the realm of quantum computing

Bala Priya C
Oct 16 · 6 min read
Image for post
Image for post
Photo by Michael Dziedzic on Unsplash

What is Quantum Computing?

What is a Qubit ?

Superposition and Schrodinger’s cat

Image for post
Image for post
Schrodinger’s cat (Image credits: https://betterexplained.com/articles/gotcha-shrodingers-cat/)

Entanglement

Getting started with the Qiskit Library

!pip install qiskit
!pip install matplotlib
from qiskit import QuantumRegister,ClassicalRegister,Aer,execute
import Our_Qiskit_Functions as oq
# Initializing backend simulators to visualize circuits
S_simulator = Aer.backends(name='statevector_simulator')[0]
Q_simulator = Aer.backends(name='qasm_simulator')[0]
# Creating quantum registers to hold quibits
q = QuantumRegister(2)
# Creating classical registers to hold bits
c = ClassicalRegister(2)
# Create a quantum circuit with these registers
qc=quantumCircuit(q,c)

Understanding Quantum Gates

Image for post
Image for post
Identity Gate (Image Source)
# Identity Gate
qc.iden(q[0])
print(oq.Wavefunction(qc))
qc.draw(output = “mpl”)
Image for post
Image for post

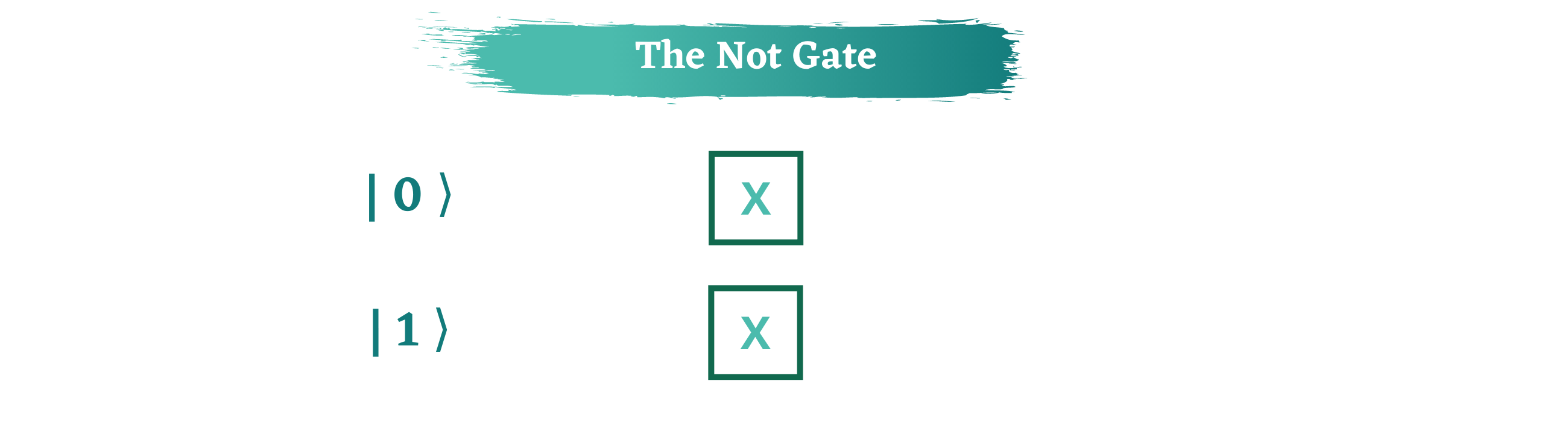

NOT Gate (Image Source)
# NOT gate
qc.x(q[0])
print(oq.Wavefunction(qc))
qc.draw(output = "mpl")
Image for post
Image for post

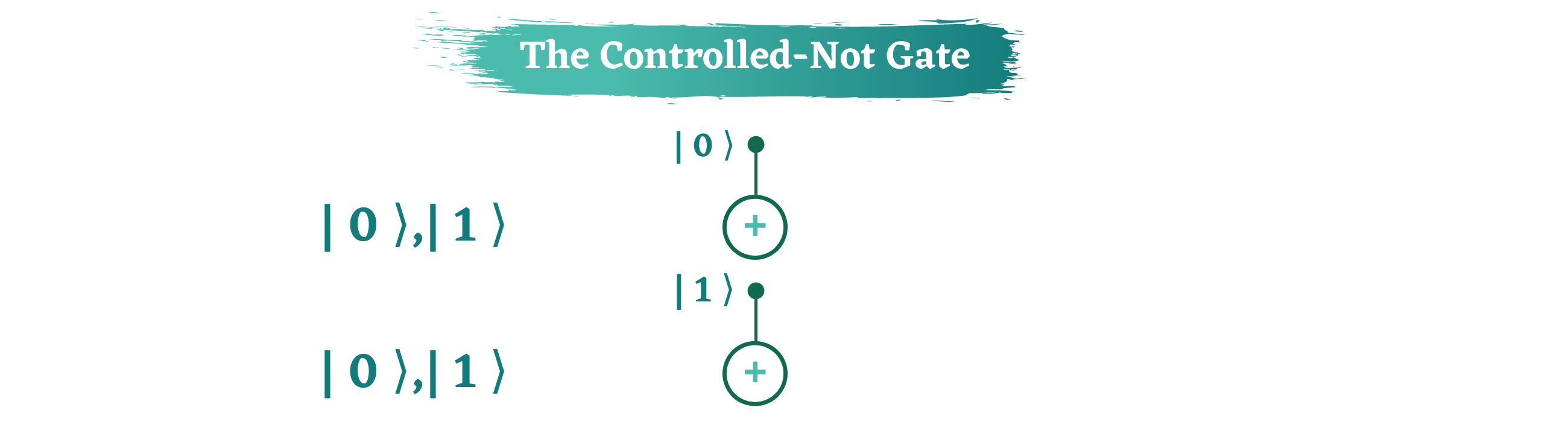

Controlled NOT Gate (Image Source)
# Controlled-NOT gate
qc.cx(q[0],q[1])
print(oq.Wavefunction(qc))
qc.draw(output = "mpl")
Image for post
Image for post
Hadamard Gate (H) (Image source:https://www.picuki.com/media/2242281885485368924)

Quantum Circuit Simulators

Our First Quantum Circuit

Image for post
Image for post
Example State: | 1011 ⟩
Image for post
Image for post
Putting together the Quantum Circuit in Circuit Composer
# Create the circuit and add the gates
q = QuantumRegister(5)
c = ClassicalRegister(4)
qc = QuantumCircuit(q,c)
qc.x(q[0])
qc.x(q[2])
qc.x(q[3])
qc.cx(q[3],q[4])
qc.cx(q[4],q[3])
qc.draw(output = "mpl")
Image for post
Image for post
FinalCircuit
# Execute the circuit
ex = execute(qc, Q_simulator, shots = 1024)
res = ex.result()
M = res.get_counts(qc)

# Plot the results
plot_histogram(M, bar_labels=False)
Image for post
Image for post
The output is 1010
