# How do robots make decisions?

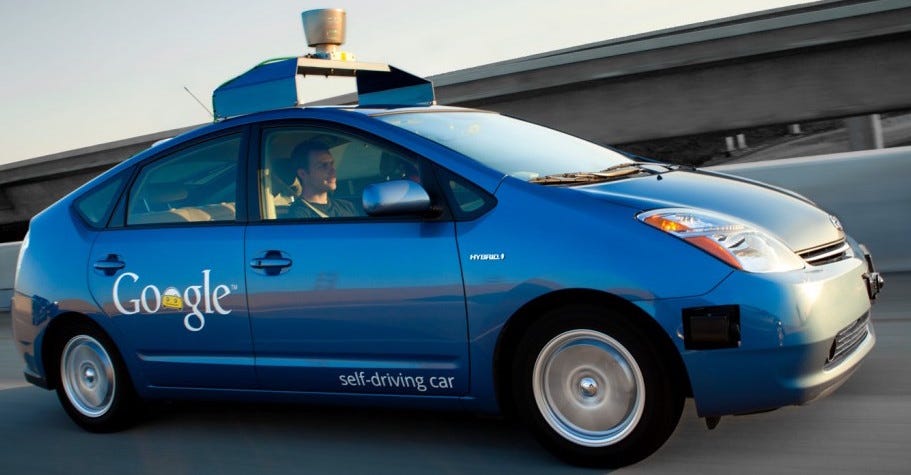

To put matters simply, we often want to give robots the capability to reason about their environments in order for them to reach their goals. For instance, a self-driving car has to come up with a good route from your house to the grocery store and, more importantly, it has to think about what to do when it gets to an intersection to avoid hitting cars, people, signs, buildings, and so on.

So how can we make a robot think? That’s where this post jumps in. While I can’t cover every dimension of AI, robotics, machine learning, and control theory, let’s take a look at a simple example of one way of doing this.

### A Grid World

Suppose we’re a treasure hunter searching for a pot of gold hidden somewhere in the world. For the sake of simplicity, let’s just assume our world isn’t the earth but instead a 5×5 grid. In order to search for the treasure, we can move from one cell to another by going north, east, south, or west. Moreover, while we don’t know the world at all, we at least know that one of the cells contains the treasure. So, if we could navigate the world successfully and find the treasure, we would be immeasurably rich. Unfortunately, there’s a catch. Although most of the cells in the world are empty, there are a few that have traps in them like a monster or a pit of spikes. If we were to accidentally move into any of those cells, we’d die a painful death.

Since we want to hit it rich and not die, we need to come up with a plan that leads to the treasure but avoids the traps. In our case, a plan is just a series of moves that we could take (e.g., north, east, south, or west) from our current location to the goal state (e.g., the treasure). After we complete every action in our plan, we’ll end up at the treasure (which means we weren’t the monster’s supper). Sounds pretty easy, right? Just (1) come up with a plan that goes from our current location to the treasure, then (2) follow that plan by doing the suggested actions, and finally (3) reap the reward of infinite wealth.

Sadly, it’s not that easy. Even though it might be trivial in a simple problem like this, it’s a lot harder in the real world to come up with a plan. In fact, if we had a harder problem, we’d need to represent it as mathematical model in order to make a plan. As a result, before we can deposit a nice check into our bank accounts, we need to convert our treasure-hunting scenario into a mathematical model that we can solve using one of many different planning and reinforcement learning algorithms.

For now, here’s the big question we have to figure out:

How do we come up with a mathematical model that represents our scenario so we can snag the treasure without getting impaled by spikes or eaten by a monster?

### MDPs

To model any scenario like this, we can use a Markov decision process (MDP). An MDP is a formal representation of the type of problem we just saw. Generally, it has four parts. Let’s take a look at each part.

#### States

The set S contains every state of the world. Each cell in our treasure-hunting world (which, as a reminder, is a 5×5 grid) corresponds to a state. This means we have a set of twenty-five states:

S = {s0, s1, …, s24}

For your convenience, here’s an image that labels every state of the world:

#### Actions

The set A contains every action that the agent can take in the world. By the way, if you don’t know what an agent is, it’s just the actor in the world. It could be you, a robot, a car, or anything else that follows a plan. In any case, we have a set of five actions in our example:

A = {North, East, South, West, Stay}

Why do we have a Stay action? This lets us sit around at the treasure once we’ve found it. We wouldn’t want to move away from it once we’ve discovered the treasure after all of our hard work.

Keep in mind that each state has certain constraints that limit the actions available to the agent. For instance, if we were in the corner of the world, say, the top left corner, we couldn’t move North or West since we’re at the boundary of the world. We typically denote the actions available in a given state s as A(s). So, if we’re in the top right corner of the world, s20, these would be the only actions available to the agent:

A(s20) = {East, South, Stay}

This visualization should probably help:

#### Transitions

The function T(s, a) is the transition function. It returns a probability distribution over every possible state of the world S if the agent were to perform action a in state s. For example, if we were in the bottom left corner of the world, say, s0, and we performed the action North, the function T(s0, North) would return the following probability distribution:

[s0: 0.0, s1: 0.0, … , s5: 1.0, …, s24: 0.0, s25: 0.0]

This notation just assigns a probability of entering each state of the world if we performed action North in state s0. Since our world is deterministic, the state s5 has a probability of 1.0. Check this out to see what I mean:

In real world examples, however, the outcomes of actions are typically probabilistic or stochastic. This means that an action could lead to different states, not just one like our example. In a more realistic MDP, we could perhaps associate a probability of slipping with every action. So, even if we performed the action North, we could slip and accidentally end up in the wrong state. This happens a lot in robotics:

For now, let’s just assume we have a deterministic world to make things easier.

#### Rewards

The function R(s, a) is the reward function. It returns the reward that the agent after performing action a in state s. In our world, let’s assume that the treasure is in the top right corner of the world s23. As a result, if we were in state s23, which is the cell east of s24, and we performed the action West, the function R(s24, West) would return 1,000 since we found the treasure. Formally, we’d write this:

R(s23, West) = 1000

Performing any action in any empty cell would return a reward of -1 since moving repeatedly over empty cells should have some cost associated with it. If it didn’t, we could do a few loops around the world before finding the treasure without any penalty. We’d rather follow the shortest path to the treasure to save time.

Unfortunately, if we were to land in a state that has a monster or a pit of spikes, we would get a reward of -100,000. This high, negative number represents our death. We probably want to avoid that at all costs unless we’re a pretty sadistic treasure hunter.

In short, here’s how our world looks with rewards:

These four components completely specify the problem that we outlined in the first section. But all this does is give us a way to model the problem mathematically as an MDP. In other words, while we now have our scenario represented as an MDP, we still haven’t found the plan that we should follow to get the treasure. How do we go about doing that? That is, what actions should we take to get the treasure and avoid dying? There are a lot of fancy algorithms that we can use to get the best plan for our MDP. However, before we talk about that, let’s talk a little more about what plans are.

### Policies

In planning, we usually formulate a plan as a policy. By the way, this is only kind of true, but let’s roll with it for now. Anyway, what is a policy? It’s just a map that associates every state of the world with a recommended action:

To be a little more formal, a policy π is a mapping between each state s and an action a:

π(s) = a

That’s great, Justin! I think I get what a policy is now. Why do we need one? Why do we want to map actions to states? A policy is important because it specifies the action that the agent ought to take in every state of the world. For example, let’s suppose the agent is in state s23, which is directly east of the pot of goal. To figure out what action to take, we would take out our policy to see what action to perform in s23. In an ideal world, our policy should tell us this (because it would make us move to the treasure):

π(s23) = West

However, it’s important to note that our policy doesn’t have to associate each state with a good action. A policy is just something that links states to actions, and that’s it. There are a ton of policies out there that we can have, and, among all of the garbage policies out there, we need to find the best one. If we followed a bad policy, we’d probably avoid the treasure and do something like this:

Notice how we walked right past the treasure. Yeah, that’s no good. On the other hand, this is what we’d do if we found the optimal policy (or the best policy we can have):

Since we know what an MDP is and what a policy is, the big question is now this:

After we model the problem as an MDP, how do we come up with the best policy amidst all of the bad polices out there?

### Planning and Reinforcement Learning

While I can’t dive into this question since I could write 10 long textbooks to explain every nuance, there are many algorithms that span across planning and reinforcement learning that we can use to solve MDPs. Just to give you a sense of what’s out there, here’s a quick list of a few basic algorithms that we could use:

• Value Iteration
• Policy Iteration
• TD Learning

If you stay tuned, I’ll probably write a post on each algorithm in the next few weeks.
