Paying Attention to the Details

Shlok Desai
Feb 27, 2019 · 3 min read

One of the most common UI components that I have had to build and use, seemingly on a day-to-day basis, is one where content is displayed in a container after some user interaction like a click or tap.

Some components that are used to implement such interactions are

  • Accordions
  • Tooltips
  • Modals
  • Overlays

Some of the common problems that I’ve seen while building out such components are:

  • The tendency to use generic <div> tags which are not semantic
  • We need hefty state management especially while using React to handle all possible use cases.
  • Pure CSS solutions are sometimes not enough to implement a responsive design leading to JavaScript bloat.

Enter the <details> tag

The HTML5 <details> tag is a good solution for implementing these components. Paired with the <summary> tag, it can be used to quickly build widgets that show and hide content in a container.

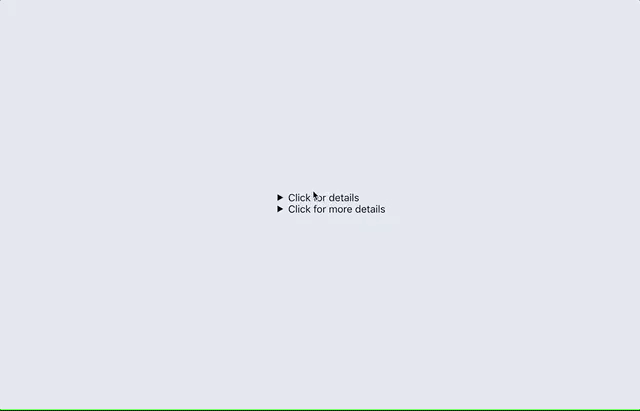

Details in action

As seen in the example, it can be used out of the box to implement a simple accordion-like pattern.

However, we can enhance the details tag further and use it to craft more components for a wider variety of use cases.


The examples below use React but they can be easily implemented using vanilla JavaScript as well.

Tip: for these examples be sure to add a CSS rule that removes the details arrow

details summary::-webkit-details-marker {  display:none;}

Modal

We can write a simple component using <details> and <summary> tags which will be invoked as:

<Container launchText="Click me" content={<h2>Hello There!</h2>} />

The component takes two props:

launchText — the component or text for the summary which the user will interact with, through a click or tap, to display content.

content — the component or text to show within the container.

We’ll add some styles to show the modal-content in the center of the screen

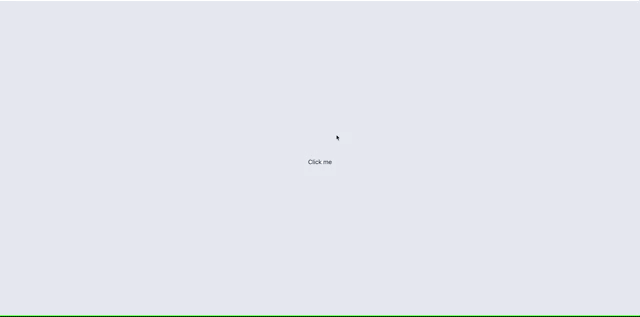

Result:

As we see, the container component is minimal and more descriptive. The only caveat here is that in order to close the details tag, we would have to include a ref to the details DOM node and set open=false on it when the close button is clicked.

We can extend this concept further to create a full page overlay

Overlay

To create a full page modal overlay, change three style rules to:

Result:

Tooltip

<details> can also be used to create Tooltips or Flyouts. All we need to do is add some styles and pseudoelements.

Result:

As we can see, the <details> & <summary> tags provide a clean interface to build out some common UI components.

There are some caveats to using the <details> tag like:

  • Browser compatibility: As per CanIUse, the details tag is supported by 87% of desktop browsers and 96% of mobile browsers. It may not be an ideal solution if you’re supporting IE11 & Edge but would be useful for mobile experiences.
  • Direct DOM Access: As we see in the example, we need to access the DOM node to remove the open attribute. It might be a drawback to directly access the DOM especially while using a framework like React but I would test various use cases and profile the performance of the component before dismissing the approach.

And there you have it. A simple way to create semantically consistent UI elements to hide and show content. Just remember to keep your eye on the <details> 😉
