Making Asteroids with Kontra.js and Web Maker

Making games for the first time can always be a daunting task. So many things to learn and understand. But don’t worry, I’ll help you through your first game. Also, the Js13kGames game jam is starting soon. So what better time to learn how to make a game!

In this tutorial, we’ll make the classic arcade game Asteroids. You can read more about Asteroids if you’re not familiar with the game.

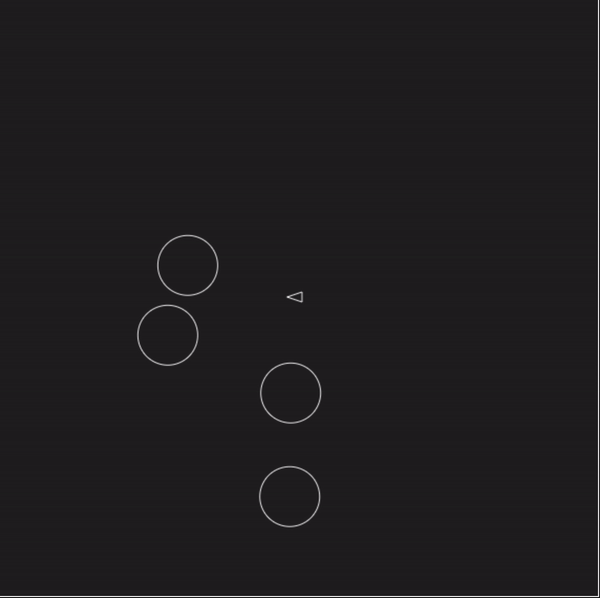

Asteroids game we’ll be making

Use a Library

We’ll be using the Kontra.js game library. It’s a lightweight library I have built for the JS13kGames game jam.

What’s nice about using a library for your first game is that it takes care of all the hard work for you. Instead of worrying about how to set up the game loop or manage all the sprites, you can just focus on the game itself.

For this game, we’re just going to make a simplified version of Asteroids. Just asteroids, the player ship, and bullets. This will make it easier to get going and you can always add more to it.

Setting up the Game With Web Maker

We’ll be using Web Maker app as it makes it convenient to set up a Kontra.js game. Fire it up - https://webmakerapp.com/app/

First, if you are participating in the Js13kGames compo, turn on the Js13kGames Mode from the settings to set the right gamedev environment :)

Now click the New button at the top of the screen. Web Maker provides you with a few different templates to get you up and running quickly. From the list of Templates, select Kontra Game Engine to prepopulate the editor with a Kontra.js project.

Next, expand the HTML section of the editor and update the canvas element with a width and height so we have a larger game to play on.

<canvas width="600" height="600"></canvas>

We’ll also want the background to be black and the game to have a white border so we know where the edges of screen are. In the CSS section of the editor add this:

body {
background: black;
}
canvas {
border: 1px solid white;
}

The last thing to do is delete everything but the first line from the JS section of the editor. The template provides you with some starter code so you can get familiar with using Kontra.js. Since we’ll be making our own game we can go ahead and remove most of it and leave just the initialization of the library using kontra.init().

kontra.init();
Web Maker app with initial code

Creating an Asteroid

Now that everything’s set up, we can start making the game. Let’s start by making an asteroid game object.

To create a game object, or sprite, in Kontra we use kontra.sprite() and pass it any information we want.

For our asteroid, we’ll pass it the x and y position, the speed of the asteroid (dx and dy), and a render() function to tell the sprite how to draw the asteroid. In this case, the asteroid will be just a circle.

let asteroid = kontra.sprite({
x: 100,
y: 100,
dx: 2, // move 2px to the right
dy: 2, // move 2px to the bottom
render() {
this.context.strokeStyle = 'white';
    this.context.beginPath();  // start drawing a shape
this.context.arc(this.x, this.y, 30, 0, Math.PI*2);
this.context.stroke(); // outline the circle
}
});
A lone, non-moving asteroid

Creating the Game Loop

To move the sprite, we’ll need a game loop to update and render it every frame. Game loop’s update and render are simply functions that the game engine calls in a loop at right times for you. We’ll create a kontra.gameLoop() and pass it update() and render() functions to update and render the sprite.

Right afterwards, we’ll call loop.start() to start the game loop.

let loop = kontra.gameLoop({
update() {
asteroid.update();
},
render() {
asteroid.render();
}
});
loop.start();

Wrapping Around the Screen

The asteroid should start moving towards the bottom right corner. But when it reaches the edges it’ll keep going off the screen. Instead, we want the asteroid to wrap around the edges.

To do that, we’ll modify the update() function to check the position of the asteroid after we've updated it and see if it's beyond the edges of the screen. If it is, we'll move it to the opposite edge.

We can check the dimensions of the game by using kontra.canvas to access the canvases width and height properties.

Go ahead and update the game loop’s update() function:

update() {
asteroid.update();
  // asteroid is beyond the left edge
if (asteroid.x < 0) {
asteroid.x = kontra.canvas.width;
}
// asteroid is beyond the right edge
else if (asteroid.x > kontra.canvas.width) {
asteroid.x = 0;
}
// asteroid is beyond the top edge
if (asteroid.y < 0) {
asteroid.y = kontra.canvas.height;
}
// asteroid is beyond the bottom edge
else if (asteroid.y > kontra.canvas.height) {
asteroid.y = 0;
}
}

More Asteroids

We now have a moving asteroid. But just one isn’t enough, we need more for the player to shoot.

Since there’s going to be multiple asteroids, we should update the code to handle moving multiple sprites, including the ship and bullets. One way we can do that is to store all the sprites in an array and loop over it to update all the sprites.

We should also turn our asteroid creation code into a function so we can call it multiple times. The function should create an asteroid and then add it to the array.

At this point we should also add some randomness to the asteroids so they all don’t move in the same direction. We’ll want both negative numbers and positive numbers for the direction so they don’t always move to the right or bottom.

A range of -2 to 2 seems like a good range and doesn't make the asteroids move too fast. To get this range, we can multiply Math.random() by four, then subtract by two.

If we make all the changes, the full game code should look like this:

kontra.init();
let sprites = [];
function createAsteroid() {
let asteroid = kontra.sprite({
x: 100,
y: 100,
dx: Math.random() * 4 - 2,
dy: Math.random() * 4 - 2,
render() {
this.context.strokeStyle = 'white';
      this.context.beginPath();  // start drawing a shape
this.context.arc(this.x, this.y, 30, 0, Math.PI*2);
this.context.stroke(); // outline the circle
}
});
  sprites.push(asteroid);
}
for (var i = 0; i < 4; i++) {
createAsteroid();
}
let loop = kontra.gameLoop({
update() {
sprites.map(sprite => {
sprite.update();
      // sprite is beyond the left edge
if (sprite.x < 0) {
sprite.x = kontra.canvas.width;
}
// sprite is beyond the right edge
else if (sprite.x > kontra.canvas.width) {
sprite.x = 0;
}
// sprite is beyond the top edge
if (sprite.y < 0) {
sprite.y = kontra.canvas.height;
}
// sprite is beyond the bottom edge
else if (sprite.y > kontra.canvas.height) {
sprite.y = 0;
}
});
},
render() {
sprites.map(sprite => sprite.render());
}
})
loop.start();
Four Asteroids moving around the screen

The Player Ship

It’s time to add the player ship. We’ll start by drawing a triangular sprite. Just as we did for the asteroid, we’ll pass it the position and render() function.

let ship = kontra.sprite({
x: 300,
y: 300,
width: 6, // we'll use this later for collision detection
render() {
this.context.beginPath();
    // draw a triangle
this.context.moveTo(this.x - 5, this.y + 3);
this.context.lineTo(this.x, this.y - 12);
this.context.lineTo(this.x + 5, this.y + 3);

this.context.closePath();
this.context.stroke();
}
});
sprites.push(ship);
Player ship surrounded by asteroids

Rotating the Player Ship

Next we’ll make the ship move by allowing it to rotate.

When the player presses the left arrow key the ship should rotate left, and rotate right when the right arrow key is pressed. To do this, we’ll pass an update() function to the ship sprite and check if those keys are pressed using kontra.keys.pressed().

We’ll also modify the ship’s render() function to draw the triangle based on the current rotation.

There are a few tricky things to remember when dealing with rotation:

  • Rotations are in radians, not degrees. I find radians hard to work with so usually I work in degrees and convert it to radians.
  • You must call context.save() before rotating a sprite and context.restore() afterwards. Otherwise the entire canvas gets rotated instead of just the sprite.
  • Zero degrees is not up, it’s to the right. This is because zero radians starts at the right. This also means at zero degrees, we need to draw the triangle pointing to the right instead of up.
  • To rotate the sprite around its position, we need to call context.translate() to move the origin of the canvas to the center of the ship. That will make the ship rotate in place.
  • Since the origin of the canvas is the ships x and y position, all drawing coordinates should be relative to the ships position. This means we can remove this.x and this.y when drawing the triangle.

Whew! That’s a lot going on just to rotate the ship. Lets update the ship code to do everything we just covered.

// helper function to convert degrees to radians
function degreesToRadians(degrees) {
return degrees * Math.PI / 180;
}
let ship = kontra.sprite({
x: 300,
y: 300,
width: 6, // we'll use this later for collision detection
rotation: 0, // 0 degrees is to the right
render() {
this.context.save();

// transform the origin and rotate around it
// using the ships rotation
this.context.translate(this.x, this.y);
this.context.rotate(degreesToRadians(this.rotation));
    // draw a right facing triangle
this.context.beginPath();
    this.context.moveTo(-3, -5);
this.context.lineTo(12, 0);
this.context.lineTo(-3, 5);
    this.context.closePath();
this.context.stroke();
this.context.restore();
},
update() {
// rotate the ship left or right
if (kontra.keys.pressed('left')) {
this.rotation += -4
}
else if (kontra.keys.pressed('right')) {
this.rotation += 4
}
}
});

Ship Thrust

Now that we’ve done all the hard work to make the ship rotate, we can make the ship move.

When the player presses the up arrow key, the ship should move forward in the direction it’s facing.

We can do that by using Math.cos() and Math.sin() to get the x and y unit of the rotation (respectively). Then we can multiple each unit by how fast we want the ship to accelerate.

Each Kontra.js sprite uses ddx and ddy as the x and y values of the acceleration vector. To have the ship move based on it's acceleration, we call ship.advance().

Update the ships update() function to move the ship forward.

update() {
// rotate the ship left or right
if (kontra.keys.pressed('left')) {
this.rotation += -4
}
else if (kontra.keys.pressed('right')) {
this.rotation += 4
}
  // move the ship forward in the direction it's facing
const cos = Math.cos(degreesToRadians(this.rotation));
const sin = Math.sin(degreesToRadians(this.rotation));
  if (kontra.keys.pressed('up')) {
this.ddx = cos * 0.1;
this.ddy = sin * 0.1;
}
  this.advance();
}

Ship Maximum Speed

The ship should now move forward when you press the up arrow. However the ship will continually speed up even if you let go. Instead, we want the ship to stop accelerating when the player releases the up arrow key.

This can be achieved by setting the ddx and ddy to zero if the up arrow key is not pressed.

However, the ship can continuously speed up so long as the player presses the up arrow key. We should set a max speed so the ship doesn’t become uncontrollable.

To do this, we’ll need to check the magnitude of the velocity vector (dx and dy) and see if it's greater than the max speed. If it is, we dial down the speed a bit.

Once again, update the ships update() function.

update() {
// rotate the ship left or right
if (kontra.keys.pressed('left')) {
this.rotation += -4
}
else if (kontra.keys.pressed('right')) {
this.rotation += 4
}
  // move the ship forward in the direction it's facing
const cos = Math.cos(degreesToRadians(this.rotation));
const sin = Math.sin(degreesToRadians(this.rotation));

if (kontra.keys.pressed('up')) {
this.ddx = cos * 0.1;
this.ddy = sin * 0.1;
}
else {
this.ddx = this.ddy = 0;
}
  this.advance();
  // set a max speed
const magnitude = Math.sqrt(this.dx * this.dx + this.dy * this.dy);
if (magnitude > 10) {
this.dx *= 0.95;
this.dy *= 0.95;
}
}

Firing Bullets

The last sprite to code is the bullets.

When the player presses the spacebar, the ship should fire a bullet in the direction the player is facing. However, we want to limit the amount of bullets the player can shoot so it’s not an infinite stream of bullets.

We can do this by keeping track of how much time has passed since the players last shot. If enough time has elapsed, we can fire another bullet by adding it to the sprites array.

Kontra.js guarantees a frame rate of 60FPS, so each frame is exactly 1/60 of a second. Using this, we can track how much time has passed.

Each bullet should start at the end of the ship and move slightly faster than the ship is moving. Each bullet should also only live for a short time on the screen.

To do this, we’ll set the ttl (time to live) property on the bullet. This property tells the sprite how many frames it should be alive. We can then use array.filter() to remove any dead bullets from the array by checking sprite.isAlive().

However, by default, a sprites ttl is zero. We'll need to prevent the ship and asteroid from being removed by giving them a ttl of Infinity.

Lastly, we now have three different types of sprites. While we’re updating the code, we should give each sprite a type property so we can use it to identify them while we’re looping over them. Go ahead an give the asteroid a type: 'asteroid', the ship a type: 'ship', and the bullet a type: 'bullet'.

The ship code should now look like this:

let ship = kontra.sprite({

// make sure to give the asteroids a type: 'asteroids'!
type: 'ship',

x: 300,
y: 300,
width: 6, // we'll use this later for collision detection
rotation: 0, // 0 degrees is to the right
dt: 0, // track how much time has passed
  // make sure to give the asteroids this as well!
ttl: Infinity,

render() {
this.context.save();
    // transform the origin, and rotate around the origin
// using the ships rotation
this.context.translate(this.x, this.y);
this.context.rotate(degreesToRadians(this.rotation));
    // draw a right facing triangle
this.context.beginPath();
    this.context.moveTo(-3, -5);
this.context.lineTo(12, 0);
this.context.lineTo(-3, 5);
    this.context.closePath();
this.context.stroke();
this.context.restore();
},
update() {
// rotate the ship left or right
if (kontra.keys.pressed('left')) {
this.rotation += -4
}
else if (kontra.keys.pressed('right')) {
this.rotation += 4
}
    // move the ship forward in the direction it's facing
const cos = Math.cos(degreesToRadians(this.rotation));
const sin = Math.sin(degreesToRadians(this.rotation));

if (kontra.keys.pressed('up')) {
this.ddx = cos * 0.1;
this.ddy = sin * 0.1;
}
else {
this.ddx = this.ddy = 0;
}
    this.advance();
    // set a max speed
const magnitude = Math.sqrt(this.dx * this.dx + this.dy * this.dy);
if (magnitude > 10) {
this.dx *= 0.95;
this.dy *= 0.95;
}
    // allow the player to fire no more than 1 bullet every 1/4 second
this.dt += 1/60;
if (kontra.keys.pressed('space') && this.dt > 0.25) {
this.dt = 0;
      let bullet = kontra.sprite({
type: 'bullet',
        // start the bullet on the ship at the end of the triangle
x: this.x + cos * 12,
y: this.y + sin * 12,
        // move the bullet slightly faster than the ship
dx: this.dx + cos * 5,
dy: this.dy + sin * 5,
        // live only 50 frames
ttl: 50,
        // bullets are small
width: 2,
height: 2,
color: 'white'
});
      sprites.push(bullet);
}
}
});

At the end of the game loop update code you can filter out dead bullets.

sprites = sprites.filter(sprite => sprite.isAlive());
Ship firing bullets at the asteroids

Collision Detection

We’re almost done. Now that we have bullets we need to check for collision between the asteroids and the other objects.

We can do this inside the loops update() function. We're going to cheat a bit to keep things simple and just assume everything's a circle. Then we can use a simple circle vs. circle collision check.

Using the previously added type property, we can determine which sprite are asteroids and then find all the non-asteroid sprites and check collision between them.

The update() function should now look like this:

update() {
sprites.map(sprite => {
sprite.update();
    // sprite is beyond the left edge
if (sprite.x < 0) {
sprite.x = kontra.canvas.width;
}
// sprite is beyond the right edge
else if (sprite.x > kontra.canvas.width) {
sprite.x = 0;
}
// sprite is beyond the top edge
if (sprite.y < 0) {
sprite.y = kontra.canvas.height;
}
// sprite is beyond the bottom edge
else if (sprite.y > kontra.canvas.height) {
sprite.y = 0;
}
});
  // collision detection
for (let i = 0; i < sprites.length; i++) {
    // only check for collision against asteroids
if (sprites[i].type === 'asteroid') {
for (let j = 0; j < sprites.length; j++) {
        // don't check asteroid vs. asteroid collisions
if (sprites[j].type !== 'asteroid') {
let asteroid = sprites[i];
let sprite = sprites[j];
          // circle vs. circle collision detection
let dx = asteroid.x - sprite.x;
let dy = asteroid.y - sprite.y;
if (Math.sqrt(dx * dx + dy * dy) < asteroid.radius + sprite.width) {
asteroid.ttl = 0;
sprite.ttl = 0;
            break;
}
}
}
}
}
sprites = sprites.filter(sprite => sprite.isAlive());
}

Splitting the Asteroid

With collision detection up and running, we can add the final bit of the game: splitting the asteroid into three smaller asteroids.

This requires updating our createAsteroid() function to be able to take an x and y position so we can create the asteroid where the previous one was. We'll also want to be able to pass it the size so we can create smaller asteroids.

Lastly we’ll need to update the first four calls to the function to pass it the new information.

Update the function and calls to the function like so:

function createAsteroid(x, y, radius) {
let asteroid = kontra.sprite({
type: 'asteroid',
x: x,
y: y,
radius: radius,
ttl: Infinity,
dx: Math.random() * 4 - 2,
dy: Math.random() * 4 - 2,
render() {
this.context.strokeStyle = 'white';
      this.context.beginPath();  // start drawing a shape
this.context.arc(this.x, this.y, this.radius, 0, Math.PI*2);
this.context.stroke(); // outline the circle
}
});
  sprites.push(asteroid);
}
for (var i = 0; i < 4; i++) {
createAsteroid(100, 100, 30);
}

Then in the game loop update() function, when there is a collision we can create three smaller asteroids in it's place. An asteroid can only split two times, so we'll check the radius of the asteroid to see if it's big enough to split.

if (Math.sqrt(dx * dx + dy * dy) < asteroid.radius + sprite.width) {
asteroid.ttl = 0;
sprite.ttl = 0;
  // split the asteroid only if it's large enough
if (asteroid.radius > 10) {
for (var x = 0; x < 3; x++) {
createAsteroid(asteroid.x, asteroid.y, asteroid.radius / 2.5);
}
}
  break;
}
An asteroid field of small asteroids after all the larger ones have split

Game Over

Congratulations you’ve just made your first game! We now have a fully functional Asteroids game.

Here is the complete JavaScript code for reference:

kontra.init();
let sprites = [];
function createAsteroid(x, y, radius) {
let asteroid = kontra.sprite({
type: 'asteroid',
x: x,
y: y,
radius: radius,
ttl: Infinity,
dx: Math.random() * 4 - 2,
dy: Math.random() * 4 - 2,
render() {
this.context.strokeStyle = 'white';
this.context.beginPath(); // start drawing a shape
this.context.arc(this.x, this.y, this.radius, 0, Math.PI*2);
this.context.stroke(); // outline the circle
}
});
sprites.push(asteroid);
}
for (var i = 0; i < 4; i++) {
createAsteroid(100, 100, 30);
}
// helper function to convert degrees to radians
function degreesToRadians(degrees) {
return degrees * Math.PI / 180;
}
let ship = kontra.sprite({
type: 'ship',
x: 300,
y: 300,
width: 6, // we'll use this later for collision detection
rotation: 0, // 0 degrees is to the right
dt: 0, // track how much time has passed
// make sure to give the asteroids this as well!
ttl: Infinity,
render() {
this.context.save();

// transform the origin, and rotate around the origin
// using the ships rotation
this.context.translate(this.x, this.y);
this.context.rotate(degreesToRadians(this.rotation));

// draw a right facing triangle
this.context.beginPath();
this.context.moveTo(-3, -5);
this.context.lineTo(12, 0);
this.context.lineTo(-3, 5);

this.context.closePath();
this.context.stroke();
this.context.restore();
},
update() {
// rotate the ship left or right
if (kontra.keys.pressed('left')) {
this.rotation += -4
}
else if (kontra.keys.pressed('right')) {
this.rotation += 4
}
// move the ship forward in the direction it's facing
const cos = Math.cos(degreesToRadians(this.rotation));
const sin = Math.sin(degreesToRadians(this.rotation));
if (kontra.keys.pressed('up')) {
this.ddx = cos * 0.1;
this.ddy = sin * 0.1;
}
else {
this.ddx = this.ddy = 0;
}
this.advance();
// set a max speed
const magnitude = Math.sqrt(this.dx * this.dx + this.dy * this.dy);
if (magnitude > 10) {
this.dx *= 0.95;
this.dy *= 0.95;
}
// allow the player to fire no more than 1 bullet every 1/4 second
this.dt += 1/60;
if (kontra.keys.pressed('space') && this.dt > 0.25) {
this.dt = 0;
let bullet = kontra.sprite({
type: 'bullet',
// start the bullet on the ship at the end of the triangle
x: this.x + cos * 12,
y: this.y + sin * 12,
// move the bullet slightly faster than the ship
dx: this.dx + cos * 5,
dy: this.dy + sin * 5,
// live only 50 frames
ttl: 50,
// bullets are small
width: 2,
height: 2,
color: 'white'
});
sprites.push(bullet);
}
}
});
sprites.push(ship);
let loop = kontra.gameLoop({
update() {
sprites.map(sprite => {
sprite.update();
// sprite is beyond the left edge
if (sprite.x < 0) {
sprite.x = kontra.canvas.width;
}
// sprite is beyond the right edge
else if (sprite.x > kontra.canvas.width) {
sprite.x = 0;
}
// sprite is beyond the top edge
if (sprite.y < 0) {
sprite.y = kontra.canvas.height;
}
// sprite is beyond the bottom edge
else if (sprite.y > kontra.canvas.height) {
sprite.y = 0;
}
});

// collision detection
for (let i = 0; i < sprites.length; i++) {
// only check for collision against asteroids
if (sprites[i].type === 'asteroid') {
for (let j = 0; j < sprites.length; j++) {
// don't check asteroid vs. asteroid collisions
if (sprites[j].type !== 'asteroid') {
let asteroid = sprites[i];
let sprite = sprites[j];
// circle vs. circle collision detection
let dx = asteroid.x - sprite.x;
let dy = asteroid.y - sprite.y;
            if (Math.sqrt(dx * dx + dy * dy) < asteroid.radius + sprite.width) {
asteroid.ttl = 0;
sprite.ttl = 0;
// split the asteroid only if it's large enough
if (asteroid.radius > 10) {
for (var x = 0; x < 3; x++) {
createAsteroid(asteroid.x, asteroid.y, asteroid.radius / 2.5);
}
}
break;
}
}
}
}
}
sprites = sprites.filter(sprite => sprite.isAlive());
},
render() {
sprites.map(sprite => sprite.render());
}
})
loop.start();

From here, you could keep going on your own and add more features to game. You could add player lives, a wandering UFO, hyperspace, player score, or a reset button. Or you could do something else entirely and make the game your own.

Just a reminder, Js13kGames jam 2018 starts 13th August 13:00 CEST and it’s a perfect opportunity to create your first game! Tweet out to @StevenKLambert, @js13kgames and @webmakerapp with your awesome creations. Looking forward to your games!
