Meteor-React-Ionic Mobile App Part 1: The Basic Template

4 min readJul 29, 2015

Meteor now has reasonable support for React.js, so it’s about time to start using it for hybrid mobile apps, which is one of the huge advantages of using Meteor. This template app (repo) will use React.js in place of Meteor’s built-in templating engine Blaze, ReactRouter instead of iron:router or meteorhacks:flow-router, and will use Ionic, which is a widely used hybrid mobile app framework. This should take about 10 minutes to complete.

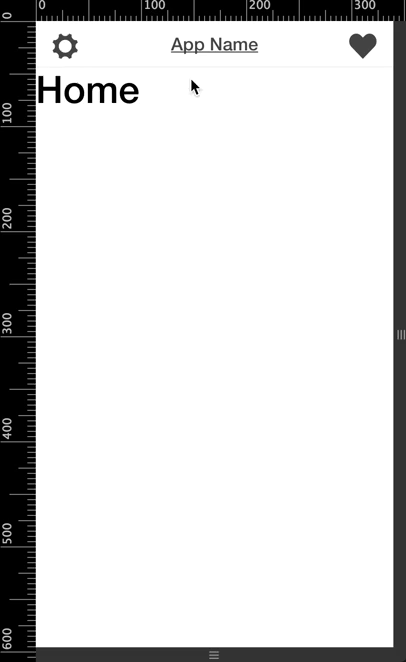

We are going to build the most basic possible template, on which we can build bigger and better apps in the future. I found that simply getting started with the Meteor-React-Ionic stack was surprisingly difficult, so this should make it easier. Your app will look like the gif to the left when you are finished.

From this base template we can add additional functionality, which I intend to write about in subsequent articles, including: passing through data with Mongo.Collections, user accounts, tabs and modals, chat functionality, Cordova integration, animations and transitions, a Tinder interface, and perhaps others.

Step 1

First, create a project with the following file structure:

├── client
│   ├── components
│   │   ├── AppBody.jsx
│   │   ├── AppLoading.jsx
│   │   ├── AppNotFound.jsx
│   │   ├── Home.jsx
│   │   ├── Other.jsx
│   │   ├── Settings.jsx
│   │   └── main.html
│   ├── router.jsx
│   └── styles
│       └── styles.scss
├── lib
│   ├── app.browserify.js
│   └── app.browserify.options.json
└── server
│  └── server.jsx
└── packages.json

You can do this easily by copy-pasting the following code:

$ mkdir client client/components client/styles lib server$ touch client/router.jsx client/components/AppBody.jsx client/components/AppLoading.jsx client/components/AppNotFound.jsx client/components/Home.jsx client/components/Other.jsx client/components/Settings.jsx client/components/main.html client/styles/styles.scss server/server.jsx lib/app.browserify.js lib/app.browserify.options.json packages.json

Then add the following packages:

$ meteor add cosmos:browserify fourseven:scss@2.0.0 meteorhacks:npm meteoric:ionic-sass meteoric:ionicons-sass react

Then, you have to set a few options and add a couple npm packages. In app.browserify.options.json add the following code:

{
  "transforms": {
    "externalify": {
      "global": true,
      "external": {
        "react": "React.require"
      }
    }
  }
}

In app.browserify.js, add the following:

ReactRouter = require("react-router");

In packages.json, add the following two npm packages:

{
  "react-router": "0.13.3",
  "externalify": "0.1.0"
}

Then, we need to add a couple lines to make sure our meteoric:ionic-sass and meteoric:ionicons-sass packages work. In styles.scss, paste the following:

@import ".meteor/local/build/programs/server/assets/packages/meteoric_ionic-sass/ionic";
@import ".meteor/local/build/programs/server/assets/packages/meteoric_ionicons-sass/ionicons";

Now that we have all this in place, it’s time to run meteor. NOTE: You will have to start it multiple times. First, the meteorhacks:npm package will kill the process, then due to some quirks with the meteoric packages, you will have to run it again. When in doubt, kill the process and run it again.

Step 2

Our next step is to create the components for each of our three views. But first, in client/components/main.html, add the following code:

<head>
  <title>React Mobile Template</title>
  <meta charset="utf-8">
  <meta name="description" content="Template React-Meteor-Ionic app">
  <meta name="viewport" content="user-scalable=no, initial-scale=1, minimal-ui, maximum-scale=1, minimum-scale=1" />
</head><body>
  <div id="app"></div>
</body>

Then we will create our views. In client/components/AppLoading.jsx, add the following:

AppLoading = React.createClass({
  render() {
    return <h1>Loading…</h1>
  }
});

In client/components/AppNotFound.jsx, add:

AppNotFound = React.createClass({
  render() {
    return <h1>Not Found</h1>
  }
});

In client/components/Home.jsx, add:

Home = React.createClass({
  render() {
    return <h1>Home</h1>
  }
});

In client/components/Settings.jsx, add:

Settings = React.createClass({
  render() {
    return <h1>Settings</h1>
  }
});

In client/components/Other.jsx, add:

Other = React.createClass({
  render() {
    return <h1>Other</h1>
  }
});

And finally, we build the part that ties them all together in client/components/AppBody.jsx:

AppBody = React.createClass({
  render() {
    return (
      <div className="ionic-body">
        <div className="bar bar-header bar-light">
          <ReactRouter.Link className="button button-icon icon ion-gear-a" to={"/settings"}></ReactRouter.Link>
          <ReactRouter.Link className="h1 title" to={"/"}>App Name</ReactRouter.Link>
          <ReactRouter.Link className="button button-icon icon ion-heart" to={"/other"}></ReactRouter.Link>
        </div>        <div className="view">
          <div className="scroll-content ionic-scroll">
            <div className="content overflow-scroll has-header">
              <ReactRouter.RouteHandler />
            </div>
          </div>
        </div>
      </div>
    )
  }
});

Step 3

The next thing we will do is set up our router in client/router.jsx. Since we will only have 3 views, this will be pretty simple:

const routes = (
  <ReactRouter.Route name="root" handler={AppBody}>
    <ReactRouter.Route name="home" path="/" handler={Home} />
    <ReactRouter.Route name="other" path="/other" handler={Other} />
    <ReactRouter.Route name="settings" path="/settings" handler={Settings} />
    <ReactRouter.DefaultRoute handler={AppLoading} />
    <ReactRouter.NotFoundRoute handler={AppNotFound} />
  </ReactRouter.Route>
);Meteor.startup(function () {
  ReactRouter.run(routes, ReactRouter.HistoryLocation, function (Handler, state) {
    React.render(<Handler />, document.getElementById("app"));
 });
});

And now you’re done! Your app is pretty lame at this point, but it’s a good place to start.

Sam Corcos is the lead developer and co-founder of Sightline Maps, the most intuitive platform for 3D printing topographical maps, as well as LearnPhoenix.io, an advanced tutorial site for building scaleable production apps with Phoenix and React.
