How to Create a Responsive Landing Page with Sketch

Launchpad for Sketch 101

Launchpad allows you to publish websites directly from Sketch, no coding required. On our mission to empower designers, we are continuously pushing the envelope on what designers can achieve without writing code.

On this post

  • 🙋‍ Create a hero image
  • 📱 Design artboards for Mobile, Tablet & Desktop with Breakpoints
  • 📩 Add a form for clients to reach out
  • 🚀 Publish our design as a website
  • ⬇️ Download the files

Let’s Begin!

Need a Hero?

A beautiful end-to-end image at the top of your page sets the atmosphere. The easiest way to achieve that is to put a very wide image, overflowing the artboard and centered.

If you want it to stretch, checkout tips in the bottom.

Design Responsively 🍻

In Launchpad each artboard is a web page. In order to create responsive design that fits both mobile and desktop we’ll use the Breakpoints feature.

We’ll select one of the artboards, click the Breakpoints button and mark the the 2nd to say that they are actually the same webpage (but for different screen sizes).

Connecting two artboards as the same web page (different sizes)

The thumb rule here is that artboard will never shrink, only grow up to the next the next artboard width.

For example, if I set the Artboards width to 320px, 768px and 1024px:

  • For browser width below 320px we’ll get horizontal scrolling.
  • 320–767 will show the artboard with 320px width.
  • 768–1023 will show the artboard with 768px width.
  • 1024+ will show the artboard with 1024 width.
The displayed artboard will change at browser width 1023px

In order to pin stuff to sides or set more complex rules on how a 320px artboard looks when presented on 480px screen, use Auto-Layout Pins.

Forms — Talk to your Users

Mostly, landing pages have a contact or a signup form. It’s super easy to make one with Launchpad.

  • Start by designing it — a text input (Or multiple) and a send button.
  • Use the “Set as” button to make them an input and a submit button.
Setting text input and a submit button.
  • When making a submit button, you may define what happens with the sent data — Email it to you and/or make a spreadsheet.
  • Also, you can set a ‘Thank you’ and a ‘Failure’ pages.

Important — Set your Home

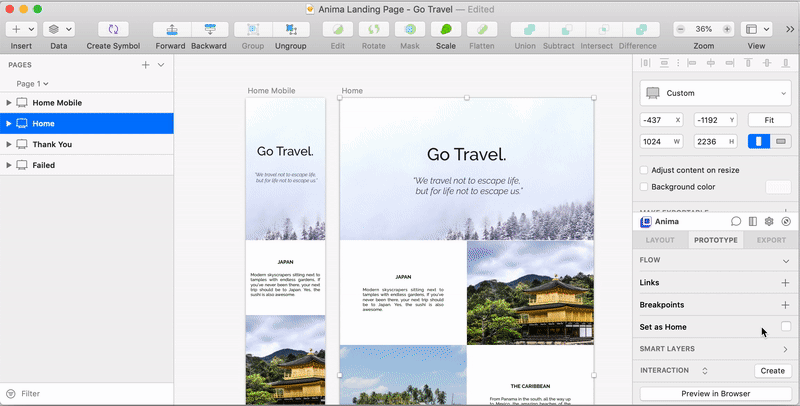

When using multiple artboards (multiple websites pages) let Launchpad know your home-page by selecting artboard, pressing ‘•••’, Set as Home.

Launch!

Ready for the fun part? Click the 🚀 and put your site online 🎉

This small button will do the magic.

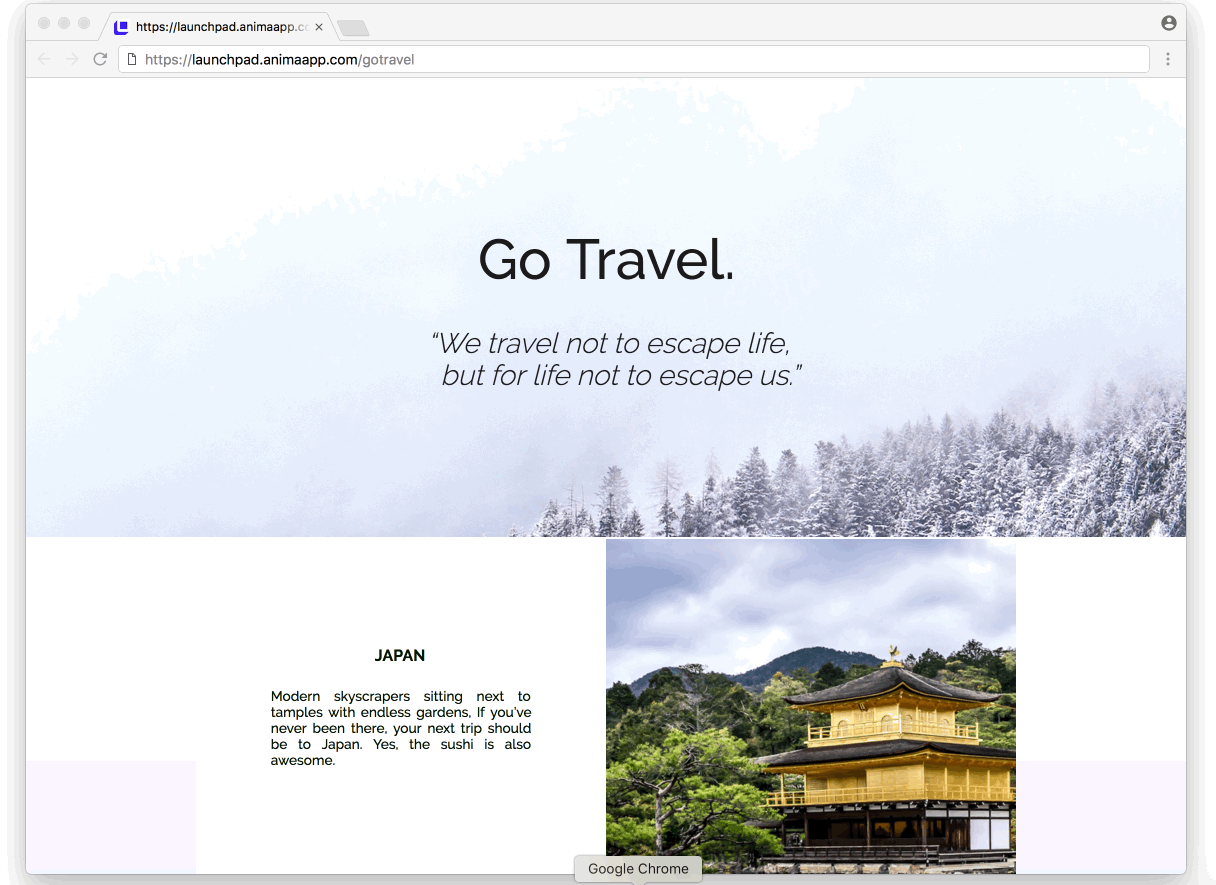

Click to see the live result

Wanna give it a nicer link? Hit the ‘Publish’->’Manage’ change the url path or connect your own domain.

Tips

  • Make your hero stretch instead of overflow using Auto-Layout Pins:
Optional: Pin hero to make it stretch
  • Images are exported as you define it in the ‘Exportable’ section, so you can set a group as ‘Exportable’ in order to flatten it. And you can set some images to be JPG, SVG or PNG according to your needs.
For example, the hero image is a large photo, best practice would be to use JPG format with 1x.
  • Gradients and vectors usually work best with SVG, or PNG if Sketch fails to export the SVG exactly as you wanted.
